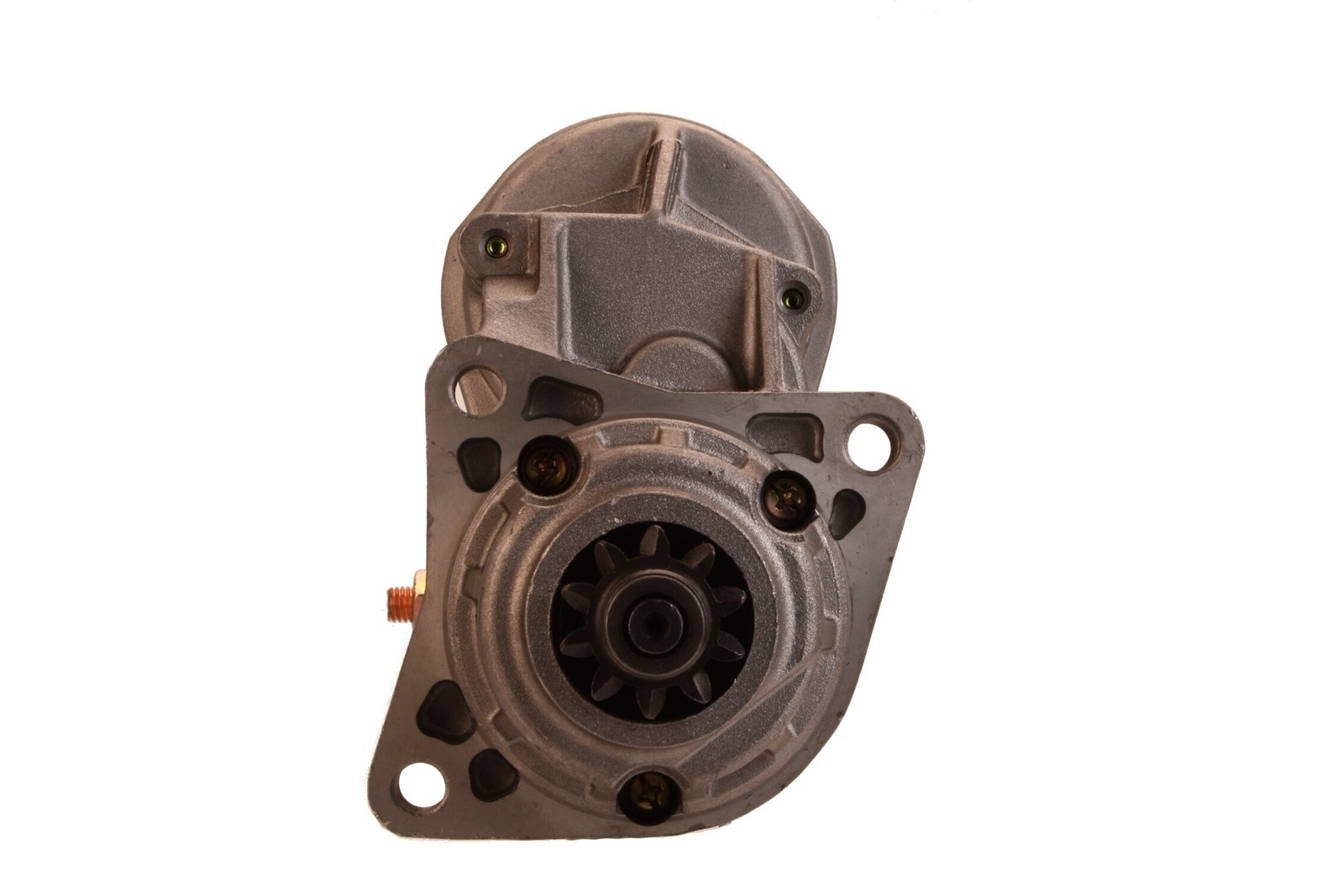

S1512 12V 2.5kW Starter Motor Fits Caterpillar V60F, Caterpillar V80F
Price range: £130.78 through £156.77
Identify a replacement starter motor using Sahibs S1512, listed at 12V 2.5kW. Listed applications include selected Caterpillar V60F, Caterpillar V80F models. Identification references include Lucas LRS01512, Bosch F042000085, Denso 1280004720. Its listed 12V 2.5kW rating provides an electrical matching point for your existing unit. Check the 10-tooth pinion, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your S1512 replacement starter motor online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| KW | 2.5 kW |
| Volt | 12 V |
| Plug | M10 |
| Rotation | Clockwise |
| Teeth | 10 qty |
| Oil Sealed | No |
| Insulated Return | No |
| Waterproof | No |
| Wet Clutch | No |
| Weight | 8.34 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYS1512 | Dyno Electrics |
| 031111001A | Caterpillar |
| 0986UR1531 | Bosch Exchange |
| 110961 | HC-Cargo |
| 115625 | HC-Cargo |
| 1280004720 | Denso |
| 1280008290 | Denso |
| 1280008291 | Denso |
| 1280008292 | Denso |
| 1280008293 | Denso |
| 1280008294 | Denso |
| 1280009610 | Denso |
| 1280808294 | Denso |
| 1692007 | Hyster |
| 17399N | WAI |
| 17399R | WAI |
| 17630N | WAI |
| 17630R | WAI |
| 2280003600 | Denso |
| 2280003601 | Denso |
| 2280003602 | Denso |
| 2280003603 | Denso |
| 3.00E+79 | Caterpillar |
| 4280002160 | Denso |
| 640510103 | PSH |
| 7C2264 | Caterpillar |
| 8T4618 | Caterpillar |
| 8T8619 | Caterpillar |
| 91295129 | Wilson |
| 91295358N | Wilson |
| 9712809829 | Denso |
| ACS700 | ATK |
| C07889 | Clark |
| DENDSN2048 | Wood Auto |
| DRS3295 | Delco Remy |
| DS4405 | Delco Remy |
| DSN2048 | Denso |
| F032110961 | HC-Cargo |
| F042000085 | Bosch |
| JS906 | HC-Parts |
| LRS01512 | Lucas |
| LRS1512 | Lucas |
| RE40092 | John Deere |
| RE540302 | John Deere |
| RE54090 | John Deere |
| RNL906JS | RNL |
| RNL906JST | RNL |
| SE501426 | John Deere |
| SR5006X | Bosch (USA) |
| STR30053 | Wood Auto |
| STR70486 | Wood Auto |
| TY24437 | John Deere |
| WOOSTR30053 | Wood Auto |
| WOOSTR70486 | Wood Auto |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| CATERPILLAR | V60F | 3975ccm Diesel | Perkins 4.248 | 1991 - | |||
| CATERPILLAR | V80F | 3975ccm Diesel | Perkins 4.248 | 1991 - |
Description
S1512 Replacement Starter Motor
Choose a replacement by comparing the S1512 starter motor and its Lucas reference, LRS01512, with your existing unit. The listed electrical rating is 12V 2.5kW. A starter motor turns the engine during starting; the electrical rating and mechanical engagement must suit the application. Applications include selected Caterpillar V60F 3975ccm Diesel variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 2.5kW power: compare the listed rating with the original starter motor.
- 10-tooth pinion: compare gear engagement and pinion position.
- Clockwise rotation: check the specified direction before fitting.
- M10 connector / terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Caterpillar V60F 3975ccm Diesel – selected applications 1991 – (engine code Perkins 4.248).
- Caterpillar V80F 3975ccm Diesel – selected applications 1991 – (engine code Perkins 4.248).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with S1512. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
0986UR1531, F042000085, 1280004720, 1280008290, 1280008291, 1280008292, 1280008293, 1280008294, 1280009610, 1280808294, 2280003600, 2280003601, 2280003602, 2280003603, 4280002160, 9712809829, DSN2048, LRS01512, LRS1512, DRS3295, DS4405
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Starter Motor?
Failure to crank, clicking during a start request or intermittent cranking can indicate a starting-system problem. A weak battery, poor connections or control-circuit faults can produce similar symptoms; test the system before replacing the starter motor.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying S1512 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will S1512 fit my Caterpillar V60F?
Caterpillar V60F 3975ccm Diesel (1991 -) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does S1512 replace Lucas LRS01512?
Lucas LRS01512 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for S1512?
The listed details include 12V, 2.5kW power, 10 pinion teeth, clockwise rotation. Compare the complete specifications on this page with the unit being replaced.
Is S1512 new or remanufactured?
Check the current product condition selection for S1512. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering S1512?
Compare 12V compatibility, 2.5kW power, 10 pinion teeth, rotation, mounting and electrical connections with the original starter.
Does clicking prove the starter motor has failed?
No. Battery voltage, wiring and control-circuit faults can also cause clicking or no cranking. Have the starting system tested before choosing a replacement.
