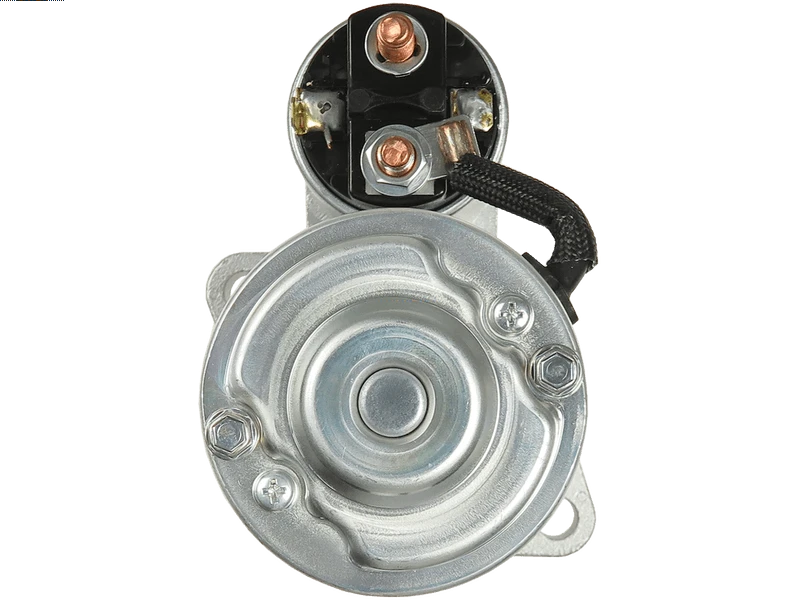

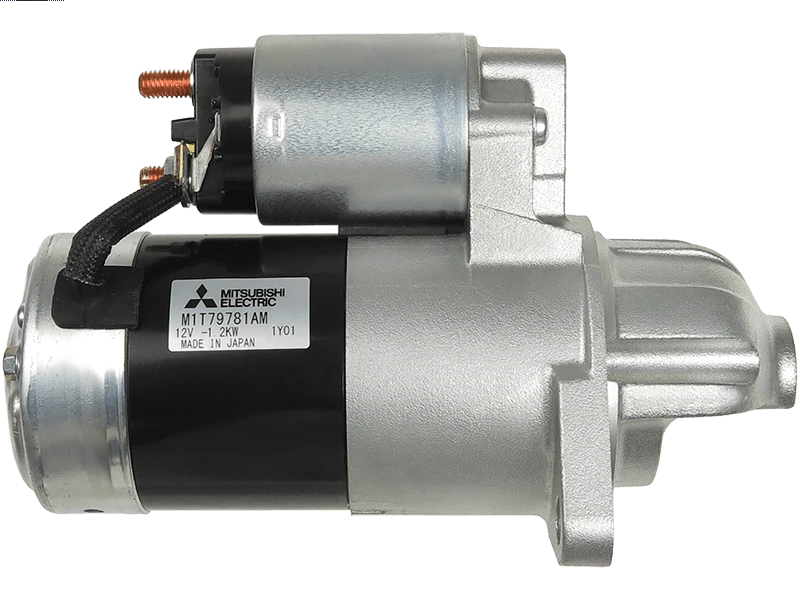

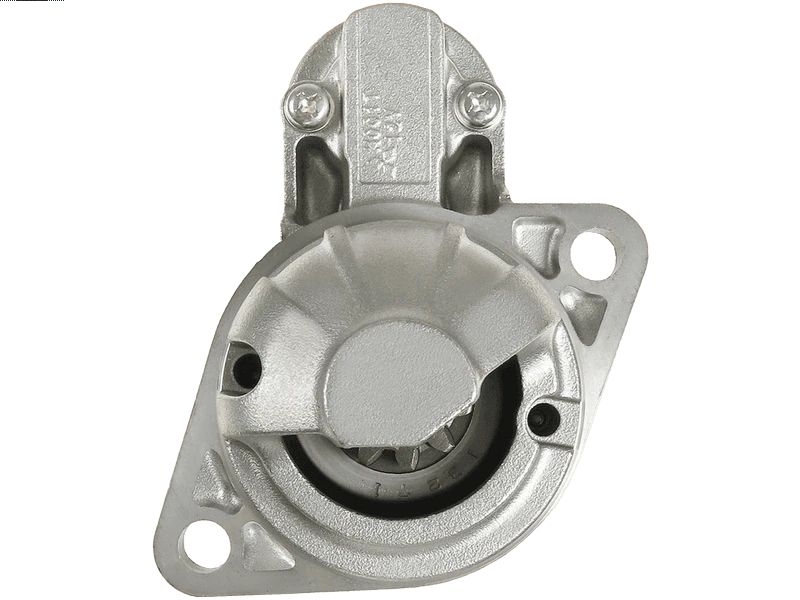

S1522 12V 1.2kW Starter Motor Fits Caterpillar GC15 Fork Lift
Price range: £103.21 through £117.67
Sahibs S1522 is a replacement starter motor with a listed 12V 1.2kW rating. Listed applications include selected Caterpillar GC15 Fork Lift, Caterpillar GC18 Fork Lift, Caterpillar GC20 Fork Lift, Caterpillar GC25 Fork Lift models. Identification references include Lucas LRS01522, Mitsubishi Electric M001T79681, Delco Remy DRS0774. Its listed 12V 1.2kW rating provides an electrical matching point for your existing unit. Check the 10-tooth pinion, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your S1522 replacement starter motor online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| KW | 1.2 kW |
| Volt | 12 V |
| Plug | M8 |
| Rotation | Clockwise |
| Teeth | 10 qty |
| Oil Sealed | No |
| Insulated Return | No |
| Waterproof | No |
| Wet Clutch | No |
| Weight | 3.2 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYS1522 | Dyno Electrics |
| 402770181 | Euro Car Part |
| UD100063(MITSUBISHI)S | AS-PL |
| 110572 | CARGO |
| F032110572 | CARGO |
| DRS0774 | DELCO |
| M001T79681 | MITSUBISHI |
| M001T79781 | MITSUBISHI |
| M001T79781AM | MITSUBISHI |
| M002T58681 | MITSUBISHI |
| M002T58881 | MITSUBISHI |
| M002T58881AM | MITSUBISHI |
| M1T79681 | MITSUBISHI |
| M1T79781 | MITSUBISHI |
| M1T79781AM | MITSUBISHI |
| M2T58681 | MITSUBISHI |
| M2T58881 | MITSUBISHI |
| M2T58881AM | MITSUBISHI |
| MD171228 | MITSUBISHI |
| MD318086 | MITSUBISHI |
| MD320618 | MITSUBISHI |
| 20513026 | PRESTOLITE |
| PRSS635 | 3EFFE |
| STRS635 | 3EFFE |
| CGB-20774 | AINDE |
| CGB-52496 | AINDE |
| CST35156AS | CASCO |
| CST35156GS | CASCO |
| 8185 | CEVAM |
| 920971 | CLARK |
| STR5071 | ELECTROLOG |
| 25-2496 | ELSTOCK |
| SG0295 | GHIBAUDI |
| STM0915 | KRAUF |
| 20915 | KUHNER |
| 336545 | LOGISTIK |
| LRS01522 | LUCAS |
| LRS1522 | LUCAS |
| 88213068 | POWERMAX |
| 150.505.102.130 | PSH |
| 150.505.102.138 | PSH |
| 150.505.102.370 | PSH |
| 20437651BN | REAL |
| 20437651OE | REAL |
| 130-10107 | ROBERT'S |
| 130-10107NOE | ROBERT'S |
| STM1209 | ROLLCO |
| 6035156 | SANDO |
| 6035156.1 | SANDO |
| S12MH0209A2 | SIDAT |
| MAV6120A | SIOM |
| 17176N | WAI / TRANSPO |
| 91-27-3211 | WILSON |
| 91-27-3211N | WILSON |
| MITM1T79781 | WOODAUTO |
| STR71177 | WOODAUTO |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| CATERPILLAR | GC15 Fork Lift | 0ccm Diesel | Mitsubishi 4G63 | 1992 - 1997 | |||
| CATERPILLAR | GC18 Fork Lift | 0ccm Diesel | Mitsubishi 4G63 | 1992 - 1997 | |||
| CATERPILLAR | GC20 Fork Lift | 0ccm Diesel | Mitsubishi 4G63 | 1992 - 1997 | |||
| CATERPILLAR | GC25 Fork Lift | 0ccm Diesel | Mitsubishi 4G63 | 1992 - 1997 | |||
| MITSUBISHI INDUSTRIAL | GC15 | 0ccm Diesel | 4G63 | 1992 - 1997 | |||
| MITSUBISHI INDUSTRIAL | GC18 | 0ccm Diesel | 4G63 | 1992 - 1997 | |||
| MITSUBISHI INDUSTRIAL | GC20 | 0ccm Diesel | 4G63 | 1992 - 1997 | |||
| MITSUBISHI INDUSTRIAL | GC25 | 0ccm Diesel | 4G63 | 1992 - 1997 | |||
| MITSUBISHI INDUSTRIAL | Various Models | 0ccm Diesel |
Description
S1522 Replacement Starter Motor
Choose a replacement by comparing the S1522 starter motor and its Lucas reference, LRS01522, with your existing unit. The listed electrical rating is 12V 1.2kW. A starter motor turns the engine during starting; the electrical rating and mechanical engagement must suit the application. Applications include selected Caterpillar GC15 Fork Lift variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 1.2kW power: compare the listed rating with the original starter motor.
- 10-tooth pinion: compare gear engagement and pinion position.
- Clockwise rotation: check the specified direction before fitting.
- M8 connector / terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Caterpillar GC15 Fork Lift – selected applications 1992–1997 (engine code Mitsubishi 4G63).
- Caterpillar GC18 Fork Lift – selected applications 1992–1997 (engine code Mitsubishi 4G63).
- Caterpillar GC20 Fork Lift – selected applications 1992–1997 (engine code Mitsubishi 4G63).
- Caterpillar GC25 Fork Lift – selected applications 1992–1997 (engine code Mitsubishi 4G63).
- Mitsubishi Industrial GC15 – selected applications 1992–1997 (engine code 4G63).
- Mitsubishi Industrial GC18 – selected applications 1992–1997 (engine code 4G63).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with S1522. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
LRS01522, LRS1522, M001T79681, M001T79781, M001T79781AM, M002T58681, M002T58881, M002T58881AM, M1T79681, M1T79781, M1T79781AM, M2T58681, M2T58881, M2T58881AM, MD171228, MD318086, MD320618, DRS0774, 20513026
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Starter Motor?
Failure to crank, clicking during a start request or intermittent cranking can indicate a starting-system problem. A weak battery, poor connections or control-circuit faults can produce similar symptoms; test the system before replacing the starter motor.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying S1522 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will S1522 fit my Caterpillar GC15 Fork Lift?
Caterpillar GC15 Fork Lift (1992–1997) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does S1522 replace Lucas LRS01522?
Lucas LRS01522 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for S1522?
The listed details include 12V, 1.2kW power, 10 pinion teeth, clockwise rotation. Compare the complete specifications on this page with the unit being replaced.
Is S1522 new or remanufactured?
Check the current product condition selection for S1522. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering S1522?
Compare 12V compatibility, 1.2kW power, 10 pinion teeth, rotation, mounting and electrical connections with the original starter.
Does clicking prove the starter motor has failed?
No. Battery voltage, wiring and control-circuit faults can also cause clicking or no cranking. Have the starting system tested before choosing a replacement.
