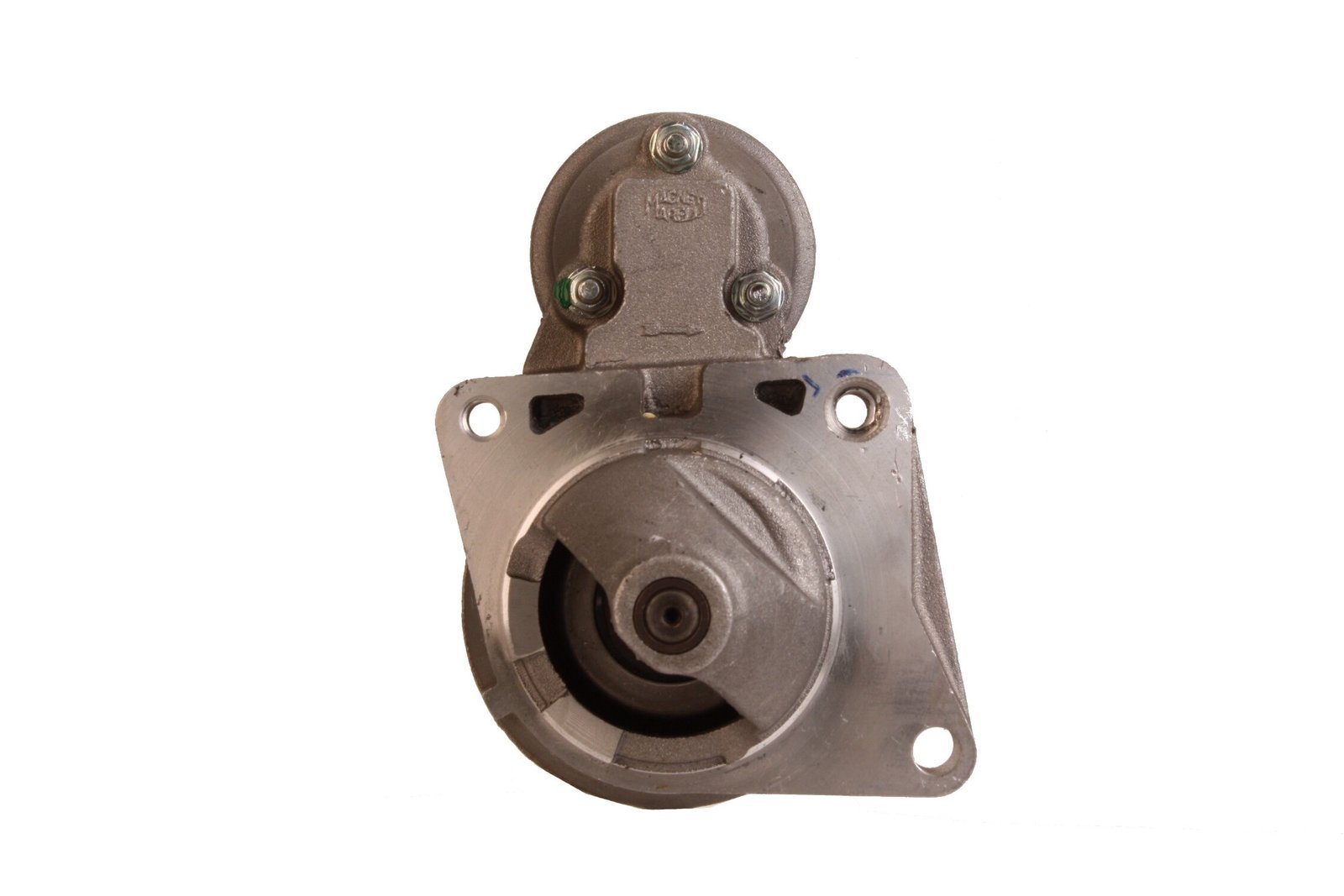

S1556 12V 0.8kW Starter Motor Fits Fiat 600, Fiat Doblo, Fiat Palio
Price range: £93.08 through £110.65
Identify a replacement starter motor using Sahibs S1556, listed at 12V 0.8kW. Listed applications include selected Fiat 600, Fiat Doblo, Fiat Doblo Cargo, Fiat Palio models. Identification references include Lucas LRS01556, Bosch F000AL0309, Valeo 1221233. Its listed 12V 0.8kW rating provides an electrical matching point for your existing unit. Check the 8-tooth pinion, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your S1556 replacement starter motor online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| KW | 0.8 kW |
| Volt | 12 V |
| Plug | M8 |
| Rotation | Clockwise |
| Teeth | 8 qty |
| Oil Sealed | No |
| Insulated Return | No |
| Waterproof | No |
| Wet Clutch | No |
| Weight | 3.3 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYS1556 | Dyno Electrics |
| 402650731 | Euro Car Part |
| 63101023010 | Magneti Marelli |
| 0986B05009 | Bosch Exchange |
| 112028 | HC-Cargo |
| 1221233 | Valeo |
| 20130077 | AES |
| 26925247A | Lucas |
| 31282N | WAI |
| 32474R | WAI |
| 446520 | Valeo |
| 458497 | Valeo |
| 458512 | Valeo |
| 46432262 | Fiat Group |
| 46465475 | Fiat Group |
| 46763530 | Fiat Group |
| 46765839 | Fiat Group |
| 46796553 | Fiat Group |
| 46823544 | Fiat Group |
| 46843092 | Fiat Group |
| 495108 | Valeo |
| 500026083 | PSH |
| 51888975 | Fiat Group |
| 51888975RR | RNL |
| 55201771 | Fiat Group |
| 55209989 | Fiat Group |
| 63101003 | Magneti Marelli |
| 63101003010 | Magneti Marelli |
| 63101008 | Magneti Marelli |
| 63101008010 | Magneti Marelli |
| 63101022 | Magneti Marelli |
| 63101022010 | Magneti Marelli |
| 63102014 | Magneti Marelli |
| 63102021 | Magneti Marelli |
| 63102021010 | Magneti Marelli |
| 71721220 | Fiat Group |
| 71722372 | Fiat Group |
| 71782359 | Fiat Group |
| 8000090 | Delco Remy |
| 8000090P | Delco Remy |
| BOSF000CD0A01 | Wood Auto |
| DRS0068 | Delco Remy |
| DRS3589 | Delco Remy |
| DRS3983 | Delco Remy |
| DSN575 | Denso |
| F000AL0309 | Bosch |
| F000AL0310 | Bosch |
| F000CD0001 | Bosch |
| F000CD0900 | Bosch |
| F000CD09A0 | Bosch |
| F000CD09A3 | Bosch |
| F000CD0A01 | Bosch |
| LRS01556 | Lucas |
| LRS1556 | Lucas |
| MSN402 | Magneti Marelli |
| RNL1930 | RNL |
| STR50685 | Wood Auto |
| STR52077 | Wood Auto |
| TSC1015 | Valeo |
| WOOSTR50685 | Wood Auto |
| WOOSTR52077 | Wood Auto |
Alternative Parts
| Alternative Part | Current Description | Alternative Description | Direct Alternative |
|---|---|---|---|
| S3951 | 0.8KW | 1.0KW | Yes |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| FIAT | 600 | 1.1 (1108ccm) Petrol | 187A1000 | 187AXC1A02 | 2005 - 2010 | ||
| FIAT | Doblo | 1.2 (1242ccm) Petrol | 223A5000 | 223AXA1A | 2000 - 2005 | ||
| FIAT | Doblo Cargo | 1.2 (1242ccm) Petrol | 223A5000 | 223ZXA1A | 2001 - 2004 | ||
| FIAT | Palio | 1.2 (1242ccm) Petrol | 178B5000 | 178AXG1AAT/178BXG1AAT | 1996 - 2002 | ||
| FIAT | Palio | 1.2 (1242ccm) Petrol | 178B7045/188A4000 | 178AYA1A/178BXU1A/178BXU1AAR/178BYA1A/178BYA1AAT | 1997 - 2002 | ||
| FIAT | Palio | 1.2 (1242ccm) Petrol | 178E2000 | 178AXZ1A/178BXZ1A | 1999 - 2000 | ||
| FIAT | Palio Weekend | 1.2 (1242ccm) Petrol | 178B5000 | 178DXG1A/178DXG1AAP/178DXG1AAT | 1996 - 2001 | ||
| FIAT | Palio Weekend | 1.2 (1242ccm) Petrol | 178C4066/188A4000 | 178AYA1A08/178BYA1A08/178DXS1AAI/178DYA1A/178DYA1AAP/178DYA1AAT | 1997 - 2004 | ||
| FIAT | Palio Weekend | 1.3 (1242ccm) Petrol | 178D6011/188A5000 | 178DYE1A/178DYE1AAP/178DYE1AAT | 2001 - 2004 | ||
| FIAT | Seicento | 1.1 (1108ccm) Petrol | 176B2000/187A1000 | 187AXB1A/187AXC1A02 | 1998 - 2010 | ||
| FIAT | Seicento | 1.1 (1108ccm) Petrol | 176B2000/187A1000 | 187CXB/187CXC1A00 | 2000 - 2004 |
Description
S1556 Replacement Starter Motor
The S1556 starter motor is a replacement unit identified by Lucas reference LRS01556. The listed electrical rating is 12V 0.8kW. A starter motor turns the engine during starting; the electrical rating and mechanical engagement must suit the application. Applications include selected Fiat 600 1.1 Petrol variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 0.8kW power: compare the listed rating with the original starter motor.
- 8-tooth pinion: compare gear engagement and pinion position.
- Clockwise rotation: check the specified direction before fitting.
- M8 connector / terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Fiat 600 1.1 Petrol – selected applications 2005–2010 (engine code 187A1000).
- Fiat Doblo 1.2 Petrol – selected applications 2000–2005 (engine code 223A5000).
- Fiat Doblo Cargo 1.2 Petrol – selected applications 2001–2004 (engine code 223A5000).
- Fiat Palio 1.2 Petrol – selected applications 1996–2002 (engine code 178B5000).
- Fiat Palio Weekend 1.2 Petrol – selected applications 1996–2001 (engine code 178B5000).
- Fiat Seicento 1.1 Petrol – selected applications 1998–2010 (engine code 176B2000/187A1000).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with S1556. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
0986B05009, F000AL0309, F000AL0310, F000CD0001, F000CD0900, F000CD09A0, F000CD09A3, F000CD0A01, 1221233, 446520, 458497, 458512, 495108, TSC1015, DSN575, LRS01556, 26925247A, LRS1556, 8000090, 8000090P, DRS0068, DRS3589, DRS3983
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Starter Motor?
Failure to crank, clicking during a start request or intermittent cranking can indicate a starting-system problem. A weak battery, poor connections or control-circuit faults can produce similar symptoms; test the system before replacing the starter motor.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying S1556 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will S1556 fit my Fiat 600?
Fiat 600 1.1 Petrol (2005–2010) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does S1556 replace Lucas LRS01556?
Lucas LRS01556 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for S1556?
The listed details include 12V, 0.8kW power, 8 pinion teeth, clockwise rotation. Compare the complete specifications on this page with the unit being replaced.
Is S1556 new or remanufactured?
Check the current product condition selection for S1556. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering S1556?
Compare 12V compatibility, 0.8kW power, 8 pinion teeth, rotation, mounting and electrical connections with the original starter.
Does clicking prove the starter motor has failed?
No. Battery voltage, wiring and control-circuit faults can also cause clicking or no cranking. Have the starting system tested before choosing a replacement.
