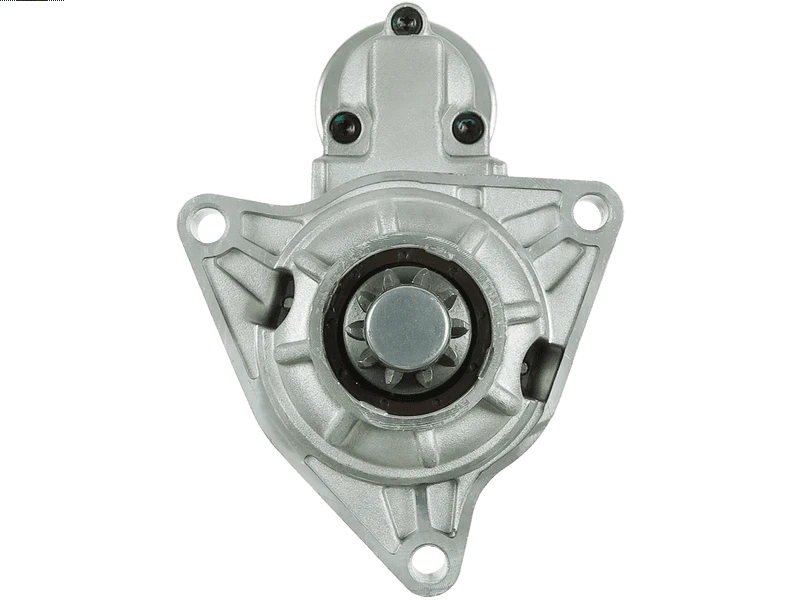

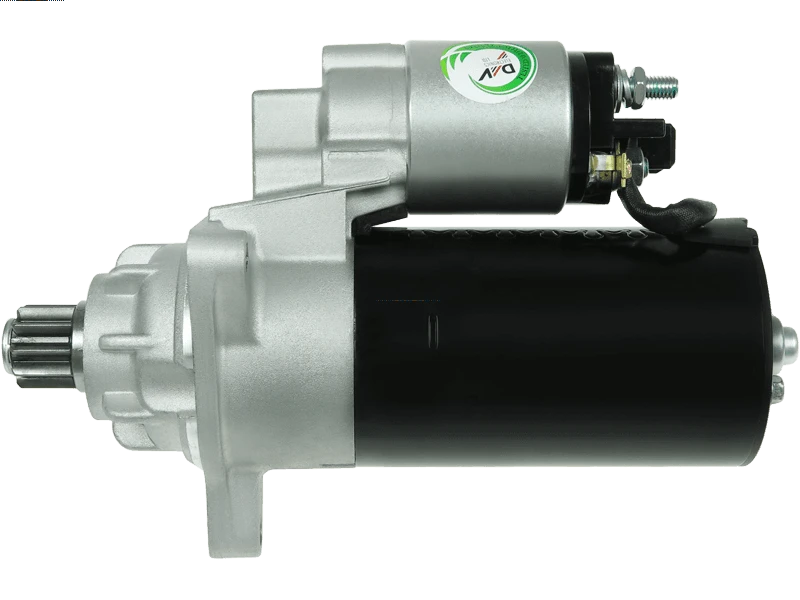

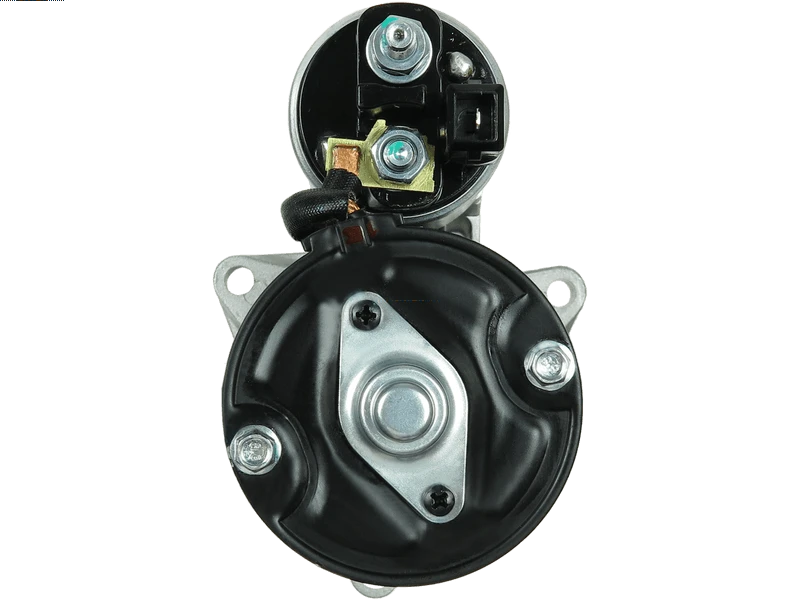

S1564 12V 2.0kW Starter Motor Fits VW California, VW Campmobile
Price range: £101.82 through £117.48
Identify a replacement starter motor using Sahibs S1564, listed at 12V 2.0kW. Listed applications include selected VW California, VW Campmobile, VW Caravelle, VW Multivan models. Identification references include Lucas LRS01564, Bosch 1125016, Valeo 460223. Its listed 12V 2.0kW rating provides an electrical matching point for your existing unit. Check the 10-tooth pinion, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your S1564 replacement starter motor online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| KW | 2 kW |
| Volt | 12 V |
| Plug | M8 |
| Teeth | 10 qty |
| Oil Sealed | No |
| Insulated Return | No |
| Waterproof | No |
| Wet Clutch | No |
| Weight | 4.3 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYS1564 | Dyno Electrics |
| S0212 | AS-PL |
| 1125016 | BOSCH |
| 1125017 | BOSCH |
| 1125046 | BOSCH |
| 1125047 | BOSCH |
| 0001125047-R | BOSCH |
| 986021870 | BOSCH |
| 1986S00811 | BOSCH |
| F032112444 | BOSCH |
| F032116340 | BOSCH |
| 112444 | CARGO |
| 116340 | CARGO |
| 1516691R | DAF |
| DRS3823 | DELCO |
| 8EA737892-001 | HELLA |
| 9.43212E+11 | MAGNETI MARELLI |
| 9.44281E+11 | MAGNETI MARELLI |
| MRS80205 | MAGNETI MARELLI |
| MSRC1209 | MAGNETI MARELLI |
| 460223 | VALEO |
| 02B911023E | VW |
| 02B911023EX | VW |
| 02B911023M | VW |
| 02B911023MX | VW |
| PRSS524 | 3EFFE |
| STRS524 | 3EFFE |
| AZMT-53-010-1338 | A.Z. MEISTERTEILE |
| AC-CBS1209 | ACAUTO |
| 10440882 | ALANKO |
| ANM16043 | ANDEL |
| ANM16043X | ANDEL |
| A16995 | ATL AUTOTECHNIK |
| AEU1209 | AUTOELECTRO |
| SBO286 | AUTOTEAM |
| SBO286A | AUTOTEAM |
| BST2443 | BORG & BECK |
| STA0476R | BOVEZ |
| S100406 | BTS TURBO |
| S100409 | BTS TURBO |
| S101592 | BTS TURBO |
| BREF0320986021870 | CARWOOD GROUP |
| BREF032116340 | CARWOOD GROUP |
| CST10286AS | CASCO |
| CST10286GS | CASCO |
| CST10286RS | CASCO |
| 3112 | CEVAM |
| 22.1209 | CQ |
| 22.1209M | CQ |
| CQ2080003 | CQ |
| TS6116 | DIXIE |
| 311070102 | DRI |
| 12137 | EAI |
| STR1568 | ELECTROLOG |
| 25-3063 | ELSTOCK |
| 11090032 | EUROTEC |
| 104785 | FARCOM |
| 8080205 | FRIESEN |
| SG0671 | GHIBAUDI |
| SG0671RB | GHIBAUDI |
| CS1209 | HC PARTS |
| HCS1209 | HC PARTS |
| 3116811 | HENKEL PARTS |
| 3116812 | HENKEL PARTS |
| 42021870 | HERTH+BUSS |
| H5010413 | HOFFER |
| H5010413G | HOFFER |
| 10010286AV | ITAB AUTOMOTIVE |
| 10010286OV | ITAB AUTOMOTIVE |
| 10010286RV | ITAB AUTOMOTIVE |
| 101209 | KUHNER |
| 101209B | KUHNER |
| 331147 | LOGISTIK |
| LRS01564 | LUCAS |
| LRS1564 | LUCAS |
| 13973 | MAPCO |
| 5010413 | MEAT & DORIA |
| 5010413G | MEAT & DORIA |
| 8212530 | POWERMAX |
| 88212530 | POWERMAX |
| IR9491 | PROTECH |
| 300.547.103.010 | PSH |
| 300.547.103.211 | PSH |
| 300.547.103.340 | PSH |
| QRS1123 | QUINTON HAZELL |
| 20401682BN | REAL |
| 20401682OE | REAL |
| 20401682RC | REAL |
| 011-001-000483R | REMANTE |
| 2S0239 | RIDEX |
| 2S0239R | RIDEX |
| RNL2187 | RNL |
| RNL2187T | RNL |
| STM1074 | ROLLCO |
| 6010286 | SANDO |
| 6010286.1 | SANDO |
| 6010286.2 | SANDO |
| S12BH0348 | SIDAT |
| S12BH0348A2 | SIDAT |
| MAV122860 | SIOM |
| VW9088 | SNRA |
| SS064 | SOVEREIGN |
| STX200146 | STARDAX |
| STX200146R | STARDAX |
| SKSTR-0330238 | STARK |
| 137ST21 | STARTCAR |
| RE83625N | THE NEWLINE |
| ST01154 | TMI |
| 32564N | WAI / TRANSPO |
| STR50368 | WOODAUTO |
| WOOSTR50368 | WOODAUTO |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| VW | California | 2.5 (2461ccm) Diesel | AHY/AXG | T4 | Camper | 7DK | 1999 - 2000 |
| VW | California | 2.8 (2792ccm) Petrol | AMV | T4 | Camper | 7DJ | 2000 - 2001 |
| VW | Campmobile | 2.5 (2461ccm) Diesel | AHY/AXG | T4 | California | 7DC/7DK | 1999 - 2000 |
| VW | Caravelle | 2.5 (2461ccm) Diesel | AHY/AXG | T4 | 7DC | 1998 - 2003 | |
| VW | Caravelle | 2.8 (2792ccm) Petrol | AMV | T4 | 7DC | 2000 - 2003 | |
| VW | Multivan | 2.5 (2461ccm) Diesel | AHY/AXG | T4 | 7DC | 1998 - 2000 | |
| VW | Multivan | 2.8 (2792ccm) Petrol | AMV | T4 | 7DC | 2000 - 2003 | |
| VW | Transporter | 2.5 (2461ccm) Diesel | AHY/AXG | T4 | 7DA/7DH | 1998 - 2003 | |
| VW | Transporter | 2.5 (2461ccm) Diesel | AXG | T4 | 7DB/7DJ | 2000 - 2003 | |
| VW | Transporter | 2.8 (2792ccm) Petrol | AMV | T4 | 7DB | 2000 - 2003 | |
| VW | Transporter | 2.8 (2792ccm) Petrol | AMV | T4 | 7DA/7DH | 2000 - 2003 |
Description
S1564 Replacement Starter Motor
The Sahibs S1564 starter motor is associated with Lucas reference LRS01564 for replacement identification. The listed electrical rating is 12V 2.0kW. A starter motor turns the engine during starting; the electrical rating and mechanical engagement must suit the application. Applications include selected VW California 2.5 Diesel variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 2.0kW power: compare the listed rating with the original starter motor.
- 10-tooth pinion: compare gear engagement and pinion position.
- Counter Clockwise rotation: check the specified direction before fitting.
- M8 connector / terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- VW California 2.5 Diesel – selected applications 1999–2000 (engine code AHY/AXG).
- VW Campmobile 2.5 Diesel – selected applications 1999–2000 (engine code AHY/AXG).
- VW Caravelle 2.5 Diesel – selected applications 1998–2003 (engine code AHY/AXG).
- VW Multivan 2.5 Diesel – selected applications 1998–2000 (engine code AHY/AXG).
- VW Transporter 2.5 Diesel – selected applications 1998–2003 (engine code AHY/AXG).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with S1564. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
1125016, 1125017, 1125046, 1125047, 0001125047-R, 986021870, 1986S00811, F032112444, F032116340, 460223, LRS01564, LRS1564, DRS3823, 1516691R
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Starter Motor?
Failure to crank, clicking during a start request or intermittent cranking can indicate a starting-system problem. A weak battery, poor connections or control-circuit faults can produce similar symptoms; test the system before replacing the starter motor.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying S1564 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will S1564 fit my VW California?
VW California 2.5 Diesel (1999–2000) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does S1564 replace Lucas LRS01564?
Lucas LRS01564 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for S1564?
The listed details include 12V, 2.0kW power, 10 pinion teeth, counter clockwise rotation. Compare the complete specifications on this page with the unit being replaced.
Is S1564 new or remanufactured?
Check the current product condition selection for S1564. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering S1564?
Compare 12V compatibility, 2.0kW power, 10 pinion teeth, rotation, mounting and electrical connections with the original starter.
Does clicking prove the starter motor has failed?
No. Battery voltage, wiring and control-circuit faults can also cause clicking or no cranking. Have the starting system tested before choosing a replacement.
