S1586 12V 0.8kW Starter Motor Fits Fiat 600, Fiat Albea, Fiat Palio
Price range: £98.82 through £113.52
Sahibs S1586 is a replacement starter motor with a listed 12V 0.8kW rating. Listed applications include selected Fiat 600, Fiat Albea, Fiat Palio, Fiat Palio Weekend models. Identification references include Lucas LRS01586, Bosch 986024210, Denso DSN961. Its listed 12V 0.8kW rating provides an electrical matching point for your existing unit. Check the 8/10|||8/10-tooth pinion, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your S1586 replacement starter motor online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| KW | 0.8 kW |
| Volt | 12 V |
| Plug | M8 |
| Rotation | Clockwise |
| Oil Sealed | No |
| Insulated Return | No |
| Waterproof | No |
| Wet Clutch | No |
| Weight | 3.3 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYS1586 | Dyno Electrics |
| 402650501 | Euro Car Part |
| S4028 | AS-PL |
| 986024210 | BOSCH |
| 112382 | CARGO |
| F032112382 | CARGO |
| DRS3816X | DELCO |
| DS4926N | DELCO |
| RAS34927 | DELCO |
| DSN961 | DENSO |
| 46429594 | FIAT |
| 46473785 | FIAT |
| 46518059 | FIAT |
| 46548653 | FIAT |
| 46548654 | FIAT |
| 46737560 | FIAT |
| 46763529 | FIAT |
| 51890633 | FIAT |
| 55196400 | FIAT |
| 55201304 | FIAT |
| 55201305 | FIAT |
| 71721222 | FIAT |
| 71782288 | FIAT |
| 71782351 | FIAT |
| 71782353 | FIAT |
| 71794607 | FIAT |
| 7622952 | FIAT |
| 7772859 | FIAT |
| 7796598 | FIAT |
| 8EA012526-741 | HELLA |
| 8EA737823-001 | HELLA |
| 136910 | HITACHI |
| 2506910 | HITACHI |
| S114-901B | HITACHI |
| S114-903 | HITACHI |
| S114-903A | HITACHI |
| S114-949 | HITACHI |
| S114-949A | HITACHI |
| 63101018010 | MAGNETI MARELLI |
| 63101015 | MAGNETI MARELLI |
| 63101018 | MAGNETI MARELLI |
| 63102018 | MAGNETI MARELLI |
| 63102020 | MAGNETI MARELLI |
| 9.44281E+11 | MAGNETI MARELLI |
| MSN400 | MAGNETI MARELLI |
| 46740242 | PEUGEOT |
| 51833880 | PEUGEOT |
| 55195030 | PEUGEOT |
| 71793780 | PEUGEOT |
| 20513002 | PRESTOLITE |
| PRSL126 | 3EFFE |
| PRSS693 | 3EFFE |
| PRSS700 | 3EFFE |
| STRL126 | 3EFFE |
| STRS693 | 3EFFE |
| STRS700 | 3EFFE |
| CGB-53096 | AINDE |
| ANM12413X | ANDEL |
| ASM1228 | APEC |
| AEU1192 | AUTOELECTRO |
| NEU1192 | AUTOELECTRO |
| STA0067R | BOVEZ |
| CST20150GS | CASCO |
| CST30107AS | CASCO |
| CST30107GS | CASCO |
| CST30107OS | CASCO |
| STR3217 | ELECTROLOG |
| STR9072 | ELECTROLOG |
| 25-3096 | ELSTOCK |
| CS1192 | HC PARTS |
| STE1192 | KRAUF |
| 336430 | LOGISTIK |
| LRS01586 | LUCAS |
| LRS1586 | LUCAS |
| 5030043 | MEAT & DORIA |
| NPANSM1228 | NAPA |
| 500.544.083.000 | PSH |
| 500.544.083.058 | PSH |
| 500.544.083.265 | PSH |
| 500.582.103.050 | PSH |
| 500.582.103.080 | PSH |
| 500.582.103.270 | PSH |
| 500.582.103.275 | PSH |
| 20404701BN | REAL |
| 20404701OE | REAL |
| 20404701RE | REAL |
| 20445051OE | REAL |
| STM2016 | ROLLCO |
| 6020150.1 | SANDO |
| 6030107 | SANDO |
| 6030107.1 | SANDO |
| 6030107.4 | SANDO |
| S12HT0009 | SIDAT |
| S12HT0009A2 | SIDAT |
| S12MA0009A2 | SIDAT |
| S12MA0820A2 | SIDAT |
| STX200032 | STARDAX |
| STX200032R | STARDAX |
| STX200053 | STARDAX |
| STX200053R | STARDAX |
| STX200057 | STARDAX |
| STX200057R | STARDAX |
| STX200361 | STARDAX |
| STX200361R | STARDAX |
| 31397N | WAI / TRANSPO |
| 31397R | WAI / TRANSPO |
| DENDSN961 | WOODAUTO |
| STR52025 | WOODAUTO |
Alternative Parts
| Alternative Part | Current Description | Alternative Description | Direct Alternative |
|---|---|---|---|
| T0144 | Terminal "50" M6 | Terminal "50" 6.4 mm plug | No |
| S0989 | 0,8 KW M60 "50" | 0.8KW 6.4MM "50" | No |
| S2095 | 0.8-0.9 KW | 0.7KW | No |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| FIAT | 600 | 1.1 (1108ccm) Petrol | 187A1000 | 187AXC1A02 | 2005 - 2010 | ||
| FIAT | Albea | 1.2 (1242ccm) Petrol | 188A4000 | 178BYA1AAT | 2002 - 2012 | ||
| FIAT | Albea | 1.2 (1242ccm) Petrol | 188A5000 | 178BYE1AAT/178CYE1AAT | 2002 - 2011 | ||
| FIAT | Palio | 1.2 (1242ccm) Petrol | 178B5000 | 178AXG1AAT/178BXG1AAT | 1996 - 2002 | ||
| FIAT | Palio | 1.2 (1242ccm) Petrol | 178B7045/188A4000 | 178AYA1A/178BXU1A/178BXU1AAR/178BYA1A/178BYA1AAT | 1997 - 2002 | ||
| FIAT | Palio Weekend | 1.2 (1242ccm) Petrol | 178B5000 | 178DXG1A/178DXG1AAP/178DXG1AAT | 1999 - 2001 | ||
| FIAT | Palio Weekend | 1.2 (1242ccm) Petrol | 178C4066/188A4000 | 178AYA1A08/178BYA1A08/178DXS1AAI/178DYA1A/178DYA1AAP/178DYA1AAT | 1997 - 2004 | ||
| FIAT | Punto | 1.2 (1242ccm) Bio (ethanol) petrol or Methanol | 188A4000 | 188BXA1A | 2001 - 2003 | ||
| FIAT | Punto | 1.2 (1242ccm) CNG (with or without Petrol) | 188A4000CNG | 188AXA1A | 2003 - 2011 | ||
| FIAT | Punto | 1.2 (1242ccm) CNG (with or without Petrol) | 188A4000CNG | 188BXA1A | 2004 - 2006 | ||
| FIAT | Punto | 1.2 (1242ccm) LPG (with or without Petrol) | 188A4000 | 188AXA1A | 2007 - 2011 | ||
| FIAT | Punto | 1.2 (1242ccm) Petrol | 188A4000 | 188AX/188AXA1A/188BX/188BXA1A | 1999 - 2003 | ||
| FIAT | Punto | 1.2 (1242ccm) Petrol | 188A5000 | 188AXB11/188AXB1A/188AXB1B/188BXB11/188BXB1A/188BXB1B | 1999 - 2003 | ||
| FIAT | Punto Van | 1.2 (1242ccm) CNG (with or without Petrol) | 188A4000CNG | 188CXA1A | 2003 - 2010 | ||
| FIAT | Punto Van | 1.2 (1242ccm) Petrol | 188A4000 | 188CXA1A/188DXA1A | 2000 - 2009 | ||
| FIAT | Seicento | 1.1 (1108ccm) Petrol | 176B2000/187A1000 | 187AXB1A/187AXC1A02 | 1998 - 2010 | ||
| FIAT | Siena | 1.3 (1242ccm) Petrol | 178B5000 | 178CXG1AAM/178CXG1AAP/178CXG1AAT | 2000 - 2002 | ||
| FIAT | Siena | 1.3 (1242ccm) Petrol | 188A4000 | 178BYA1AAT/178CYA1AAT | 2001 - 2012 | ||
| FIAT | Siena | 1.3 (1242ccm) Petrol | 188A5000 | 178CYE1AAT | 2001 - 2011 | ||
| LANCIA | Y (Ypsilon) | 1.2 (1242ccm) Petrol | 188A4000/840A3000 | 840AA1A/840AF1A | 2000 - 2003 | ||
| LANCIA | Y (Ypsilon) | 1.2 (1242ccm) Petrol | 176B9000 | 840AD1A | 1997 - 1999 |
Description

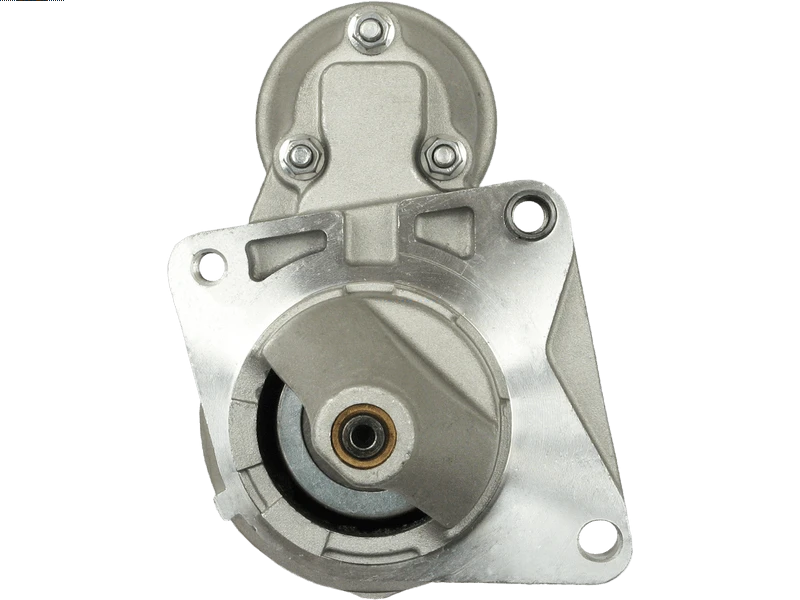

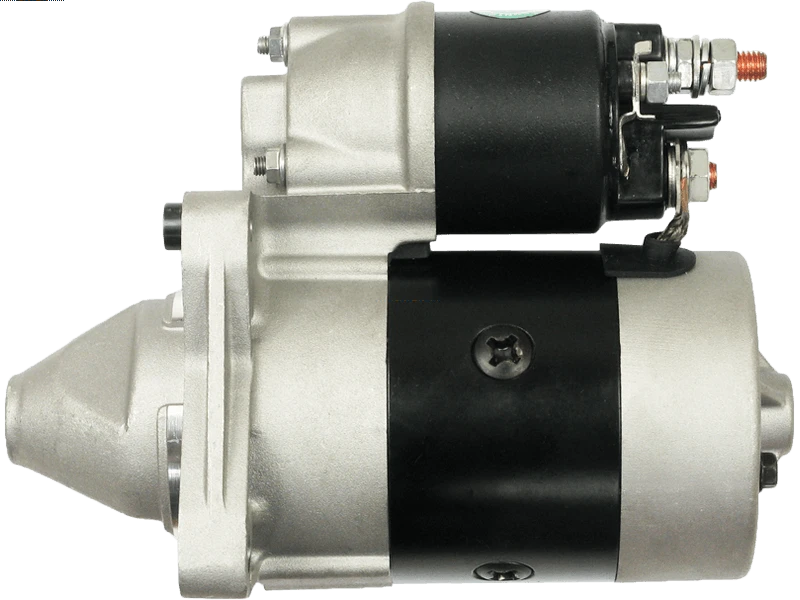

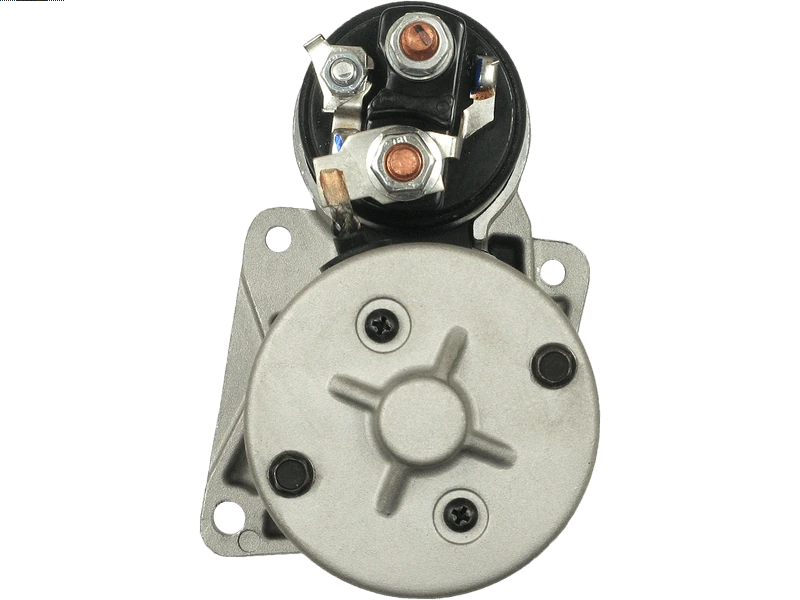

S1586 Replacement Starter Motor
The S1586 starter motor is a replacement unit identified by Lucas reference LRS01586. The listed electrical rating is 12V 0.8kW. A starter motor turns the engine during starting; the electrical rating and mechanical engagement must suit the application. Applications include selected Fiat 600 1.1 Petrol variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 0.8kW power: compare the listed rating with the original starter motor.
- 8/10|||8/10-tooth pinion: compare gear engagement and pinion position.
- Clockwise rotation: check the specified direction before fitting.
- M8 connector / terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Fiat 600 1.1 Petrol – selected applications 2005–2010 (engine code 187A1000).
- Fiat Albea 1.2 Petrol – selected applications 2002–2012 (engine code 188A4000).
- Fiat Palio 1.2 Petrol – selected applications 1996–2002 (engine code 178B5000).
- Fiat Palio Weekend 1.2 Petrol – selected applications 1999–2001 (engine code 178B5000).
- Fiat Punto 1.2 Bio (ethanol) petrol or Methanol – selected applications 2001–2003 (engine code 188A4000).
- Fiat Punto Van 1.2 CNG (with or without Petrol) – selected applications 2003–2010 (engine code 188A4000CNG).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with S1586. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
986024210, DSN961, LRS01586, LRS1586, 136910, 2506910, S114-901B, S114-903, S114-903A, S114-949, S114-949A, S114949, S114949A, DRS3816X, DS4926N, RAS34927, 20513002, 46740242, 51833880, 55195030, 71793780
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Starter Motor?
Failure to crank, clicking during a start request or intermittent cranking can indicate a starting-system problem. A weak battery, poor connections or control-circuit faults can produce similar symptoms; test the system before replacing the starter motor.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying S1586 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will S1586 fit my Fiat 600?
Fiat 600 1.1 Petrol (2005–2010) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does S1586 replace Lucas LRS01586?
Lucas LRS01586 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for S1586?
The listed details include 12V, 0.8kW power, 8/10|||8/10 pinion teeth, clockwise rotation. Compare the complete specifications on this page with the unit being replaced.
Is S1586 new or remanufactured?
Check the current product condition selection for S1586. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering S1586?
Compare 12V compatibility, 0.8kW power, 8/10|||8/10 pinion teeth, rotation, mounting and electrical connections with the original starter.
Does clicking prove the starter motor has failed?
No. Battery voltage, wiring and control-circuit faults can also cause clicking or no cranking. Have the starting system tested before choosing a replacement.
