S1605 12V 1.8kW Starter Motor Fits VW Passat, Audi A4, Audi A6
Price range: £103.24 through £118.60
Compare the S1605 12V 1.8kW starter motor from Sahibs Auto Electrics with the unit currently fitted. Listed applications include selected VW Passat, Audi A4, Audi A6 models. Identification references include Lucas LRS01605, Bosch 1124020, Valeo 438404. Its listed 12V 1.8kW rating provides an electrical matching point for your existing unit. Check the 9-tooth pinion, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your S1605 replacement starter motor online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| KW | 1.8 kW |
| Volt | 12 V |
| Plug | M8 |
| Rotation | Clockwise |
| Teeth | 9 qty |
| Oil Sealed | No |
| Insulated Return | No |
| Waterproof | No |
| Wet Clutch | No |
| Weight | 4.6 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYS1605 | Dyno Electrics |
| 402440891 | Euro Car Part |
| S0234 | AS-PL |
| 1124020 | BOSCH |
| 1124021 | BOSCH |
| 986020370 | BOSCH |
| 112443 | CARGO |
| F032112443 | CARGO |
| DRS3819 | DELCO |
| 8EA012526-211 | HELLA |
| 63521240200 | MAGNETI MARELLI |
| 9.43212E+11 | MAGNETI MARELLI |
| 9.44281E+11 | MAGNETI MARELLI |
| MRS80092 | MAGNETI MARELLI |
| MSRC1208 | MAGNETI MARELLI |
| 438404 | VALEO |
| 458461 | VALEO |
| 068911024H | VW |
| 068911024HX | VW |
| 68911024H | VW |
| 68911024HX | VW |
| PRSL199 | 3EFFE |
| STRL199 | 3EFFE |
| AC-CBS1208 | ACAUTO |
| 25-3125CT | AINDE |
| AI-80137 | AINDE |
| 10440881 | ALANKO |
| ANM16039 | ANDEL |
| ANM16039X | ANDEL |
| ASM1410 | APEC |
| A20370 | ATL AUTOTECHNIK |
| AEU1208 | AUTOELECTRO |
| SBO221A | AUTOTEAM |
| BST2040 | BORG & BECK |
| STA0387R | BOVEZ |
| CST10221AS | CASCO |
| CST10221GS | CASCO |
| 3047 | CEVAM |
| CMA-621213 | COMLINE |
| 311091092 | DRI |
| S-50367 | DTS |
| 11978 | EAI |
| STR1385 | ELECTROLOG |
| 25-3125 | ELSTOCK |
| 220137 | ERA |
| 220137A | ERA |
| 220137R | ERA |
| 1638125080 | EUROREPAR |
| 11020370 | EUROTEC |
| 2-0279 | EXACT |
| 105347 | FARCOM |
| SG0686 | GHIBAUDI |
| GS124020-A | GPARTS |
| SS124020-A | GPARTS |
| CS1208 | HC PARTS |
| 3116794 | HENKEL PARTS |
| 3116795 | HENKEL PARTS |
| 3116796 | HENKEL PARTS |
| 42020370 | HERTH+BUSS |
| H5010177 | HOFFER |
| STB1208 | KRAUF |
| 101208 | KUHNER |
| 331360 | LOGISTIK |
| LRS01605 | LUCAS |
| LRS1605 | LUCAS |
| 5010177 | MEAT & DORIA |
| NPANSM1410 | NAPA |
| 4747009 | NK |
| 8080092 | POWERMAX |
| 88212265 | POWERMAX |
| IR9679 | PROTECH |
| 300.541.092.010 | PSH |
| 300.541.092.018 | PSH |
| QRS1705 | QUINTON HAZELL |
| 20401122BN | REAL |
| 20401122OE | REAL |
| 011-001-000359R | REMANTE |
| STM738 | ROLLCO |
| 6010221 | SANDO |
| 6010221.1 | SANDO |
| S12BH0246A2 | SIDAT |
| MAV122210 | SIOM |
| MAV122210A | SIOM |
| AU9021 | SNRA |
| STX200102R | STARDAX |
| 978ST11 | STARTCAR |
| RE83684N | THE NEW LINE |
| ST01204 | TMI |
| 32605N | WAI / TRANSPO |
| WG2012765 | WILMINK GROUP |
| WG2196603 | WILMINK GROUP |
| 91-15-7240 | WILSON |
| STR50367 | WOODAUTO |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| AUDI | A4 | 1.9 (1896ccm) Diesel | AJM/ATJ | B5 | Avant | 8D5 | 1998 - 2001 |
| AUDI | A4 | 1.9 (1896ccm) Diesel | AVF/AWX | B6 | 8.00E+02 | 2000 - 2004 | |
| AUDI | A4 | 1.9 (1896ccm) Diesel | ATJ | B5 | Quattro Avant | 8D5 | 2000 - 2001 |
| AUDI | A4 | 1.9 (1896ccm) Diesel | AVF/AWX | B6 | Avant | 8.00E+05 | 2001 - 2004 |
| AUDI | A4 | 1.9 (1896ccm) Diesel | AVF | B6 | Quattro | 8.00E+02 | 2001 - 2004 |
| AUDI | A4 | 1.9 (1896ccm) Diesel | AVF | B6 | Quattro Avant | 8.00E+05 | 2001 - 2004 |
| AUDI | A6 | 1.9 (1896ccm) Diesel | AVF/AWX | C5 | 4B2 | 2001 - 2005 | |
| AUDI | A6 | 1.9 (1896ccm) Diesel | AVF/AWX | C5 | Avant/Avant-Estate | 4B5 | 2001 - 2005 |
| VW | Passat | 1.9 (1896ccm) Diesel | AJM/ATJ | B5 | 3B5 | 1999 - 2000 | |
| VW | Passat | 1.9 (1896ccm) Diesel | AJM/ATJ | B5 | 3B2 | 1999 - 2000 | |
| VW | Passat | 1.9 (1896ccm) Diesel | AVF/AWX | B5.5 | 3B3 | 2000 - 2005 | |
| VW | Passat | 1.9 (1896ccm) Diesel | AVF | B5.5 | 4Motion | 3B3 | 2000 - 2005 |
| VW | Passat | 1.9 (1896ccm) Diesel | AVF | B5.5 | 4Motion | 3B6 | 2000 - 2005 |
| VW | Passat | 1.9 (1896ccm) Diesel | AVF/AWX | B5.5 | 3B6 | 2000 - 2005 | |
| VW | Passat | 2.0 (1968ccm) Diesel | BGW/BHW | B5.5 | 3B6 | 2003 - 2005 | |
| VW | Passat | 2.0 (1968ccm) Diesel | BGW/BHW | B5.5 | 3B3 | 2003 - 2005 |
Description
S1605 Replacement Starter Motor
Start your S1605 starter motor comparison with the linked Lucas reference LRS01605 and the specifications shown on this page. The listed electrical rating is 12V 1.8kW. A starter motor turns the engine during starting; the electrical rating and mechanical engagement must suit the application. Applications include selected VW Passat 1.9 Diesel variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 1.8kW power: compare the listed rating with the original starter motor.

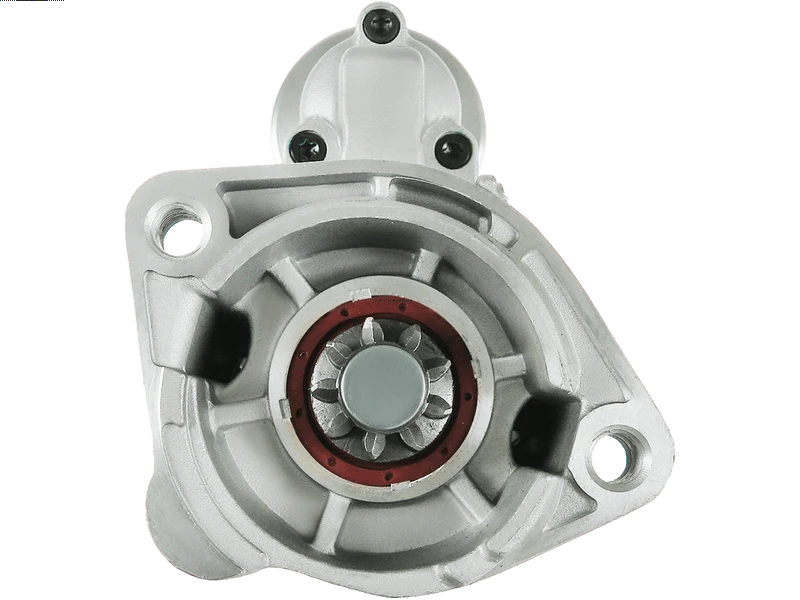

- 9-tooth pinion: compare gear engagement and pinion position.
- Clockwise rotation: check the specified direction before fitting.
- M8 connector / terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- VW Passat 1.9 Diesel – selected applications 1999–2000 (engine code AJM/ATJ).
- Audi A4 1.9 Diesel – selected applications 1998–2001 (engine code AJM/ATJ).
- Audi A6 1.9 Diesel – selected applications 2001–2005 (engine code AVF/AWX).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with S1605. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
1124020, 1124021, 986020370, 438404, 458461, LRS01605, LRS1605, DRS3819
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Starter Motor?
Failure to crank, clicking during a start request or intermittent cranking can indicate a starting-system problem. A weak battery, poor connections or control-circuit faults can produce similar symptoms; test the system before replacing the starter motor.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying S1605 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will S1605 fit my VW Passat?
VW Passat 1.9 Diesel (1999–2000) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does S1605 replace Lucas LRS01605?
Lucas LRS01605 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for S1605?
The listed details include 12V, 1.8kW power, 9 pinion teeth, clockwise rotation. Compare the complete specifications on this page with the unit being replaced.
Is S1605 new or remanufactured?
Check the current product condition selection for S1605. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering S1605?
Compare 12V compatibility, 1.8kW power, 9 pinion teeth, rotation, mounting and electrical connections with the original starter.
Does clicking prove the starter motor has failed?
No. Battery voltage, wiring and control-circuit faults can also cause clicking or no cranking. Have the starting system tested before choosing a replacement.
