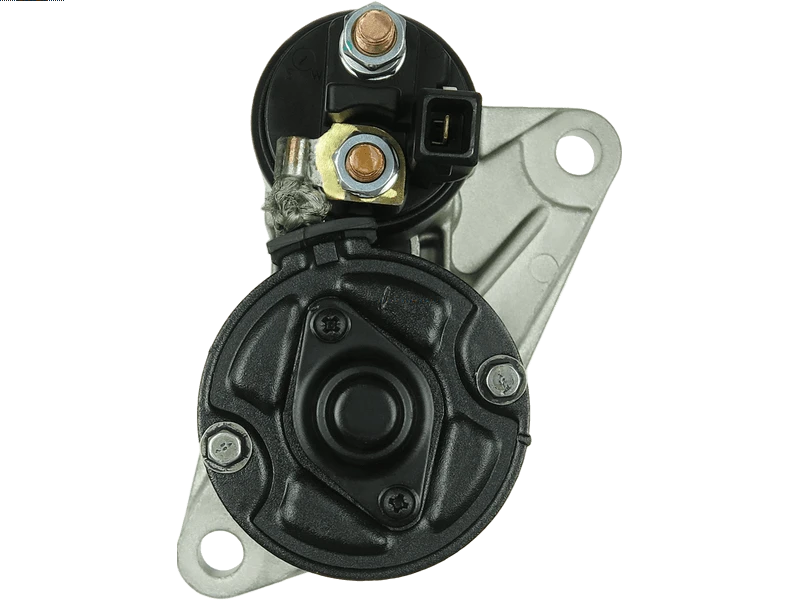

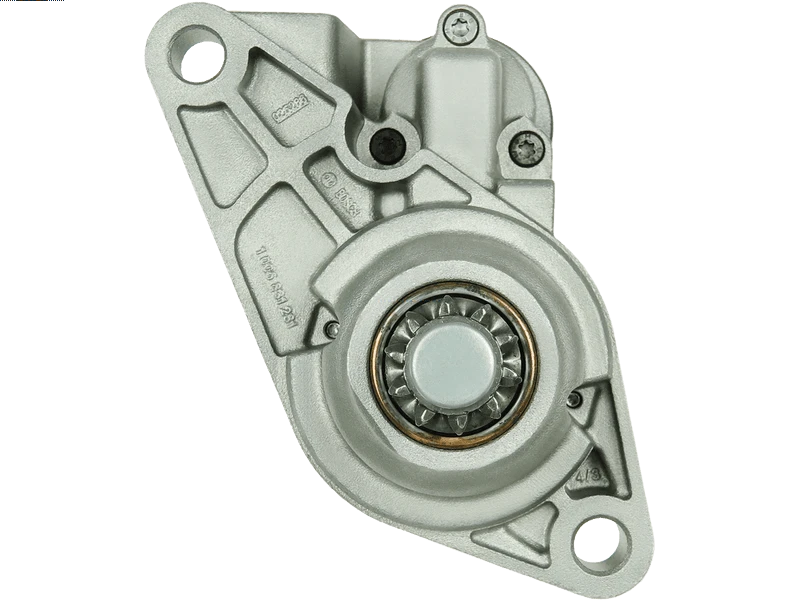

S1610 12V 0.9kW Starter Motor Fits VW Bora, VW Fox, VW Golf
Price range: £103.95 through £119.94
Sahibs S1610 is a replacement starter motor with a listed 12V 0.9kW rating. Listed applications include selected VW Bora, VW Fox, VW Golf, VW New Beetle models. Identification references include Lucas LRS01610, Bosch 1120400, Valeo 438261. Its listed 12V 0.9kW rating provides an electrical matching point for your existing unit. Check the 10-tooth pinion, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your S1610 replacement starter motor online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| KW | 0.9 kW |
| Volt | 12 V |
| Plug | M8 |
| Teeth | 10 qty |
| Oil Sealed | No |
| Insulated Return | No |
| Waterproof | No |
| Wet Clutch | No |
| Weight | 2.8 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYS1610 | Dyno Electrics |
| 402441391 | Euro Car Part |
| 1120400 | BOSCH |
| 1120401 | BOSCH |
| 113515 | CARGO |
| F032113515 | CARGO |
| DRT0780 | DELCO |
| DT1890 | DELCO |
| 6352120400 | MAGNETI MARELLI |
| 9.4428E+11 | MAGNETI MARELLI |
| MRS20780 | MAGNETI MARELLI |
| 438261 | VALEO |
| 458421 | VALEO |
| D7ES6 | VALEO |
| 02T911023D | VW |
| 02T911023G | VW |
| 02T911023GX | VW |
| 02T911023Q | VW |
| 2T911023D | VW |
| 2T911023G | VW |
| 2T911023Q | VW |
| PRSW165 | 3EFFE |
| STRW165 | 3EFFE |
| CST10138AS | CASCO |
| CST10138GS | CASCO |
| 3345 | CEVAM |
| STR1235 | ELECTROLOG |
| 25-3131 | ELSTOCK |
| 220530 | ERA |
| 220544 | ERA |
| CS1282 | HC PARTS |
| 42020780 | HERTH+BUSS |
| STB1282 | KRAUF |
| 101282 | KUHNER |
| 101282B | KUHNER |
| LRS01610 | LUCAS |
| LRS1610 | LUCAS |
| 5010026 | MEAT & DORIA |
| 88212172 | POWERMAX |
| 300.559.102.210 | PSH |
| 20401831BN | REAL |
| STM1037 | ROLLCO |
| 6010138 | SANDO |
| 6010138.1 | SANDO |
| S12BH0176 | SIDAT |
| S12BH0176A2 | SIDAT |
| STX200135 | STARDAX |
| STX200135R | STARDAX |
| 32613N | WAI / TRANSPO |
| 32613R | WAI / TRANSPO |
Alternative Parts
| Alternative Part | Current Description | Alternative Description | Direct Alternative |
|---|---|---|---|
| T0220 | 0.9KW Length 140 | 1.1KW Length 155 | No |
| S1675 | 0.9KW Terminal "50" plug 76 | 1.0KW Terminal "50" plug 156 | No |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| AUDI | A2 | 1.4 (1390ccm) Petrol | AUA/BBY | 8Z0 | 2000 - 2005 | ||
| AUDI | A2 | 1.6 (1598ccm) Petrol | BAD | 8Z0 | 2002 - 2005 | ||
| SEAT | Cordoba | 1.2 (1198ccm) Petrol | AZQ/BME | 6L2 | 2002 - 2004 | ||
| SEAT | Cordoba | 1.4 (1390ccm) Petrol | BBY/BKY | 6L2 | 2002 - 2007 | ||
| SEAT | Cordoba | 1.4 (1390ccm) Petrol | BBZ | 6L2 | 2002 - 2004 | ||
| SEAT | Cordoba | 1.6 (1598ccm) Petrol | BAH | 6L2 | 2003 - 2004 | ||
| SEAT | Ibiza | 1.2 (1198ccm) Petrol | AZQ/BME | III | 6L1 | 2002 - 2006 | |
| SEAT | Ibiza | 1.4 (1390ccm) Petrol | AUB/BBZ | III | 6L1 | 2001 - 2004 | |
| SEAT | Ibiza | 1.4 (1390ccm) Petrol | BBY/BKY | III | 6L1 | 2002 - 2004 | |
| SEAT | Ibiza | 1.6 (1598ccm) Petrol | BAH | III | 6L1 | 2003 - 2004 | |
| SKODA | Fabia | 1.2 (1198ccm) Petrol | AWY/BMD | I | 6Y2 | 2001 - 2004 | |
| SKODA | Fabia | 1.2 (1198ccm) Petrol | AWY/BMD | I | Praktik | 6Y5 | 2001 - 2004 |
| SKODA | Fabia | 1.2 (1198ccm) Petrol | AWY/BMD | I | 6Y5 | 2001 - 2004 | |
| SKODA | Fabia | 1.2 (1198ccm) Petrol | AWY/BMD | I | 6Y3 | 2002 - 2007 | |
| SKODA | Fabia | 1.2 (1198ccm) Petrol | AZQ/BME | I | 6Y5 | 2003 - 2007 | |
| SKODA | Fabia | 1.2 (1198ccm) Petrol | AZQ/BME | I | 6Y3 | 2003 - 2007 | |
| SKODA | Fabia | 1.2 (1198ccm) Petrol | AZQ/BME | I | 6Y2 | 2003 - 2007 | |
| SKODA | Fabia | 1.2 (1198ccm) Petrol | AZQ/BME | I | Praktik | 6Y5 | 2003 - 2007 |
| SKODA | Fabia | 1.4 (1390ccm) Petrol | AUA/BBY/BKY | I | 6Y5 | 1999 - 2007 | |
| SKODA | Fabia | 1.4 (1390ccm) Petrol | AUB/BBZ | I | 6Y2 | 1999 - 2007 | |
| SKODA | Fabia | 1.4 (1390ccm) Petrol | AUA/BBY/BKY | I | 6Y2 | 1999 - 2007 | |
| SKODA | Fabia | 1.4 (1390ccm) Petrol | AUB/BBZ | I | 6Y5 | 1999 - 2007 | |
| SKODA | Fabia | 1.4 (1390ccm) Petrol | AUA/BBY/BKY | I | 6Y3 | 1999 - 2007 | |
| SKODA | Fabia | 1.4 (1390ccm) Petrol | AUB/BBZ | I | 6Y3 | 1999 - 2007 | |
| SKODA | Fabia | 1.4 (1390ccm) Petrol | BKY | I | Praktik | 6Y5 | 2004 - 2007 |
| VW | Bora | 1.6 (1598ccm) Petrol | BAD | I | 1J2 | 2001 - 2005 | |
| VW | Bora | 1.6 (1598ccm) Petrol | BAD | I | 1J6 | 2001 - 2005 | |
| VW | Fox | 1.2 (1198ccm) Petrol | BMD/CHFB | 5Z1 | 2005 - 2011 | ||
| VW | Fox | 1.2 (1198ccm) Petrol | CHFA | 5Z1 | 2010 - 2011 | ||
| VW | Fox | 1.4 (1390ccm) Petrol | BKR | Cross | 5Z1 | 2005 - 2009 | |
| VW | Golf | 1.6 (1598ccm) Petrol | BAD | IV | 1J1 | 2002 - 2004 | |
| VW | New Beetle | 1.4 (1390ccm) Petrol | BCA | 1C1/9C1 | 2002 - 2010 | ||
| VW | New Beetle | 1.4 (1390ccm) Petrol | BCA | 1Y7 | 2003 - 2010 | ||
| VW | Polo | 1.2 (1198ccm) Petrol | AZQ/BME | IV | Cross | 9N1/9N3 | 2001 - 2007 |
| VW | Polo | 1.2 (1198ccm) Petrol | AWY/BMD | IV | 9N1/9N3 | 2002 - 2007 | |
| VW | Polo | 1.4 (1390ccm) Petrol | BBY/BKY | IV | 9A2/9N2 | 2002 - 2006 | |
| VW | Polo | 1.4 (1390ccm) Petrol | AXU | IV | 9N1/9N3 | 2002 - 2006 | |
| VW | Polo | 1.4 (1390ccm) Petrol | BBZ | IV | 9N2 | 2003 - 2005 |
Description
S1610 Replacement Starter Motor
Start your S1610 starter motor comparison with the linked Lucas reference LRS01610 and the specifications shown on this page. The listed electrical rating is 12V 0.9kW. A starter motor turns the engine during starting; the electrical rating and mechanical engagement must suit the application. Applications include selected VW Bora 1.6 Petrol variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 0.9kW power: compare the listed rating with the original starter motor.
- 10-tooth pinion: compare gear engagement and pinion position.
- Counter Clockwise rotation: check the specified direction before fitting.
- M8 connector / terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- VW Bora 1.6 Petrol – selected applications 2001–2005 (engine code BAD).
- VW Fox 1.2 Petrol – selected applications 2005–2011 (engine code BMD/CHFB).
- VW Golf 1.6 Petrol – selected applications 2002–2004 (engine code BAD).
- VW New Beetle 1.4 Petrol – selected applications 2002–2010 (engine code BCA).
- VW Polo 1.2 Petrol – selected applications 2001–2007 (engine code AZQ/BME).
- Audi A2 1.4 Petrol – selected applications 2000–2005 (engine code AUA/BBY).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with S1610. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
1120400, 1120401, 438261, 458421, D7ES6, LRS01610, LRS1610, DRT0780, DT1890
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Starter Motor?
Failure to crank, clicking during a start request or intermittent cranking can indicate a starting-system problem. A weak battery, poor connections or control-circuit faults can produce similar symptoms; test the system before replacing the starter motor.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying S1610 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will S1610 fit my VW Bora?
VW Bora 1.6 Petrol (2001–2005) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does S1610 replace Lucas LRS01610?
Lucas LRS01610 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for S1610?
The listed details include 12V, 0.9kW power, 10 pinion teeth, counter clockwise rotation. Compare the complete specifications on this page with the unit being replaced.
Is S1610 new or remanufactured?
Check the current product condition selection for S1610. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering S1610?
Compare 12V compatibility, 0.9kW power, 10 pinion teeth, rotation, mounting and electrical connections with the original starter.
Does clicking prove the starter motor has failed?
No. Battery voltage, wiring and control-circuit faults can also cause clicking or no cranking. Have the starting system tested before choosing a replacement.
