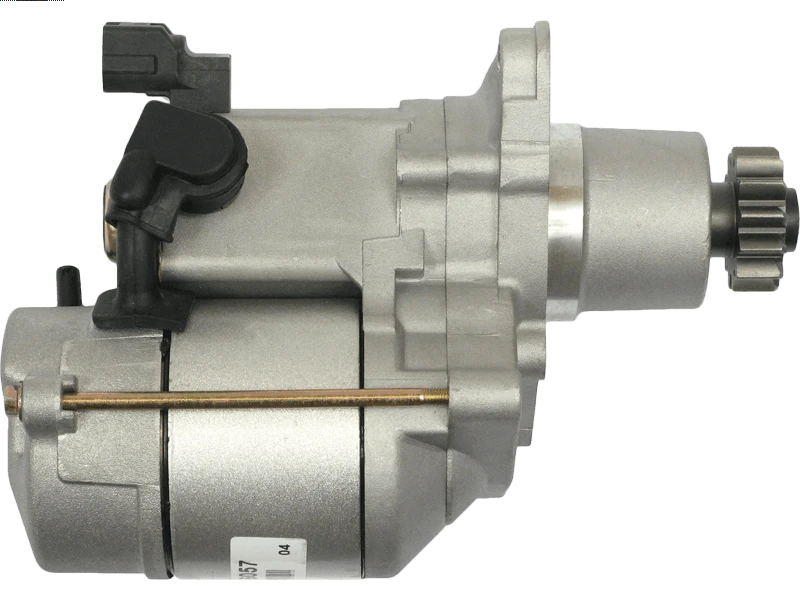

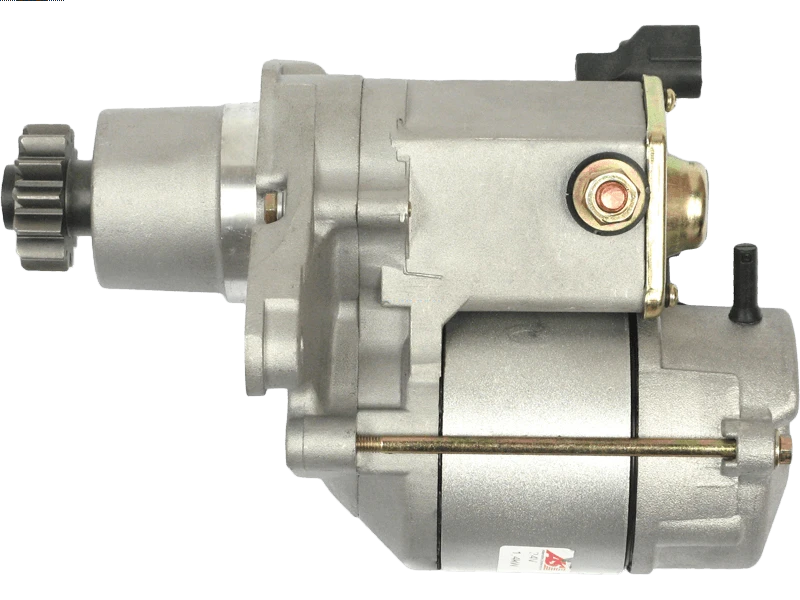

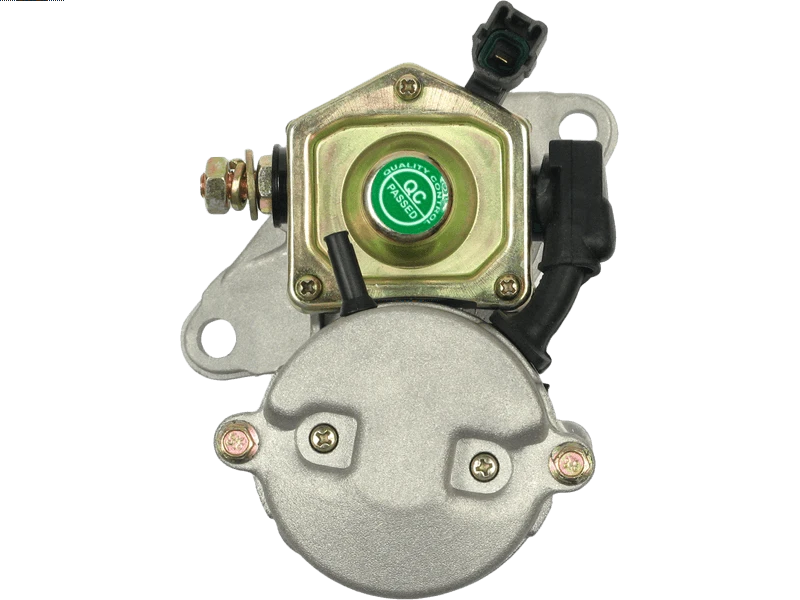

S1659 12V 1.4kW Starter Motor Fits Toyota Camry, Toyota Camry Solara
Price range: £117.09 through £135.74
Sahibs S1659 is a replacement starter motor with a listed 12V 1.4kW rating. Listed applications include selected Toyota Camry, Toyota Camry Solara, Toyota Previa, Toyota RAV 4 models. Identification references include Lucas LRS01659, Denso 228000-6170, Delco Remy DRS0116. Its listed 12V 1.4kW rating provides an electrical matching point for your existing unit. Check the 13-tooth pinion, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your S1659 replacement starter motor online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| KW | 1.4 kW |
| Volt | 12 V |
| Plug | M8 |
| Teeth | 13 qty |
| Oil Sealed | No |
| Insulated Return | No |
| Waterproof | No |
| Wet Clutch | No |
| Weight | 3.7 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYS1659 | Dyno Electrics |
| 402820801 | Euro Car Part |
| S6057 | AS-PL |
| 112367 | CARGO |
| F032112367 | CARGO |
| DRS0116 | DELCO |
| DRT0631 | DELCO |
| 228000-6170 | DENSO |
| 228000-6172 | DENSO |
| 228000-6173 | DENSO |
| 228000-6273 | DENSO |
| 228000-6280 | DENSO |
| 228000-6281 | DENSO |
| 228000-6282 | DENSO |
| 228000-6283 | DENSO |
| 228000-7260 | DENSO |
| 428000-7790 | DENSO |
| DSN929 | DENSO |
| 8EA012140-471 | HELLA |
| 63280053010 | MAGNETI MARELLI |
| 944280721 | MAGNETI MARELLI |
| 9.44281E+11 | MAGNETI MARELLI |
| 28100-03100 | TOYOTA |
| 28100-74260 | TOYOTA |
| 28100-74270 | TOYOTA |
| 28100-74290 | TOYOTA |
| 2810028020 | TOYOTA |
| STRS961 | 3EFFE |
| CGB-26170 | AINDE |
| ANM22851X | ANDEL |
| CST40281AS | CASCO |
| CST40281GS | CASCO |
| 12058 | EAI |
| STR6405 | ELECTROLOG |
| 25-3205 | ELSTOCK |
| 220485 | ERA |
| 220487 | ERA |
| JS1218 | HC PARTS |
| JS1302 | HC PARTS |
| STN1218 | KRAUF |
| 201218 | KUHNER |
| 201302 | KUHNER |
| 336172 | LOGISTIK |
| LRS01659 | LUCAS |
| LRS1659 | LUCAS |
| 5040614 | MEAT & DORIA |
| 8212293 | POWERMAX |
| 88212293 | POWERMAX |
| 20432182BN | REAL |
| STM661 | ROLLCO |
| 6040281 | SANDO |
| MAV422380 | SIOM |
| STX200577 | STARDAX |
| STX201011 | STARDAX |
| 17774N | WAI / TRANSPO |
| 2-1984-ND | WAI / TRANSPO |
| DENDSN929 | WOODAUTO |
| STR8085 | WOODAUTO |
Alternative Parts
| Alternative Part | Current Description | Alternative Description | Direct Alternative |
|---|---|---|---|
| S1660 | 1.4KW Long version | 1.2KW Short version | No |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| LEXUS | RX 300 | 3.0 (2995ccm) Petrol | 1MZFE | AWD | MCU15 | 1998 - 2003 | |
| LEXUS | RX 300 | 3.0 (2995ccm) Petrol | 1MZFE | MCU10 | 1998 - 2003 | ||
| LEXUS | RX 300 | 3.0 (2995ccm) Petrol | 1MZFE | AWD | MCU15 | 2000 - 2003 | |
| TOYOTA | Camry | 2.2 (2164ccm) Petrol | 5SFE/5SFNE | SXV20/SXV23 | 1996 - 2001 | ||
| TOYOTA | Camry | 2.2 (2164ccm) Petrol | 5SFE | SXV20 | 1997 - 2002 | ||
| TOYOTA | Camry | 2.4 (2362ccm) Petrol | 2AZFE | ACV30 | 2001 - 2006 | ||
| TOYOTA | Camry | 3.0 (2995ccm) Petrol | 1MZFE | MCV20 | 1996 - 2001 | ||
| TOYOTA | Camry | 3.0 (2995ccm) Petrol | 1MZFE | MCV20 | 1999 - 2001 | ||
| TOYOTA | Camry | 3.0 (2995ccm) Petrol | 1MZFE | MCV30 | 2001 - 2006 | ||
| TOYOTA | Camry Solara | 2.2 (2164ccm) Petrol | 5SFE | SXV20 | 1998 - 2002 | ||
| TOYOTA | Previa | 2.4 (2362ccm) Petrol | 2AZFE | MK II | ACR30 | 2000 - 2005 | |
| TOYOTA | RAV 4 | 2.4 (2362ccm) Petrol | 2AZFE | MK III | ACA38 | 2005 - 2013 | |
| TOYOTA | RAV 4 | 2.4 (2362ccm) Petrol | 2AZFE | MK III | ACA31/ACA33 | 2005 - 2013 | |
| TOYOTA | Vanguard | 2.4 (2362ccm) Petrol | 2AZFE | ACA33 | 2005 - 2012 | ||
| TOYOTA | Vanguard | 2.4 (2362ccm) Petrol | 2AZFE | ACA38W | 2005 - 2012 |
Description
S1659 Replacement Starter Motor
For a S1659 starter motor enquiry, use Lucas reference LRS01659 alongside the vehicle and original unit details. The listed electrical rating is 12V 1.4kW. A starter motor turns the engine during starting; the electrical rating and mechanical engagement must suit the application. Applications include selected Toyota Camry 2.2 Petrol variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 1.4kW power: compare the listed rating with the original starter motor.

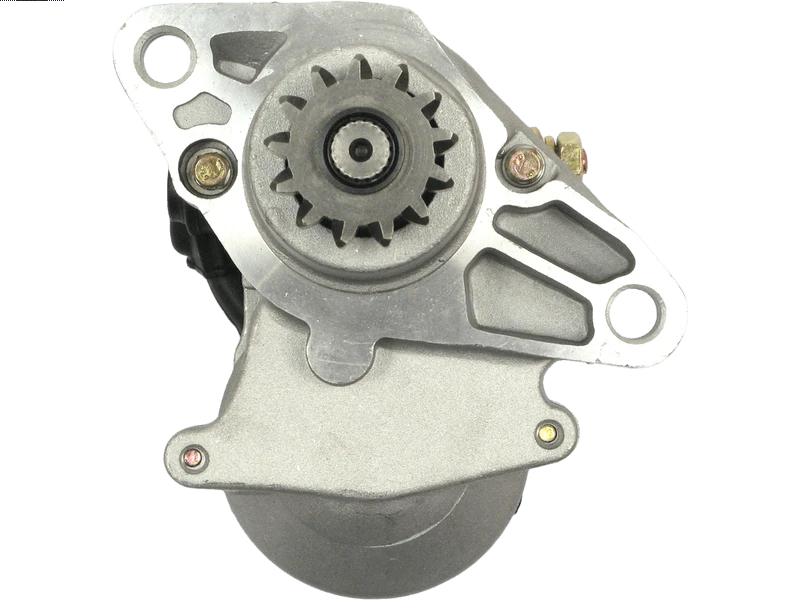

- 13-tooth pinion: compare gear engagement and pinion position.
- Counter Clockwise rotation: check the specified direction before fitting.
- M8 connector / terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Toyota Camry 2.2 Petrol – selected applications 1996–2001 (engine code 5SFE/5SFNE).
- Toyota Camry Solara 2.2 Petrol – selected applications 1998–2002 (engine code 5SFE).
- Toyota Previa 2.4 Petrol – selected applications 2000–2005 (engine code 2AZFE).
- Toyota RAV 4 2.4 Petrol – selected applications 2005–2013 (engine code 2AZFE).
- Toyota Vanguard 2.4 Petrol – selected applications 2005–2012 (engine code 2AZFE).
- Lexus RX 300 3.0 Petrol – selected applications 1998–2003 (engine code 1MZFE).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with S1659. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
228000-6170, 228000-6172, 228000-6173, 228000-6273, 228000-6280, 228000-6281, 228000-6282, 228000-6283, 228000-7260, 428000-7790, DSN929, LRS01659, LRS1659, DRS0116, DRT0631
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Starter Motor?
Failure to crank, clicking during a start request or intermittent cranking can indicate a starting-system problem. A weak battery, poor connections or control-circuit faults can produce similar symptoms; test the system before replacing the starter motor.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying S1659 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will S1659 fit my Toyota Camry?
Toyota Camry 2.2 Petrol (1996–2001) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does S1659 replace Lucas LRS01659?
Lucas LRS01659 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for S1659?
The listed details include 12V, 1.4kW power, 13 pinion teeth, counter clockwise rotation. Compare the complete specifications on this page with the unit being replaced.
Is S1659 new or remanufactured?
Check the current product condition selection for S1659. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering S1659?
Compare 12V compatibility, 1.4kW power, 13 pinion teeth, rotation, mounting and electrical connections with the original starter.
Does clicking prove the starter motor has failed?
No. Battery voltage, wiring and control-circuit faults can also cause clicking or no cranking. Have the starting system tested before choosing a replacement.
