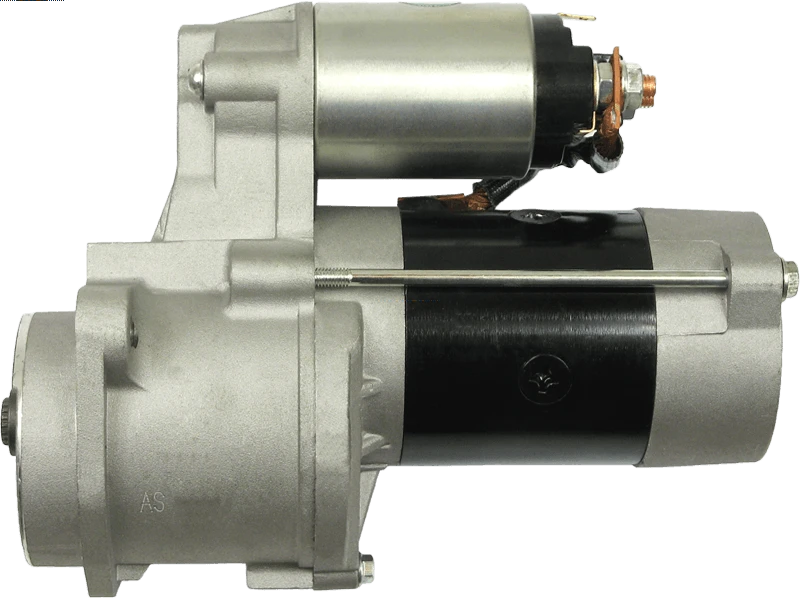

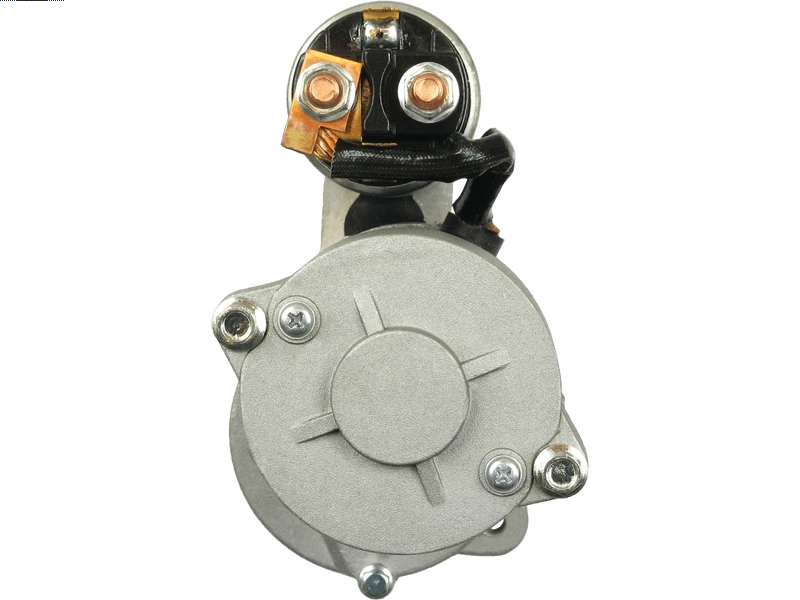

S1712 12V 2.2kW Starter Motor Fits Hyundai H1, Hyundai H100 Truck
Price range: £121.69 through £141.07
Sahibs S1712 is a replacement starter motor with a listed 12V 2.2kW rating. Listed applications include selected Hyundai H1, Hyundai H100 Truck, Hyundai H200, Hyundai H300 models. Identification references include Lucas LRS01712, Bosch 986023220, Valeo 1250128. Its listed 12V 2.2kW rating provides an electrical matching point for your existing unit. Check the 10-tooth pinion, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your S1712 replacement starter motor online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| KW | 2.2 kW |
| Volt | 12 V |
| Plug | M8 |
| Rotation | Clockwise |
| Teeth | 10 qty |
| Oil Sealed | No |
| Insulated Return | No |
| Waterproof | No |
| Wet Clutch | No |
| Weight | 5.6 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYS1712 | Dyno Electrics |
| 402900051 | Euro Car Part |
| S3062 | AS-PL |
| 986023220 | BOSCH |
| DRS0037 | DELCO |
| DRS0037N | DELCO |
| 8EA011610-811 | HELLA |
| 8EA738258-131 | HELLA |
| 0K56P-18400 | HYUNDAI / KIA |
| 0K56P-18400A | HYUNDAI / KIA |
| 36100-4A000 | HYUNDAI / KIA |
| 36100-4A010 | HYUNDAI / KIA |
| K56P18400 | HYUNDAI / KIA |
| S0001250128 | MANDO |
| 1250128 | VALEO |
| 458440 | VALEO |
| 600078 | VALEO |
| 600248 | VALEO |
| 644849 | VALEO |
| TM000A23601 | VALEO |
| PRSW416 | 3EFFE |
| STRW416 | 3EFFE |
| AZMT-53-010-1195 | A.Z. MEISTERTEILE |
| AC-JBS1355 | ACAUTO |
| CGB-24000 | AINDE |
| CGB-24010 | AINDE |
| 10439737 | ALANKO |
| ANM12257 | ANDEL |
| ANM12257X | ANDEL |
| ANM12549 | ANDEL |
| ASM1621 | APEC |
| A78400 | ATL AUTOTECHNIK |
| AET1355 | AUTOELECTRO |
| SMA106 | AUTOTEAM |
| SMA106A | AUTOTEAM |
| SMA126 | AUTOTEAM |
| ADG01229 | BLUE PRINT |
| BST2601 | BORG & BECK |
| STA0297R | BOVEZ |
| S510340 | BTS TURBO |
| CST32106AS | CASCO |
| CST32106GS | CASCO |
| CST32106OS | CASCO |
| CST32126GS | CASCO |
| 9781 | CEVAM |
| 22.1355 | CQ |
| 22.1355M | CQ |
| 12086 | EAI |
| STR8715 | ELECTROLOG |
| STR8715A | ELECTROLOG |
| STR8724 | ELECTROLOG |
| 25-3267 | ELSTOCK |
| 25-3475 | ELSTOCK |
| 220350 | ERA |
| 220497 | ERA |
| 8080265 | FRIESEN |
| GS04A000-A | GPARTS |
| JS1355 | HC PARTS |
| 201355 | KUHNER |
| 201355V | KUHNER |
| 336289 | LOGISTIK |
| LRS01712 | LUCAS |
| LRS02303 | LUCAS |
| LRS1712 | LUCAS |
| LRS2303 | LUCAS |
| NPANSM1621 | NAPA |
| 8212305 | POWERMAX |
| 88212305 | POWERMAX |
| 250.503.102.120 | PSH |
| 250.503.102.360 | PSH |
| 250.503.102.395 | PSH |
| 250.503.102.786 | PSH |
| 20493601BN | REAL |
| 20493601OE | REAL |
| 20493601RE | REAL |
| 20493621OE | REAL |
| RNL1355JS | RNL |
| 6032106 | SANDO |
| 6032106.1 | SANDO |
| 6032106.4 | SANDO |
| 6032126.1 | SANDO |
| S12VA0174A2 | SIDAT |
| S12VA0840A2 | SIDAT |
| MAV341060 | SIOM |
| SS725 | SOVEREIGN |
| STX200085 | STARDAX |
| STX200085R | STARDAX |
| 32712N | WAI / TRANSPO |
| STR75003 | WOODAUTO |
| WOOSTR75003 | WOODAUTO |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| HYUNDAI | H1 | 2.5 (2497ccm) Diesel | D4CB | A1 | 2001 - 2007 | ||
| HYUNDAI | H1 | 2.5 (2497ccm) Diesel | D4CB | A1 | 2002 - 2007 | ||
| HYUNDAI | H1 | 2.5 (2497ccm) Diesel | D4CB | A1 | 2002 - 2004 | ||
| HYUNDAI | H1 | 2.5 (2497ccm) Diesel | D4CB | A1 | 2003 - 2007 | ||
| HYUNDAI | H1 | 2.5 (2497ccm) Diesel | D4CB | A1 | 2006 - 2007 | ||
| HYUNDAI | H100 Truck | 2.5 (2497ccm) Diesel | D4CB | KMF | 2010 - | ||
| HYUNDAI | H200 | 2.5 (2497ccm) Diesel | D4CB | A1 | 2002 - 2007 | ||
| HYUNDAI | H200 | 2.5 (2497ccm) Diesel | D4CB | A1 | 2003 - 2004 | ||
| HYUNDAI | H200 | 2.5 (2497ccm) Diesel | D4CB | A1 | 2003 - 2007 | ||
| HYUNDAI | H200 | 2.5 (2497ccm) Diesel | D4CB | A1 | 2006 - 2007 | ||
| HYUNDAI | H200 | 2.5 (2497ccm) Diesel | D4CB | A1 | 2007 - 2007 | ||
| HYUNDAI | H300 | 2.5 (2497ccm) Diesel | D4CB | TQ | 2007 - | ||
| HYUNDAI | H300 | 2.5 (2497ccm) Diesel | D4CB | TQ | 2007 - 2012 | ||
| HYUNDAI | H300 | 2.5 (2497ccm) Diesel | D4CB | TQ | 2008 - 2012 | ||
| HYUNDAI | H300 | 2.5 (2497ccm) Diesel | D4CB | TQ | 2008 - 2013 | ||
| HYUNDAI | H300 | 2.5 (2497ccm) Diesel | D4CB | TQ | 2011 - 2012 | ||
| HYUNDAI | i800 | 2.5 (2497ccm) Diesel | D4CB | TQ | 2007 - | ||
| HYUNDAI | Satellite | 2.5 (2497ccm) Diesel | D4CB | A1 | 2002 - 2007 | ||
| HYUNDAI | Satellite | 2.5 (2497ccm) Diesel | D4CB | A1 | 2006 - 2007 | ||
| HYUNDAI | Starex | 2.5 (2497ccm) Diesel | D4CB | A1 | 2002 - 2007 | ||
| HYUNDAI | Starex | 2.5 (2497ccm) Diesel | D4CB | A1 | 2002 - 2004 | ||
| KIA | Sorento | 2.5 (2497ccm) Diesel | D4CB | MK I | BL | 2002 - 2011 |
Description
S1712 Replacement Starter Motor
Start your S1712 starter motor comparison with the linked Lucas reference LRS01712 and the specifications shown on this page. The listed electrical rating is 12V 2.2kW. A starter motor turns the engine during starting; the electrical rating and mechanical engagement must suit the application. Applications include selected Hyundai H1 2.5 Diesel variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 2.2kW power: compare the listed rating with the original starter motor.

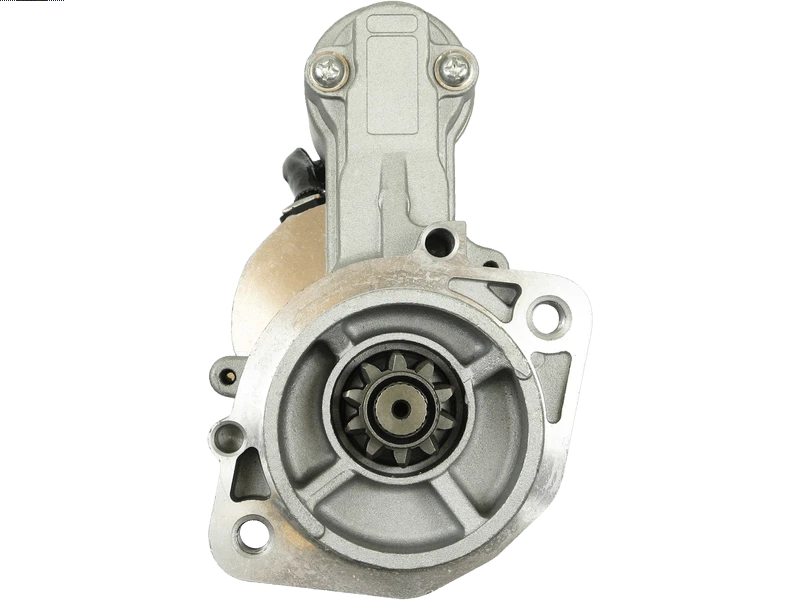

- 10-tooth pinion: compare gear engagement and pinion position.
- Clockwise rotation: check the specified direction before fitting.
- M8 connector / terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Hyundai H1 2.5 Diesel – selected applications 2001–2007 (engine code D4CB).
- Hyundai H100 Truck 2.5 Diesel – selected applications 2010 – (engine code D4CB).
- Hyundai H200 2.5 Diesel – selected applications 2002–2007 (engine code D4CB).
- Hyundai H300 2.5 Diesel – selected applications 2007 – (engine code D4CB).
- Hyundai i800 2.5 Diesel – selected applications 2007 – (engine code D4CB).
- Hyundai Satellite 2.5 Diesel – selected applications 2002–2007 (engine code D4CB).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with S1712. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
986023220, 1250128, 458440, 600078, 600248, 644849, TM000A23601, LRS01712, LRS02303, LRS1712, LRS2303, DRS0037, DRS0037N
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Starter Motor?
Failure to crank, clicking during a start request or intermittent cranking can indicate a starting-system problem. A weak battery, poor connections or control-circuit faults can produce similar symptoms; test the system before replacing the starter motor.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying S1712 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will S1712 fit my Hyundai H1?
Hyundai H1 2.5 Diesel (2001–2007) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does S1712 replace Lucas LRS01712?
Lucas LRS01712 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for S1712?
The listed details include 12V, 2.2kW power, 10 pinion teeth, clockwise rotation. Compare the complete specifications on this page with the unit being replaced.
Is S1712 new or remanufactured?
Check the current product condition selection for S1712. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering S1712?
Compare 12V compatibility, 2.2kW power, 10 pinion teeth, rotation, mounting and electrical connections with the original starter.
Does clicking prove the starter motor has failed?
No. Battery voltage, wiring and control-circuit faults can also cause clicking or no cranking. Have the starting system tested before choosing a replacement.
