S4126 12V 1.7kW Starter Motor Fits Vauxhall Movano, Peugeot Boxer
Price range: £105.86 through £125.85
Compare the S4126 12V 1.7kW starter motor from Sahibs Auto Electrics with the unit currently fitted. Listed applications include selected Vauxhall Movano, Peugeot Boxer, CitroËN Jumper, CitroËN Relay models. Identification references include Lucas LRS04126, Bosch 1174608, Valeo 438525. Its listed 12V 1.7kW rating provides an electrical matching point for your existing unit. Check the 12-tooth pinion, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your S4126 replacement starter motor online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| KW | 1.7 kW |
| Volt | 12 V |
| Rotation | Clockwise |
| Teeth | 12 qty |
| Oil Sealed | No |
| Insulated Return | No |
| Waterproof | No |
| Wet Clutch | No |
| Weight | 3.27 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYS4126 | Dyno Electrics |
| 402545371 | Euro Car Part |
| UD04011(SEG)S | AS-PL |
| 1174608 | BOSCH |
| 1174609 | BOSCH |
| 1174635 | BOSCH |
| 1174636 | BOSCH |
| 986026800 | BOSCH |
| 1986S01042 | BOSCH |
| DRS1203 | DELCO |
| 8EA011612-901 | HELLA |
| 1624820580 | PEUGEOT |
| 1638028580 | PEUGEOT |
| 9805807780 | PEUGEOT |
| 9818936380 | PEUGEOT |
| 9826048080 | PEUGEOT |
| 438525 | VALEO |
| 458956 | VALEO |
| STRJ668 | 3EFFE |
| A93000 | ATL AUTOTECHNIK |
| SBOA07 | AUTOTEAM |
| CST10A07AS | CASCO |
| CST10A07GS | CASCO |
| 3353 | CEVAM |
| 300065122 | DRI |
| 12481 | EAI |
| 25-5289 | ELSTOCK |
| 11090511 | EUROTEC |
| 109382 | FARCOM |
| 42005005 | HERTH+BUSS |
| 10010A07AV | ITAB AUTOMOTIVE |
| 10010A07OV | ITAB AUTOMOTIVE |
| STB2684 | KRAUF |
| 256186 | KUHNER |
| 256186B | KUHNER |
| 256186S | KUHNER |
| 332200 | LOGISTIK |
| LRS04126 | LUCAS |
| LRS4126 | LUCAS |
| 5010968G | MEAT & DORIA |
| 330015 | MEC-DIESEL |
| 8550504895 | MOTRIO |
| 88214724 | POWERMAX |
| IR9959 | PROTECH |
| 220.546.123.010 | PSH |
| 220.546.123.281 | PSH |
| 220.546.123.460 | PSH |
| 2040170ABN | REAL |
| 2040170AOE | REAL |
| 120-10240 | ROBERT'S |
| 120-10240NOE | ROBERT'S |
| STM1462 | ROLLCO |
| 6010A07.0 | SANDO |
| 6010A07.1 | SANDO |
| S12BH0936 | SIDAT |
| TP9043 | SNRA |
| STX200878 | STARDAX |
| 481ST21 | STARTCAR |
| ST02241 | TMI |
| 30941N | WAI / TRANSPO |
| SEG0001174608 | WOODAUTO |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| CITROËN | Jumper | 2.0 (1997ccm) Diesel | DW10FUE | Y_AHM | 2015 - 2019 | ||
| CITROËN | Jumper | 2.0 (1997ccm) Diesel | DW10FUD | Y_AHN | 2015 - 2019 | ||
| CITROËN | Jumper | 2.0 (1997ccm) Diesel | DW10FUC | Y_AHP | 2015 - 2019 | ||
| CITROËN | Jumper | 2.0 (1997ccm) Diesel | DW10FUE | Plancher | Y_AHM | 2015 - 2019 | |
| CITROËN | Jumper | 2.0 (1997ccm) Diesel | DW10FUD | Plancher | Y_AHN | 2015 - 2019 | |
| CITROËN | Jumper | 2.0 (1997ccm) Diesel | DW10FUC | Plancher | Y_AHP | 2015 - 2019 | |
| CITROËN | Jumper | 2.2 (2179ccm) Diesel | DW12RUD | Y_4HB | 2019 - 2023 | ||
| CITROËN | Jumper | 2.2 (2179ccm) Diesel | DW12RUE | Y_4HA | 2019 - 2023 | ||
| CITROËN | Jumper | 2.2 (2179ccm) Diesel | DW12RUC | Y_4HH | 2019 - 2023 | ||
| CITROËN | Jumper | 2.2 (2179ccm) Diesel | DW12RUD | Plancher | Y_4HB | 2019 - 2023 | |
| CITROËN | Jumper | 2.2 (2179ccm) Diesel | DW12RUC | Plancher | Y_4HH | 2019 - 2023 | |
| CITROËN | Relay | 2.0 (1997ccm) Diesel | DW10FUE | Y_AHM | 2016 - 2020 | ||
| CITROËN | Relay | 2.0 (1997ccm) Diesel | DW10FUC | Y_AHP | 2016 - 2020 | ||
| CITROËN | Relay | 2.0 (1997ccm) Diesel | DW10FUD | Y_AHN | 2016 - 2020 | ||
| CITROËN | Relay | 2.2 (2179ccm) Diesel | DW12RUC | Y_4HH | 2019 - 2023 | ||
| OPEL | Movano | 2.2 (2179ccm) Diesel | DW12RUC | C | U9 | 2021 - 2023 | |
| OPEL | Movano | 2.2 (2179ccm) Diesel | DW12RUE | C | U9 | 2021 - 2023 | |
| OPEL | Movano | 2.2 (2179ccm) Diesel | DW12RUD | C | U9 | 2021 - 2023 | |
| PEUGEOT | Boxer | 2.0 (1997ccm) Diesel | DW10FUE | Y_AHM | 2015 - 2019 | ||
| PEUGEOT | Boxer | 2.0 (1997ccm) Diesel | DW10FUD | Y_AHN | 2015 - 2019 | ||
| PEUGEOT | Boxer | 2.0 (1997ccm) Diesel | DW10FUC | Y_AHP | 2015 - 2019 | ||
| PEUGEOT | Boxer | 2.0 (1997ccm) Diesel | DW10FUC | Y_AHP | 2016 - 2023 | ||
| PEUGEOT | Boxer | 2.0 (1997ccm) Diesel | DW10FUE | Y_AHM | 2016 - 2019 | ||
| PEUGEOT | Boxer | 2.0 (1997ccm) Diesel | DW10FUD | Y_AHN | 2016 - 2019 | ||
| PEUGEOT | Boxer | 2.0 (1997ccm) Diesel | DW10FUD | Plancher | Y_AHN | 2016 - 2019 | |
| PEUGEOT | Boxer | 2.0 (1997ccm) Diesel | DW10FUC | Y_AHP | 2016 - 2019 | ||
| PEUGEOT | Boxer | 2.0 (1997ccm) Diesel | DW10FUC | Plancher | Y_AHP | 2016 - 2023 | |
| PEUGEOT | Boxer | 2.2 (2179ccm) Diesel | DW12RUD | Y_4HB | 2019 - 2023 | ||
| PEUGEOT | Boxer | 2.2 (2179ccm) Diesel | DW12RUE | Y_4HA | 2019 - 2023 | ||
| PEUGEOT | Boxer | 2.2 (2179ccm) Diesel | DW12RUD | Plancher | Y_4HB | 2019 - 2023 | |
| VAUXHALL | Movano | 2.2 (2179ccm) Diesel | DW12RUC | C | U9 | 2021 - 2023 | |
| VAUXHALL | Movano | 2.2 (2179ccm) Diesel | DW12RUD | C | U9 | 2021 - 2023 | |
| VAUXHALL | Movano | 2.2 (2179ccm) Diesel | DW12RUD | C | U9 | 2021 - 2025 | |
| VAUXHALL | Movano | 2.2 (2179ccm) Diesel | DW12RUC | C | U9 | 2022 - 2023 | |
| VAUXHALL | Movano | 2.2 (2179ccm) Diesel | DW12RUE | C | U9 | 2022 - 2023 |
Description

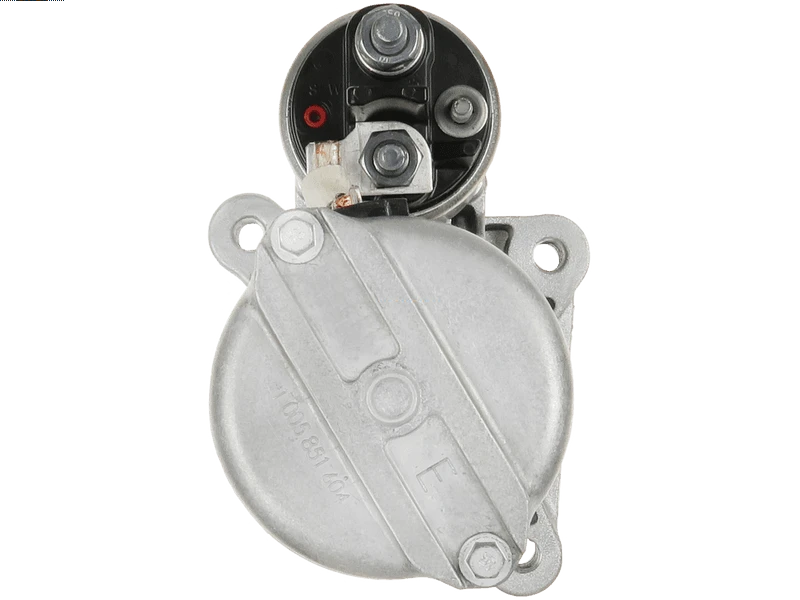

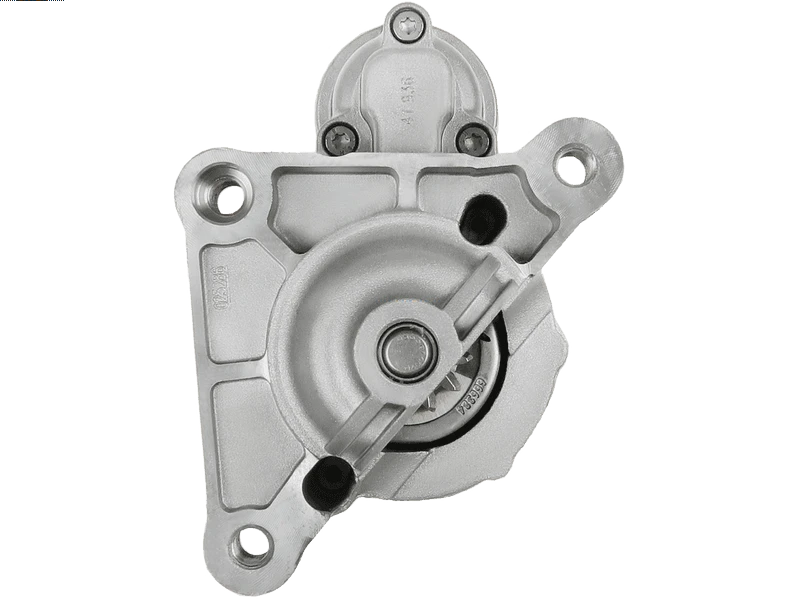

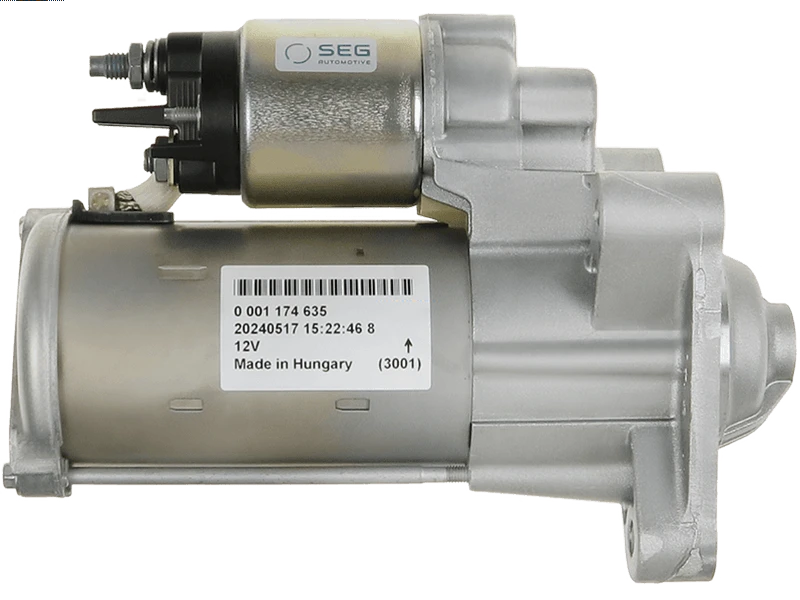

S4126 Replacement Starter Motor
The S4126 starter motor is a replacement unit identified by Lucas reference LRS04126. The listed electrical rating is 12V 1.7kW. A starter motor turns the engine during starting; the electrical rating and mechanical engagement must suit the application. Applications include selected Vauxhall Movano 2.2 Diesel variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 1.7kW power: compare the listed rating with the original starter motor.
- 12-tooth pinion: compare gear engagement and pinion position.
- Clockwise rotation: check the specified direction before fitting.
- Pin "30" M8 B+ connector / terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Vauxhall Movano 2.2 Diesel – selected applications 2021–2023 (engine code DW12RUC).
- Peugeot Boxer 2.0 Diesel – selected applications 2015–2019 (engine code DW10FUE).
- CitroËN Jumper 2.0 Diesel – selected applications 2015–2019 (engine code DW10FUE).
- CitroËN Relay 2.0 Diesel – selected applications 2016–2020 (engine code DW10FUE).
- Opel Movano 2.2 Diesel – selected applications 2021–2023 (engine code DW12RUC).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with S4126. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
1174608, 1174609, 1174635, 1174636, 986026800, 1986S01042, 438525, 458956, LRS04126, LRS4126, DRS1203, 1624820580, 1638028580, 9805807780, 9818936380, 9826048080
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Starter Motor?
Failure to crank, clicking during a start request or intermittent cranking can indicate a starting-system problem. A weak battery, poor connections or control-circuit faults can produce similar symptoms; test the system before replacing the starter motor.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying S4126 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will S4126 fit my Vauxhall Movano?
Vauxhall Movano 2.2 Diesel (2021–2023) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does S4126 replace Lucas LRS04126?
Lucas LRS04126 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for S4126?
The listed details include 12V, 1.7kW power, 12 pinion teeth, clockwise rotation. Compare the complete specifications on this page with the unit being replaced.
Is S4126 new or remanufactured?
Check the current product condition selection for S4126. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering S4126?
Compare 12V compatibility, 1.7kW power, 12 pinion teeth, rotation, mounting and electrical connections with the original starter.
Does clicking prove the starter motor has failed?
No. Battery voltage, wiring and control-circuit faults can also cause clicking or no cranking. Have the starting system tested before choosing a replacement.
