S4193 12V 2.2kW Starter Motor Fits BMW 520d, BMW 525d, BMW 725d
Price range: £123.37 through £147.90

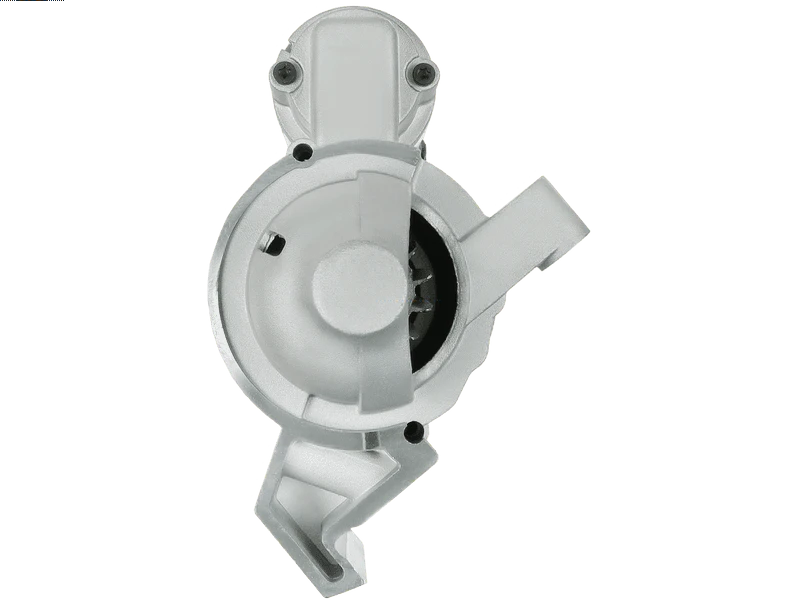

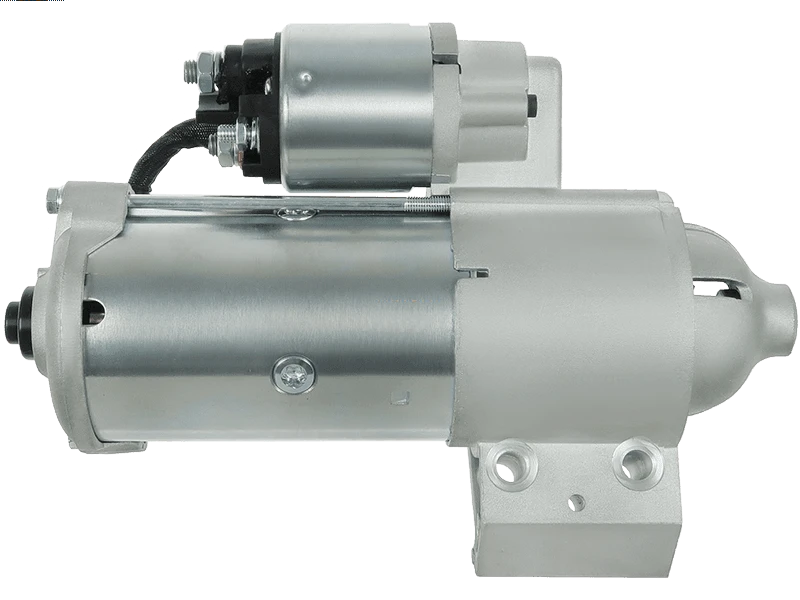

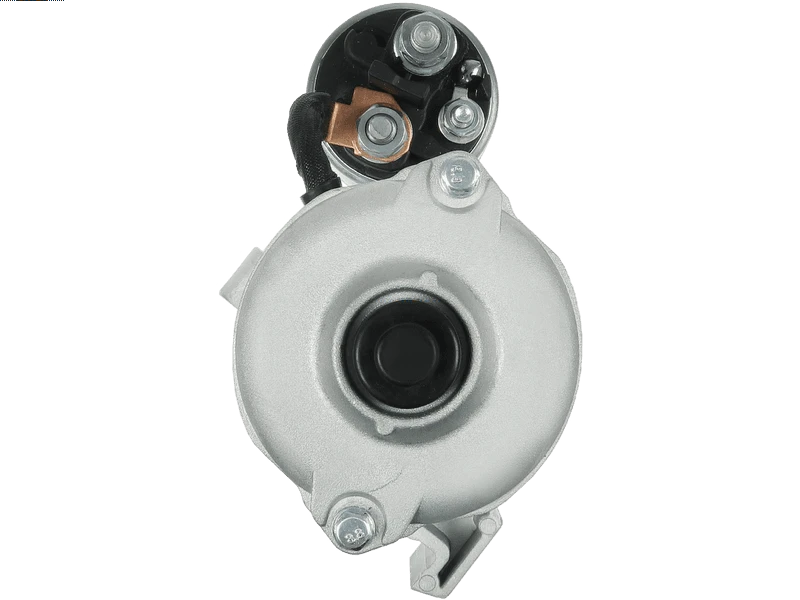

The S4193 12V 2.2kW Starter Motor is a replacement starting unit from Sahibs Auto Electrics. Listed applications include selected BMW 520d, BMW 525d, BMW 725d, BMW X3 18d models. Identification references include Lucas LRS04193, Valeo 438343. Its listed 12V 2.2kW rating provides an electrical matching point for your existing unit. Check the 14-tooth pinion, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your S4193 replacement starter motor online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| KW | 2.2 kW |
| Volt | 12 V |
| Rotation | Clockwise |
| Teeth | 14 qty |
| Oil Sealed | No |
| Insulated Return | No |
| Waterproof | No |
| Wet Clutch | No |
| Weight | 4.1 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYS4193 | Dyno Electrics |
| UD101827S | AS-PL |
| 12418588898 | BMW |
| 12418588902 | BMW |
| 8588898 | BMW |
| 438343 | VALEO |
| 458798 | VALEO |
| RSW22A-11 | VALEO |
| 315077142 | DRI |
| 12441 | EAI |
| 25-5355 | ELSTOCK |
| 9844 | ERA |
| STV2557 | KRAUF |
| 256123 | KUHNER |
| 256123V | KUHNER |
| 332219 | LOGISTIK |
| LRS04193 | LUCAS |
| LRS4193 | LUCAS |
| 88215194 | POWERMAX |
| 210.571.142.000 | PSH |
| 210.571.142.500 | PSH |
| 31095-OS | WAI / TRANSPO |
| VAL438343 | WOODAUTO |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| BMW | 520d | 2.0 (1995ccm) Diesel | B47D20A/B47D20B | G30 | 2016 - 2018 | ||
| BMW | 520d | 2.0 (1995ccm) Diesel | B47D20A/B47D20B | G30 | xDrive | 2016 - 2018 | |
| BMW | 520d | 2.0 (1995ccm) Diesel | B47D20A/B47D20B | G31 | xDrive Touring Van | 2017 - 2018 | |
| BMW | 520d | 2.0 (1995ccm) Diesel | B47D20A/B47D20B | G31 | Touring | 2017 - 2018 | |
| BMW | 520d | 2.0 (1995ccm) Diesel | B47D20A/B47D20B | G31 | Touring Van | 2017 - 2018 | |
| BMW | 520d | 2.0 (1995ccm) Diesel | B47D20A/B47D20B | G31 | xDrive Touring | 2017 - 2018 | |
| BMW | 520d | 2.0 (1995ccm) Diesel | B47D20A/B47D20B | G31 | xDrive Touring | 2017 - | |
| BMW | 525d | 2.0 (1995ccm) Diesel | B47D20B | G30 | 2017 - 2019 | ||
| BMW | 525d | 2.0 (1995ccm) Diesel | B47D20B | G31 | Touring | 2017 - 2019 | |
| BMW | 725d | 2.0 (1995ccm) Diesel | B47D20B | G12 | Long | 2015 - 2019 | |
| BMW | 725d | 2.0 (1995ccm) Diesel | B47D20B | G11 | 2015 - 2019 | ||
| BMW | 725d | 2.0 (1995ccm) Diesel | B47D20B | G12 | Long | 2017 - 2019 | |
| BMW | 725d | 2.0 (1995ccm) Diesel | B47D20B | G11 | 2017 - 2019 | ||
| BMW | X3 18d | 2.0 (1995ccm) Diesel | B47D20A/B47D20B | G01 | sDrive | 2018 - 2020 | |
| BMW | X3 20d | 2.0 (1995ccm) Diesel | B47D20A/B47D20B | G01 | xDrive | 2017 - 2020 | |
| BMW | X3 20d | 2.0 (1995ccm) Diesel | B47D20A/B47D20B | G01 | xDrive VAN | 2017 - | |
| BMW | X3 25d | 2.0 (1995ccm) Diesel | B47D20B | G01 | xDrive | 2018 - | |
| BMW | X3 sDrive 18d | 2.0 (1995ccm) Diesel | B47D20A/B47D20B | G01 | VAN | 2018 - 2020 | |
| BMW | X4 20d | 2.0 (1995ccm) Diesel | B47D20A/B47D20B | G02 | xDrive | 2018 - 2020 | |
| BMW | X4 25d | 2.0 (1995ccm) Diesel | B47D20B | G02 | xDrive | 2018 - |
Description
S4193 Replacement Starter Motor
Choose a replacement by comparing the S4193 starter motor and its Lucas reference, LRS04193, with your existing unit. The listed electrical rating is 12V 2.2kW. A starter motor turns the engine during starting; the electrical rating and mechanical engagement must suit the application. Applications include selected BMW 520d 2.0 Diesel variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 2.2kW power: compare the listed rating with the original starter motor.
- 14-tooth pinion: compare gear engagement and pinion position.
- Clockwise rotation: check the specified direction before fitting.
- Pin "30" M8 B+ connector / terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- BMW 520d 2.0 Diesel – selected applications 2016–2018 (engine code B47D20A/B47D20B).
- BMW 525d 2.0 Diesel – selected applications 2017–2019 (engine code B47D20B).
- BMW 725d 2.0 Diesel – selected applications 2015–2019 (engine code B47D20B).
- BMW X3 18d 2.0 Diesel – selected applications 2018–2020 (engine code B47D20A/B47D20B).
- BMW X3 20d 2.0 Diesel – selected applications 2017–2020 (engine code B47D20A/B47D20B).
- BMW X3 25d 2.0 Diesel – selected applications 2018 – (engine code B47D20B).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with S4193. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
438343, 458798, RSW22A-11, LRS04193, LRS4193
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Starter Motor?
Failure to crank, clicking during a start request or intermittent cranking can indicate a starting-system problem. A weak battery, poor connections or control-circuit faults can produce similar symptoms; test the system before replacing the starter motor.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying S4193 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will S4193 fit my BMW 520d?
BMW 520d 2.0 Diesel (2016–2018) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does S4193 replace Lucas LRS04193?
Lucas LRS04193 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for S4193?
The listed details include 12V, 2.2kW power, 14 pinion teeth, clockwise rotation. Compare the complete specifications on this page with the unit being replaced.
Is S4193 new or remanufactured?
Check the current product condition selection for S4193. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering S4193?
Compare 12V compatibility, 2.2kW power, 14 pinion teeth, rotation, mounting and electrical connections with the original starter.
Does clicking prove the starter motor has failed?
No. Battery voltage, wiring and control-circuit faults can also cause clicking or no cranking. Have the starting system tested before choosing a replacement.
