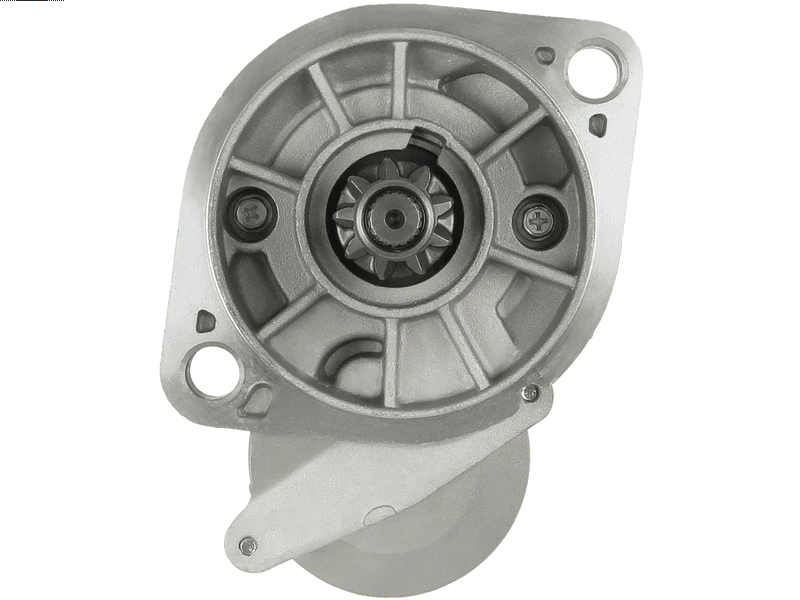

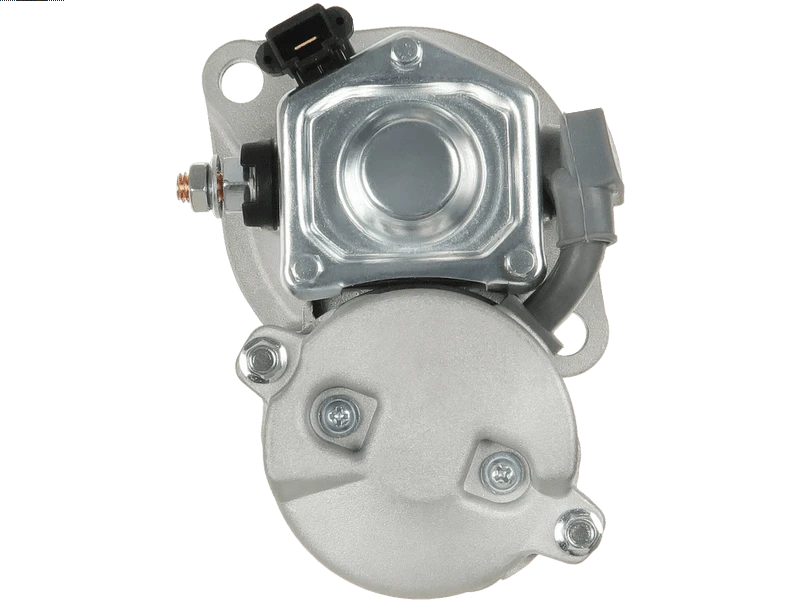

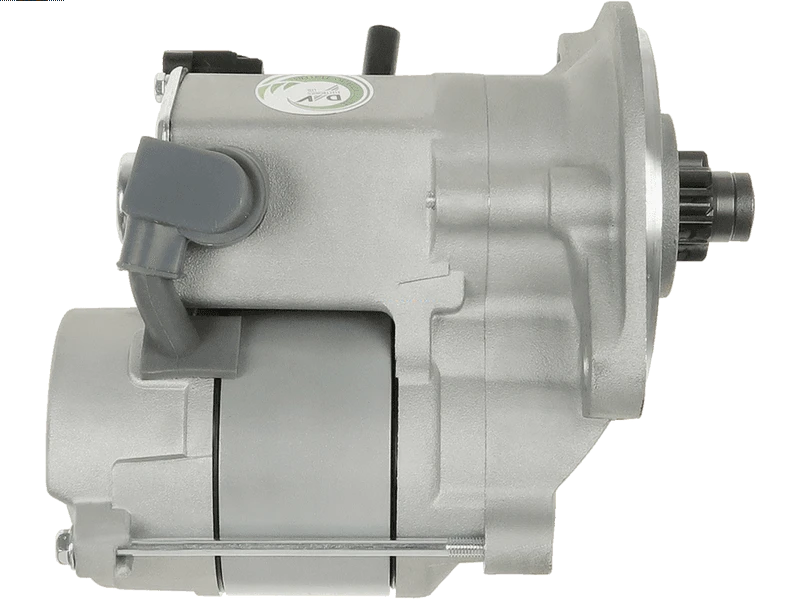

S4197 12V 1.2kW Starter Motor Fits John Deere 1026R
Price range: £123.16 through £142.78
The S4197 12V 1.2kW Starter Motor is a replacement starting unit from Sahibs Auto Electrics. Listed applications include selected John Deere 1026R, John Deere 2320 Compact Tractor, Yanmar Mini Tractor 424 models. Identification references include Lucas LRS04197, Bosch F032116016, Denso 428000-0870. Its listed 12V 1.2kW rating provides an electrical matching point for your existing unit. Check the 9-tooth pinion, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your S4197 replacement starter motor online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| KW | 1.2 kW |
| Volt | 12 V |
| Rotation | Clockwise |
| Teeth | 9 qty |
| Oil Sealed | No |
| Insulated Return | No |
| Waterproof | No |
| Wet Clutch | No |
| Weight | 3.5 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYS4197 | Dyno Electrics |
| UD102503S | AS-PL |
| F032116016 | BOSCH |
| 116016 | CARGO |
| 428000-0870 | DENSO |
| M810337 | JOHN DEERE |
| 11962677020 | YANMAR |
| YM11962677020 | YANMAR |
| 10438626 | ALANKO |
| 11438626 | ALANKO |
| SDN421A | AUTOTEAM |
| CST40421AS | CASCO |
| CST40421RS | CASCO |
| 8969 | CEVAM |
| 682050092 | DRI |
| STR6800 | ELECTROLOG |
| 25-5359 | ELSTOCK |
| 107515 | FARCOM |
| 10040421AV | ITAB AUTOMOTIVE |
| STN7020 | KRAUF |
| 255732 | KUHNER |
| 16021 | LESTER |
| 336111 | LOGISTIK |
| LRS04197 | LUCAS |
| LRS4197 | LUCAS |
| 88215023 | POWERMAX |
| 980.530.092.050 | PSH |
| 20432124BN | REAL |
| 20432124RC | REAL |
| 190-20202 | ROBERT'S |
| 6040421 | SANDO |
| 6040421.2 | SANDO |
| S12DE0770A2 | SIDAT |
| ST02816 | TMI |
| 16021N | WAI / TRANSPO |
| 91295968 | WILSON |
| STR70378 | WOODAUTO |
| WOOSTR70378 | WOODAUTO |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| JOHN DEERE | 1026R | 1116ccm Diesel | Yanmar 3TNV76-XC | 2011 - 2012 | |||
| JOHN DEERE | 2320 Compact Tractor | 1116ccm Diesel | 3TNV76-K | 2006 - 2012 | |||
| YANMAR MINI TRACTOR | 424 | 1116ccm Diesel | YANMAR 3TNV76 | 2014 - |
Description
S4197 Replacement Starter Motor
The S4197 starter motor is a replacement unit identified by Lucas reference LRS04197. The listed electrical rating is 12V 1.2kW. A starter motor turns the engine during starting; the electrical rating and mechanical engagement must suit the application. Applications include selected John Deere 1026R 1116ccm Diesel variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 1.2kW power: compare the listed rating with the original starter motor.
- 9-tooth pinion: compare gear engagement and pinion position.
- Clockwise rotation: check the specified direction before fitting.
- M8 B+ connector / terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- John Deere 1026R 1116ccm Diesel – selected applications 2011–2012 (engine code Yanmar 3TNV76-XC).
- John Deere 2320 Compact Tractor 1116ccm Diesel – selected applications 2006–2012 (engine code 3TNV76-K).
- Yanmar Mini Tractor 424 1116ccm Diesel – selected applications 2014 – (engine code YANMAR 3TNV76).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with S4197. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
F032116016, 428000-0870, LRS04197, LRS4197
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Starter Motor?
Failure to crank, clicking during a start request or intermittent cranking can indicate a starting-system problem. A weak battery, poor connections or control-circuit faults can produce similar symptoms; test the system before replacing the starter motor.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying S4197 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will S4197 fit my John Deere 1026R?
John Deere 1026R 1116ccm Diesel (2011–2012) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does S4197 replace Lucas LRS04197?
Lucas LRS04197 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for S4197?
The listed details include 12V, 1.2kW power, 9 pinion teeth, clockwise rotation. Compare the complete specifications on this page with the unit being replaced.
Is S4197 new or remanufactured?
Check the current product condition selection for S4197. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering S4197?
Compare 12V compatibility, 1.2kW power, 9 pinion teeth, rotation, mounting and electrical connections with the original starter.
Does clicking prove the starter motor has failed?
No. Battery voltage, wiring and control-circuit faults can also cause clicking or no cranking. Have the starting system tested before choosing a replacement.
