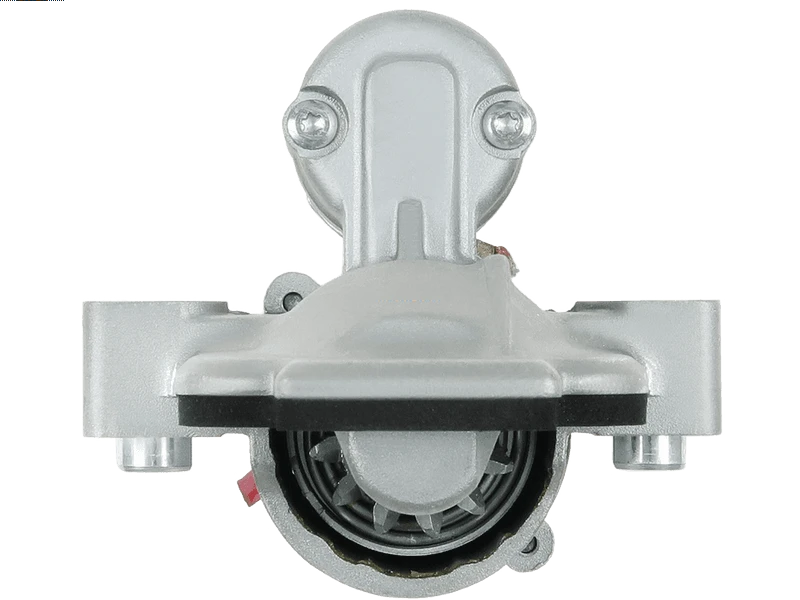

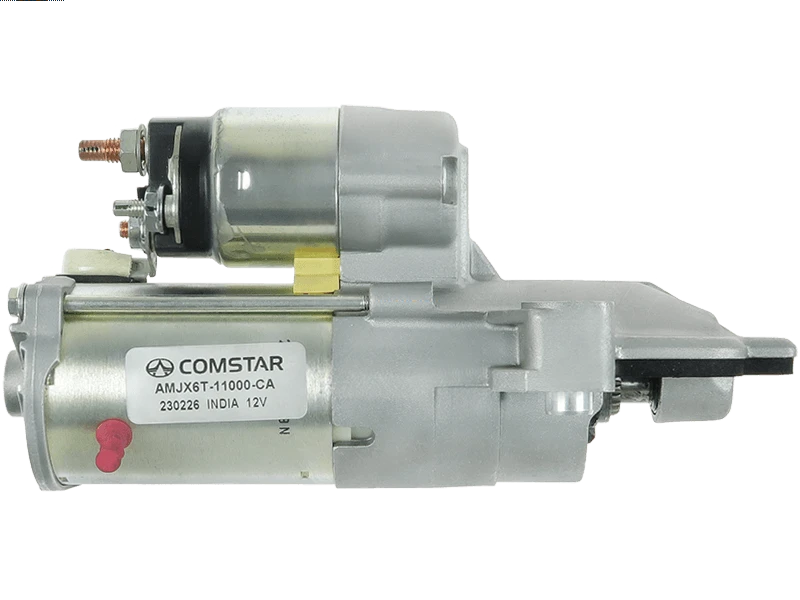

S4206 12V 1.4kW Starter Motor Fits Ford C-Max, Ford Fiesta, Ford Kuga
Price range: £124.58 through £149.34
Identify a replacement starter motor using Sahibs S4206, listed at 12V 1.4kW. Listed applications include selected Ford C-Max, Ford Fiesta, Ford Fiesta Van, Ford Focus models. Identification references include Lucas LRS04206, Ford 2198353. Its listed 12V 1.4kW rating provides an electrical matching point for your existing unit. Check the 12-tooth pinion, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your S4206 replacement starter motor online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| KW | 1.4 kW |
| Volt | 12 V |
| Rotation | Clockwise |
| Teeth | 12 qty |
| Oil Sealed | No |
| Insulated Return | No |
| Waterproof | No |
| Wet Clutch | No |
| Weight | 2.4 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYS4206 | Dyno Electrics |
| 402591651 | Euro Car Part |
| UD101608S | AS-PL |
| 2198353 | FORD |
| AMJX6T11000CA | FORD |
| JX6T-11000-CA | FORD |
| CST14146GS | CASCO |
| 9827 | CEVAM |
| 25-5368 | ELSTOCK |
| 256243V | KUHNER |
| LRS04206 | LUCAS |
| LRS4206 | LUCAS |
| 88215169 | POWERMAX |
| 590.402.122.230 | PSH |
| 20450641OE | REAL |
| 6014146.1 | SANDO |
| MAV161460 | SIOM |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| FORD | C-Max | 1.0 (998ccm) Petrol | M1DA/M1DD | BJ/BV | 2018 - 2019 | ||
| FORD | C-Max | 1.0 (998ccm) Petrol | M2DA/M2DC | BJ/BV | 2018 - 2019 | ||
| FORD | C-Max | 1.0 (999ccm) Petrol | B7DA | DXA | 2018 - 2019 | ||
| FORD | Fiesta | 1.0 (999ccm) Petrol | M0JA | MK VII | Active | HF/HJ | 2019 - |
| FORD | Fiesta | 1.5 (1496ccm) Petrol | YZJA | MK VII | HF/HJ | 2018 - | |
| FORD | Fiesta Van | 1.0 (998ccm) Petrol | SFJE/SFJF/SFJH/SFJJ/SFJK/SFJN/SFJP | MK VII | H | 2019 - | |
| FORD | Fiesta Van | 1.0 (998ccm) Petrol | YYJE | MK VII | H | 2019 - | |
| FORD | Fiesta Van | 1.0 (999ccm) Petrol | M0JA | MK VII | H | 2019 - | |
| FORD | Focus | 1.0 (998ccm) Petrol | SFDC | MK IV | HN | 2018 - 2020 | |
| FORD | Focus | 1.0 (999ccm) Mild Hybrid/petrol | M0DC | MK IV | Active | HN | 2020 - 2020 |
| FORD | Focus | 1.0 (999ccm) Mild Hybrid/petrol | B7DA/B7DC/R0DB | MK IV | Active | HN | 2020 - 2020 |
| FORD | Focus | 1.0 (999ccm) Petrol | B7DA | MK IV | HM | 2018 - 2020 | |
| FORD | Focus | 1.0 (999ccm) Petrol | B7DA | MK IV | Active | HN | 2018 - 2020 |
| FORD | Focus | 1.0 (999ccm) Petrol | B3DA | MK IV | HM | 2018 - 2020 | |
| FORD | Focus | 1.0 (999ccm) Petrol | B3DA | MK IV | HN | 2018 - 2020 | |
| FORD | Focus | 1.5 (1496ccm) Petrol | YZDA | MK IV | Active | HN | 2018 - 2025 |
| FORD | Focus | 1.5 (1496ccm) Petrol | YZDA | MK IV | HM | 2018 - 2025 | |
| FORD | Focus | 1.5 (1496ccm) Petrol | Y1DA | MK IV | Active | HN | 2018 - 2025 |
| FORD | Focus Estate/Wagon | 1.0 (998ccm) Petrol | SFDC | MK IV | HP | 2018 - 2020 | |
| FORD | Focus Estate/Wagon | 1.0 (999ccm) Mild Hybrid/petrol | M0DC | MK IV | Active | HP | 2020 - 2020 |
| FORD | Focus Estate/Wagon | 1.0 (999ccm) Mild Hybrid/petrol | B7DA/B7DC/R0DB | MK IV | HP | 2020 - 2020 | |
| FORD | Focus Estate/Wagon | 1.0 (999ccm) Petrol | B7DA | MK IV | Active | HP | 2018 - 2020 |
| FORD | Focus Estate/Wagon | 1.0 (999ccm) Petrol | B3DA | MK IV | HP | 2018 - 2020 | |
| FORD | Focus Estate/Wagon | 1.5 (1496ccm) Petrol | Y1DA | MK IV | Active | HP | 2018 - 2025 |
| FORD | Focus Estate/Wagon | 1.5 (1496ccm) Petrol | YZDA | MK IV | Active | HP | 2018 - 2025 |
| FORD | Kuga | 1.5 (1496ccm) Petrol | UNDA | III | DFK | 2019 - | |
| FORD | Kuga | 1.5 (1496ccm) Petrol | YZDA/YZDB | III | DFK | 2019 - | |
| FORD | Puma | 1.0 (999ccm) Bio (ethanol) petrol or Methanol | B7JG | CF7/J2K | 2021 - | ||
| FORD | Puma | 1.0 (999ccm) Petrol | B7JA/B7JB | CF7/J2K | 2019 - | ||
| FORD | Puma | 1.0 (999ccm) Petrol | M0JA | CF7/J2K | 2019 - | ||
| FORD | Puma | 1.5 (1496ccm) Petrol | YZJA | CF7/J2K | 2020 - |
Description
S4206 Replacement Starter Motor
Start your S4206 starter motor comparison with the linked Lucas reference LRS04206 and the specifications shown on this page. The listed electrical rating is 12V 1.4kW. A starter motor turns the engine during starting; the electrical rating and mechanical engagement must suit the application. Applications include selected Ford C-Max 1.0 Petrol variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 1.4kW power: compare the listed rating with the original starter motor.
- 12-tooth pinion: compare gear engagement and pinion position.
- Clockwise rotation: check the specified direction before fitting.
- Pin "30" M8 B+ connector / terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Ford C-Max 1.0 Petrol – selected applications 2018–2019 (engine code M1DA/M1DD).
- Ford Fiesta 1.0 Petrol – selected applications 2019 – (engine code M0JA).
- Ford Fiesta Van 1.0 Petrol – selected applications 2019 – (engine code SFJE/SFJF/SFJH/SFJJ/SFJK/SFJN/SFJP).
- Ford Focus 1.0 Petrol – selected applications 2018–2020 (engine code SFDC).
- Ford Focus Estate/Wagon 1.0 Petrol – selected applications 2018–2020 (engine code SFDC).
- Ford Kuga 1.5 Petrol – selected applications 2019 – (engine code UNDA).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with S4206. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
LRS04206, LRS4206, 2198353, AMJX6T11000CA, JX6T-11000-CA
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Starter Motor?
Failure to crank, clicking during a start request or intermittent cranking can indicate a starting-system problem. A weak battery, poor connections or control-circuit faults can produce similar symptoms; test the system before replacing the starter motor.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying S4206 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will S4206 fit my Ford C-Max?
Ford C-Max 1.0 Petrol (2018–2019) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does S4206 replace Lucas LRS04206?
Lucas LRS04206 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for S4206?
The listed details include 12V, 1.4kW power, 12 pinion teeth, clockwise rotation. Compare the complete specifications on this page with the unit being replaced.
Is S4206 new or remanufactured?
Check the current product condition selection for S4206. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering S4206?
Compare 12V compatibility, 1.4kW power, 12 pinion teeth, rotation, mounting and electrical connections with the original starter.
Does clicking prove the starter motor has failed?
No. Battery voltage, wiring and control-circuit faults can also cause clicking or no cranking. Have the starting system tested before choosing a replacement.
