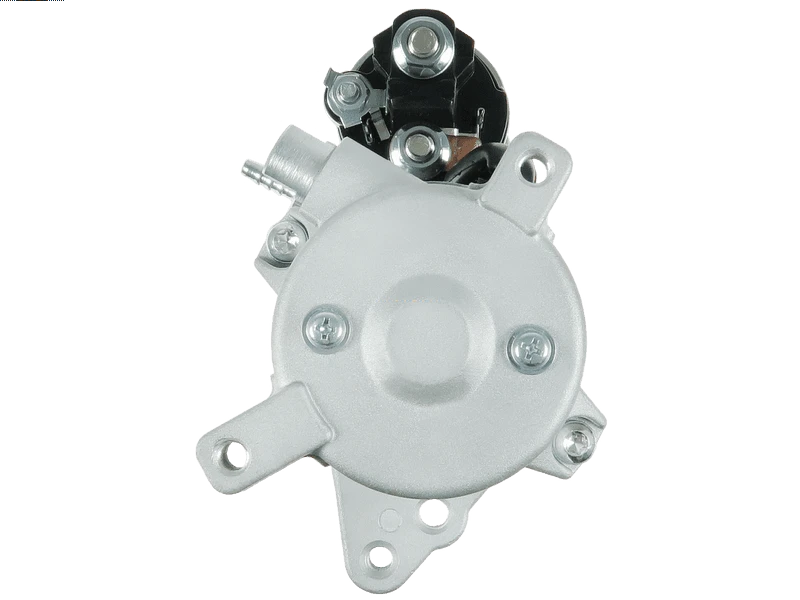

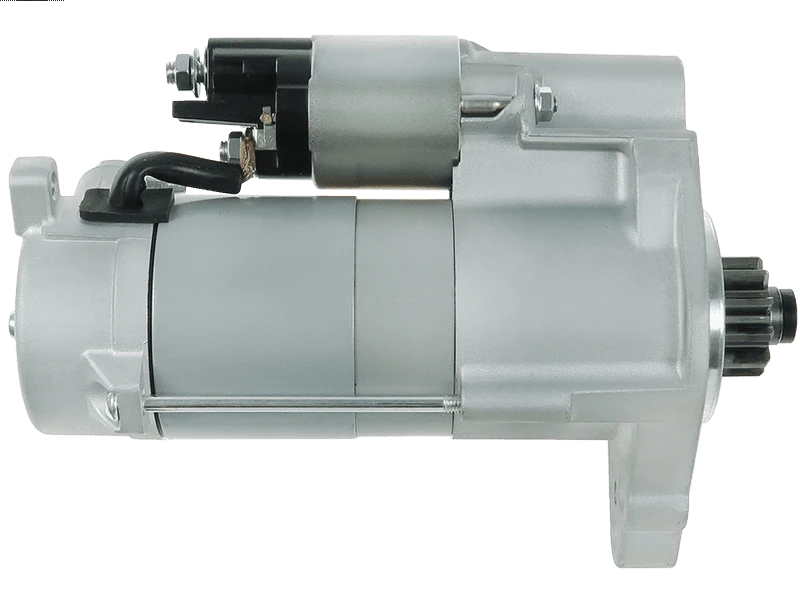

S4222 12V 1.9kW Starter Motor Fits Land Rover Discovery
Price range: £141.91 through £168.69
Identify a replacement starter motor using Sahibs S4222, listed at 12V 1.9kW. Listed applications include selected Land Rover Discovery, Land Rover Range Rover, Land Rover Range Rover Sport models. Identification references include Lucas LRS04222, Denso 438000-1510, Delco Remy DRS1224. Its listed 12V 1.9kW rating provides an electrical matching point for your existing unit. Check the 11-tooth pinion, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your S4222 replacement starter motor online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| KW | 1.9 kW |
| Volt | 12 V |
| Rotation | Clockwise |
| Teeth | 11 qty |
| Oil Sealed | No |
| Insulated Return | No |
| Waterproof | No |
| Wet Clutch | No |
| Weight | 4.8 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYS4222 | Dyno Electrics |
| S6511S | AS-PL |
| UD101242S | AS-PL |
| DRS1224 | DELCO |
| 438000-1510 | DENSO |
| 438000-1511 | DENSO |
| 438000-1512 | DENSO |
| DSN1417 | DENSO |
| FPLA-11001-BA | FORD |
| FPLA-11001-BB | FORD |
| LR061894 | LAND ROVER |
| LR080292 | LAND ROVER |
| CST40471GS | CASCO |
| 3764 | CEVAM |
| 25-5384 | ELSTOCK |
| 221087A | ERA |
| 256293D | KUHNER |
| 335978 | LOGISTIK |
| LRS04222 | LUCAS |
| LRS4222 | LUCAS |
| 88214255 | POWERMAX |
| 450.550.113.260 | PSH |
| 20432174OE | REAL |
| 6040471.1 | SANDO |
| MAV424710 | SIOM |
| 30522N | WAI / TRANSPO |
| DENDSN1417 | WOODAUTO |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| LAND ROVER | Discovery | 3.0 (2993ccm) Diesel | 306DT(TDV6) | MK V | L462 | 2016 - | |
| LAND ROVER | Discovery | 3.0 (2993ccm) Diesel | 306DT(TDV6) | MK V | L462 | 2018 - | |
| LAND ROVER | Range Rover | 3.0 (2993ccm) Diesel | 306DT(TDV6) | MK IV | Long | L405 | 2018 - 2021 |
| LAND ROVER | Range Rover Sport | 3.0 (2993ccm) Diesel | 306DT(TDV6) | MK II | L494 | 2014 - 2022 |
Description
S4222 Replacement Starter Motor
The S4222 starter motor is a replacement unit identified by Lucas reference LRS04222. The listed electrical rating is 12V 1.9kW. A starter motor turns the engine during starting; the electrical rating and mechanical engagement must suit the application. Applications include selected Land Rover Discovery 3.0 Diesel variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 1.9kW power: compare the listed rating with the original starter motor.
- 11-tooth pinion: compare gear engagement and pinion position.
- Clockwise rotation: check the specified direction before fitting.
- Pin "30" M8 B+ connector / terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Land Rover Discovery 3.0 Diesel – selected applications 2016 – (engine code 306DT(TDV6)).
- Land Rover Range Rover 3.0 Diesel – selected applications 2018–2021 (engine code 306DT(TDV6)).
- Land Rover Range Rover Sport 3.0 Diesel – selected applications 2014–2022 (engine code 306DT(TDV6)).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with S4222. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
438000-1510, 438000-1511, 438000-1512, DSN1417, LRS04222, LRS4222, DRS1224, FPLA-11001-BA, FPLA-11001-BB
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Starter Motor?
Failure to crank, clicking during a start request or intermittent cranking can indicate a starting-system problem. A weak battery, poor connections or control-circuit faults can produce similar symptoms; test the system before replacing the starter motor.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying S4222 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will S4222 fit my Land Rover Discovery?
Land Rover Discovery 3.0 Diesel (2016 -) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does S4222 replace Lucas LRS04222?
Lucas LRS04222 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for S4222?
The listed details include 12V, 1.9kW power, 11 pinion teeth, clockwise rotation. Compare the complete specifications on this page with the unit being replaced.
Is S4222 new or remanufactured?
Check the current product condition selection for S4222. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering S4222?
Compare 12V compatibility, 1.9kW power, 11 pinion teeth, rotation, mounting and electrical connections with the original starter.
Does clicking prove the starter motor has failed?
No. Battery voltage, wiring and control-circuit faults can also cause clicking or no cranking. Have the starting system tested before choosing a replacement.
