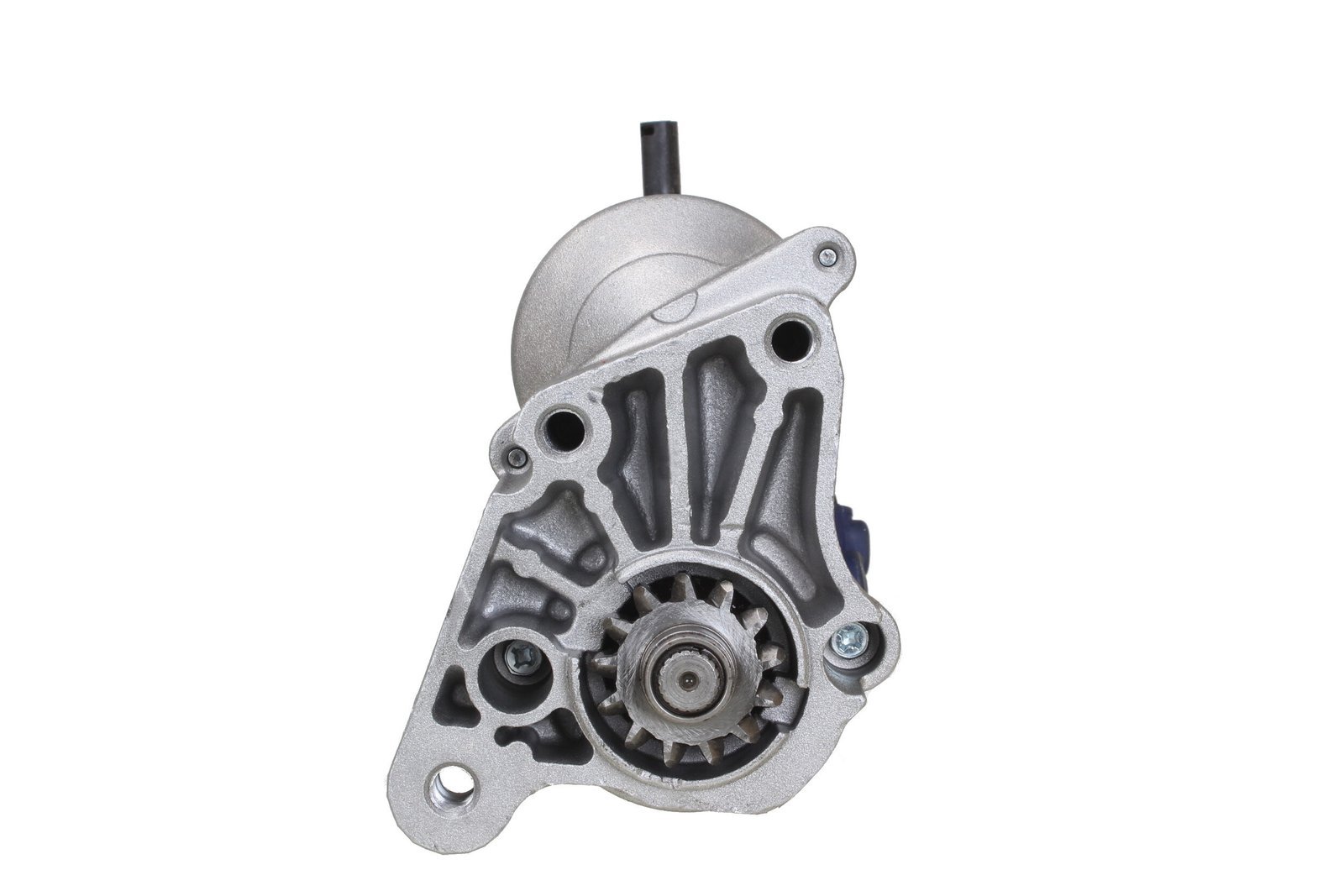

S4225 12V 1.4kW Starter Motor Fits Chrysler 300C
Price range: £144.07 through £178.59
The S4225 12V 1.4kW Starter Motor is a replacement starting unit from Sahibs Auto Electrics. Listed applications include selected Chrysler 300C models. Identification references include Lucas LRS04225, Denso 4280003500, Chrysler 05030076AB. Its listed 12V 1.4kW rating provides an electrical matching point for your existing unit. Check the 13-tooth pinion, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your S4225 replacement starter motor online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| KW | 1.4 kW |
| Volt | 12 V |
| Rotation | Clockwise |
| Teeth | 13 qty |
| Oil Sealed | No |
| Insulated Return | No |
| Waterproof | No |
| Wet Clutch | No |
| Weight | 3.85 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYS4225 | Dyno Electrics |
| 05030076AB | Chrysler |
| 05030076AC | Chrysler |
| 05030076AD | Chrysler |
| 19030N | WAI |
| 4280003500 | Denso |
| 4280003501 | Denso |
| 5030076AB | Chrysler |
| 5030076AC | Chrysler |
| 5030076AD | Chrysler |
| 880559133 | PSH |
| LRS04225 | Lucas |
| LRS4225 | Lucas |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| CHRYSLER | 300C | 6.1 (6059ccm) Petrol | ESF | Touring | LE | 2005 - 2006 | |
| CHRYSLER | 300C | 6.1 (6059ccm) Petrol | ESF | LE | 2005 - 2006 |
Description
S4225 Replacement Starter Motor
The Sahibs S4225 starter motor is associated with Lucas reference LRS04225 for replacement identification. The listed electrical rating is 12V 1.4kW. A starter motor turns the engine during starting; the electrical rating and mechanical engagement must suit the application. Applications include selected Chrysler 300C 6.1 Petrol variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 1.4kW power: compare the listed rating with the original starter motor.
- 13-tooth pinion: compare gear engagement and pinion position.
- Clockwise rotation: check the specified direction before fitting.
- Pin "30" M8 B+ connector / terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Chrysler 300C 6.1 Petrol – selected applications 2005–2006 (engine code ESF).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with S4225. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
4280003500, 4280003501, LRS04225, LRS4225, 05030076AB, 05030076AC, 05030076AD, 5030076AB, 5030076AC, 5030076AD
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Starter Motor?
Failure to crank, clicking during a start request or intermittent cranking can indicate a starting-system problem. A weak battery, poor connections or control-circuit faults can produce similar symptoms; test the system before replacing the starter motor.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying S4225 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will S4225 fit my Chrysler 300C?
Chrysler 300C 6.1 Petrol (2005–2006) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does S4225 replace Lucas LRS04225?
Lucas LRS04225 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for S4225?
The listed details include 12V, 1.4kW power, 13 pinion teeth, clockwise rotation. Compare the complete specifications on this page with the unit being replaced.
Is S4225 new or remanufactured?
Check the current product condition selection for S4225. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering S4225?
Compare 12V compatibility, 1.4kW power, 13 pinion teeth, rotation, mounting and electrical connections with the original starter.
Does clicking prove the starter motor has failed?
No. Battery voltage, wiring and control-circuit faults can also cause clicking or no cranking. Have the starting system tested before choosing a replacement.
