S4229 12V 2.7kW Starter Motor Replaces Lucas LRS04229
Price range: £138.40 through £163.32
The S4229 12V 2.7kW Starter Motor is a replacement starting unit from Sahibs Auto Electrics. Use the original unit reference and vehicle details to confirm the application. Identification references include Lucas LRS04229, Denso 428000-1660, Mitsubishi Electric 32A600-02101. Its listed 12V 2.7kW rating provides an electrical matching point for your existing unit. Check the 10-tooth pinion, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your S4229 replacement starter motor online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| KW | 2.7 kW |
| Volt | 12 V |
| Rotation | Clockwise |
| Teeth | 10 qty |
| Oil Sealed | No |
| Insulated Return | No |
| Waterproof | No |
| Wet Clutch | No |
| Weight | 8.36 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYS4229 | Dyno Electrics |
| S6288S | AS-PL |
| UD14980S | AS-PL |
| 0R-4316 | CATERPILLAR |
| 6V-0492 | CATERPILLAR |
| 9742809166 | CATERPILLAR |
| DRS0983 | DELCO |
| DS2093 | DELCO |
| 428000-1660 | DENSO |
| 428000-1661 | DENSO |
| 9742809-166 | DENSO |
| DSN2115 | DENSO |
| 32A600-02101 | MITSUBISHI |
| 32A66-02100 | MITSUBISHI |
| CST40338 | CASCO |
| CST40338AS | CASCO |
| CST40338ES | CASCO |
| CST40338GS | CASCO |
| CST40338OS | CASCO |
| CST40338RS | CASCO |
| 8186 | CEVAM |
| 246-25178 | DIXIE |
| S-80429 | DIXIE |
| 25-5391 | ELSTOCK |
| STN0735 | KRAUF |
| STN9735 | KRAUF |
| 254495 | KUHNER |
| 254495D | KUHNER |
| LRS04229 | LUCAS |
| LRS4229 | LUCAS |
| 20432833BN | REAL |
| 190-25142 | ROBERT'S |
| 6040338 | SANDO |
| 10705N | WAI / TRANSPO |
| DENDSN2115 | WOODAUTO |
| STR70417 | WOODAUTO |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| - | - | - | - | - | - | - |
Description
S4229 Replacement Starter Motor
For a S4229 starter motor enquiry, use Lucas reference LRS04229 alongside the vehicle and original unit details. The listed electrical rating is 12V 2.7kW. A starter motor turns the engine during starting; the electrical rating and mechanical engagement must suit the application. Confirm the vehicle application with the team before ordering.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 2.7kW power: compare the listed rating with the original starter motor.

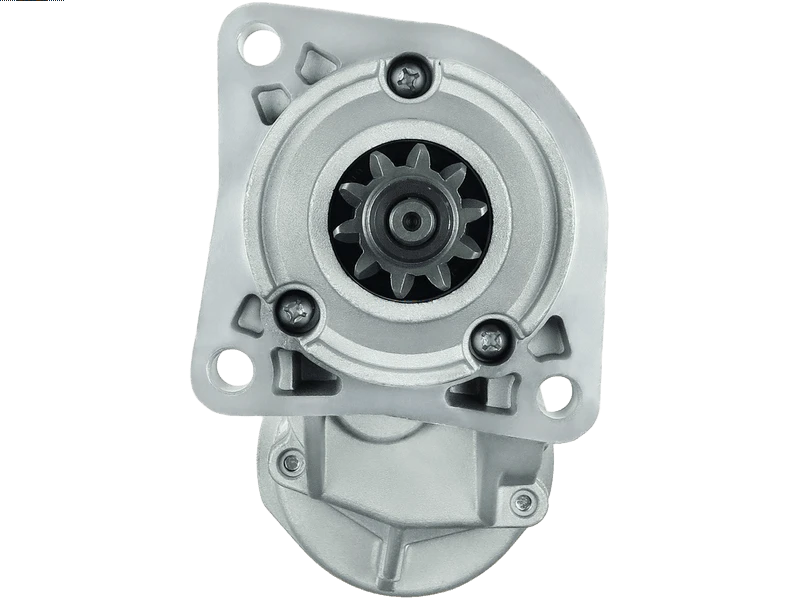

- 10-tooth pinion: compare gear engagement and pinion position.
- Clockwise rotation: check the specified direction before fitting.
- Pin "30" M10 B+ connector / terminal: check the connection against the original unit.
Compatible Vehicles and Applications
Quote S4229 and LRS04229 with your vehicle details so the team can check the application. Compare the original part number, engine and physical unit rather than relying on a general model description.
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with S4229. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
428000-1660, 428000-1661, 9742809-166, DSN2115, LRS04229, LRS4229, 32A600-02101, 32A66-02100, DRS0983, DS2093
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Starter Motor?
Failure to crank, clicking during a start request or intermittent cranking can indicate a starting-system problem. A weak battery, poor connections or control-circuit faults can produce similar symptoms; test the system before replacing the starter motor.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying S4229 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
How can I confirm the vehicle application for S4229?
Quote S4229, Lucas LRS04229, your vehicle registration and the existing unit number for an application check.
Does S4229 replace Lucas LRS04229?
Lucas LRS04229 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for S4229?
The listed details include 12V, 2.7kW power, 10 pinion teeth, clockwise rotation. Compare the complete specifications on this page with the unit being replaced.
Is S4229 new or remanufactured?
Check the current product condition selection for S4229. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering S4229?
Compare 12V compatibility, 2.7kW power, 10 pinion teeth, rotation, mounting and electrical connections with the original starter.
Does clicking prove the starter motor has failed?
No. Battery voltage, wiring and control-circuit faults can also cause clicking or no cranking. Have the starting system tested before choosing a replacement.
