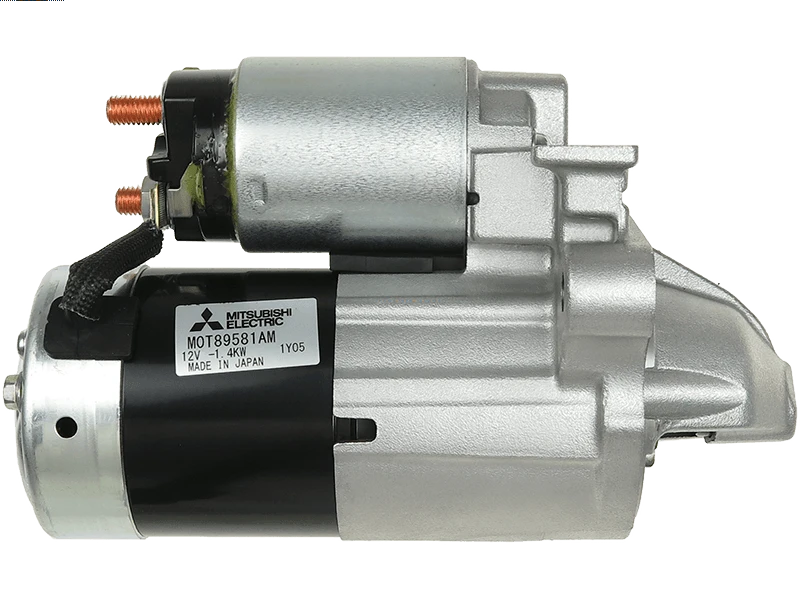

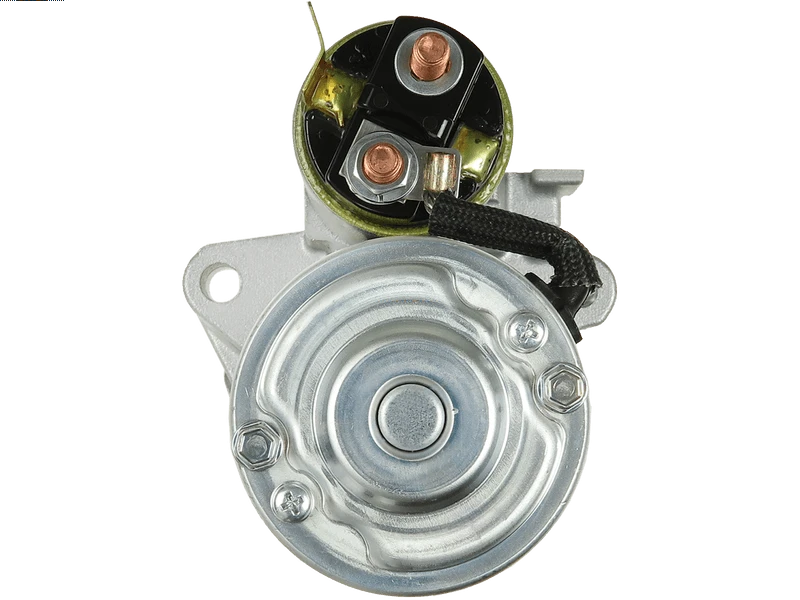

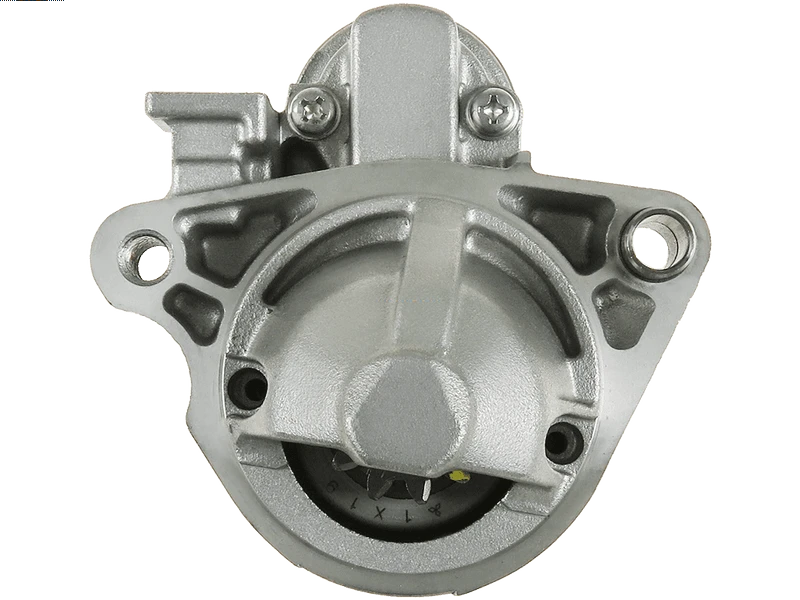

S4232 12V 1.4kW Starter Motor Fits Mazda MX5
Price range: £102.57 through £117.83
Sahibs S4232 is a replacement starter motor with a listed 12V 1.4kW rating. Listed applications include selected Mazda MX5 models. Identification references include Lucas LRS04232, Mitsubishi Electric M000T89581, Delco Remy DRS1279. Its listed 12V 1.4kW rating provides an electrical matching point for your existing unit. Check the 11-tooth pinion, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your S4232 replacement starter motor online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| KW | 1.4 kW |
| Volt | 12 V |
| Rotation | Clockwise |
| Teeth | 11 qty |
| Oil Sealed | No |
| Insulated Return | No |
| Waterproof | No |
| Wet Clutch | No |
| Weight | 3.06 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYS4232 | Dyno Electrics |
| UD100055(MITSUBISHI)S | AS-PL |
| DRS1279 | DELCO |
| P59D | MAZDA |
| P59D-18-400 | MAZDA |
| P59V | MAZDA |
| P59V-18-400 | MAZDA |
| M000T89581 | MITSUBISHI |
| M000T89581AM | MITSUBISHI |
| M000TD1271 | MITSUBISHI |
| M0T89581 | MITSUBISHI |
| M0T89581AM | MITSUBISHI |
| M0TD1271 | MITSUBISHI |
| CST35330GS | CASCO |
| 9809 | CEVAM |
| 25-5394 | ELSTOCK |
| STM2568 | KRAUF |
| LRS04232 | LUCAS |
| LRS4232 | LUCAS |
| 140.551.112.130 | PSH |
| 140.551.112.370 | PSH |
| 20437033OE | REAL |
| 6035330.1 | SANDO |
| MITM0T89581 | WOODAUTO |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| MAZDA | MX5 | 1.5 (1496ccm) Petrol | P5VPR/P5Z1 | MK IV | ND5/ND6E | 2015 - | |
| MAZDA | MX5 | 1.5 (1496ccm) Petrol | P5Z1 | MK IV | RF | ND6E | 2016 - |
| MAZDA | MX5 | 1.5 (1496ccm) Petrol | P5X1 | MK IV | ND6E | 2018 - | |
| MAZDA | MX5 | 1.5 (1496ccm) Petrol | P5X1 | MK IV | RF | ND6E | 2018 - |
| MAZDA | MX5 | 2.0 (1998ccm) Petrol | PEX4/PEX6 | MK IV | ND2E/ND6E | 2015 - | |
| MAZDA | MX5 | 2.0 (1998ccm) Petrol | PEX6 | MK IV | RF | ND6E | 2016 - |
| MAZDA | MX5 | 2.0 (1998ccm) Petrol | PEXF | MK IV | ND6E | 2018 - | |
| MAZDA | MX5 | 2.0 (1998ccm) Petrol | PEXF | MK IV | RF | ND6E | 2018 - |
Description
S4232 Replacement Starter Motor
The S4232 starter motor is a replacement unit identified by Lucas reference LRS04232. The listed electrical rating is 12V 1.4kW. A starter motor turns the engine during starting; the electrical rating and mechanical engagement must suit the application. Applications include selected Mazda MX5 1.5 Petrol variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 1.4kW power: compare the listed rating with the original starter motor.
- 11-tooth pinion: compare gear engagement and pinion position.
- Clockwise rotation: check the specified direction before fitting.
- Pin "30" M8 B+ connector / terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Mazda MX5 1.5 Petrol – selected applications 2015 – (engine code P5VPR/P5Z1).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with S4232. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
LRS04232, LRS4232, M000T89581, M000T89581AM, M000TD1271, M0T89581, M0T89581AM, M0TD1271, DRS1279
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Starter Motor?
Failure to crank, clicking during a start request or intermittent cranking can indicate a starting-system problem. A weak battery, poor connections or control-circuit faults can produce similar symptoms; test the system before replacing the starter motor.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying S4232 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will S4232 fit my Mazda MX5?
Mazda MX5 1.5 Petrol (2015 -) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does S4232 replace Lucas LRS04232?
Lucas LRS04232 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for S4232?
The listed details include 12V, 1.4kW power, 11 pinion teeth, clockwise rotation. Compare the complete specifications on this page with the unit being replaced.
Is S4232 new or remanufactured?
Check the current product condition selection for S4232. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering S4232?
Compare 12V compatibility, 1.4kW power, 11 pinion teeth, rotation, mounting and electrical connections with the original starter.
Does clicking prove the starter motor has failed?
No. Battery voltage, wiring and control-circuit faults can also cause clicking or no cranking. Have the starting system tested before choosing a replacement.
