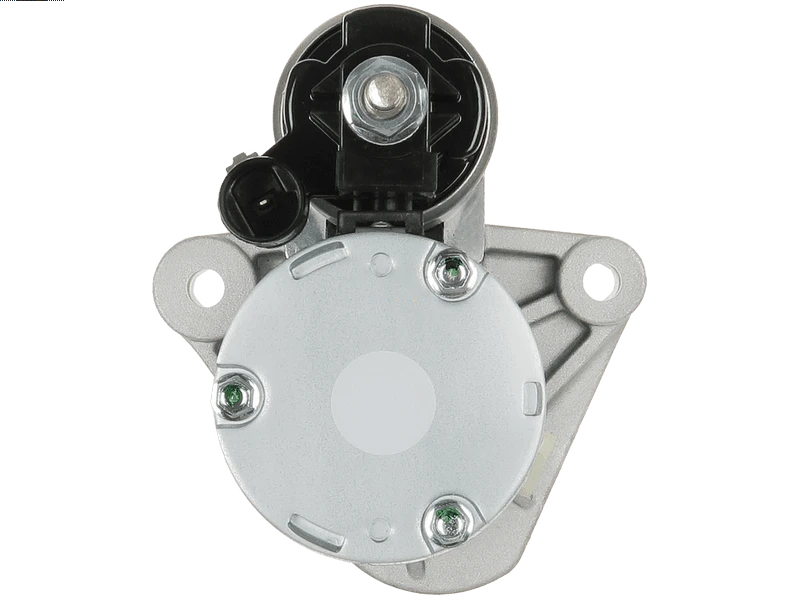

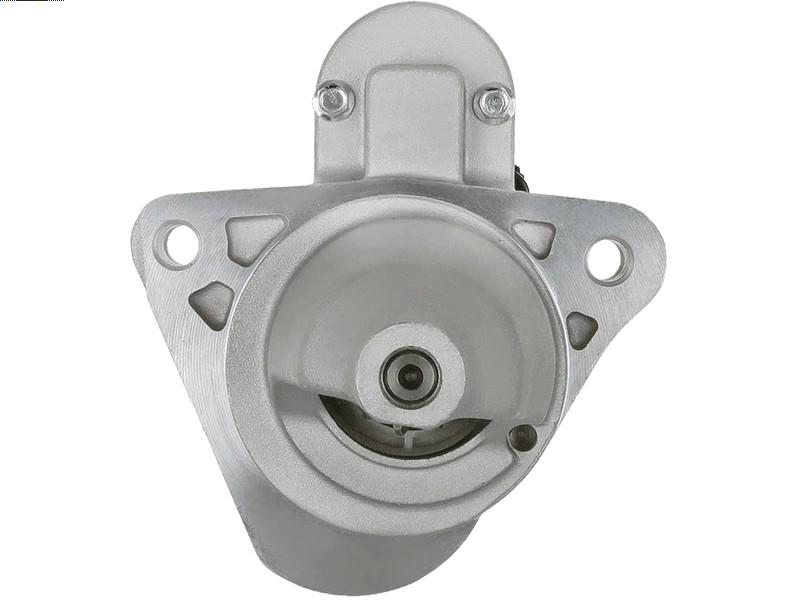

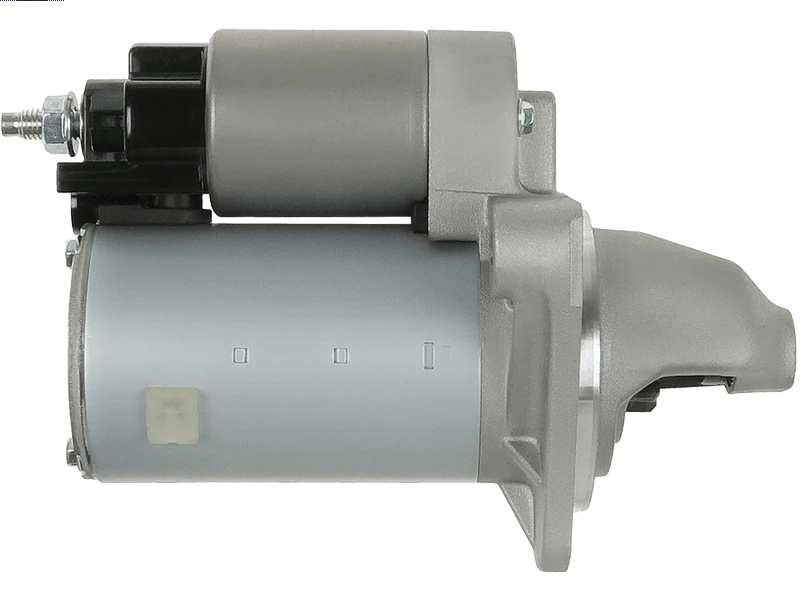

S4258 12V 1.3kW Starter Motor Fits Vauxhall Insignia, Cadillac ATS
Price range: £111.76 through £129.57
Sahibs S4258 is a replacement starter motor with a listed 12V 1.3kW rating. Listed applications include selected Vauxhall Insignia, Vauxhall Insignia Sports Tourer, Cadillac ATS, Cadillac CTS models. Identification references include Lucas LRS04258, Bosch 0986CR1807, Denso 428000-8060. Its listed 12V 1.3kW rating provides an electrical matching point for your existing unit. Check the 11-tooth pinion, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your S4258 replacement starter motor online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| KW | 1.3 kW |
| Volt | 12 V |
| Rotation | Clockwise |
| Teeth | 11 qty |
| Oil Sealed | No |
| Insulated Return | No |
| Waterproof | No |
| Wet Clutch | No |
| Weight | 2.24 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYS4258 | Dyno Electrics |
| S6457S | AS-PL |
| UD20531S | AS-PL |
| 0986CR1807 | BOSCH |
| 0986UR1807 | BOSCH |
| SR8671X | BOSCH |
| 12655467 | CHEVROLET |
| 12657797 | CHEVROLET |
| DRS0947 | DELCO |
| DS2057 | DELCO |
| 428000-8060 | DENSO |
| 438000-0680 | DENSO |
| 438000-1270 | DENSO |
| 1202354 | OPEL |
| 1202517 | OPEL |
| 12626963 | OPEL |
| 3888 | CEVAM |
| 25-5420 | ELSTOCK |
| 95520350 | GM |
| STN1429 | KRAUF |
| 256739 | KUHNER |
| LRS04258 | LUCAS |
| LRS4258 | LUCAS |
| 91-29-5837 | WILSON |
| 91-29-5837N | WILSON |
| STR70416 | WOODAUTO |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| CADILLAC | ATS | 2.0 (1998ccm) Petrol | LTG | 6A69 | 2012 - | ||
| CADILLAC | ATS | 2.0 (1998ccm) Petrol | LTG | AWD | 6A69 | 2012 - | |
| CADILLAC | ATS | 2.0 (1998ccm) Petrol | LTG | AWD | 6A47 | 2014 - | |
| CADILLAC | ATS | 2.0 (1998ccm) Petrol | LTG | 6A47 | 2014 - | ||
| CADILLAC | CTS | 2.0 (1998ccm) Petrol | LTG | AWD | 6AF69 | 2014 - | |
| CADILLAC | CTS | 2.0 (1998ccm) Petrol | LTG | 6AF69 | 2014 - | ||
| CADILLAC | CTS | 2.0 (1998ccm) Petrol | LTG | 6AF69 | 2017 - | ||
| CADILLAC | CTS | 2.0 (1998ccm) Petrol | LTG | AWD | 6AF69 | 2017 - | |
| OPEL | Insignia | 2.0 (1998ccm) Petrol | A20NHT/B20NHT | A | 68 | 2011 - 2017 | |
| OPEL | Insignia | 2.0 (1998ccm) Petrol | A20NFT/A20NHT/B20NHT | A | 69 | 2011 - 2017 | |
| OPEL | Insignia | 2.0 (1998ccm) Petrol | A20NHT/B20NHT | A | 68 | 2014 - 2017 | |
| OPEL | Insignia | 2.0 (1998ccm) Petrol | A20NHT/B20NHT | A | 69 | 2014 - 2017 | |
| OPEL | Insignia Country Tourer | 2.0 (1998ccm) Petrol | A20NHT/B20NHT | A | Country Tourer | 47 | 2013 - 2017 |
| OPEL | Insignia Sports Tourer | 2.0 (1998ccm) Petrol | A20NHT/B20NHT | A | Sports Tourer | 35 | 2011 - 2017 |
| OPEL | Insignia Sports Tourer | 2.0 (1998ccm) Petrol | A20NHT/B20NHT | A | Sports Tourer | 35 | 2014 - 2017 |
| VAUXHALL | Insignia | 2.0 (1998ccm) Petrol | A20NHT/B20NHT | A | 69 | 2013 - 2017 | |
| VAUXHALL | Insignia | 2.0 (1998ccm) Petrol | A20NHT/B20NHT | A | 68 | 2013 - 2017 | |
| VAUXHALL | Insignia Sports Tourer | 2.0 (1998ccm) Petrol | A20NHT/B20NHT | A | Sports Tourer | 35 | 2013 - 2017 |
Description
S4258 Replacement Starter Motor
Start your S4258 starter motor comparison with the linked Lucas reference LRS04258 and the specifications shown on this page. The listed electrical rating is 12V 1.3kW. A starter motor turns the engine during starting; the electrical rating and mechanical engagement must suit the application. Applications include selected Vauxhall Insignia 2.0 Petrol variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 1.3kW power: compare the listed rating with the original starter motor.
- 11-tooth pinion: compare gear engagement and pinion position.
- Clockwise rotation: check the specified direction before fitting.
- "30" M8 B+ connector / terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Vauxhall Insignia 2.0 Petrol – selected applications 2013–2017 (engine code A20NHT/B20NHT).
- Vauxhall Insignia Sports Tourer 2.0 Petrol – selected applications 2013–2017 (engine code A20NHT/B20NHT).
- Cadillac ATS 2.0 Petrol – selected applications 2012 – (engine code LTG).
- Cadillac CTS 2.0 Petrol – selected applications 2014 – (engine code LTG).
- Opel Insignia 2.0 Petrol – selected applications 2011–2017 (engine code A20NHT/B20NHT).
- Opel Insignia Country Tourer 2.0 Petrol – selected applications 2013–2017 (engine code A20NHT/B20NHT).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with S4258. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
0986CR1807, 0986UR1807, SR8671X, 428000-8060, 438000-0680, 438000-1270, LRS04258, LRS4258, DRS0947, DS2057
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Starter Motor?
Failure to crank, clicking during a start request or intermittent cranking can indicate a starting-system problem. A weak battery, poor connections or control-circuit faults can produce similar symptoms; test the system before replacing the starter motor.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying S4258 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will S4258 fit my Vauxhall Insignia?
Vauxhall Insignia 2.0 Petrol (2013–2017) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does S4258 replace Lucas LRS04258?
Lucas LRS04258 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for S4258?
The listed details include 12V, 1.3kW power, 11 pinion teeth, clockwise rotation. Compare the complete specifications on this page with the unit being replaced.
Is S4258 new or remanufactured?
Check the current product condition selection for S4258. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering S4258?
Compare 12V compatibility, 1.3kW power, 11 pinion teeth, rotation, mounting and electrical connections with the original starter.
Does clicking prove the starter motor has failed?
No. Battery voltage, wiring and control-circuit faults can also cause clicking or no cranking. Have the starting system tested before choosing a replacement.
