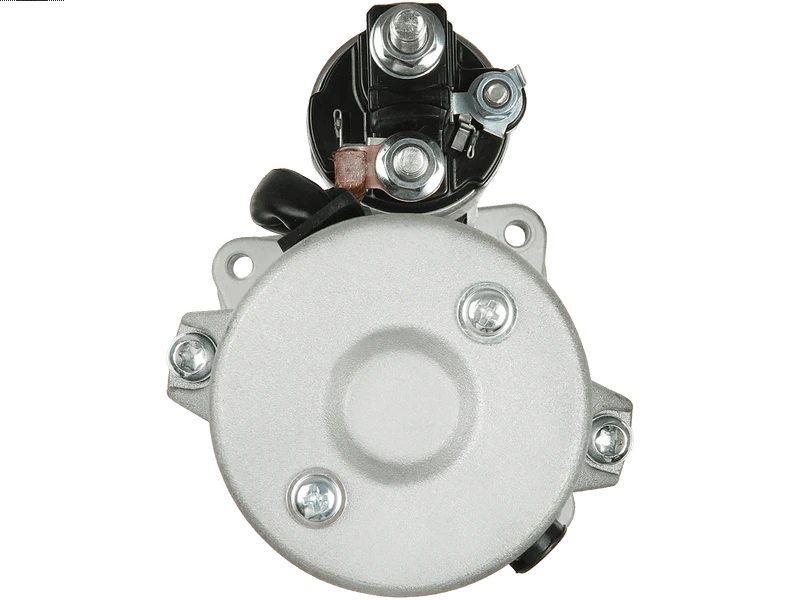

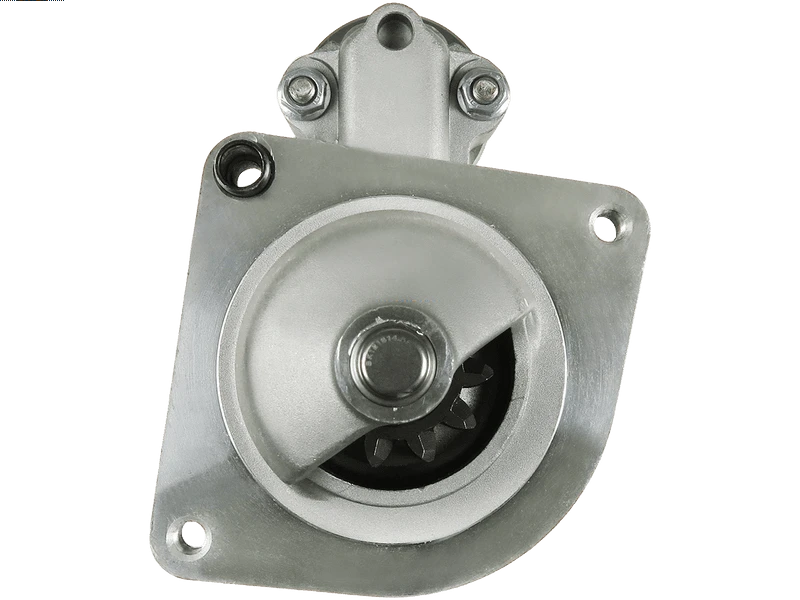

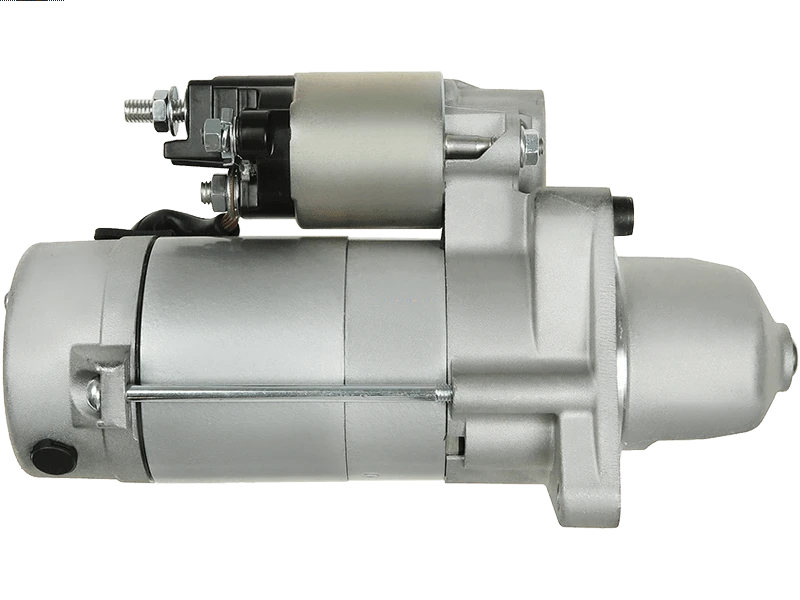

S4264 12V 1.9kW Starter Motor Fits Fiat Ducato 28, Fiat Ducato 30

Description

S4264 Replacement Starter Motor

Start your S4264 starter motor comparison with the linked Lucas reference LRS04264 and the specifications shown on this page. The listed electrical rating is 12V 1.9kW. A starter motor turns the engine during starting; the electrical rating and mechanical engagement must suit the application. Applications include selected Fiat Ducato 28 2.3 Diesel variants.

Key Features and Benefits

• 12V electrical system: match the vehicle voltage before selecting a unit.
• 1.9kW power: compare the listed rating with the original starter motor.
• 11-tooth pinion: compare gear engagement and pinion position.
• Clockwise rotation: check the specified direction before fitting.
• Pin "30" M8 B+ connector / terminal: check the connection against the original unit.

Compatible Vehicles and Applications

• Fiat Ducato 28 2.3 Diesel – selected applications 2014 – (engine code F1AE3481D).
• Fiat Ducato 30 2.3 Diesel – selected applications 2009 – (engine code F1AE0481N/F1AE3481D/F1AGL411D).
• Fiat Ducato 33 2.3 Diesel – selected applications 2007 – (engine code F1AE0481N/F1AE3481D/F1AGL411D).
• Fiat Ducato 35 2.3 Diesel – selected applications 2007 – (engine code F1AE0481N/F1AE3481D/F1AGL411D).
• Fiat Ducato 40 2.3 Diesel – selected applications 2006 – (engine code F1AE0481N/F1AE3481D/F1AGL411D).

These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.

OE Numbers and Cross-Reference Information

The following cross-reference numbers are associated with S4264. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.

438000-2620, LRS04264, LRS4264

The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.

When Should You Replace Your Starter Motor?

Failure to crank, clicking during a start request or intermittent cranking can indicate a starting-system problem. A weak battery, poor connections or control-circuit faults can produce similar symptoms; test the system before replacing the starter motor.

Why Buy from Sahibs Auto Electrics?

Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying S4264 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.

Frequently Asked Questions

Will S4264 fit my Fiat Ducato 28?

Fiat Ducato 28 2.3 Diesel (2014 -) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.

Does S4264 replace Lucas LRS04264?

Lucas LRS04264 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.

What specifications are listed for S4264?

The listed details include 12V, 1.9kW power, 11 pinion teeth, clockwise rotation. Compare the complete specifications on this page with the unit being replaced.

Is S4264 new or remanufactured?

Check the current product condition selection for S4264. Confirm the supplier and availability of the option you want before completing the order.

What should I compare before ordering S4264?

Compare 12V compatibility, 1.9kW power, 11 pinion teeth, rotation, mounting and electrical connections with the original starter.

Does clicking prove the starter motor has failed?

No. Battery voltage, wiring and control-circuit faults can also cause clicking or no cranking. Have the starting system tested before choosing a replacement.
