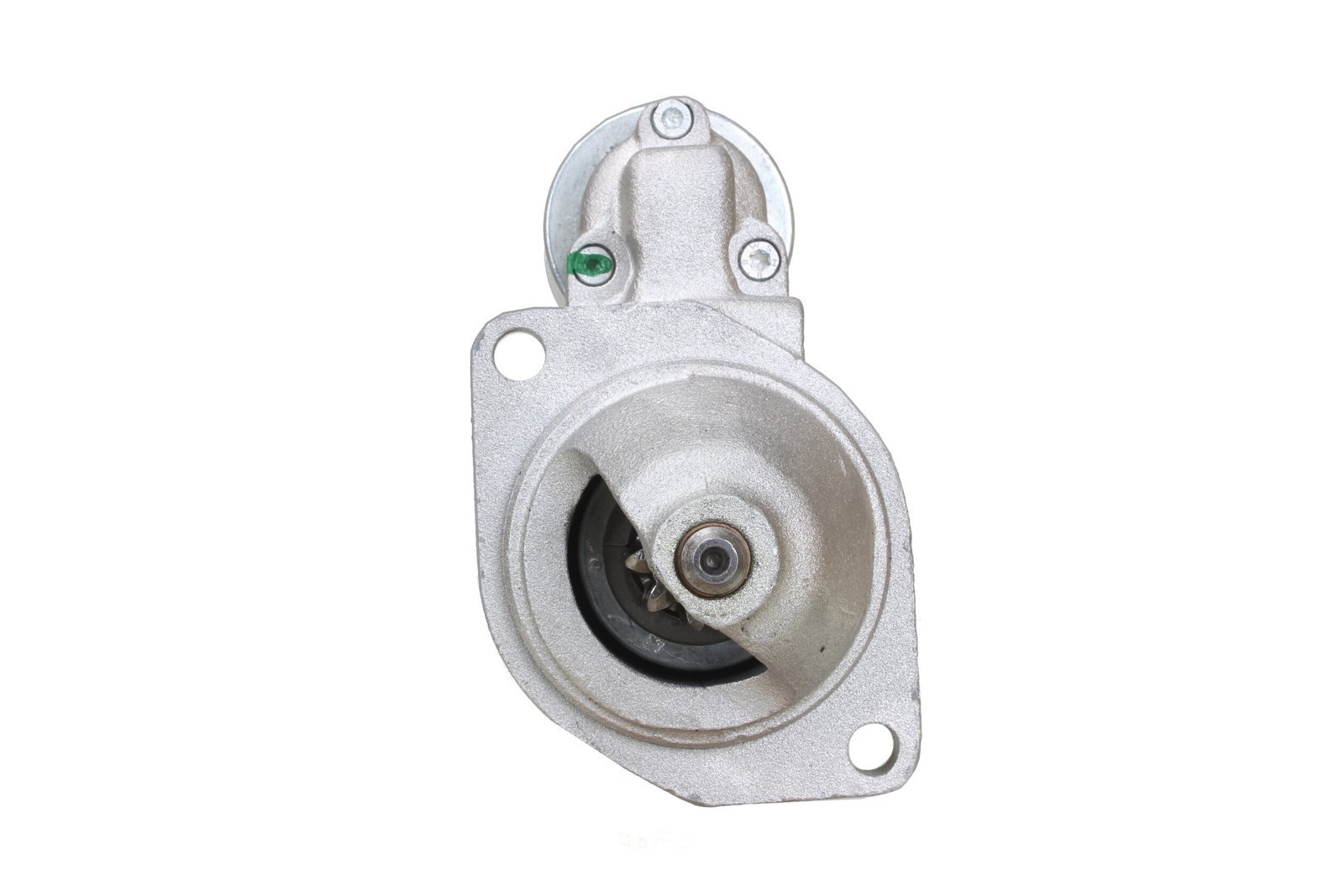

S4274 24V 1.6kW Starter Motor Fits Lombardini LDW 602M
Price range: £112.22 through £133.40
Compare the S4274 24V 1.6kW starter motor from Sahibs Auto Electrics with the unit currently fitted. Listed applications include selected Lombardini LDW 602M, Lombardini LDW 702, Lombardini LDW 903M models. Identification references include Lucas LRS04274, Bosch 1111003, Delco Remy DRS0005. Its listed 24V 1.6kW rating provides an electrical matching point for your existing unit. Check the 9-tooth pinion, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your S4274 replacement starter motor online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| KW | 1.6 kW |
| Volt | 24 V |
| Rotation | Clockwise |
| Teeth | 9 qty |
| Oil Sealed | No |
| Insulated Return | No |
| Waterproof | No |
| Wet Clutch | No |
| Weight | 3.56 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYS4274 | Dyno Electrics |
| 1111003 | Bosch |
| 114815 | HC-Cargo |
| 12130471 | AES |
| 58401720 | Lombardini |
| 691505092 | PSH |
| BOS0001111003 | Wood Auto |
| DRS0005 | Delco Remy |
| F032114815 | HC-Cargo |
| LRS04274 | Lucas |
| LRS4274 | Lucas |
| RNL111003 | RNL |
| STR50293 | Wood Auto |
| WOOSTR50293 | Wood Auto |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| LOMBARDINI | LDW 602M | 611ccm Diesel | 1989 - | ||||
| LOMBARDINI | LDW 602M | 611ccm Diesel | 1992 - | ||||
| LOMBARDINI | LDW 702 | 686ccm Diesel | |||||
| LOMBARDINI | LDW 903M | 916ccm Diesel | 1992 - |
Description
S4274 Replacement Starter Motor
Start your S4274 starter motor comparison with the linked Lucas reference LRS04274 and the specifications shown on this page. The listed electrical rating is 24V 1.6kW. A starter motor turns the engine during starting; the electrical rating and mechanical engagement must suit the application. Applications include selected Lombardini LDW 602M 611ccm Diesel variants.
Key Features and Benefits
- 24V electrical system: match the vehicle voltage before selecting a unit.
- 1.6kW power: compare the listed rating with the original starter motor.
- 9-tooth pinion: compare gear engagement and pinion position.
- Clockwise rotation: check the specified direction before fitting.
- Pin "30" M8 B+ connector / terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Lombardini LDW 602M 611ccm Diesel – selected applications 1989 -.
- Lombardini LDW 702 686ccm Diesel.
- Lombardini LDW 903M 916ccm Diesel – selected applications 1992 -.
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with S4274. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
1111003, LRS04274, LRS4274, DRS0005
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Starter Motor?
Failure to crank, clicking during a start request or intermittent cranking can indicate a starting-system problem. A weak battery, poor connections or control-circuit faults can produce similar symptoms; test the system before replacing the starter motor.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying S4274 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will S4274 fit my Lombardini LDW 602M?
Lombardini LDW 602M 611ccm Diesel (1989 -) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does S4274 replace Lucas LRS04274?
Lucas LRS04274 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for S4274?
The listed details include 24V, 1.6kW power, 9 pinion teeth, clockwise rotation. Compare the complete specifications on this page with the unit being replaced.
Is S4274 new or remanufactured?
Check the current product condition selection for S4274. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering S4274?
Compare 24V compatibility, 1.6kW power, 9 pinion teeth, rotation, mounting and electrical connections with the original starter.
Does clicking prove the starter motor has failed?
No. Battery voltage, wiring and control-circuit faults can also cause clicking or no cranking. Have the starting system tested before choosing a replacement.
