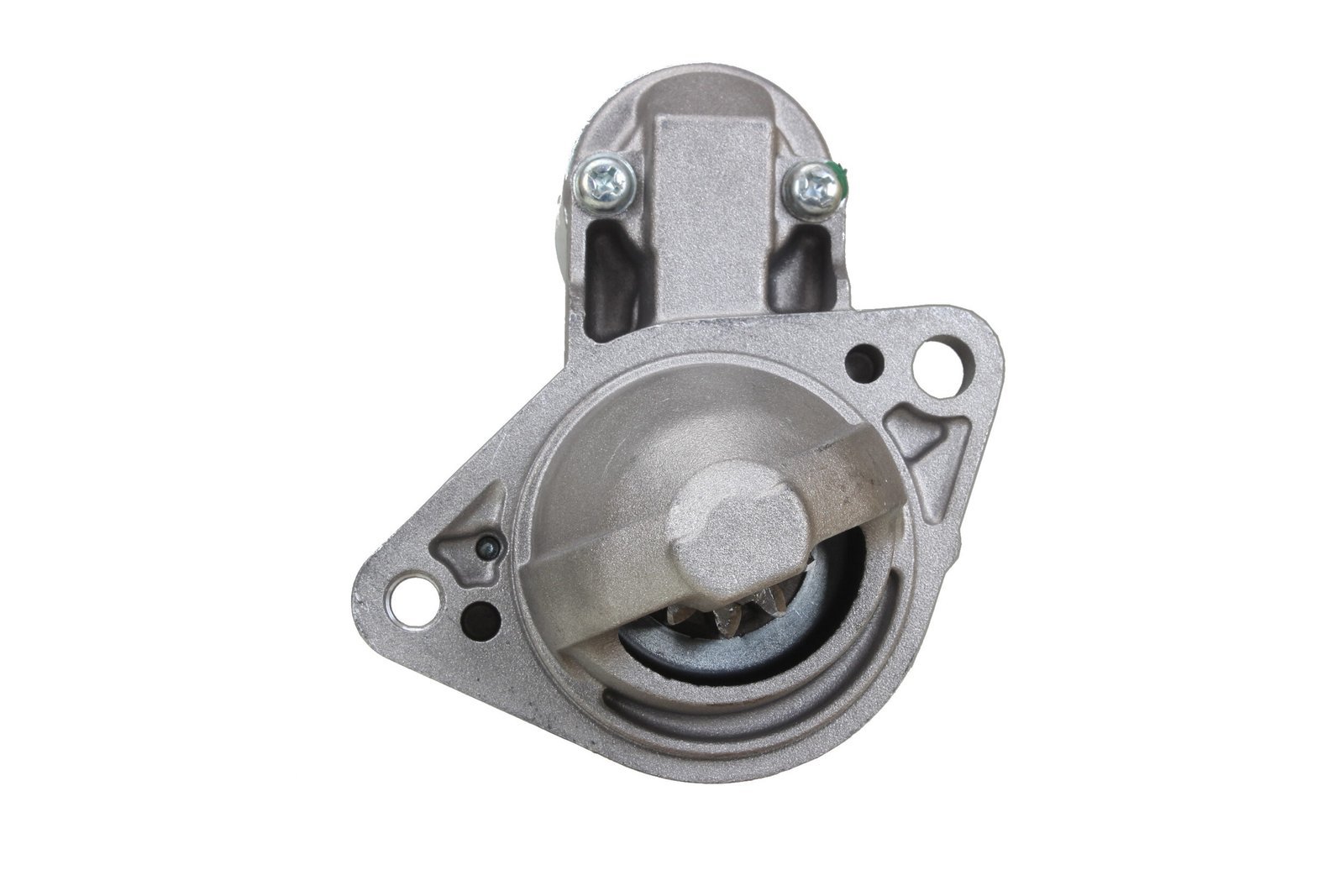

S4335 12V 1.3kW Starter Motor Fits Suzuki Swift, Suzuki SX4
Price range: £137.99 through £206.98
Compare the S4335 12V 1.3kW starter motor from Sahibs Auto Electrics with the unit currently fitted. Listed applications include selected Suzuki Swift, Suzuki SX4, Suzuki SX4 S-Cross, Suzuki Vitara models. Identification references include Lucas LRS04335. Its listed 12V 1.3kW rating provides an electrical matching point for your existing unit. Check the 10-tooth pinion, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your S4335 replacement starter motor online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| KW | 1.3 kW |
| Volt | 12 V |
| Teeth | 10 qty |
| Oil Sealed | No |
| Insulated Return | No |
| Waterproof | No |
| Wet Clutch | No |
| Weight | 2.97 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYS4335 | Dyno Electrics |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| SUZUKI | Swift | 1.4 (1373ccm) Petrol | K14C | MK V | A2L414 | 2017 - | |
| SUZUKI | SX4 | 1.4 (1373ccm) Petrol | K14C | AKK414 | 2016 - 2022 | ||
| SUZUKI | SX4 | 1.4 (1373ccm) Petrol | K14C | AWD | AKK414 | 2016 - 2022 | |
| SUZUKI | SX4 | 1.6 (1586ccm) Petrol | M16A | Allgrip | AKK416 | 2014 - 2022 | |
| SUZUKI | SX4 | 1.6 (1586ccm) Petrol | M16A | AKK416 | 2014 - 2022 | ||
| SUZUKI | SX4 S-Cross | 1.0 (998ccm) Petrol | K10CT | AKK310 | 2016 - 2022 | ||
| SUZUKI | SX4 S-Cross | 1.0 (998ccm) Petrol | K10CT | AWD | AKK310 | 2016 - 2022 | |
| SUZUKI | SX4 S-Cross | 1.4 (1373ccm) Petrol | K14C | AWD | AKK414 | 2016 - 2022 | |
| SUZUKI | SX4 S-Cross | 1.4 (1373ccm) Petrol | K14C | AKK414 | 2016 - 2022 | ||
| SUZUKI | SX4 S-Cross | 1.6 (1586ccm) Petrol | M16A | AKK416 | 2013 - 2022 | ||
| SUZUKI | SX4 S-Cross | 1.6 (1586ccm) Petrol | M16A | AWD | AKK416 | 2013 - 2022 | |
| SUZUKI | Vitara | 1.0 (998ccm) Petrol | K10CT | Allgrip | APK310 | 2018 - | |
| SUZUKI | Vitara | 1.0 (998ccm) Petrol | K10CT | APK310 | 2018 - | ||
| SUZUKI | Vitara | 1.4 (1373ccm) Petrol | K14C | APK414 | 2015 - | ||
| SUZUKI | Vitara | 1.4 (1373ccm) Petrol | K14C | AWD | APK414 | 2015 - | |
| SUZUKI | Vitara | 1.6 (1586ccm) Petrol | M16A | AWD | APK416 | 2015 - | |
| SUZUKI | Vitara | 1.6 (1586ccm) Petrol | M16A | APK416 | 2015 - | ||
| SUZUKI | Vitara | 1.6 (1586ccm) Petrol | M16A | AWD | APK416 | 2016 - |
Description
S4335 Replacement Starter Motor
Start your S4335 starter motor comparison with the linked Lucas reference LRS04335 and the specifications shown on this page. The listed electrical rating is 12V 1.3kW. A starter motor turns the engine during starting; the electrical rating and mechanical engagement must suit the application. Applications include selected Suzuki Swift 1.4 Petrol variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 1.3kW power: compare the listed rating with the original starter motor.
- 10-tooth pinion: compare gear engagement and pinion position.
- "30"M8 B+ connector / terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Suzuki Swift 1.4 Petrol – selected applications 2017 – (engine code K14C).
- Suzuki SX4 1.4 Petrol – selected applications 2016–2022 (engine code K14C).
- Suzuki SX4 S-Cross 1.0 Petrol – selected applications 2016–2022 (engine code K10CT).
- Suzuki Vitara 1.0 Petrol – selected applications 2018 – (engine code K10CT).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with S4335. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
LRS04335
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Starter Motor?
Failure to crank, clicking during a start request or intermittent cranking can indicate a starting-system problem. A weak battery, poor connections or control-circuit faults can produce similar symptoms; test the system before replacing the starter motor.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying S4335 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will S4335 fit my Suzuki Swift?
Suzuki Swift 1.4 Petrol (2017 -) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does S4335 replace Lucas LRS04335?
Lucas LRS04335 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for S4335?
The listed details include 12V, 1.3kW power, 10 pinion teeth. Compare the complete specifications on this page with the unit being replaced.
Is S4335 new or remanufactured?
Check the current product condition selection for S4335. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering S4335?
Compare 12V compatibility, 1.3kW power, 10 pinion teeth, rotation, mounting and electrical connections with the original starter.
Does clicking prove the starter motor has failed?
No. Battery voltage, wiring and control-circuit faults can also cause clicking or no cranking. Have the starting system tested before choosing a replacement.
