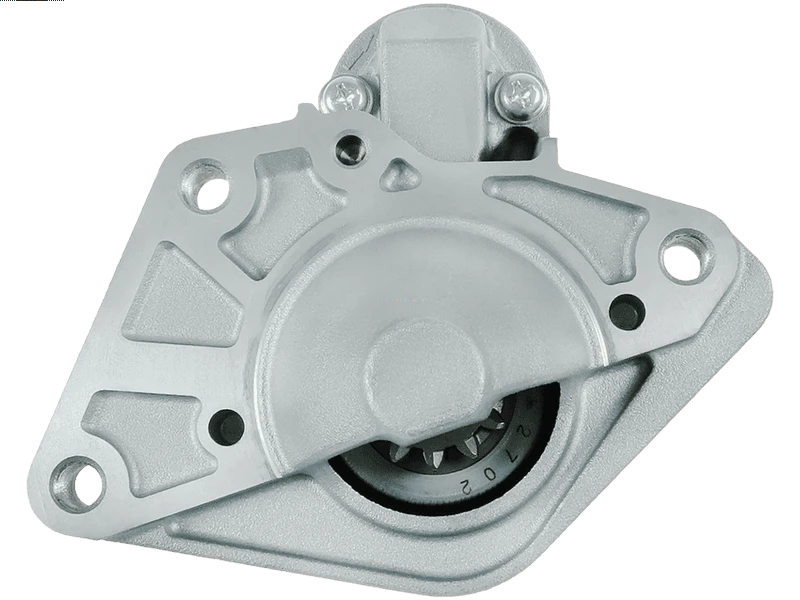

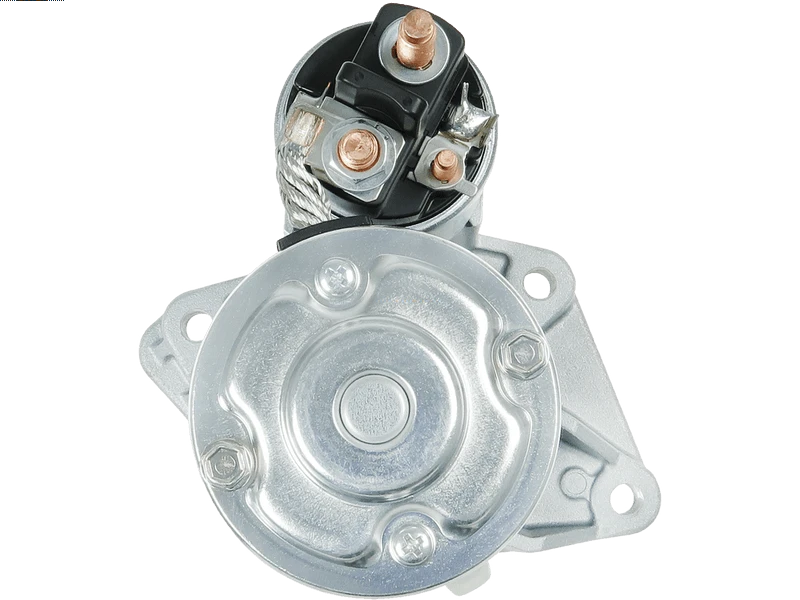

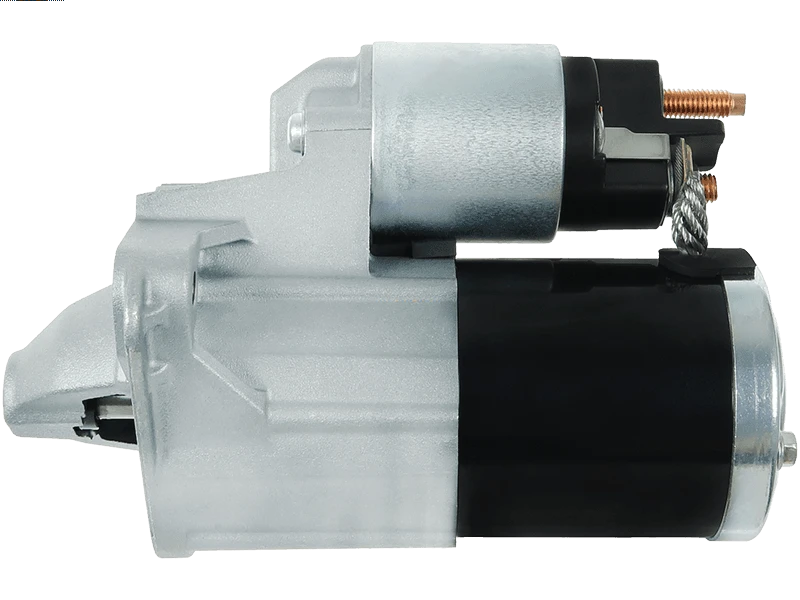

S4397 12V 1.4kW Starter Motor Fits Vauxhall Vivaro, Opel Vivaro

Description

S4397 Replacement Starter Motor

The S4397 starter motor is a replacement unit identified by Lucas reference LRS04397. The listed electrical rating is 12V 1.4kW. A starter motor turns the engine during starting; the electrical rating and mechanical engagement must suit the application. Applications include selected Vauxhall Vivaro 1.6 Diesel variants.

Key Features and Benefits

• 12V electrical system: match the vehicle voltage before selecting a unit.
• 1.4kW power: compare the listed rating with the original starter motor.
• 12-tooth pinion: compare gear engagement and pinion position.
• Clockwise rotation: check the specified direction before fitting.
• M8 B+ connector / terminal: check the connection against the original unit.

Compatible Vehicles and Applications

• Vauxhall Vivaro 1.6 Diesel – selected applications 2014 – (engine code R9M450).
• Opel Vivaro 1.6 Diesel – selected applications 2014–2016 (engine code R9M450).
• Renault Grand Scenic 1.6 Diesel – selected applications 2011–2016 (engine code R9M402/R9M404/R9M414).
• Renault Kadjar 1.6 Diesel – selected applications 2015 – (engine code R9M412/R9M414).
• Renault Megane 1.6 Diesel – selected applications 2015 – (engine code R9M452).
• Renault Scenic 1.6 Diesel – selected applications 2011–2016 (engine code R9M402/R9M404/R9M414).

These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.

OE Numbers and Cross-Reference Information

The following cross-reference numbers are associated with S4397. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.

LRS04397, LRS4397, M000T39371, M000T39372, M000T39372AM, M000T39373, M000T39373AM, M0T39371, M0T39372, M0T39372AM, M0T39373, M0T39373AM, MT39373, DRS1006, DS2116, 233008131REW

The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.

When Should You Replace Your Starter Motor?

Failure to crank, clicking during a start request or intermittent cranking can indicate a starting-system problem. A weak battery, poor connections or control-circuit faults can produce similar symptoms; test the system before replacing the starter motor.

Why Buy from Sahibs Auto Electrics?

Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying S4397 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.

Frequently Asked Questions

Will S4397 fit my Vauxhall Vivaro?

Vauxhall Vivaro 1.6 Diesel (2014 -) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.

Does S4397 replace Lucas LRS04397?

Lucas LRS04397 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.

What specifications are listed for S4397?

The listed details include 12V, 1.4kW power, 12 pinion teeth, clockwise rotation. Compare the complete specifications on this page with the unit being replaced.

Is S4397 new or remanufactured?

Check the current product condition selection for S4397. Confirm the supplier and availability of the option you want before completing the order.

What should I compare before ordering S4397?

Compare 12V compatibility, 1.4kW power, 12 pinion teeth, rotation, mounting and electrical connections with the original starter.

Does clicking prove the starter motor has failed?

No. Battery voltage, wiring and control-circuit faults can also cause clicking or no cranking. Have the starting system tested before choosing a replacement.
