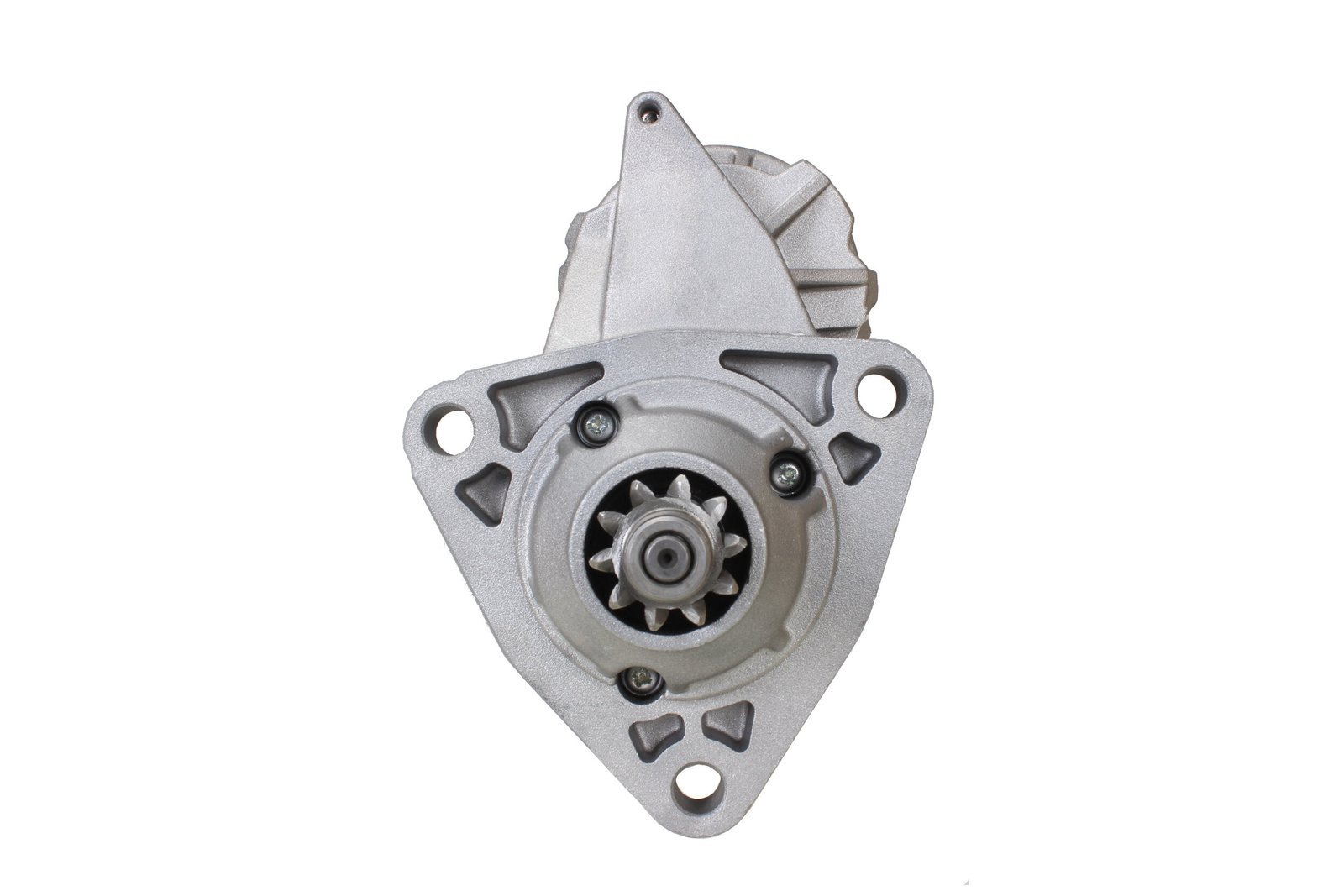

S4410 24V 7.5kW Starter Motor Fits Case I.H. 8950, Case I.H. 9330
Price range: £157.57 through £190.70
The S4410 24V 7.5kW Starter Motor is a replacement starting unit from Sahibs Auto Electrics. Listed applications include selected Case IH 8950, Case IH 9330, Case IH MX180 Magnum, Case IH MX200 Magnum models. Identification references include Lucas LRS04410, Bosch F042000250, Denso 1280007020. Its listed 24V 7.5kW rating provides an electrical matching point for your existing unit. Check the 10-tooth pinion, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your S4410 replacement starter motor online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| KW | 7.5 kW |
| Volt | 24 V |
| Rotation | Clockwise |
| Teeth | 10 qty |
| Oil Sealed | No |
| Insulated Return | No |
| Waterproof | No |
| Wet Clutch | No |
| Weight | 10.44 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYS4410 | Dyno Electrics |
| 10465538 | Delco Remy |
| 112544 | HC-Cargo |
| 1280007020 | Denso |
| 1280007021 | Denso |
| 1280009820 | Denso |
| 1280009821 | Denso |
| 18535N | WAI |
| 19097N | WAI |
| 20130176 | AES |
| 223900A1 | Case |
| 223900A2 | Case |
| 2280005610 | Denso |
| 2280005611 | Denso |
| 2280005612 | Denso |
| 2280005613 | Denso |
| 2280005630 | Denso |
| 2280005631 | Denso |
| 2280005632 | Denso |
| 2280007380 | Denso |
| 2280007381 | Denso |
| 231262 | HC-Cargo |
| 24630214 | Dixie |
| 24630215 | Dixie |
| 3283214 | Cummins |
| 3283814 | Cummins |
| 3604662 | Cummins |
| 3604662RX | Cummins |
| 3675247RX | Cummins |
| 3675290NW | Cummins |
| 3920329 | Cummins |
| 3957597 | Cummins |
| 4280001340 | Denso |
| 4280003380 | Denso |
| 6044662RX | Cummins |
| 604662RX | Cummins |
| 701501103 | PSH |
| 71440296 | JCB |
| 91295199 | Wilson |
| 91295241 | Wilson |
| 91295421 | Wilson |
| 91295538 | Wilson |
| 91295656 | Wilson |
| 9712809982 | Denso |
| A187722 | Case |
| DENDSN2002 | Wood Auto |
| DRS0352 | Delco Remy |
| DSN2002 | Denso |
| F032112544 | HC-Cargo |
| F042000250 | Bosch |
| LRS04410 | Lucas |
| LRS4410 | Lucas |
| RNL2280005610 | RNL |
| RNL5630ND | RNL |
| S8920 | Dixie |
| STR30052 | Wood Auto |
| STR70347 | Wood Auto |
| STR9152 | Unipoint |
| STR9153 | Unipoint |
| WOOSTR30052 | Wood Auto |
| WOOSTR70347 | Wood Auto |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| CASE I.H. | 8950 | 8277ccm Diesel | Cummins 6TA-830 | 1997 - 2006 | |||
| CASE I.H. | 9330 | 8277ccm Diesel | Cummins 6TA-830 | 1996 - 2006 | |||
| CASE I.H. | MX180 Magnum | 8277ccm Diesel | Cummins 6TA-830 | 1997 - 2006 | |||
| CASE I.H. | MX200 Magnum | 8277ccm Diesel | Cummins 6TA-830 | 1997 - 2006 | |||
| CASE I.H. | MX210 Magnum | 8277ccm Diesel | Cummins 6TA-830 | 2003 - 2006 | |||
| CASE I.H. | MX215 Magnum | 8277ccm Diesel | Cummins 6TA-830 | 2006 - 2007 | |||
| CASE I.H. | MX220 Magnum | 8277ccm Diesel | Cummins 6TA-830 | 1997 - 2006 | |||
| CASE I.H. | MX240 Magnum | 8277ccm Diesel | Cummins 6TA-830 | 1997 - 2006 | |||
| CASE I.H. | MX245 Magnum | 8277ccm Diesel | Cummins 6TA-830 | 2006 - 2007 | |||
| CASE I.H. | MX270 Magnum | 8277ccm Diesel | Cummins 6TA-830 | 1997 - 2006 | |||
| CASE I.H. | MX275 Magnum | 8277ccm Diesel | Cummins 6TA-830 | 2006 - 2007 | |||
| CASE I.H. | MX285 Magnum | 8277ccm Diesel | Cummins 6TA-830 | 2003 - 2006 | |||
| CASE I.H. | STX275 | 8277ccm Diesel | Cummins 6TA-830 | 2000 - 2007 | |||
| CASE I.H. | STX280 | 8277ccm Diesel | Cummins 6TA-830 | 2000 - 2007 | |||
| CUMMINS | 8.3 | 8277ccm Diesel | Cummins 6TA-830 | 1997 - 2006 |
Description
S4410 Replacement Starter Motor
The Sahibs S4410 starter motor is associated with Lucas reference LRS04410 for replacement identification. The listed electrical rating is 24V 7.5kW. A starter motor turns the engine during starting; the electrical rating and mechanical engagement must suit the application. Applications include selected Case IH 8950 8277ccm Diesel variants.
Key Features and Benefits
- 24V electrical system: match the vehicle voltage before selecting a unit.
- 7.5kW power: compare the listed rating with the original starter motor.
- 10-tooth pinion: compare gear engagement and pinion position.
- Clockwise rotation: check the specified direction before fitting.
- M14 B+ connector / terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Case IH 8950 8277ccm Diesel – selected applications 1997–2006 (engine code Cummins 6TA-830).
- Case IH 9330 8277ccm Diesel – selected applications 1996–2006 (engine code Cummins 6TA-830).
- Case IH MX180 Magnum 8277ccm Diesel – selected applications 1997–2006 (engine code Cummins 6TA-830).
- Case IH MX200 Magnum 8277ccm Diesel – selected applications 1997–2006 (engine code Cummins 6TA-830).
- Case IH MX210 Magnum 8277ccm Diesel – selected applications 2003–2006 (engine code Cummins 6TA-830).
- Case IH MX215 Magnum 8277ccm Diesel – selected applications 2006–2007 (engine code Cummins 6TA-830).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with S4410. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
F042000250, 1280007020, 1280007021, 1280009820, 1280009821, 2280005610, 2280005611, 2280005612, 2280005613, 2280005630, 2280005631, 2280005632, 2280007380, 2280007381, 4280001340, 4280003380, 9712809982, DSN2002, LRS04410, LRS4410, 10465538, DRS0352
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Starter Motor?
Failure to crank, clicking during a start request or intermittent cranking can indicate a starting-system problem. A weak battery, poor connections or control-circuit faults can produce similar symptoms; test the system before replacing the starter motor.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying S4410 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will S4410 fit my Case IH 8950?
Case IH 8950 8277ccm Diesel (1997–2006) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does S4410 replace Lucas LRS04410?
Lucas LRS04410 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for S4410?
The listed details include 24V, 7.5kW power, 10 pinion teeth, clockwise rotation. Compare the complete specifications on this page with the unit being replaced.
Is S4410 new or remanufactured?
Check the current product condition selection for S4410. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering S4410?
Compare 24V compatibility, 7.5kW power, 10 pinion teeth, rotation, mounting and electrical connections with the original starter.
Does clicking prove the starter motor has failed?
No. Battery voltage, wiring and control-circuit faults can also cause clicking or no cranking. Have the starting system tested before choosing a replacement.
