T0147 12V 0.9kW Starter Motor Fits Peugeot Expert, Citroën Jumpy
Price range: £95.81 through £110.54
Sahibs T0147 is a replacement starter motor with a listed 12V 0.9kW rating. Listed applications include selected Peugeot Expert, CitroËN Jumpy, Fiat Brava, Fiat Bravo models. Identification references include Lucas LRT00147, Bosch 986010450, Valeo 455872. Its listed 12V 0.9kW rating provides an electrical matching point for your existing unit. Check the 8-tooth pinion, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your T0147 replacement starter motor online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| KW | 0.9 kW |
| Volt | 12 V |
| Plug | M8 |
| Rotation | Clockwise |
| Teeth | 8 qty |
| Oil Sealed | No |
| Insulated Return | No |
| Waterproof | No |
| Wet Clutch | No |
| Weight | 3.7 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYT0147 | Dyno Electrics |
| 402650641 | Euro Car Part |
| S4020 | AS-PL |
| 986010450 | BOSCH |
| 112124 | CARGO |
| F032112124 | CARGO |
| DRS3104 | DELCO |
| DRS3697 | DELCO |
| C132 | DENSO |
| DSN577 | DENSO |
| 4470377 | FIAT |
| 4470378 | FIAT |
| 46231535 | FIAT |
| 46231540 | FIAT |
| 46416879 | FIAT |
| 46417006 | FIAT |
| 46431502 | FIAT |
| 46475793 | FIAT |
| 46475794 | FIAT |
| 46774415 | FIAT |
| 5968605 | FIAT |
| 71721304 | FIAT |
| 71721310 | FIAT |
| 7566528 | FIAT |
| 7589547 | FIAT |
| 7589655 | FIAT |
| 7642573 | FIAT |
| 7666528 | FIAT |
| 7680615 | FIAT |
| 7733966 | FIAT |
| 77398430 | FIAT |
| 7772462 | FIAT |
| 7773812 | FIAT |
| 8EA737148-001 | HELLA |
| 50246648 | MAGNETI MARELLI |
| 63103002 | MAGNETI MARELLI |
| 63103007 | MAGNETI MARELLI |
| 63103022 | MAGNETI MARELLI |
| 63223031 | MAGNETI MARELLI |
| 63223085 | MAGNETI MARELLI |
| 63223101 | MAGNETI MARELLI |
| 63223303 | MAGNETI MARELLI |
| E80E-1.0/12 | MAGNETI MARELLI |
| E80E1012 | MAGNETI MARELLI |
| 5802-M1 | PEUGEOT |
| 35258510 | PRESTOLITE |
| 35258890 | PRESTOLITE |
| 66925112 | PRESTOLITE |
| EL25112 | PRESTOLITE |
| 455872 | VALEO |
| PRSF327 | 3EFFE |
| PRSL077 | 3EFFE |
| STRF327 | 3EFFE |
| STRL077 | 3EFFE |
| STRL707 | 3EFFE |
| ANM15324X | ANDEL |
| AES1247 | AUTOELECTRO |
| STA0050R | BOVEZ |
| STA0120R | BOVEZ |
| CST30116AS | CASCO |
| CST30116GS | CASCO |
| CST30116OS | CASCO |
| CST30116RS | CASCO |
| 3826 | CEVAM |
| 11680 | EAI |
| 11895 | EAI |
| STR9085 | ELECTROLOG |
| 25-2051 | ELSTOCK |
| 220051 | ERA |
| 220166 | ERA |
| 8080043 | FRIESEN |
| CS883 | HC PARTS |
| CS975 | HC PARTS |
| 42001234 | HERTH+BUSS |
| 10285 | KUHNER |
| 10536 | KUHNER |
| 10975 | KUHNER |
| 22.0975 | LAUBER |
| 22.0975M | LAUBER |
| 331127 | LOGISTIK |
| LRT00147 | LUCAS |
| LRT147 | LUCAS |
| 5030159 | MEAT & DORIA |
| 88213154 | POWERMAX |
| 500.008.093.050 | PSH |
| 500.008.093.058 | PSH |
| 500.008.093.265 | PSH |
| 20404611BN | REAL |
| 20404611OE | REAL |
| 20404611RC | REAL |
| 20404611RE | REAL |
| RNL975CS | RNL |
| 6030116 | SANDO |
| 6030116.1 | SANDO |
| 6030116.2 | SANDO |
| 6030116.4 | SANDO |
| S12MA0659A2 | SIDAT |
| ALT136240 | SIOM |
| MAV2200 | SIOM |
| MAV2200A | SIOM |
| MAV2410 | SIOM |
| MAV321210 | SIOM |
| SS437 | SOVEREIGN |
| SS512 | SOVEREIGN |
| STX200162 | STARDAX |
| STX200162R | STARDAX |
| STX200343 | STARDAX |
| STX200343R | STARDAX |
| STX200689 | STARDAX |
| STX200887 | STARDAX |
| STX200887R | STARDAX |
| 31146N | WAI / TRANSPO |
| STR52003 | WOODAUTO |
Alternative Parts
| Alternative Part | Current Description | Alternative Description | Direct Alternative |
|---|---|---|---|
| S2077 | Terminal 50 M6 | Terminal 50 plug | No |
| S0827 | 0.9KW M5 terminal "50" With out "15A" | 0.8KW Plug terminal "50" With "15A" | No |
| S1431 | 1.0KW, OD64 mm, | 1.4KW, OD66 mm, No problem where hole is 72mm. | No |
| S0697 | 1.0KW M6 "50" | 1.0KW 6.3mm Plug "50" | No |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| CITROËN | Jumpy | 1.6 (1581ccm) Petrol | 220A2000 | U6UT | 1995 - 2000 | ||
| CITROËN | Jumpy | 1.6 (1581ccm) Petrol | 220A2000 | U6UG | 1995 - 2000 | ||
| FIAT | Brava | 1.6 (1581ccm) Petrol | 182A6000 | 182BH | 1995 - 2001 | ||
| FIAT | Brava | 1.6 (1581ccm) Petrol | 182A4000 | 182BB | 1996 - 2001 | ||
| FIAT | Bravo | 1.6 (1581ccm) Petrol | 182A6000 | 182AH | 1995 - 2001 | ||
| FIAT | Bravo | 1.6 (1581ccm) Petrol | 182A4000 | 182AB | 1996 - 2001 | ||
| FIAT | Fiorino | 1.4 (1372ccm) Petrol | 146D5000 | 146RE | 1995 - 2001 | ||
| FIAT | Fiorino | 1.4 (1372ccm) Petrol | 146D5000 | Multispace | 146RE | 1996 - 2000 | |
| FIAT | Fiorino | 1.6 (1581ccm) Petrol | 146C6000/146D6000 | 146RC/146RF | 1995 - 2001 | ||
| FIAT | Fiorino | 1.6 (1581ccm) Petrol | 146C6000/146D6000 | Multispace | 146RC/146RF | 1995 - 2000 | |
| FIAT | Fiorino Pick Up | 1.4 (1372ccm) Petrol | 146D5000 | 146RE | 1996 - 2001 | ||
| FIAT | Fiorino Pick Up | 1.6 (1581ccm) Petrol | 146C6000/146D6000 | 146RC/146RF | 1996 - 2001 | ||
| FIAT | Marea | 1.6 (1581ccm) Petrol | 182A4000 | 185AXB/185AXB11/185AXB1A | 1996 - 2000 | ||
| FIAT | Marea | 1.6 (1581ccm) Petrol | 185A3000 | 185AXH | 1997 - 1999 | ||
| FIAT | Marea | 1.6 (1581ccm) Petrol | 185A3000 | 185AXH1A | 1999 - 2000 | ||
| FIAT | Marea | 1.6 (1596ccm) Petrol | 182B6000 | 185AXR1A | 2000 - 2002 | ||
| FIAT | Marea S.W./Weekend | 1.6 (1581ccm) Petrol | 182A4000 | 185BXB/185BXB11/185BXB1A | 1996 - 2000 | ||
| FIAT | Marea S.W./Weekend | 1.6 (1596ccm) Petrol | 182B6000 | 185BXR1A | 2000 - 2002 | ||
| FIAT | Palio | 1.6 (1581ccm) Petrol | 178B3000 | 178BXD1AAT/178DXD1AAT | 1996 - 2001 | ||
| FIAT | Palio Weekend | 1.4 (1372ccm) Petrol | 178B2000 | 178DXC1A | 1997 - 2001 | ||
| FIAT | Palio Weekend | 1.6 (1581ccm) Petrol | 178B3000 | 178DXD1A/178DXD1AAP/178DXD1AAT | 1996 - 2001 | ||
| FIAT | Punto | 1.4 (1372ccm) Petrol | 176A4000 | 176AD | 1996 - 1997 | ||
| FIAT | Scudo | 1.6 (1581ccm) Petrol | 220A2000 | 220YG5 | 1996 - 2000 | ||
| FIAT | Scudo | 1.6 (1581ccm) Petrol | 220A2000 | Combi | 220WG5/220XG5/220XG5AX/220XG5BX/220XG5OA/220XG5OB/220XG5OC/220XG5OO/220XM5OC | 1996 - 2000 | |
| FIAT | Scudo | 1.6 (1581ccm) Petrol | 220A2000 | 220ZG5 | 1996 - 2000 | ||
| FIAT | Siena | 1.4 (1372ccm) Petrol | 178B2000/178B2016 | 178CXC1AAE/178CXC1AAP/178CXC1AAT | 1996 - 1999 | ||
| FIAT | Siena | 1.6 (1581ccm) Petrol | 178B3000 | 178CXD1AAE/178CXD1AAP/178CXD1AAT | 1997 - 2004 | ||
| FIAT | Tempra | 1.6 (1581ccm) Petrol | 159A3048 | 159AS/159AT | 1990 - 1996 | ||
| FIAT | Tempra | 1.6 (1581ccm) Petrol | 159A3000/159B9000 | 159AD/159AJ | 1990 - 1996 | ||
| FIAT | Tempra | 1.6 (1581ccm) Petrol | 835C1000 | 159AE | 1992 - 1996 | ||
| FIAT | Tempra | 1.6 (1581ccm) Petrol | 159B9000 | 159AJ | 1994 - 1996 | ||
| FIAT | Tempra S.W./Weekend | 1.6 (1581ccm) Petrol | 159A3046/835C1000 | 159AE | 1991 - 1996 | ||
| FIAT | Tempra S.W./Weekend | 1.6 (1581ccm) Petrol | 835C1000 | 159AE | 1992 - 1996 | ||
| FIAT | Tempra S.W./Weekend | 1.6 (1581ccm) Petrol | 159B9000 | 159AJ | 1993 - 1996 | ||
| FIAT | Tempra S.W./Weekend | 1.6 (1581ccm) Petrol | 159A3048 | 159AS | 1993 - 1996 | ||
| LANCIA | Dedra | 1.6 (1581ccm) Petrol | 159B9000/835A1000 | 835AA/835EB | 1989 - 1999 | ||
| LANCIA | Dedra | 1.6 (1581ccm) Petrol | 835C1000 | 835AN | 1993 - 1999 | ||
| LANCIA | Dedra | 1.6 (1581ccm) Petrol | 159B9000 | S.W. | 835EB | 1994 - 1997 | |
| LANCIA | Delta | 1.4 (1372ccm) Petrol | 160A1046/836A4000 | 836AF/836AH | 1994 - 1999 | ||
| LANCIA | Delta | 1.6 (1581ccm) Petrol | 182A4000 | 836AO | 1995 - 2000 | ||
| LANCIA | Delta | 1.6 (1581ccm) Petrol | 182A6000 | 836AP | 1995 - 2000 | ||
| LANCIA | Delta HPE | 1.6 (1581ccm) Petrol | 182A6000 | 836AP | 1995 - 2000 | ||
| LANCIA | Delta HPE | 1.6 (1581ccm) Petrol | 182A4000 | 836AO | 1996 - 2000 | ||
| PEUGEOT | Expert | 1.6 (1581ccm) Petrol | 220A2000 | Plancher | 223AA2 | 1995 - 2000 | |
| PEUGEOT | Expert | 1.6 (1581ccm) Petrol | 220A2000 | 222AA2 | 1995 - 2000 | ||
| PEUGEOT | Expert | 1.6 (1581ccm) Petrol | 220A2000 | 224AA2 | 1996 - 2000 |
Description

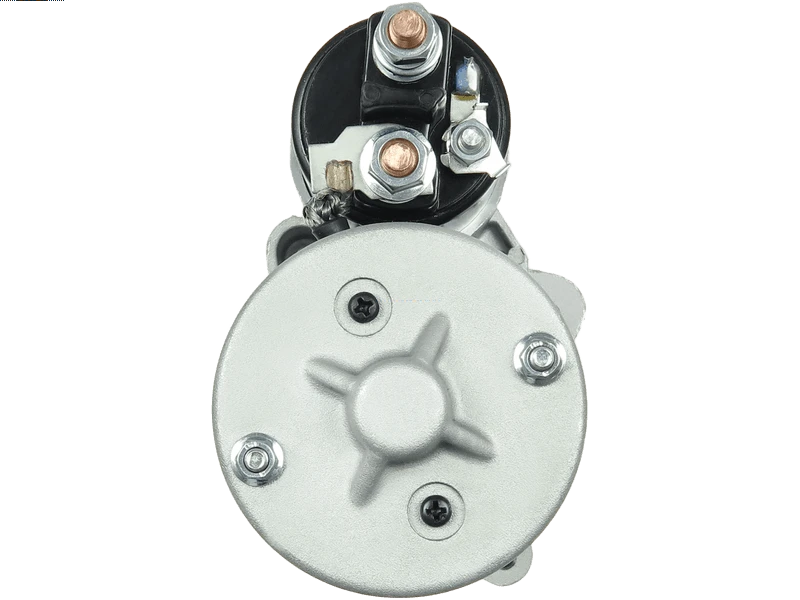

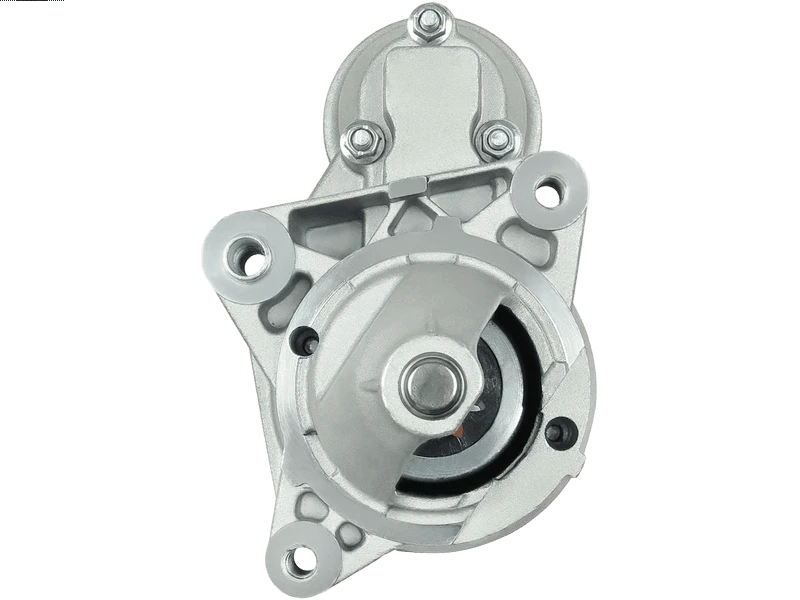

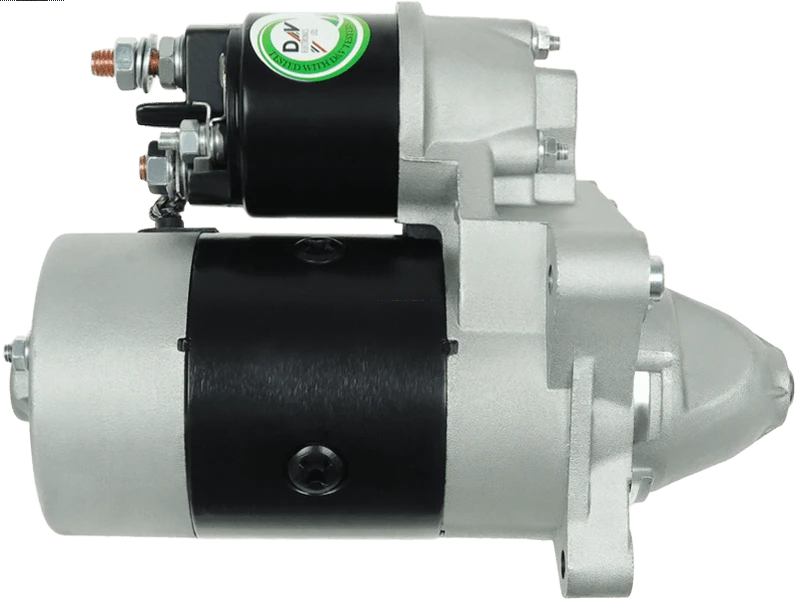

T0147 Replacement Starter Motor
The Sahibs T0147 starter motor is associated with Lucas reference LRT00147 for replacement identification. The listed electrical rating is 12V 0.9kW. A starter motor turns the engine during starting; the electrical rating and mechanical engagement must suit the application. Applications include selected Peugeot Expert 1.6 Petrol variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 0.9kW power: compare the listed rating with the original starter motor.
- 8-tooth pinion: compare gear engagement and pinion position.
- Clockwise rotation: check the specified direction before fitting.
- M8 connector / terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Peugeot Expert 1.6 Petrol – selected applications 1995–2000 (engine code 220A2000).
- CitroËN Jumpy 1.6 Petrol – selected applications 1995–2000 (engine code 220A2000).
- Fiat Brava 1.6 Petrol – selected applications 1995–2001 (engine code 182A6000).
- Fiat Bravo 1.6 Petrol – selected applications 1995–2001 (engine code 182A6000).
- Fiat Fiorino 1.4 Petrol – selected applications 1995–2001 (engine code 146D5000).
- Fiat Fiorino Pick Up 1.4 Petrol – selected applications 1996–2001 (engine code 146D5000).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with T0147. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
986010450, 455872, C132, DSN577, LRT00147, LRT147, DRS3104, DRS3697, 35258510, 35258890, 66925112, EL25112, 5802-M1, 5802M1
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Starter Motor?
Failure to crank, clicking during a start request or intermittent cranking can indicate a starting-system problem. A weak battery, poor connections or control-circuit faults can produce similar symptoms; test the system before replacing the starter motor.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying T0147 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will T0147 fit my Peugeot Expert?
Peugeot Expert 1.6 Petrol (1995–2000) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does T0147 replace Lucas LRT00147?
Lucas LRT00147 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for T0147?
The listed details include 12V, 0.9kW power, 8 pinion teeth, clockwise rotation. Compare the complete specifications on this page with the unit being replaced.
Is T0147 new or remanufactured?
Check the current product condition selection for T0147. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering T0147?
Compare 12V compatibility, 0.9kW power, 8 pinion teeth, rotation, mounting and electrical connections with the original starter.
Does clicking prove the starter motor has failed?
No. Battery voltage, wiring and control-circuit faults can also cause clicking or no cranking. Have the starting system tested before choosing a replacement.
