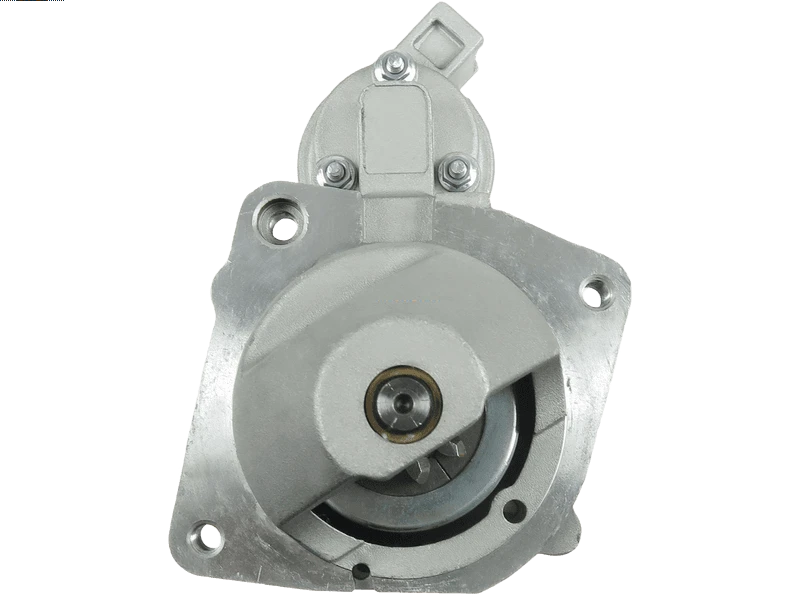

T0188 12V 2.6kW Starter Motor Fits Peugeot Boxer, Citroën Jumper

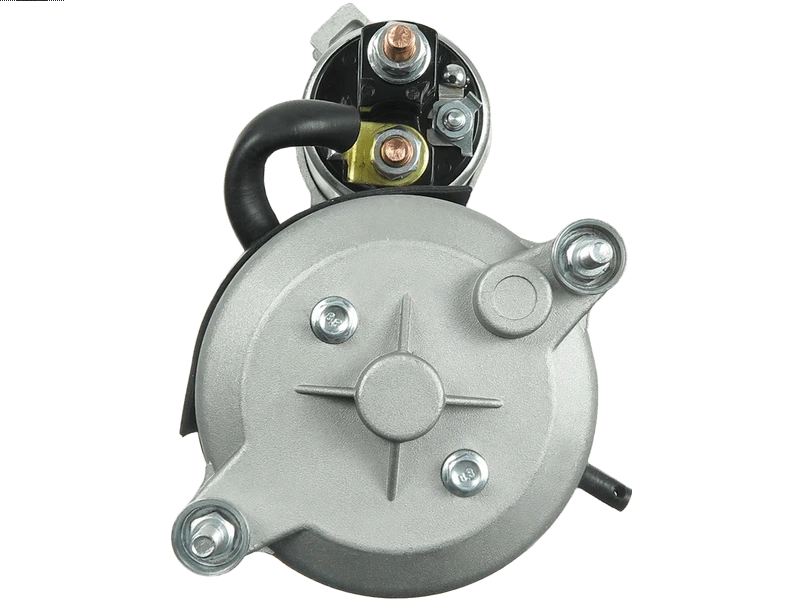

T0188 12V 2.6kW Starter Motor Fits Peugeot Boxer, Citroën Jumper - Image 2

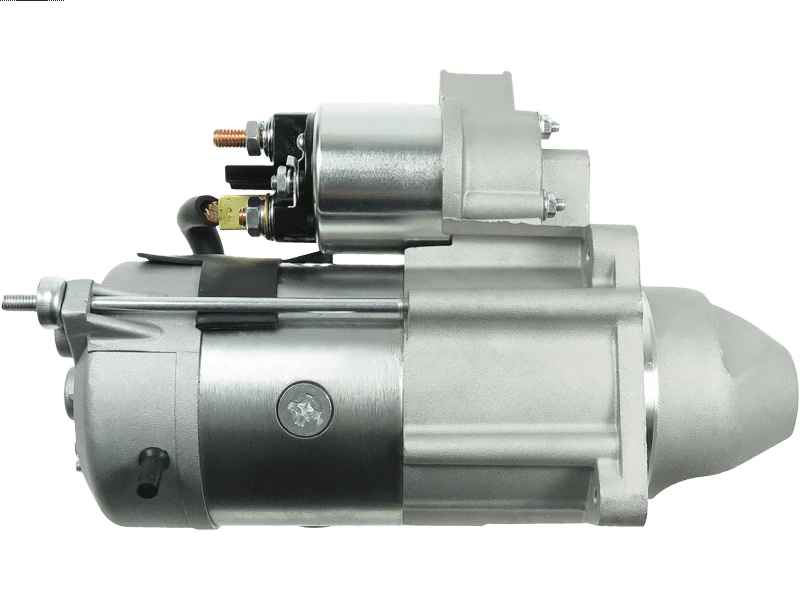

T0188 12V 2.6kW Starter Motor Fits Peugeot Boxer, Citroën Jumper - Image 3

T0188 12V 2.6kW Starter Motor Fits Peugeot Boxer, Citroën Jumper

Price range: £133.62 through £156.65

The T0188 12V 2.6kW Starter Motor is a replacement starting unit from Sahibs Auto Electrics. Listed applications include selected Peugeot Boxer, CitroËN Jumper, CitroËN Jumper 27, CitroËN Jumper 31 models. Identification references include Lucas LRT00188, Bosch 986018960, Denso DSN502. Its listed 12V 2.6kW rating provides an electrical matching point for your existing unit. Check the 9-tooth pinion, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your T0188 replacement starter motor online from Sahibs Auto Electrics for UK delivery or Click & Collect.

SKU: T0188 Category:

Product Specification

DescriptionValue
KW2.6 kW
Volt12 V
PlugM8
RotationClockwise
Teeth9 qty
Oil SealedNo
Insulated ReturnNo
WaterproofNo
Wet ClutchNo
Weight5.8 Kg

Cross Reference

Reference NumberBrand
DYT0188Dyno Electrics
402735381Euro Car Part
S4017AS-PL
986018960BOSCH
986021041BOSCH
112026CARGO
F032112026CARGO
DRS3557DELCO
DS4667DELCO
RAS34668DELCO
DSN502DENSO
DSN582DENSO
1319555080FIAT
1329201080FIAT
1331329080FIAT
1349920080FIAT
46231646FIAT
46758240FIAT
71723353FIAT
71786770FIAT
71786771FIAT
80296470FIAT
K1319555080FIAT
K1329201080FIAT
K1331329080FIAT
8EA011610-931HELLA
8EA737526-001HELLA
131955508IVECO
8029647IVECO
63114014010MAGNETI MARELLI
63114014MAGNETI MARELLI
9.43114E+11MAGNETI MARELLI
9.43221E+11MAGNETI MARELLI
9.44281E+11MAGNETI MARELLI
E95RLMAGNETI MARELLI
MRS80022MAGNETI MARELLI
MSN801MAGNETI MARELLI
1608944780PEUGEOT
46208436PEUGEOT
5802ECPEUGEOT
5802EEPEUGEOT
5802Y9PEUGEOT
5802Z0PEUGEOT
5802Z1PEUGEOT
5802Z3PEUGEOT
580SZ1PEUGEOT
71721242PEUGEOT
71721243PEUGEOT
71782324PEUGEOT
71782325PEUGEOT
9625382480PEUGEOT
20510188PRESTOLITE
PRSL1283EFFE
STRL1283EFFE
ANM15777XANDEL
AES1288AUTOELECTRO
CST10162ASCASCO
CST10162GSCASCO
CST30109ASCASCO
CST30109GSCASCO
CST30109ISCASCO
3326CEVAM
3671CEVAM
11854EAI
STR90010ELECTROLOG
25-2232ELSTOCK
220158ERA
220165ERA
8080022FRIESEN
GS114014-AGPARTS
CS1109HC PARTS
42018960HERTH+BUSS
STE1109KRAUF
101109KUHNER
101109BKUHNER
101109DKUHNER
10973KUHNER
22.1109LAUBER
22.1109MLAUBER
331261LOGISTIK
LRT00188LUCAS
LRT188LUCAS
88212136POWERMAX
500.524.093.050PSH
500.524.093.311PSH
20401261BNREAL
20401261OEREAL
20404901BNREAL
20404901ITREAL
20404901OEREAL
RNL63114014RNL
6010162SANDO
6010162.1SANDO
6030109SANDO
6030109.1SANDO
6030109.5SANDO
S12MA0146A2SIDAT
MAV2030SIOM
MAV2030ASIOM
MAV6730SIOM
SS513SOVEREIGN
STX200042STARDAX
STX200042RSTARDAX
STX200091STARDAX
STX200091RSTARDAX
33224NWAI / TRANSPO
STR52002WOODAUTO

Alternative Parts

Alternative PartCurrent DescriptionAlternative DescriptionDirect Alternative
S15922.6KW Marelli2.3KW Bosch Not fixed CENo

Vehicle Applications

BrandModelEngineEngine CodeSeriesModel TypeTypeYear
CITROËNJumper2.8 (2798ccm) Diesel814043SZ_2002 - 2006
CITROËNJumper2.8 (2798ccm) Diesel814043SZ_2002 - 2009
CITROËNJumper2.8 (2798ccm) Diesel814043NZ_2004 - 2006
CITROËNJumper 272.8 (2798ccm) Diesel814043S23_2000 - 2002
CITROËNJumper 312.8 (2798ccm) Diesel814043S23_2000 - 2002
CITROËNJumper 352.8 (2798ccm) Diesel81406323_1998 - 2002
CITROËNJumper 352.8 (2798ccm) Diesel814043S23_2000 - 2002
CITROËNRelay2.8 (2798ccm) Diesel814043SZ_2002 - 2006
CITROËNRelay2.8 (2798ccm) Diesel814043NZ_2004 - 2006
CITROËNRelay 10002.8 (2798ccm) Diesel814043S23_2000 - 2002
CITROËNRelay 14002.8 (2798ccm) Diesel814043S23_2000 - 2002
CITROËNRelay 18002.8 (2798ccm) Diesel814043S23_2000 - 2002
FIATDucato 102.8 (2798ccm) Diesel8140432301998 - 2001
FIATDucato 102.8 (2798ccm) Diesel8140632301998 - 2001
FIATDucato 102.8 (2798ccm) Diesel814063Panorama2301998 - 2001
FIATDucato 102.8 (2798ccm) Diesel8140432301999 - 2002
FIATDucato 102.8 (2798ccm) Diesel814043S2302001 - 2001
FIATDucato 112.8 (2798ccm) Diesel814043244APMFAAX/244APMPA06/244APMRA082001 - 2004
FIATDucato 112.8 (2798ccm) Diesel814043S244APMFAAY/244APMFABY/244APMNBAY/244BPMFAAX2001 - 2011
FIATDucato 112.8 (2798ccm) Diesel814043S244APMRA08/244APMRA0X2001 - 2011
FIATDucato 112.8 (2798ccm) Diesel814043SPanorama244APWFAAX/244APWPA192001 - 2006
FIATDucato 112.8 (2798ccm) Diesel814043244APWFAAX2003 - 2006
FIATDucato 142.5 (2499ccm) Diesel814047/814047RCombi/Panorama2301994 - 2002
FIATDucato 142.8 (2798ccm) Diesel8140432301998 - 2001
FIATDucato 142.8 (2798ccm) Diesel8140632301998 - 2001
FIATDucato 142.8 (2798ccm) Diesel814063Panorama2301998 - 2001
FIATDucato 142.8 (2798ccm) Diesel814043S2302000 - 2002
FIATDucato 142.8 (2798ccm) Diesel814043S2302001 - 2002
FIATDucato 152.8 (2798ccm) Diesel814043S244BPMFAAY/244BPMFBAY/244BPMNBAX/244BPMNBAY/244BPMNCAX/244BPMNCAY2001 - 2011
FIATDucato 152.8 (2798ccm) Diesel814043S244BPMABAX/244BPMABAY/244BPMACAX/244BPMACAY/244BPMAGAY/244BPMBBAX/244BPMBBAY/244BPMHBAY/244BPMHCAY2001 - 2006
FIATDucato 152.8 (2798ccm) Diesel814043S244BPWABAY/244BPWACAY2001 - 2006
FIATDucato 152.8 (2798ccm) Diesel814043244APMFAAX/244APMRA08/244BPMFBAX2001 - 2004
FIATDucato 152.8 (2798ccm) Diesel814043S244BPWBBAY/244BPWBCAY/244BPWFAAY/244BPWNBAY/244BPWNCAY/244BPWRB232001 - 2006
FIATDucato 152.8 (2798ccm) Diesel814043N244BPMAAAX/244BPMAAAY/244BPMABAX/244BPMABAY/244BPMACAX/244BPMACAY/244BPMAGAY2004 - 2006
FIATDucato 152.8 (2798ccm) Diesel814043N244BPMBGAX/244BPMBGAY/244BPMFABY/244BPMFBAX/244BPMNBAY/244BPMRB16/244BPMSBAX/244BPMTBAX/244CPMNCAX2004 - 2006
FIATDucato 182.5 (2499ccm) Diesel8140472301994 - 2002
FIATDucato 182.5 (2499ccm) Diesel814067Camping Car2301994 - 1998
FIATDucato 182.8 (2798ccm) Diesel8140432301998 - 2001
FIATDucato 182.8 (2798ccm) Diesel814063Panorama2301998 - 2001
FIATDucato 182.8 (2798ccm) Diesel8140632301998 - 2001
FIATDucato 182.8 (2798ccm) Diesel814043Panorama2301998 - 2001
FIATDucato 182.8 (2798ccm) Diesel814043S2302000 - 2002
FIATDucato 182.8 (2798ccm) Diesel814043S244CPWBCAY/244CPWDCAY/244CPWHCAY2001 - 2006
FIATDucato 182.8 (2798ccm) Diesel814043S2302001 - 2001
FIATDucato 182.8 (2798ccm) Diesel814043S244BPMHCAY/244CPMABAX/244CPMABAY/244CPMACAX/244CPMACAY/244CPMAGAX/244CPMAGAY/244CPMBBAX/244CPMHBAY/244CPMHCAY2001 - 2006
FIATDucato 182.8 (2798ccm) Diesel814043SPanorama244BPMAAAY/244BPMBABX/244BPMBABY/244BPMBAY/244BPMBBBX/244BPMBBBY/244BPMBCBX/244BPMBCBY/244CPMBCAX/244CPMBCAY/244CPMECAY2001 - 2011
FIATDucato 182.8 (2798ccm) Diesel814043S244CPBBBAY/244CPWABAY/244CPWNBAY/244CPWNCAY2001 - 2006
FIATDucato 182.8 (2798ccm) Diesel814043S244CPWHBAY2001 - 2006
FIATDucato 182.8 (2798ccm) Diesel814043244BPMACAX/244CLMFABY/244CLMMCAX2003 - 2006
FIATDucato 182.8 (2798ccm) Diesel814043244BPMACAX/244BPMFBAX2003 - 2006
FIATDucato 182.8 (2798ccm) Diesel814043244CLMFABY/244CLMMCAX2003 - 2006
FIATDucato 182.8 (2798ccm) Diesel814043NPanorama244CPMBBAY/244CPMLCAY/244CPMMCAX2004 - 2006
FIATDucato 182.8 (2798ccm) Diesel814043NSupercoach244BPMAAAX/244CPMBGAY/244CPMFAAX/244CPMFBAX/244CPMFBAY2004 - 2006
PEUGEOTBoxer1.9 (1905ccm) DieselXUD9TE23_DHY1996 - 2000
PEUGEOTBoxer2.5 (2499ccm) Diesel81406723_1997 - 2001
PEUGEOTBoxer2.8 (2798ccm) Diesel81406323_1999 - 2002
PEUGEOTBoxer2.8 (2798ccm) Diesel814063Plancher23_1999 - 2002
PEUGEOTBoxer2.8 (2798ccm) Diesel814043S23_2000 - 2001
PEUGEOTBoxer2.8 (2798ccm) Diesel814043S23_2000 - 2002
PEUGEOTBoxer2.8 (2798ccm) Diesel814043SPlancher23_2000 - 2001
PEUGEOTBoxer2.8 (2798ccm) Diesel814043SPlancher23_2000 - 2002
PEUGEOTBoxer2.8 (2798ccm) Diesel814043SZ_2001 - 2006
PEUGEOTBoxer2.8 (2798ccm) Diesel814043SPlancherZ_2001 - 2006
PEUGEOTBoxer2.8 (2798ccm) Diesel814043NZ_2004 - 2006
PEUGEOTBoxer2.8 (2798ccm) Diesel814043NPlancherZ_2004 - 2006

Description

T0188 Replacement Starter Motor

Choose a replacement by comparing the T0188 starter motor and its Lucas reference, LRT00188, with your existing unit. The listed electrical rating is 12V 2.6kW. A starter motor turns the engine during starting; the electrical rating and mechanical engagement must suit the application. Applications include selected Peugeot Boxer 1.9 Diesel variants.

Key Features and Benefits

  • 12V electrical system: match the vehicle voltage before selecting a unit.
  • 2.6kW power: compare the listed rating with the original starter motor.
  • 9-tooth pinion: compare gear engagement and pinion position.
  • Clockwise rotation: check the specified direction before fitting.
  • M8 connector / terminal: check the connection against the original unit.

Compatible Vehicles and Applications

  • Peugeot Boxer 1.9 Diesel – selected applications 1996–2000 (engine code XUD9TE).
  • CitroËN Jumper 2.8 Diesel – selected applications 2002–2006 (engine code 814043S).
  • CitroËN Jumper 27 2.8 Diesel – selected applications 2000–2002 (engine code 814043S).
  • CitroËN Jumper 31 2.8 Diesel – selected applications 2000–2002 (engine code 814043S).
  • CitroËN Jumper 35 2.8 Diesel – selected applications 1998–2002 (engine code 814063).
  • CitroËN Relay 2.8 Diesel – selected applications 2002–2006 (engine code 814043S).

These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.

OE Numbers and Cross-Reference Information

The following cross-reference numbers are associated with T0188. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.

986018960, 986021041, DSN502, DSN582, LRT00188, LRT188, DRS3557, DS4667, RAS34668, 20510188, 1608944780, 46208436, 5802EC, 5802EE, 5802Y9, 5802Z0, 5802Z1, 5802Z3, 580SZ1, 71721242, 71721243, 71782324, 71782325, 9625382480

The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.

When Should You Replace Your Starter Motor?

Failure to crank, clicking during a start request or intermittent cranking can indicate a starting-system problem. A weak battery, poor connections or control-circuit faults can produce similar symptoms; test the system before replacing the starter motor.

Why Buy from Sahibs Auto Electrics?

Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying T0188 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.

Frequently Asked Questions

Will T0188 fit my Peugeot Boxer?

Peugeot Boxer 1.9 Diesel (1996–2000) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.

Does T0188 replace Lucas LRT00188?

Lucas LRT00188 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.

What specifications are listed for T0188?

The listed details include 12V, 2.6kW power, 9 pinion teeth, clockwise rotation. Compare the complete specifications on this page with the unit being replaced.

Is T0188 new or remanufactured?

Check the current product condition selection for T0188. Confirm the supplier and availability of the option you want before completing the order.

What should I compare before ordering T0188?

Compare 12V compatibility, 2.6kW power, 9 pinion teeth, rotation, mounting and electrical connections with the original starter.

Does clicking prove the starter motor has failed?

No. Battery voltage, wiring and control-circuit faults can also cause clicking or no cranking. Have the starting system tested before choosing a replacement.
