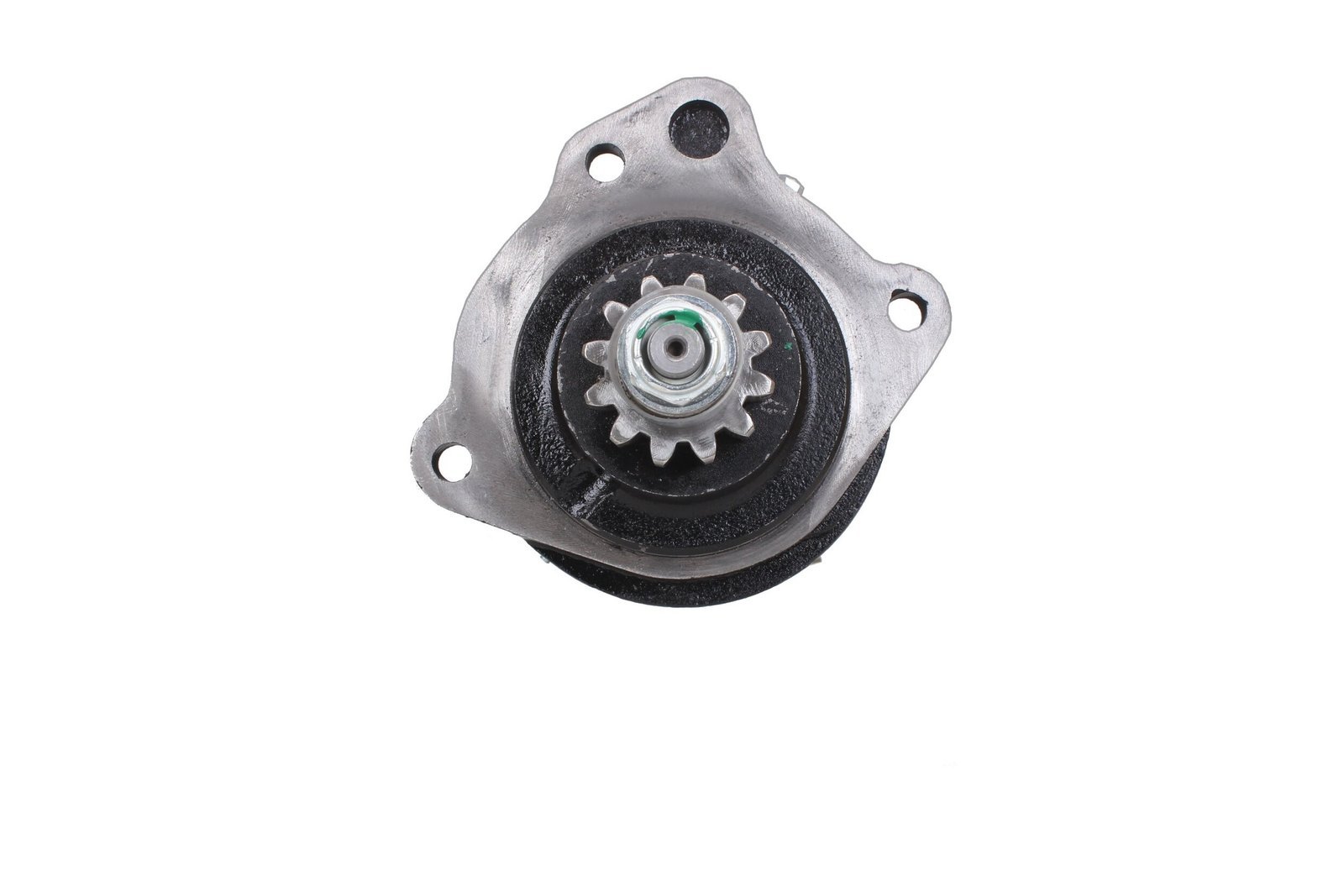

T0642 12V 2.6kW Starter Motor Fits Case I.H. 614
Price range: £302.74 through £381.06
Identify a replacement starter motor using Sahibs T0642, listed at 12V 2.6kW. Listed applications include selected Case IH 614 models. Identification references include Lucas LRT00642, Delco Remy DRS3657, Prestolite 1320H571. Its listed 12V 2.6kW rating provides an electrical matching point for your existing unit. Check the 12-tooth pinion, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your T0642 replacement starter motor online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| KW | 2.6 kW |
| Volt | 12 V |
| Plug | M8 |
| Rotation | Clockwise |
| Teeth | 12 qty |
| Oil Sealed | No |
| Insulated Return | No |
| Waterproof | No |
| Wet Clutch | No |
| Weight | 13.6 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYT0642 | Dyno Electrics |
| 110451 | HC-Cargo |
| 110453 | HC-Cargo |
| 1320043 | CAV |
| 1320045 | CAV |
| 1320161 | CAV |
| 1320180 | CAV |
| 1320570 | CAV |
| 1320571 | CAV |
| 1320D045 | CAV |
| 1320D161 | CAV |
| 1320F045 | CAV |
| 1320F161 | CAV |
| 1320F571 | CAV |
| 1320G045 | CAV |
| 1320G161 | CAV |
| 1320G571 | CAV |
| 1320H571 | Prestolite |
| 13270F571 | CAV |
| 1327110 | CAV |
| 1327111 | CAV |
| 1327A110 | Prestolite |
| 1327A111 | Prestolite |
| 35131460 | Lister Petter |
| 35261335 | Prestolite |
| 680301133 | PSH |
| 850642Z | Prestolite |
| 870642Z | Prestolite |
| 8MR3115K | Prestolite |
| CA100601 | CAV |
| CA451216 | CAV |
| CA45124 | CAV |
| CA451254N | Prestolite |
| CA451257 | CAV |
| CA45C124 | CAV |
| CA45C1257 | Prestolite |
| CA45D1216 | CAV |
| CA45D124 | CAV |
| CA45D1257 | CAV |
| CA45F1216 | CAV |
| CA45F124 | CAV |
| CA45F124M | CAV |
| CA45F1257 | CAV |
| CA45F12Y16 | CAV |
| CA45F12Y4 | CAV |
| CA45F12Y57 | CAV |
| CA45G1216 | CAV |
| CA45G124 | CAV |
| CA45G124M | CAV |
| CA45G1257 | Prestolite |
| CA45H1257 | Prestolite |
| CS696 | HC-Parts |
| DRS3657 | Delco Remy |
| LRS02250 | Lucas |
| LRS2250 | Lucas |
| LRT00601 | Lucas |
| LRT00603 | Lucas |
| LRT00642 | Lucas |
| LRT601 | Lucas |
| LRT603 | Lucas |
| LRT642 | Lucas |
| PRE1327A111 | Wood Auto |
| S1151214 | CAV |
| S115A1214 | CAV |
| S506 | Leyland |
| STR21000 | Wood Auto |
| STR57001 | Wood Auto |
| WOOSTR21000 | Wood Auto |
| WOOSTR57001 | Wood Auto |
| Z1320F045 | CAV |
| Z1320F161 | CAV |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| CASE I.H. | 614 | 0ccm Diesel | IH BD-281 | 1964 - 1967 |
Description
T0642 Replacement Starter Motor
Start your T0642 starter motor comparison with the linked Lucas reference LRT00642 and the specifications shown on this page. The listed electrical rating is 12V 2.6kW. A starter motor turns the engine during starting; the electrical rating and mechanical engagement must suit the application. Applications include selected Case IH 614 variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 2.6kW power: compare the listed rating with the original starter motor.
- 12-tooth pinion: compare gear engagement and pinion position.
- Clockwise rotation: check the specified direction before fitting.
- M8 connector / terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Case IH 614 – selected applications 1964–1967 (engine code IH BD-281).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with T0642. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
LRT00642, LRS02250, LRS2250, LRT00601, LRT00603, LRT601, LRT603, LRT642, DRS3657, 1320H571, 1327A110, 1327A111, 35261335, 850642Z, 870642Z, 8MR3115K, CA451254N, CA45C1257, CA45G1257, CA45H1257
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Starter Motor?
Failure to crank, clicking during a start request or intermittent cranking can indicate a starting-system problem. A weak battery, poor connections or control-circuit faults can produce similar symptoms; test the system before replacing the starter motor.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying T0642 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will T0642 fit my Case IH 614?
Case IH 614 (1964–1967) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does T0642 replace Lucas LRT00642?
Lucas LRT00642 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for T0642?
The listed details include 12V, 2.6kW power, 12 pinion teeth, clockwise rotation. Compare the complete specifications on this page with the unit being replaced.
Is T0642 new or remanufactured?
Check the current product condition selection for T0642. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering T0642?
Compare 12V compatibility, 2.6kW power, 12 pinion teeth, rotation, mounting and electrical connections with the original starter.
Does clicking prove the starter motor has failed?
No. Battery voltage, wiring and control-circuit faults can also cause clicking or no cranking. Have the starting system tested before choosing a replacement.
