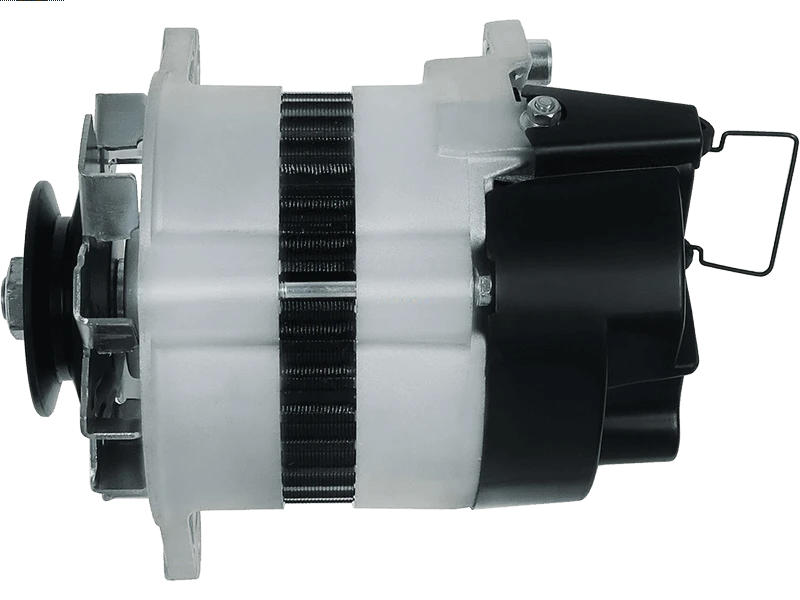

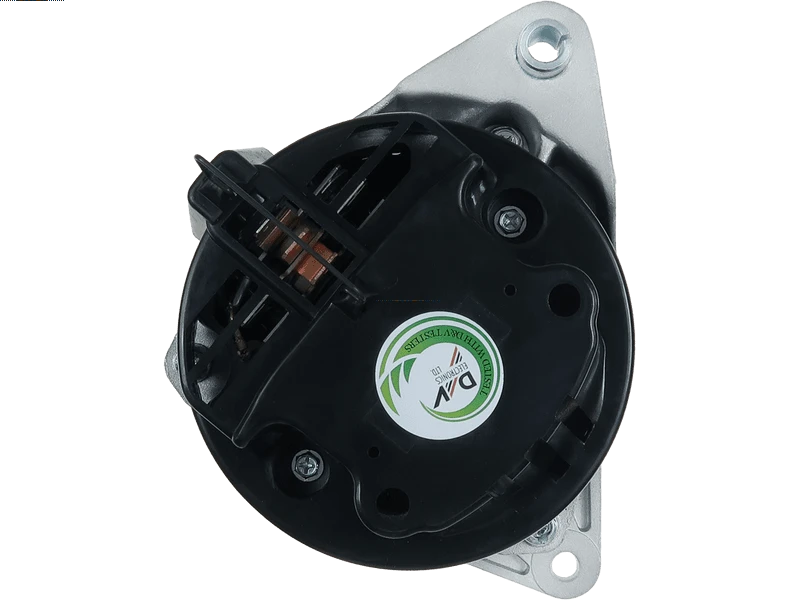

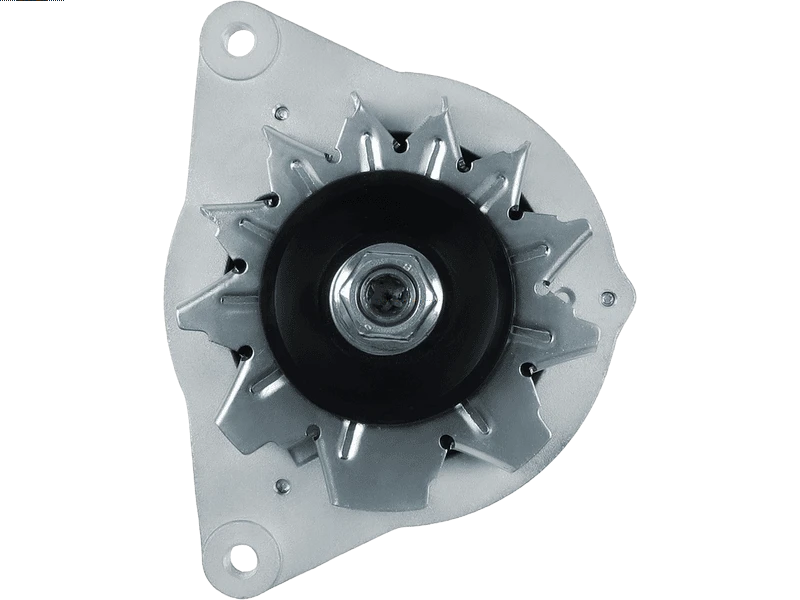

A0101 12V 34A Alternator Fits Leyland 285 Tractor, Dennis Eagle NL
Price range: £74.19 through £94.85
Identify a replacement alternator using Sahibs A0101, listed at 12V 34A. Listed applications include selected Leyland 285 Tractor, Leyland Terrier Boxer, Dennis Eagle NL, Dennis Eagle NN models. Identification references include Lucas LRA00101, Bosch 986044601, Valeo 433485. Its listed 12V 34A rating provides an electrical matching point for your existing unit. Check the single-groove pulley, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your A0101 replacement alternator online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| AMP | 34 A |
| Volt | 12 V |
| No. of Grooves | 1 qty |
| Pulley Diameter | 45.5 mm |
| Mounting holes | 3 qty |
| Position | 60° |
| Insulated Return | No |
| Water cooled | No |
| Vacuum pump | No |
| Start/Stop | No |
| Weight | 3.7 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYA0101 | Dyno Electrics |
| 401591431 | Euro Car Part |
| UD13914A | AS-PL |
| UD90674A | AS-PL |
| 986044601 | BOSCH |
| 9120143205 | BOSCH |
| 9120331501 | BOSCH |
| 9124476008 | BOSCH |
| 110179 | CARGO |
| F032110179 | CARGO |
| DRA3546 | DELCO |
| DRA3548 | DELCO |
| DRA3563 | DELCO |
| 86AB-10300-DA | FORD |
| 86BB-10300-DB | FORD |
| 86BBDB | FORD |
| 9.44E+11 | MAGNETI MARELLI |
| MRA31680 | MAGNETI MARELLI |
| 9AR5019 | MOTOROLA |
| 2871A137 | PERKINS |
| 66021542 | PRESTOLITE |
| 433485 | VALEO |
| ALTS835 | 3EFFE |
| PRAS835 | 3EFFE |
| 28-0505CT | AINDE |
| 10441383 | ALANKO |
| ANM33900 | ANDEL |
| L44600 | ATL AUTOTECHNIK |
| AEA1101 | AUTOELECTRO |
| BBA2248 | BORG & BECK |
| G104720 | BTS TURBO |
| 200101362 | DRI |
| 75571 | EAI |
| ALT4149 | ELECTROLOG |
| 28-0505 | ELSTOCK |
| 9031680 | FRIESEN |
| CA17V | HC PARTS |
| HCA17V | HC PARTS |
| 3123088 | HENKEL PARTS |
| ALL8008 | KRAUF |
| 30017L | KUHNER |
| 30017V | KUHNER |
| 23589D | LUCAS |
| 23675 | LUCAS |
| 23682 | LUCAS |
| 23701 | LUCAS |
| 23729 | LUCAS |
| 23729B | LUCAS |
| 23736 | LUCAS |
| 23754 | LUCAS |
| 23773 | LUCAS |
| 23794 | LUCAS |
| 23801 | LUCAS |
| 23952 | LUCAS |
| 24108 | LUCAS |
| 24153A | LUCAS |
| 24180 | LUCAS |
| 54021493010 | LUCAS |
| 54021845010 | LUCAS |
| 54022084010 | LUCAS |
| LRA00101 | LUCAS |
| LRA00104 | LUCAS |
| LRA00113 | LUCAS |
| LRA101 | LUCAS |
| LRA104 | LUCAS |
| LRA113 | LUCAS |
| 89213699 | POWERMAX |
| 595.037.035.100 | PSH |
| 595.037.035.461 | PSH |
| 011-003-000267R | REMANTE |
| RNL101 | RNL |
| RNL105 | RNL |
| PL8014 | SNRA |
| 571ST57 | STARTCAR |
| AL00385 | TMI |
| ALT7001 | UNIPOINT |
| 14030N | WAI / TRANSPO |
| ALT16002 | WOODAUTO |
| WOOALT16002 | WOODAUTO |
| WOOALT16004 | WOODAUTO |
| WOOALT7001 | WOODAUTO |
| WOOALT7005 | WOODAUTO |
Alternative Parts
| Alternative Part | Current Description | Alternative Description | Direct Alternative |
|---|---|---|---|
| A0105 | 34A 16ACR | 43A 18ACR | Yes |
| A0113 | 34A 16ACR | 36A 17ACR | Yes |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| DENNIS EAGLE | NL | 0ccm Diesel | Leyland | 1977 - 1978 | |||
| DENNIS EAGLE | NN | 0ccm Diesel | Leyland | 1977 - 1978 | |||
| DENNIS EAGLE | NY | 0ccm Diesel | Leyland | 1977 - 1978 | |||
| DENNIS EAGLE | PN PNL PX | 0ccm Diesel | Leyland | 1979 - | |||
| LEYLAND | 285 Tractor | 0ccm Diesel | Leyland 6/98DT | 1977 - 1979 | |||
| LEYLAND | Terrier Boxer | 0ccm Diesel | 1971 - 1976 |
Description
A0101 Replacement Alternator
Choose a replacement by comparing the A0101 alternator and its Lucas reference, LRA00101, with your existing unit. The listed electrical rating is 12V 34A. An alternator maintains battery charge and supplies electrical power while the engine runs. Applications include selected Leyland 285 Tractor variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 34A output: compare the listed rating with the original alternator.
- Single-groove pulley: check belt profile and alignment against the existing unit.
- 3 mounting holes: compare the fixing pattern and unit position.
Compatible Vehicles and Applications
- Leyland 285 Tractor – selected applications 1977–1979 (engine code Leyland 6/98DT).
- Leyland Terrier Boxer – selected applications 1971–1976.
- Dennis Eagle NL – selected applications 1977–1978 (engine code Leyland).
- Dennis Eagle NN – selected applications 1977–1978 (engine code Leyland).
- Dennis Eagle NY – selected applications 1977–1978 (engine code Leyland).
- Dennis Eagle PN PNL PX – selected applications 1979 – (engine code Leyland).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with A0101. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
986044601, 9120143205, 9120331501, 9124476008, 433485, LRA00101, 23589D, 23675, 23682, 23701, 23729, 23729B, 23736, 23754, 23773, 23794, 23801, 23952, 24108, 24153A, 24180, 54021493010, 54021845010, 54022084010, LRA00104, LRA00113, LRA101, LRA104, LRA113, DRA3546, DRA3548, DRA3563, 66021542, 86AB-10300-DA, 86BB-10300-DB, 86BBDB, 2871A137
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Alternator?
Charging warning lights, repeated loss of battery charge, dim or fluctuating lights and inconsistent electrical operation can indicate a charging-system problem. Battery condition, wiring and the drive belt can produce similar symptoms; arrange a diagnostic check before replacing the alternator.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying A0101 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will A0101 fit my Leyland 285 Tractor?
Leyland 285 Tractor (1977–1979) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does A0101 replace Lucas LRA00101?
Lucas LRA00101 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for A0101?
The listed details include 12V, 34A output, 1 pulley groove. Compare the complete specifications on this page with the unit being replaced.
Is A0101 new or remanufactured?
Check the current product condition selection for A0101. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering A0101?
Compare 12V compatibility, 34A output, pulley configuration, mounting points and electrical connections with the original alternator.
Does a battery warning light prove the alternator has failed?
No. Battery, belt, wiring and control faults can also affect charging. Use a charging-system test to establish the cause before ordering a replacement.
