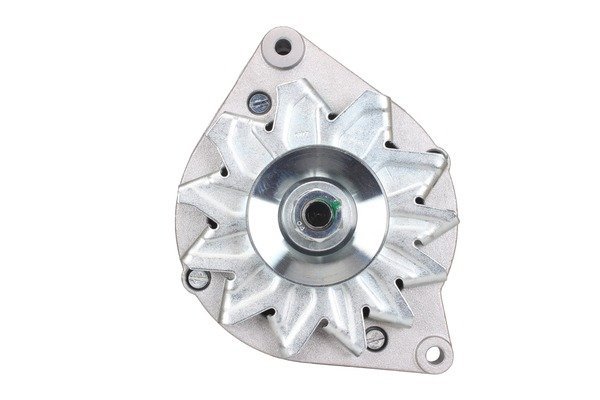

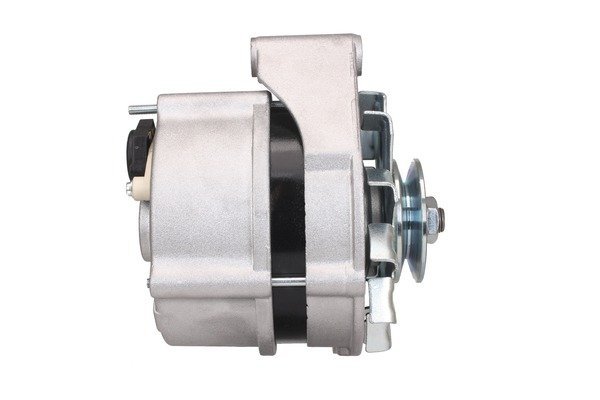

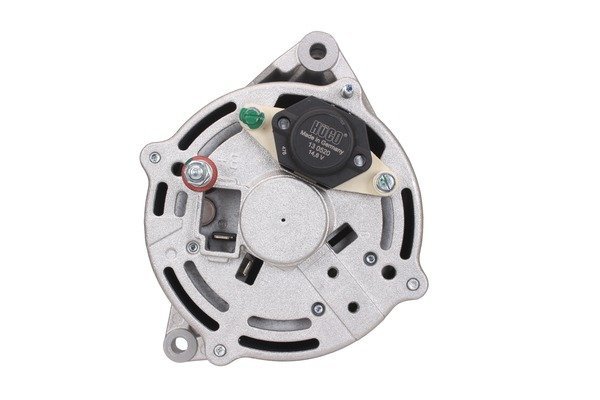

A0110 12V 45A Alternator Fits Vauxhall Carlton, Vauxhall Cavalier
Price range: £128.00 through £204.80
The A0110 12V 45A Alternator is a replacement charging unit from Sahibs Auto Electrics. Listed applications include selected Vauxhall Carlton, Vauxhall Cavalier, Opel Ascona, Opel Manta models. Identification references include Lucas LRA00110, Bosch 120400549, Valeo 436154. Its listed 12V 45A rating provides an electrical matching point for your existing unit. Check the single-groove pulley, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your A0110 replacement alternator online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| AMP | 45 A |
| Volt | 12 V |
| No. of Grooves | 1 qty |
| Pulley Diameter | 65 mm |
| Mounting holes | 2 qty |
| Position | -30° |
| Insulated Return | No |
| Water cooled | No |
| Vacuum pump | No |
| Start/Stop | No |
| Weight | 4.32 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYA0110 | Dyno Electrics |
| 120400549 | Bosch |
| 120400620 | Bosch |
| 120400681 | Bosch |
| 120400840 | Bosch |
| 120400841 | Bosch |
| 120488109 | Bosch |
| 120489108 | Bosch |
| 120489109 | Bosch |
| 120489629 | Bosch |
| 120489630 | Bosch |
| 986030330 | Bosch Exchange |
| 986030810 | Bosch Exchange |
| 986030811 | Bosch Exchange |
| 110359 | HC-Cargo |
| 110974 | HC-Cargo |
| 1204017 | Opel |
| 1204161 | Opel |
| 1204169 | Opel |
| 1204311 | Opel |
| 135002045 | PSH |
| 14201001 | AES |
| 16201028 | AES |
| 20273R | WAI |
| 20861R | WAI |
| 3472002 | Delco Remy |
| 3472028 | Delco Remy |
| 3472057 | Delco Remy |
| 436154 | Valeo |
| 436155 | Valeo |
| 8EN2002KA | Prestolite |
| 943356527 | Magneti Marelli |
| 9.43E+11 | Magneti Marelli |
| 9AR2618K | Motorola |
| CA110IR | HC-Parts |
| DRA0180 | Delco Remy |
| DRA0330 | Delco Remy |
| DRA0810 | Delco Remy |
| DRA4014 | Delco Remy |
| LRA00110 | Lucas |
| LRA00860 | Lucas |
| LRA110 | Lucas |
| LRA860 | Lucas |
Alternative Parts
| Alternative Part | Current Description | Alternative Description | Direct Alternative |
|---|---|---|---|
| A0984 | 45A | 65A | No |
| A0272 | 45A | 55A | Yes |
| B0318 | 45A Spade Terminal D+ Bosch | 70A M5 Terminal D+ Bosch Delco | No |
| A0863 | 45A Bosch | 55A Delco | No |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| OPEL | Ascona | 1.6 (1584ccm) Petrol | 16SN | B | 84 | 1975 - 1981 | |
| OPEL | Ascona | 1.6 (1584ccm) Petrol | 16SN | B | 81/86 | 1975 - 1981 | |
| OPEL | Ascona | 1.6 (1584ccm) Petrol | 16NC | B | 84 | 1975 - 1981 | |
| OPEL | Ascona | 1.6 (1584ccm) Petrol | 16NC | B | 81/86 | 1975 - 1981 | |
| OPEL | Ascona | 1.6 (1584ccm) Petrol | 16NC | B | 81/86/87/88 | 1975 - 1981 | |
| OPEL | Ascona | 1.9 (1897ccm) Petrol | 19N | B | 81/86/87/88 | 1975 - 1981 | |
| OPEL | Ascona | 1.9 (1897ccm) Petrol | 19S | B | 81/86/87/88 | 1975 - 1981 | |
| OPEL | Manta | 1.6 (1584ccm) Petrol | 16NV | B | Combi Coupe | 58 | 1975 - 1981 |
| OPEL | Manta | 1.6 (1584ccm) Petrol | 16SN | B | 55 | 1975 - 1981 | |
| OPEL | Manta | 1.6 (1584ccm) Petrol | 16NV | B | 59 | 1975 - 1981 | |
| OPEL | Manta | 1.6 (1584ccm) Petrol | 16NC | B | 55 | 1976 - 1980 | |
| OPEL | Manta | 1.6 (1584ccm) Petrol | 16NC | B | Combi Coupe | 58 | 1976 - 1980 |
| OPEL | Manta | 1.6 (1584ccm) Petrol | 16SN | B | Combi Coupe | 58 | 1977 - 1981 |
| OPEL | Manta | 1.9 (1897ccm) Petrol | 19E | B | 58 | 1975 - 1977 | |
| OPEL | Manta | 1.9 (1897ccm) Petrol | 19S | B | Combi Coupe | 58 | 1975 - 1980 |
| OPEL | Manta | 1.9 (1897ccm) Petrol | 19N | B | 55 | 1976 - 1980 | |
| OPEL | Manta | 1.9 (1897ccm) Petrol | 19N | B | Combi Coupe | 58 | 1976 - 1980 |
| OPEL | Manta | 2.0 (1979ccm) Petrol | 20E | B | Combi Coupe | 58 | 1977 - 1988 |
| OPEL | Manta | 2.0 (1979ccm) Petrol | 20S | B | 55 | 1977 - 1982 | |
| OPEL | Manta | 2.0 (1979ccm) Petrol | 20N | B | 55 | 1977 - 1980 | |
| OPEL | Manta | 2.0 (1979ccm) Petrol | 20N | B | Combi Coupe | 58 | 1977 - 1981 |
| OPEL | Manta | 2.0 (1979ccm) Petrol | 20S | B | Combi Coupe | 58 | 1977 - 1984 |
| OPEL | Rekord | 1.7 (1698ccm) Petrol | 17N | D | 11/16/17/18 | 1975 - 1978 | |
| OPEL | Rekord | 1.7 (1698ccm) Petrol | 17N | D | 64/67 | 1975 - 1978 | |
| OPEL | Rekord | 1.9 (1897ccm) Petrol | 19S | D | 9-Nov | 1975 - 1978 | |
| OPEL | Rekord | 1.9 (1897ccm) Petrol | 19N | D | 9-Nov | 1975 - 1978 | |
| OPEL | Rekord | 1.9 (1897ccm) Petrol | 19N | D | 19 | 1975 - 1978 | |
| OPEL | Rekord | 1.9 (1897ccm) Petrol | 19S | D | 19-Nov | 1975 - 1978 | |
| OPEL | Rekord | 1.9 (1897ccm) Petrol | 19S | D | 67 | 1975 - 1978 | |
| OPEL | Rekord | 1.9 (1897ccm) Petrol | 19N | D | 67 | 1975 - 1978 | |
| OPEL | Rekord | 2.0 (1979ccm) Petrol | 20S | D | 66/67 | 1971 - 1978 | |
| OPEL | Rekord | 2.0 (1979ccm) Petrol | 20S | D | 11 | 1972 - 1978 | |
| OPEL | Rekord | 2.0 (1979ccm) Petrol | 20S | D | 16/17/18 | 1972 - 1978 | |
| VAUXHALL | Carlton | 2.0 (1979ccm) Petrol | 20E | LVL17 | 1977 - 1984 | ||
| VAUXHALL | Carlton | 2.0 (1979ccm) Petrol | 20E | KD64/KF66/KFL67 | 1977 - 1986 | ||
| VAUXHALL | Cavalier | 1.9 (1897ccm) Petrol | 19S | 77 | 1975 - 1978 | ||
| VAUXHALL | Cavalier | 2.0 (1979ccm) Petrol | 20S | 75 | 1977 - 1981 | ||
| VAUXHALL | Cavalier | 2.0 (1979ccm) Petrol | 20S | 79 | 1978 - 1981 |
Description
A0110 Replacement Alternator
Start your A0110 alternator comparison with the linked Lucas reference LRA00110 and the specifications shown on this page. The listed electrical rating is 12V 45A. An alternator maintains battery charge and supplies electrical power while the engine runs. Applications include selected Vauxhall Carlton 2.0 Petrol variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 45A output: compare the listed rating with the original alternator.
- Single-groove pulley: check belt profile and alignment against the existing unit.
- 2 mounting holes: compare the fixing pattern and unit position.
Compatible Vehicles and Applications
- Vauxhall Carlton 2.0 Petrol – selected applications 1977–1984 (engine code 20E).
- Vauxhall Cavalier 1.9 Petrol – selected applications 1975–1978 (engine code 19S).
- Opel Ascona 1.6 Petrol – selected applications 1975–1981 (engine code 16SN).
- Opel Manta 1.6 Petrol – selected applications 1975–1981 (engine code 16NV).
- Opel Rekord 1.7 Petrol – selected applications 1975–1978 (engine code 17N).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with A0110. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
120400549, 120400620, 120400681, 120400840, 120400841, 120488109, 120489108, 120489109, 120489629, 120489630, 986030330, 986030810, 986030811, 436154, 436155, LRA00110, LRA00860, LRA110, LRA860, 3472002, 3472028, 3472057, DRA0180, DRA0330, DRA0810, DRA4014, 8EN2002KA
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Alternator?
Charging warning lights, repeated loss of battery charge, dim or fluctuating lights and inconsistent electrical operation can indicate a charging-system problem. Battery condition, wiring and the drive belt can produce similar symptoms; arrange a diagnostic check before replacing the alternator.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying A0110 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will A0110 fit my Vauxhall Carlton?
Vauxhall Carlton 2.0 Petrol (1977–1984) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does A0110 replace Lucas LRA00110?
Lucas LRA00110 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for A0110?
The listed details include 12V, 45A output, 1 pulley groove. Compare the complete specifications on this page with the unit being replaced.
Is A0110 new or remanufactured?
Check the current product condition selection for A0110. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering A0110?
Compare 12V compatibility, 45A output, pulley configuration, mounting points and electrical connections with the original alternator.
Does a battery warning light prove the alternator has failed?
No. Battery, belt, wiring and control faults can also affect charging. Use a charging-system test to establish the cause before ordering a replacement.
