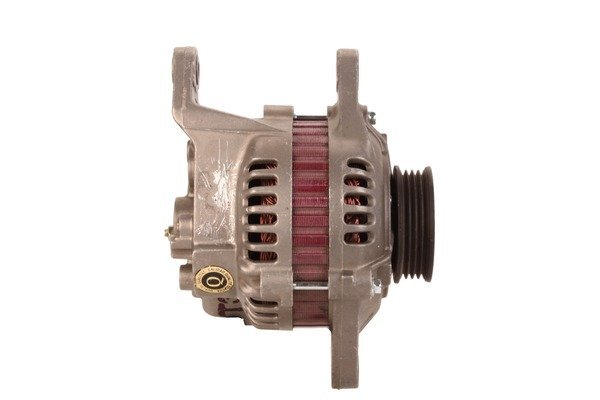

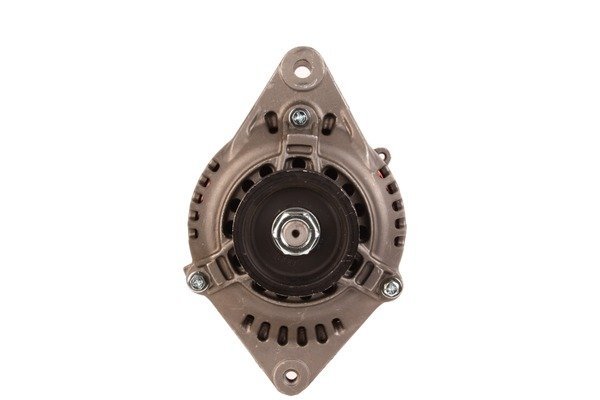

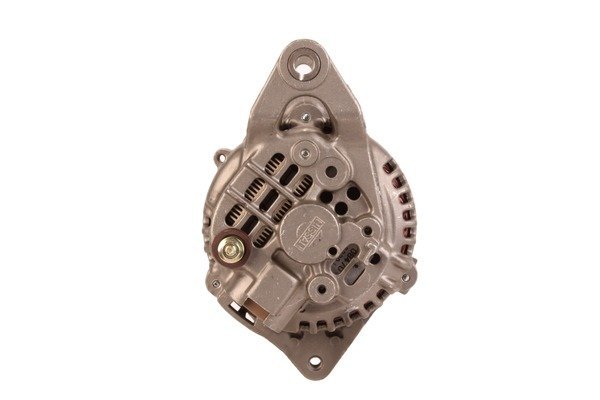

A0394 12V 60A Alternator Fits Nissan Sunny, Nissan Sunny Estate/Wagon
Price range: £131.50 through £169.59
The A0394 12V 60A Alternator is a replacement charging unit from Sahibs Auto Electrics. Listed applications include selected Nissan Sunny, Nissan Sunny Estate/Wagon models. Identification references include Lucas LRA00394, Valeo 436545, Mitsubishi Electric A002T41592. Its listed 12V 60A rating provides an electrical matching point for your existing unit. Check the 4-groove pulley, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your A0394 replacement alternator online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| AMP | 60 A |
| Volt | 12 V |
| No. of Grooves | 4 qty |
| Pulley Diameter | 72 mm |
| Mounting holes | 3 qty |
| Position | 0° |
| B+ | M6 |
| Insulated Return | No |
| Water cooled | No |
| Vacuum pump | No |
| Start/Stop | No |
| Weight | 4.86 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYA0394 | Dyno Electrics |
| 986037060 | Bosch Exchange |
| 986037061 | Bosch Exchange |
| 0986AN0617 | Bosch Exchange |
| 0986CR0056 | Bosch Exchange |
| 0986UR0056 | Bosch Exchange |
| 110693 | HC-Cargo |
| 14719N | WAI |
| 14719R | WAI |
| 163JARH | RNL |
| 165518065 | PSH |
| 20100394 | Prestolite |
| 2310005P02 | Nissan |
| 2310005P03 | Nissan |
| 2310005P12 | Nissan |
| 2310005P13EP | Nissan |
| 2310050A00 | Nissan |
| 2310053A00 | Nissan |
| 2310053A10 | Nissan |
| 2310053A10EP | Nissan |
| 2310053A11 | Nissan |
| 2310053A90 | Nissan |
| 2310053AR0EX | Nissan |
| 2310056A10 | Nissan |
| 2310056A11 | Nissan |
| 2310063A00 | Nissan |
| 436545 | Valeo |
| 561050 | Valeo |
| 90251027 | Wilson |
| 90273053 | Wilson |
| A002T41592 | Mitsubishi |
| A005T41590 | Mitsubishi |
| A005T41592 | Mitsubishi |
| A005T41592B | Mitsubishi |
| A005T41792 | Mitsubishi |
| A005T41792B | Mitsubishi |
| A2T41592 | Mitsubishi |
| A5T41590 | Mitsubishi |
| A5T41592 | Mitsubishi |
| A5T41592B | Mitsubishi |
| A5T41792 | Mitsubishi |
| A5T41792B | Mitsubishi |
| ADA350 | ATK |
| ADA961 | ATK |
| ADA972 | ATK |
| AL337X | Bosch (USA) |
| ALT31034 | Wood Auto |
| B310M53A00EX | Nissan |
| BXM1213N | Bosch (USA) |
| DRA3047 | Delco Remy |
| HJA163IR | HC-Parts |
| JA163IR | HC-Parts |
| LR160715 | Hitachi |
| LR160715B | Hitachi |
| LRA00394 | Lucas |
| LRA00481 | Lucas |
| LRA00483 | Lucas |
| LRA394 | Lucas |
| LRA481 | Lucas |
| LRA483 | Lucas |
| Mar-48 | Magneti Marelli |
| PBNA0394 | Prestolite |
| WOOALT31034 | Wood Auto |
Alternative Parts
| Alternative Part | Current Description | Alternative Description | Direct Alternative |
|---|---|---|---|
| A0481 | Design of CE bracket | Design of CE bracket | Yes |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| NISSAN | Sunny | 1.5 (1488ccm) Petrol | E15S | MK VII | B12 | 1986 - 1988 | |
| NISSAN | Sunny Estate/Wagon | 1.5 (1488ccm) Petrol | E15S | MK VII | Traveller | B12 | 1986 - 1988 |
Description
A0394 Replacement Alternator
Choose a replacement by comparing the A0394 alternator and its Lucas reference, LRA00394, with your existing unit. The listed electrical rating is 12V 60A. An alternator maintains battery charge and supplies electrical power while the engine runs. Applications include selected Nissan Sunny 1.5 Petrol variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 60A output: compare the listed rating with the original alternator.
- 4-groove pulley: check belt profile and alignment against the existing unit.
- 3 mounting holes: compare the fixing pattern and unit position.
- M6 B+ terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Nissan Sunny 1.5 Petrol – selected applications 1986–1988 (engine code E15S).
- Nissan Sunny Estate/Wagon 1.5 Petrol – selected applications 1986–1988 (engine code E15S).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with A0394. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
986037060, 986037061, 0986AN0617, 0986CR0056, 0986UR0056, 436545, 561050, LRA00394, LRA00481, LRA00483, LRA394, LRA481, LRA483, A002T41592, A005T41590, A005T41592, A005T41592B, A005T41792, A005T41792B, A2T41592, A5T41590, A5T41592, A5T41592B, A5T41792, A5T41792B, LR160715, LR160715B, DRA3047, 20100394, PBNA0394
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Alternator?
Charging warning lights, repeated loss of battery charge, dim or fluctuating lights and inconsistent electrical operation can indicate a charging-system problem. Battery condition, wiring and the drive belt can produce similar symptoms; arrange a diagnostic check before replacing the alternator.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying A0394 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will A0394 fit my Nissan Sunny?
Nissan Sunny 1.5 Petrol (1986–1988) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does A0394 replace Lucas LRA00394?
Lucas LRA00394 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for A0394?
The listed details include 12V, 60A output, 4 pulley grooves. Compare the complete specifications on this page with the unit being replaced.
Is A0394 new or remanufactured?
Check the current product condition selection for A0394. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering A0394?
Compare 12V compatibility, 60A output, pulley configuration, mounting points and electrical connections with the original alternator.
Does a battery warning light prove the alternator has failed?
No. Battery, belt, wiring and control faults can also affect charging. Use a charging-system test to establish the cause before ordering a replacement.
