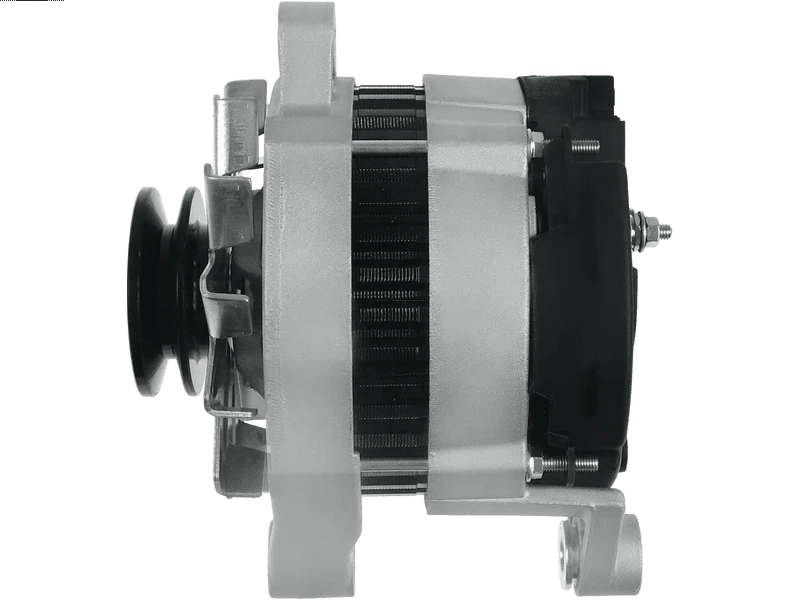

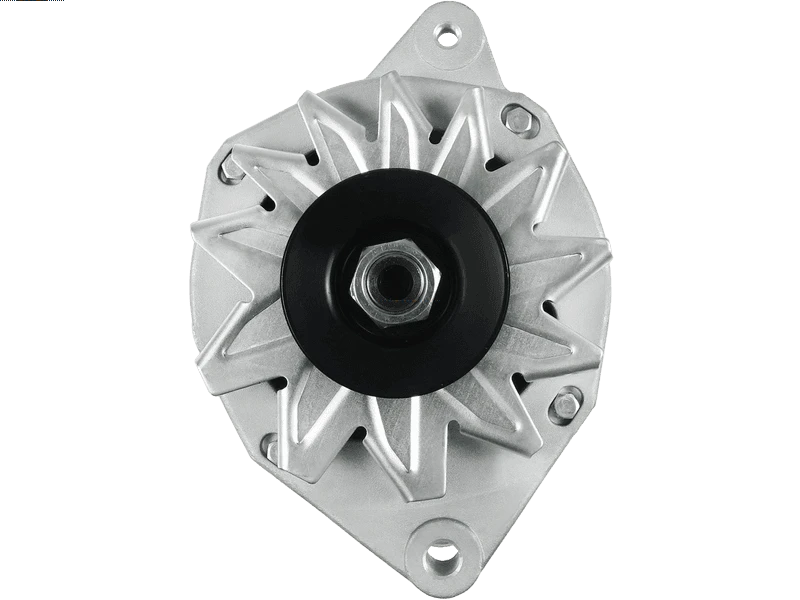

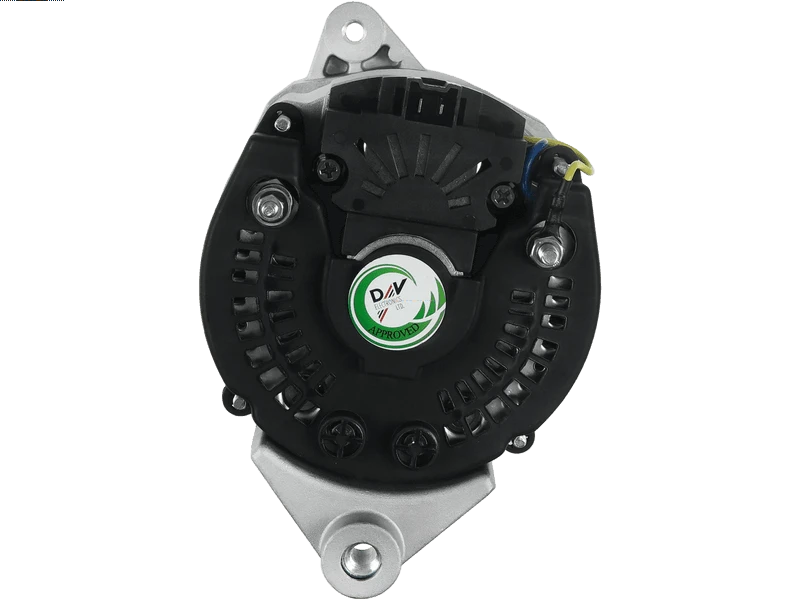

A0397 12V 60A Alternator Fits Renault 19, Renault Clio, Renault Extra
Price range: £86.40 through £109.67
Compare the A0397 12V 60A alternator from Sahibs Auto Electrics with the unit currently fitted. Listed applications include selected Renault 19, Renault Clio, Renault Clio Van, Renault Express models. Identification references include Lucas LRA00397, Bosch 986037321, Valeo 2541117. Its listed 12V 60A rating provides an electrical matching point for your existing unit. Check the single-groove pulley, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your A0397 replacement alternator online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| AMP | 60 A |
| Volt | 12 V |
| No. of Grooves | 1 qty |
| Pulley Diameter | 42 mm |
| Mounting holes | 3 qty |
| Position | 20° |
| B+ | M6 |
| Insulated Return | No |
| Water cooled | No |
| Vacuum pump | No |
| Start/Stop | No |
| Weight | 4.4 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYA0397 | Dyno Electrics |
| 401745971 | Euro Car Part |
| A3006 | AS-PL |
| 986037321 | BOSCH |
| 9120144302 | BOSCH |
| 9120144303 | BOSCH |
| 111325 | CARGO |
| 112756 | CARGO |
| F032111325 | CARGO |
| F032112756 | CARGO |
| DRA3086 | DELCO |
| DRA7321 | DELCO |
| 8EL011710-961 | HELLA |
| 8EL725844-001 | HELLA |
| 35214665 | PRESTOLITE |
| 35215280 | PRESTOLITE |
| 541595 | RENAULT |
| 7700784482 | RENAULT |
| 7700784890 | RENAULT |
| 7700784891 | RENAULT |
| 7701351757 | RENAULT |
| 7701499436 | RENAULT |
| 7702150654 | RENAULT |
| 7707784890 | RENAULT |
| 2541117 | VALEO |
| 2541257 | VALEO |
| 433096 | VALEO |
| 433459 | VALEO |
| 436250 | VALEO |
| A13N157 | VALEO |
| A13N203 | VALEO |
| NA374 | VALEO |
| 5002633 | VOLVO |
| ALTL171 | 3EFFE |
| PRAL171 | 3EFFE |
| CGB-81546 | AINDE |
| ANM35306X | ANDEL |
| AEA3197 | AUTOELECTRO |
| STA0154R | BOVEZ |
| CAL15112AS | CASCO |
| CAL15115 | CASCO |
| CAL15115AS | CASCO |
| CAL15115ES | CASCO |
| CAL15115GS | CASCO |
| CAL15115OS | CASCO |
| CAL15115RS | CASCO |
| 4358 | CEVAM |
| 55867 | EAI |
| ALT00878 | ELECTROLOG |
| 28-1546 | ELSTOCK |
| 210091 | ERA |
| 210226 | ERA |
| GA433096-A | GPARTS |
| CA549IR | HC PARTS |
| CA649IR | HC PARTS |
| 32037321 | HERTH+BUSS |
| 30549RI | KUHNER |
| 30649RI | KUHNER |
| 440696 | LOGISTIK |
| LRA00397 | LUCAS |
| LRA01530 | LUCAS |
| LRA1530 | LUCAS |
| LRA397 | LUCAS |
| 5515282 | MEAT & DORIA |
| 89213593 | POWERMAX |
| 9213593 | POWERMAX |
| 20179211BN | REAL |
| 20179511BN | REAL |
| 311210 | RHIAG |
| 2015112 | SANDO |
| 2015115 | SANDO |
| A12VA0571A2 | SIDAT |
| ALT171150 | SIOM |
| ALT4755 | SIOM |
| SA641 | SOVEREIGN |
| SA764 | SOVEREIGN |
| SB024 | SOVEREIGN |
| STX100297 | STARDAX |
| STX100297R | STARDAX |
| STX100335 | STARDAX |
| STX100335R | STARDAX |
| 22530N | WAI / TRANSPO |
| ALT14016 | WOODAUTO |
Alternative Parts
| Alternative Part | Current Description | Alternative Description | Direct Alternative |
|---|---|---|---|
| A1530 | 60A | 70A | Yes |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| RENAULT | 19 | 1.2 (1171ccm) Petrol | E7F730 | PHASE II | B53W | 1992 - 1994 | |
| RENAULT | 19 | 1.2 (1171ccm) Petrol | E7F730 | PHASE II | Chamade | L53W | 1992 - 1994 |
| RENAULT | 19 | 1.4 (1390ccm) Petrol | E6J700 | PHASE I | Societe | S537 | 1988 - 1992 |
| RENAULT | 19 | 1.4 (1390ccm) Petrol | E6J700/E6J701 | PHASE I | B537/C537 | 1988 - 1992 | |
| RENAULT | 19 | 1.4 (1390ccm) Petrol | E7J700 | PHASE I | Chamade | L53A | 1990 - 1992 |
| RENAULT | 19 | 1.4 (1390ccm) Petrol | E6J700 | PHASE II | Societe | S537 | 1992 - 1995 |
| RENAULT | 19 | 1.4 (1390ccm) Petrol | E7J700 | PHASE II | B53A/C53A | 1992 - 1992 | |
| RENAULT | 19 | 1.4 (1390ccm) Petrol | E7J706 | PHASE II | Chamade | L53A | 1994 - 1995 |
| RENAULT | 19 | 1.4 (1390ccm) Petrol | E6J706 | PHASE III | B53A/C53A | 1996 - 2001 | |
| RENAULT | Clio | 1.2 (1171ccm) Petrol | E5F710/E7F708 | PHASE I | 357G/557G/B572/B57A/C572/C57A | 1990 - 1996 | |
| RENAULT | Clio | 1.2 (1171ccm) Petrol | E7F700/E7F750 | PHASE I | 357F/357J/557F/557J/B57A/B57S/C57A/C57S | 1990 - 1998 | |
| RENAULT | Clio | 1.2 (1171ccm) Petrol | E7F700/E7F704/E7F706/E7F708 | PHASE I | B57A/B57R/C57R | 1991 - 1996 | |
| RENAULT | Clio | 1.4 (1390ccm) Petrol | E6J712/E6J713/E6J760 | PHASE I | 557B/B573/C573 | 1990 - 1998 | |
| RENAULT | Clio | 1.4 (1390ccm) Petrol | E7J710/E7J711 | PHASE I | B57B/C57B | 1990 - 1998 | |
| RENAULT | Clio | 1.4 (1390ccm) Petrol | E7J754/E7J756/E7J757 | PHASE I | B57J/B57Y/C57J/C57Y | 1991 - 1998 | |
| RENAULT | Clio | 1.4 (1390ccm) Petrol | E7J718/E7J719 | PHASE I | B57T/C57T | 1991 - 1998 | |
| RENAULT | Clio Van | 1.2 (1171ccm) Petrol | E5F710/E7F700/E7F708 | PHASE I | Societe | S572/S57A | 1991 - 1998 |
| RENAULT | Clio Van | 1.2 (1171ccm) Petrol | E7F706 | PHASE I | Societe | S57R | 1991 - 1998 |
| RENAULT | Express | 1.4 (1390ccm) Petrol | E6J734/E6J738/E7J720 | PHASE II | Fourgonette | F40A/F40V/F40Y | 1991 - 1997 |
| RENAULT | Express | 1.4 (1390ccm) Petrol | E7J724/E7J726/E7J773 | PHASE II | Fourgonette | F40U | 1991 - 1998 |
| RENAULT | Express | 1.4 (1390ccm) Petrol | E7J724 | PHASE II | Fourgonette | F40U | 1991 - 1993 |
| RENAULT | Express | 1.4 (1390ccm) Petrol | C3J762 | PHASE II | Fourgonette | F407 | 1993 - 1995 |
| RENAULT | Express | 1.4 (1390ccm) Petrol | E7J724 | PHASE II | Fourgonette | F40U | 1994 - 1998 |
| RENAULT | Express | 1.4 (1390ccm) Petrol | E7J726/E7J773 | PHASE III | Fourgonette | F40U | 1995 - 1997 |
| RENAULT | Extra | 1.4 (1390ccm) Petrol | E7J724/E7J726/E7J773 | PHASE II | F40U | 1994 - 1998 | |
| RENAULT | Extra | 1.4 (1390ccm) Petrol | E7J726/E7J773 | PHASE III | F40U | 1995 - 1997 | |
| RENAULT | Rapid | 1.4 (1390ccm) Petrol | E7J724 | PHASE II | F40U | 1991 - 1993 | |
| RENAULT | Rapid | 1.4 (1390ccm) Petrol | E7J724/E7J772/E7J773 | PHASE II | F40U | 1994 - 1998 | |
| RENAULT | Rapid | 1.4 (1390ccm) Petrol | E7J726/E7J773 | PHASE III | Fourgonette | F40U | 1995 - 1997 |
Description
A0397 Replacement Alternator
The Sahibs A0397 alternator is associated with Lucas reference LRA00397 for replacement identification. The listed electrical rating is 12V 60A. An alternator maintains battery charge and supplies electrical power while the engine runs. Applications include selected Renault 19 1.2 Petrol variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 60A output: compare the listed rating with the original alternator.
- Single-groove pulley: check belt profile and alignment against the existing unit.
- 3 mounting holes: compare the fixing pattern and unit position.
- M6 B+ terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Renault 19 1.2 Petrol – selected applications 1992–1994 (engine code E7F730).
- Renault Clio 1.2 Petrol – selected applications 1990–1996 (engine code E5F710/E7F708).
- Renault Clio Van 1.2 Petrol – selected applications 1991–1998 (engine code E5F710/E7F700/E7F708).
- Renault Express 1.4 Petrol – selected applications 1991–1997 (engine code E6J734/E6J738/E7J720).
- Renault Extra 1.4 Petrol – selected applications 1994–1998 (engine code E7J724/E7J726/E7J773).
- Renault Rapid 1.4 Petrol – selected applications 1991–1993 (engine code E7J724).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with A0397. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
986037321, 9120144302, 9120144303, 2541117, 2541257, 433096, 433459, 436250, A13N157, A13N203, NA374, LRA00397, LRA01530, LRA1530, LRA397, DRA3086, DRA7321, 35214665, 35215280, 541595, 7700784482, 7700784890, 7700784891, 7701351757, 7701499436, 7702150654, 7707784890
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Alternator?
Charging warning lights, repeated loss of battery charge, dim or fluctuating lights and inconsistent electrical operation can indicate a charging-system problem. Battery condition, wiring and the drive belt can produce similar symptoms; arrange a diagnostic check before replacing the alternator.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying A0397 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will A0397 fit my Renault 19?
Renault 19 1.2 Petrol (1992–1994) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does A0397 replace Lucas LRA00397?
Lucas LRA00397 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for A0397?
The listed details include 12V, 60A output, 1 pulley groove. Compare the complete specifications on this page with the unit being replaced.
Is A0397 new or remanufactured?
Check the current product condition selection for A0397. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering A0397?
Compare 12V compatibility, 60A output, pulley configuration, mounting points and electrical connections with the original alternator.
Does a battery warning light prove the alternator has failed?
No. Battery, belt, wiring and control faults can also affect charging. Use a charging-system test to establish the cause before ordering a replacement.
