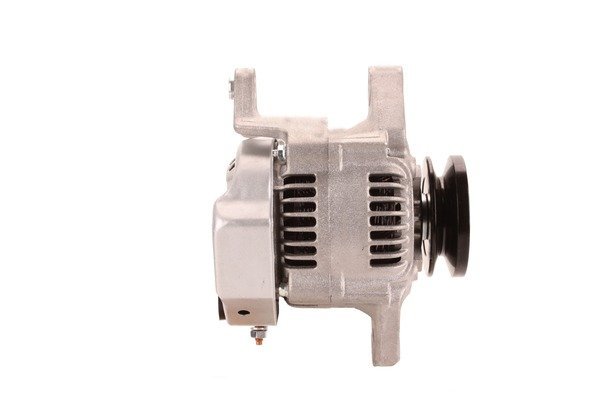

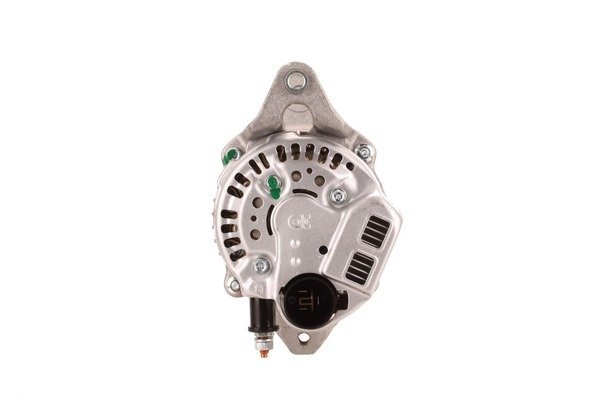

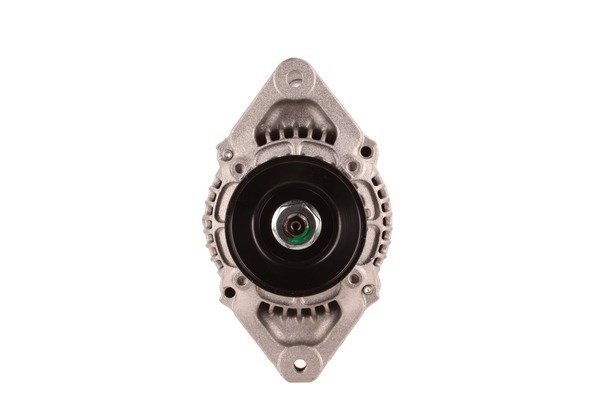

A0549 12V 45A Alternator Fits Suzuki Cultus, Suzuki SA310
Price range: £87.73 through £113.88
Identify a replacement alternator using Sahibs A0549, listed at 12V 45A. Listed applications include selected Suzuki Cultus, Suzuki SA310, Suzuki Samurai, Suzuki SJ413 models. Identification references include Lucas LRA00549, Denso 100211-1410, Mitsubishi Electric A001T03191. Its listed 12V 45A rating provides an electrical matching point for your existing unit. Check the single-groove pulley, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your A0549 replacement alternator online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| AMP | 45 A |
| Volt | 12 V |
| No. of Grooves | 1 qty |
| Pulley Diameter | 43 mm |
| Mounting holes | 3 qty |
| Position | 180° |
| B+ | M6 |
| Insulated Return | No |
| Water cooled | No |
| Vacuum pump | No |
| Start/Stop | No |
| Weight | 3.2 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYA0549 | Dyno Electrics |
| 401810021 | Euro Car Part |
| A6607S | AS-PL |
| UD13893A | AS-PL |
| UD16877A | AS-PL |
| DRA3119 | DELCO |
| 100211-1410 | DENSO |
| 100211-1411 | DENSO |
| 100211-1412 | DENSO |
| 100211-1413 | DENSO |
| 100211-1530 | DENSO |
| 100211-1550 | DENSO |
| 100211-1551 | DENSO |
| 100211-1552 | DENSO |
| 100211-1553 | DENSO |
| 100211-2200 | DENSO |
| 100211-2201 | DENSO |
| 100211-4060 | DENSO |
| 100211-4070 | DENSO |
| 100211-4071 | DENSO |
| 100211-4072 | DENSO |
| 100211-4073 | DENSO |
| 100211-6270 | DENSO |
| 100211-6721 | DENSO |
| 100211-6722 | DENSO |
| 100211-6723 | DENSO |
| 100211-6931 | DENSO |
| 100211-6932 | DENSO |
| 100211-6933 | DENSO |
| 8EL015630-341 | HELLA |
| A001T03191 | MITSUBISHI |
| A003T34782 | MITSUBISHI |
| A007T30571 | MITSUBISHI |
| A1T03191 | MITSUBISHI |
| A3T34782 | MITSUBISHI |
| A7T30571 | MITSUBISHI |
| 31400-6084 | SUZUKI |
| 31400-60B1 | SUZUKI |
| 31400-60B40 | SUZUKI |
| 31400-82110 | SUZUKI |
| 31400-82111 | SUZUKI |
| 31400-82610 | SUZUKI |
| 31400-82611 | SUZUKI |
| 31400-82C20 | SUZUKI |
| 31400-83010 | SUZUKI |
| 31400-83011 | SUZUKI |
| 31400-86010 | SUZUKI |
| 31400-A86010 | SUZUKI |
| 31400-B83010 | SUZUKI |
| 31400-M80030 | SUZUKI |
| ALT0044 | 3EFFE |
| ALTS039 | 3EFFE |
| AC-JBA0188 | ACAUTO |
| 28-1560CT | AINDE |
| CGB-13119 | AINDE |
| ANM35339 | ANDEL |
| L35460 | ATL AUTOTECHNIK |
| ASU100A | AUTOTEAM |
| G101364 | BTS TURBO |
| G105225 | BTS TURBO |
| CAL47100AS | CASCO |
| 9316 | CEVAM |
| 245102452 | DRI |
| 56255 | EAI |
| ALT6477 | ELECTROLOG |
| 28-1560 | ELSTOCK |
| 210039A | ERA |
| 118288 | FARCOM |
| AG0316 | GHIBAUDI |
| AG0316RB | GHIBAUDI |
| 3113557 | HENKEL PARTS |
| 3113560 | HENKEL PARTS |
| 20047100AV | ITAB AUTOMOTIVE |
| ALN0188 | KRAUF |
| 40188RI | KUHNER |
| 445237 | LOGISTIK |
| LRA00549 | LUCAS |
| LRA549 | LUCAS |
| J5118004 | NIPPARTS |
| 9389 | OSSCA |
| 89213636 | POWERMAX |
| 9213636 | POWERMAX |
| IR6942 | PROTECH |
| 185.504.045.050 | PSH |
| 185.504.045.340 | PSH |
| 185.504.045.415 | PSH |
| 20147001BN | REAL |
| 2047100 | SANDO |
| A12DE0370A2 | SIDAT |
| ALT6420A | SIOM |
| SZ8000 | SNRA |
| STX100952R | STARDAX |
| 255ST65 | STARTCAR |
| AL00768 | TMI |
| WG2011565 | WILMINK GROUP |
| ALT30296 | WOODAUTO |
| ALT5021 | WOODAUTO |
| WOOALT30296 | WOODAUTO |
| WOOALT5021 | WOODAUTO |
Alternative Parts
| Alternative Part | Current Description | Alternative Description | Direct Alternative |
|---|---|---|---|
| A2663 | 45A Pulley 1GR/OD57 | 50A Pulley PV4/54 | No |
| A1854 | 45A | 70A | No |
| A1280 | 45A | 60A | Yes |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| SUZUKI | Cultus | 1.0 (993ccm) Petrol | G10 | SA310AA41F/SA310AA41S | 1983 - 1988 | ||
| SUZUKI | SA310 | 1.0 (993ccm) Petrol | G10 | SA310AA41S | 1983 - 1986 | ||
| SUZUKI | Samurai | 1.3 (1298ccm) Petrol | G13BA | SJ413 | 1988 - 2004 | ||
| SUZUKI | Samurai | 1.3 (1298ccm) Petrol | G13BA | SJ413 | 1989 - 1992 | ||
| SUZUKI | Samurai | 1.3 (1298ccm) Petrol | G13BA | SJ413 | 1992 - 2000 | ||
| SUZUKI | Samurai | 1.3 (1324ccm) Petrol | G13A | SJ413 | 1988 - 1992 | ||
| SUZUKI | Samurai | 1.3 (1324ccm) Petrol | G13A | SJ413 | 1988 - 2004 | ||
| SUZUKI | SJ413 | 1.3 (1324ccm) Petrol | G13A | AWD Commercial | SJ4135000/SJ41350V0/SJ4135100 | 1983 - 1988 | |
| SUZUKI | SJ413 | 1.3 (1324ccm) Petrol | G13A | AWD | SJ41350V0 | 1986 - 1990 | |
| SUZUKI | Swift | 1.0 (993ccm) Petrol | G10 | MK I | SA310AA41F/SA310AA41S/SA310AA43F/SA310AA43S | 1984 - 1989 | |
| SUZUKI | Swift | 1.0 (993ccm) Petrol | G10B | MK I | SA310AF41F | 1984 - 1989 | |
| SUZUKI | Swift | 1.3 (1324ccm) Petrol | G13A | MK I | SA413AA51F/SA413AA51S | 1984 - 1989 | |
| SUZUKI | Swift | 1.3 (1324ccm) Petrol | G13A | MK I | SA413AA53F/SA413AA53S | 1984 - 1989 | |
| SUZUKI | Swift | 1.3 (1324ccm) Petrol | G13A | MK I | SA413AA53S | 1986 - 1989 |
Description
A0549 Replacement Alternator
Choose a replacement by comparing the A0549 alternator and its Lucas reference, LRA00549, with your existing unit. The listed electrical rating is 12V 45A. An alternator maintains battery charge and supplies electrical power while the engine runs. Applications include selected Suzuki Cultus 1.0 Petrol variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 45A output: compare the listed rating with the original alternator.
- Single-groove pulley: check belt profile and alignment against the existing unit.
- 3 mounting holes: compare the fixing pattern and unit position.
- M6 B+ terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Suzuki Cultus 1.0 Petrol – selected applications 1983–1988 (engine code G10).
- Suzuki SA310 1.0 Petrol – selected applications 1983–1986 (engine code G10).
- Suzuki Samurai 1.3 Petrol – selected applications 1988–2004 (engine code G13BA).
- Suzuki SJ413 1.3 Petrol – selected applications 1983–1988 (engine code G13A).
- Suzuki Swift 1.0 Petrol – selected applications 1984–1989 (engine code G10).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with A0549. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
100211-1410, 100211-1411, 100211-1412, 100211-1413, 100211-1530, 100211-1550, 100211-1551, 100211-1552, 100211-1553, 100211-2200, 100211-2201, 100211-4060, 100211-4070, 100211-4071, 100211-4072, 100211-4073, 100211-6270, 100211-6721, 100211-6722, 100211-6723, 100211-6931, 100211-6932, 100211-6933, LRA00549, LRA549, A001T03191, A003T34782, A007T30571, A1T03191, A3T34782, A7T30571, DRA3119
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Alternator?
Charging warning lights, repeated loss of battery charge, dim or fluctuating lights and inconsistent electrical operation can indicate a charging-system problem. Battery condition, wiring and the drive belt can produce similar symptoms; arrange a diagnostic check before replacing the alternator.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying A0549 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will A0549 fit my Suzuki Cultus?
Suzuki Cultus 1.0 Petrol (1983–1988) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does A0549 replace Lucas LRA00549?
Lucas LRA00549 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for A0549?
The listed details include 12V, 45A output, 1 pulley groove. Compare the complete specifications on this page with the unit being replaced.
Is A0549 new or remanufactured?
Check the current product condition selection for A0549. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering A0549?
Compare 12V compatibility, 45A output, pulley configuration, mounting points and electrical connections with the original alternator.
Does a battery warning light prove the alternator has failed?
No. Battery, belt, wiring and control faults can also affect charging. Use a charging-system test to establish the cause before ordering a replacement.
