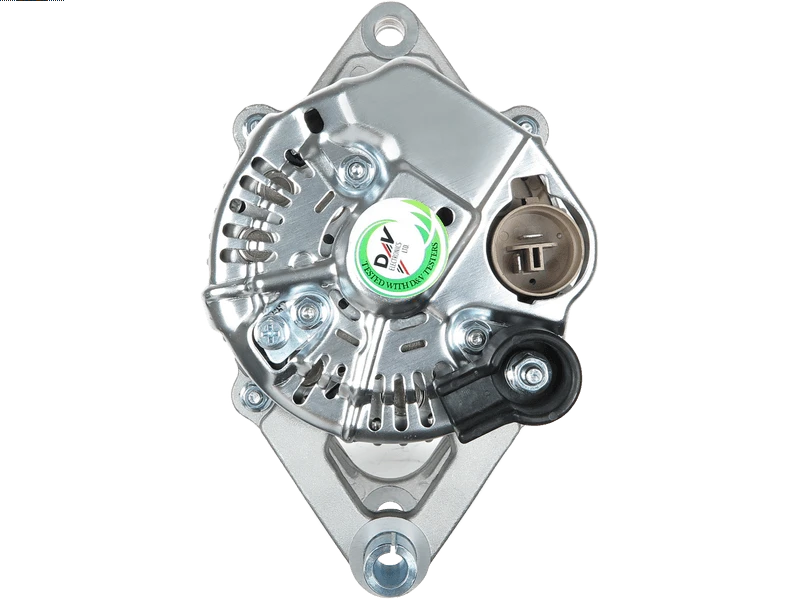

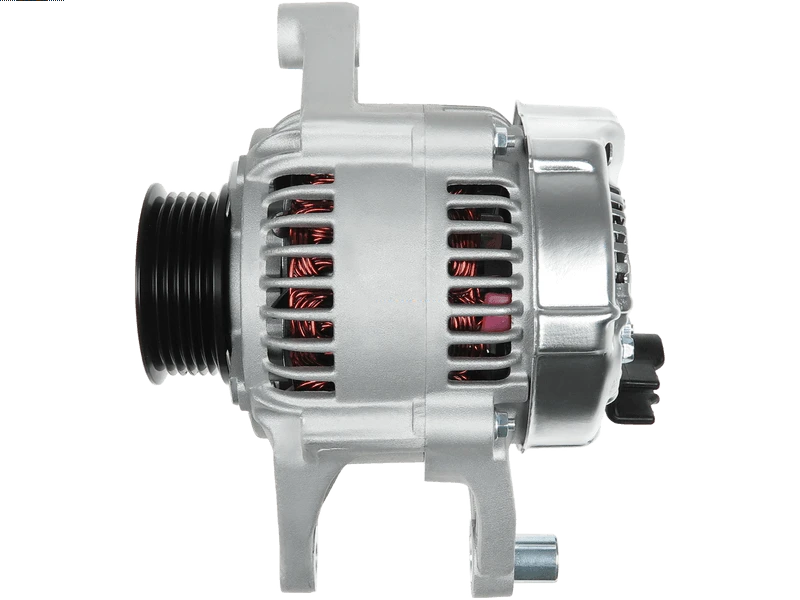

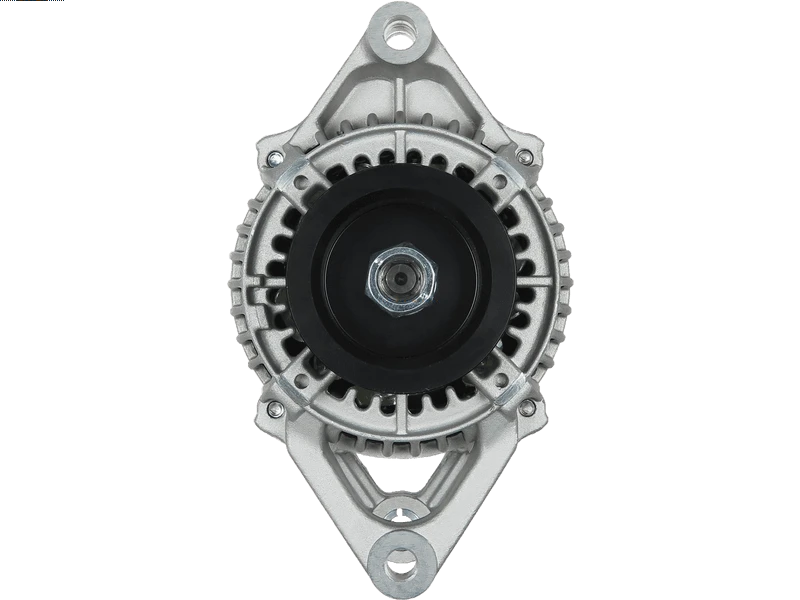

A1151 12V 90A Alternator Fits Chrysler Grand Voyager, Dodge Caravan
Price range: £107.12 through £141.26
Identify a replacement alternator using Sahibs A1151, listed at 12V 90A. Listed applications include selected Chrysler Grand Voyager, Chrysler Voyager, Dodge Caravan, Dodge Grand Caravan models. Identification references include Lucas LRA01151, Bosch 986081280, Denso 121000-3520. Its listed 12V 90A rating provides an electrical matching point for your existing unit. Check the 6-groove pulley, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your A1151 replacement alternator online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| AMP | 90 A |
| Volt | 12 V |
| No. of Grooves | 6 qty |
| Pulley Diameter | 65 mm |
| Insulated Return | No |
| Water cooled | No |
| Vacuum pump | No |
| Start/Stop | No |
| Weight | 5.1 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYA1151 | Dyno Electrics |
| A6097 | AS-PL |
| 986081280 | BOSCH |
| 112583 | CARGO |
| F032112583 | CARGO |
| 38522261 | CHRYSLER |
| 38522261F | CHRYSLER |
| 4686098 | CHRYSLER |
| 4686099 | CHRYSLER |
| 4727220 | CHRYSLER |
| 4727221 | CHRYSLER |
| 4727325 | CHRYSLER |
| DRA0279 | DELCO |
| 121000-3520 | DENSO |
| 121000-3521 | DENSO |
| 121000-3523 | DENSO |
| 121000-3660 | DENSO |
| ALTL572 | 3EFFE |
| ANM32499X | ANDEL |
| AEB1706 | AUTOELECTRO |
| CAL40213AS | CASCO |
| 57052 | EAI |
| ALT6603 | ELECTROLOG |
| 27-3998 | ELSTOCK |
| 9090667 | FRIESEN |
| JA1706 | HC PARTS |
| JA1706IR | HC PARTS |
| 401706 | KUHNER |
| 11.1706 | LAUBER |
| 11.1706M | LAUBER |
| 447045 | LOGISTIK |
| LRA01151 | LUCAS |
| LRA1151 | LUCAS |
| 89213158 | POWERMAX |
| 9213158 | POWERMAX |
| 20132312BN | REAL |
| 2040213 | SANDO |
| ALT422130 | SIOM |
| STX100194 | STARDAX |
| STX100194R | STARDAX |
| STX100801 | STARDAX |
| STX100801R | STARDAX |
| 1-2073-01ND | WAI / TRANSPO |
| 13593N | WAI / TRANSPO |
| ALT5204 | WOODAUTO |
Alternative Parts
| Alternative Part | Current Description | Alternative Description | Direct Alternative |
|---|---|---|---|
| A1147 | 90A | 120A | Yes |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| CHRYSLER | Grand Voyager | 2.4 (2429ccm) Petrol | EDZ | GSHY53/GSHZ53 | 1995 - 2001 | ||
| CHRYSLER | Grand Voyager | 2.4 (2429ccm) Petrol | EDZ | AWD | GSHC53/GSHU53 | 1997 - 2000 | |
| CHRYSLER | Voyager | 2.4 (2429ccm) Petrol | EDZ | GSHY52 | 1995 - 2001 | ||
| CHRYSLER | Voyager | 3.0 (2972ccm) Petrol | EFA | NSHY52 | 1995 - 2001 | ||
| CHRYSLER | Voyager | 3.8 (3778ccm) Petrol | EGH | GSHY52 | 1997 - 2000 | ||
| DODGE | Caravan | 3.0 (2972ccm) Petrol | EFA | NS | 1995 - 2000 | ||
| DODGE | Grand Caravan | 3.8 (3778ccm) Petrol | EGH | NS | 1995 - 2000 | ||
| DODGE | Grand Caravan | 3.8 (3778ccm) Petrol | EGH | AWD | NS | 1995 - 2000 |
Description
A1151 Replacement Alternator
Choose a replacement by comparing the A1151 alternator and its Lucas reference, LRA01151, with your existing unit. The listed electrical rating is 12V 90A. An alternator maintains battery charge and supplies electrical power while the engine runs. Applications include selected Chrysler Grand Voyager 2.4 Petrol variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 90A output: compare the listed rating with the original alternator.
- 6-groove pulley: check belt profile and alignment against the existing unit.
- Lucas LRA01151 reference: a starting point for identifying the replacement.
Compatible Vehicles and Applications
- Chrysler Grand Voyager 2.4 Petrol – selected applications 1995–2001 (engine code EDZ).
- Chrysler Voyager 2.4 Petrol – selected applications 1995–2001 (engine code EDZ).
- Dodge Caravan 3.0 Petrol – selected applications 1995–2000 (engine code EFA).
- Dodge Grand Caravan 3.8 Petrol – selected applications 1995–2000 (engine code EGH).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with A1151. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
986081280, 121000-3520, 121000-3521, 121000-3523, 121000-3660, LRA01151, LRA1151, DRA0279, 38522261, 38522261F, 4686098, 4686099, 4727220, 4727221, 4727325
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Alternator?
Charging warning lights, repeated loss of battery charge, dim or fluctuating lights and inconsistent electrical operation can indicate a charging-system problem. Battery condition, wiring and the drive belt can produce similar symptoms; arrange a diagnostic check before replacing the alternator.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying A1151 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will A1151 fit my Chrysler Grand Voyager?
Chrysler Grand Voyager 2.4 Petrol (1995–2001) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does A1151 replace Lucas LRA01151?
Lucas LRA01151 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for A1151?
The listed details include 12V, 90A output, 6 pulley grooves. Compare the complete specifications on this page with the unit being replaced.
Is A1151 new or remanufactured?
Check the current product condition selection for A1151. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering A1151?
Compare 12V compatibility, 90A output, pulley configuration, mounting points and electrical connections with the original alternator.
Does a battery warning light prove the alternator has failed?
No. Battery, belt, wiring and control faults can also affect charging. Use a charging-system test to establish the cause before ordering a replacement.
