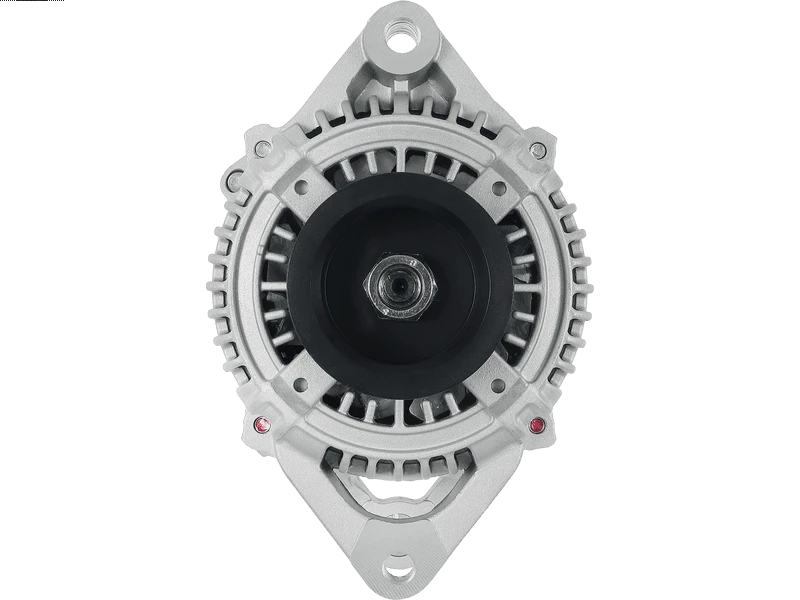

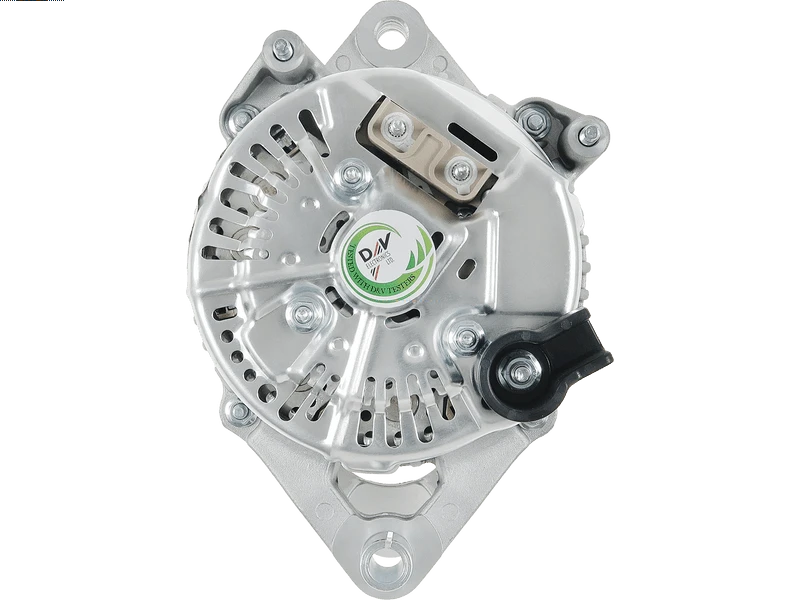

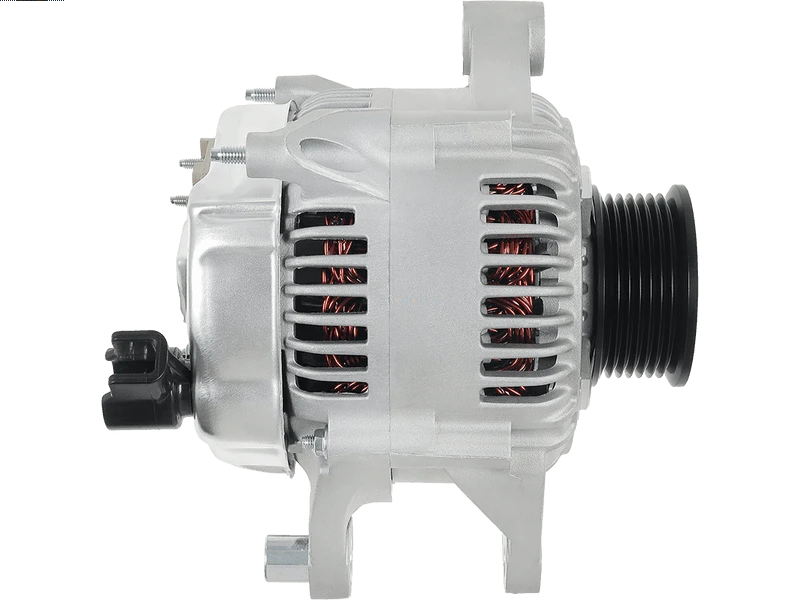

A1157 12V 120A Alternator Fits Chrysler Grand Voyager
Price range: £120.14 through £155.95
Sahibs A1157 is a replacement alternator with a listed 12V 120A rating. Listed applications include selected Chrysler Grand Voyager, Chrysler Voyager, Jeep Grand Cherokee models. Identification references include Lucas LRA01157, Denso 121000-4080, Chrysler 53008651. Its listed 12V 120A rating provides an electrical matching point for your existing unit. Check the 7-groove pulley, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your A1157 replacement alternator online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| AMP | 120 A |
| Volt | 12 V |
| No. of Grooves | 7 qty |
| Pulley Diameter | 65 mm |
| Mounting holes | 3 qty |
| B+ | M6 |
| Insulated Return | No |
| Water cooled | No |
| Vacuum pump | No |
| Start/Stop | No |
| Weight | 6.33 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYA1157 | Dyno Electrics |
| UD90226A | AS-PL |
| 53008651 | CHRYSLER |
| 56027913 | CHRYSLER |
| 56041394AA | CHRYSLER |
| 121000-4080 | DENSO |
| 121000-4130 | DENSO |
| 121000-4170 | DENSO |
| 121000-4171 | DENSO |
| 121000-4300 | DENSO |
| 121000-4301 | DENSO |
| G105987 | BTS TURBO |
| 5340031362 | DRI |
| 27-4742 | ELSTOCK |
| 12090158 | EUROTEC |
| 119163 | FARCOM |
| AG0325 | GHIBAUDI |
| AG0325RB | GHIBAUDI |
| ALN0961 | KRAUF |
| LRA01157 | LUCAS |
| LRA1157 | LUCAS |
| 835.506.120.050 | PSH |
| AL00266 | TMI |
| 13453N | WAI / TRANSPO |
| 90-29-6051 | WILSON |
| ALT30233 | WOODAUTO |
| WOOALT30233 | WOODAUTO |
Alternative Parts
| Alternative Part | Current Description | Alternative Description | Direct Alternative |
|---|---|---|---|
| A1161 | M4 F+/F- terminals | Plug F+/F- terminals | No |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| CHRYSLER | Grand Voyager | 3.3 (3301ccm) Petrol | EGA | AWD | ESDH53/ESDP53 | 1990 - 1994 | |
| CHRYSLER | Grand Voyager | 3.3 (3301ccm) Petrol | EGA | AWD | ESDH53/ESDP53 | 1990 - 1995 | |
| CHRYSLER | Voyager | 3.3 (3301ccm) Petrol | EGA | AWD | ESDH52/ESDP52 | 1990 - 1994 | |
| CHRYSLER | Voyager | 3.3 (3301ccm) Petrol | EGA | AWD | ESDH52/ESDP52 | 1994 - 1995 | |
| JEEP | Grand Cherokee | 5.2 (5210ccm) Petrol | ELF | ZG/ZJ | 1992 - 1998 | ||
| JEEP | Grand Cherokee | 5.2 (5210ccm) Petrol | ELF | ZG/ZJ | 1995 - 1998 | ||
| JEEP | Grand Cherokee | 5.2 (5210ccm) Petrol | ELF | ZG/ZJ | 1996 - 1998 |
Description
A1157 Replacement Alternator
For a A1157 alternator enquiry, use Lucas reference LRA01157 alongside the vehicle and original unit details. The listed electrical rating is 12V 120A. An alternator maintains battery charge and supplies electrical power while the engine runs. Applications include selected Chrysler Grand Voyager 3.3 Petrol variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 120A output: compare the listed rating with the original alternator.
- 7-groove pulley: check belt profile and alignment against the existing unit.
- 3 mounting holes: compare the fixing pattern and unit position.
- M6 B+ terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Chrysler Grand Voyager 3.3 Petrol – selected applications 1990–1994 (engine code EGA).
- Chrysler Voyager 3.3 Petrol – selected applications 1990–1994 (engine code EGA).
- Jeep Grand Cherokee 5.2 Petrol – selected applications 1992–1998 (engine code ELF).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with A1157. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
121000-4080, 121000-4130, 121000-4170, 121000-4171, 121000-4300, 121000-4301, LRA01157, LRA1157, 53008651, 56027913, 56041394AA
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Alternator?
Charging warning lights, repeated loss of battery charge, dim or fluctuating lights and inconsistent electrical operation can indicate a charging-system problem. Battery condition, wiring and the drive belt can produce similar symptoms; arrange a diagnostic check before replacing the alternator.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying A1157 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will A1157 fit my Chrysler Grand Voyager?
Chrysler Grand Voyager 3.3 Petrol (1990–1994) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does A1157 replace Lucas LRA01157?
Lucas LRA01157 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for A1157?
The listed details include 12V, 120A output, 7 pulley grooves. Compare the complete specifications on this page with the unit being replaced.
Is A1157 new or remanufactured?
Check the current product condition selection for A1157. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering A1157?
Compare 12V compatibility, 120A output, pulley configuration, mounting points and electrical connections with the original alternator.
Does a battery warning light prove the alternator has failed?
No. Battery, belt, wiring and control faults can also affect charging. Use a charging-system test to establish the cause before ordering a replacement.
