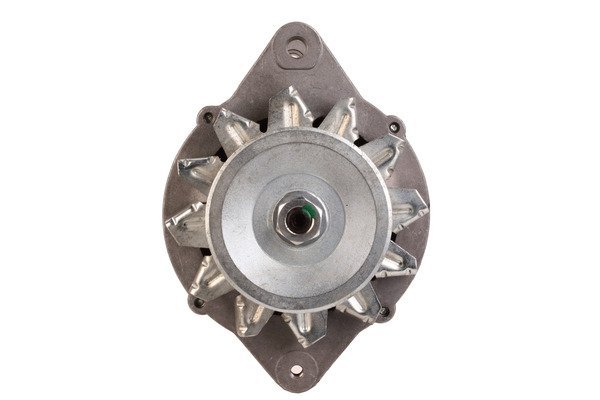

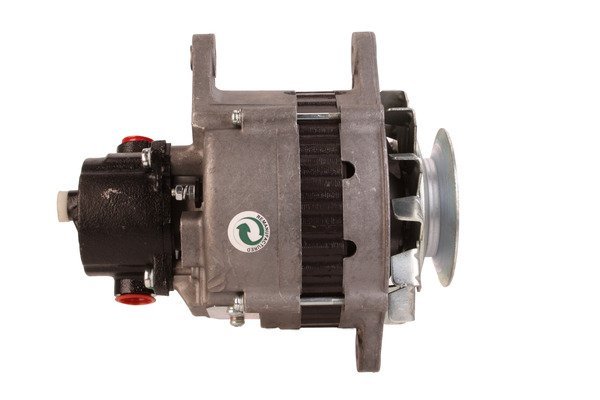

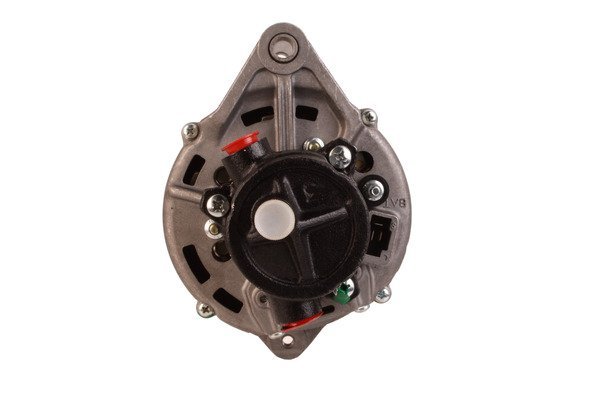

A1256 12V 60A Alternator Fits Nissan Urvan, Nissan Vanette
Price range: £257.83 through £412.53
The A1256 12V 60A Alternator is a replacement charging unit from Sahibs Auto Electrics. Listed applications include selected Nissan Urvan, Nissan Vanette models. Identification references include Lucas LRA01256, Hitachi LR150423, Delco Remy DRA3214. Its listed 12V 60A rating provides an electrical matching point for your existing unit. Check the single-groove pulley, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your A1256 replacement alternator online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| AMP | 60 A |
| Volt | 12 V |
| No. of Grooves | 1 qty |
| Pulley Diameter | 73 mm |
| Mounting holes | 3 qty |
| Position | 0° |
| B+ | M5 |
| Insulated Return | No |
| Water cooled | No |
| Vacuum pump | No |
| Start/Stop | No |
| Weight | 7.1 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYA1256 | Dyno Electrics |
| 110705 | HC-Cargo |
| 165812060 | PSH |
| 23100G4100 | Nissan |
| 23100W2501 | Nissan |
| 90251017 | Wilson |
| 90251018 | Wilson |
| ADA369 | ATK |
| ADA370 | ATK |
| DRA3214 | Delco Remy |
| JA669IR | HC-Parts |
| LR150423 | Hitachi |
| LR160144 | Hitachi |
| LR16097B | Hitachi |
| LR16097C | Hitachi |
| LRA01256 | Lucas |
| LRA1256 | Lucas |
| TRA355 | TWA |
Alternative Parts
| Alternative Part | Current Description | Alternative Description | Direct Alternative |
|---|---|---|---|
| A1220 | Large vacuum pump, pulley | No |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| NISSAN | Urvan | 2.0 (1952ccm) Petrol | Z20 | E23 | 1985 - 1988 | ||
| NISSAN | Urvan | 2.0 (1952ccm) Petrol | Z20 | E23 | 1985 - 1987 | ||
| NISSAN | Urvan | 2.3 (2289ccm) Diesel | SD23 | E23 | 1985 - 1987 | ||
| NISSAN | Vanette | 2.0 (1952ccm) Diesel | LD20 | C120 | 1982 - 1988 |
Description
A1256 Replacement Alternator
The Sahibs A1256 alternator is associated with Lucas reference LRA01256 for replacement identification. The listed electrical rating is 12V 60A. An alternator maintains battery charge and supplies electrical power while the engine runs. Applications include selected Nissan Urvan 2.0 Petrol variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 60A output: compare the listed rating with the original alternator.
- Single-groove pulley: check belt profile and alignment against the existing unit.
- 3 mounting holes: compare the fixing pattern and unit position.
- M5 B+ terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Nissan Urvan 2.0 Petrol – selected applications 1985–1988 (engine code Z20).
- Nissan Vanette 2.0 Diesel – selected applications 1982–1988 (engine code LD20).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with A1256. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
LRA01256, LRA1256, LR150423, LR160144, LR16097B, LR16097C, DRA3214
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Alternator?
Charging warning lights, repeated loss of battery charge, dim or fluctuating lights and inconsistent electrical operation can indicate a charging-system problem. Battery condition, wiring and the drive belt can produce similar symptoms; arrange a diagnostic check before replacing the alternator.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying A1256 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will A1256 fit my Nissan Urvan?
Nissan Urvan 2.0 Petrol (1985–1988) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does A1256 replace Lucas LRA01256?
Lucas LRA01256 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for A1256?
The listed details include 12V, 60A output, 1 pulley groove. Compare the complete specifications on this page with the unit being replaced.
Is A1256 new or remanufactured?
Check the current product condition selection for A1256. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering A1256?
Compare 12V compatibility, 60A output, pulley configuration, mounting points and electrical connections with the original alternator.
Does a battery warning light prove the alternator has failed?
No. Battery, belt, wiring and control faults can also affect charging. Use a charging-system test to establish the cause before ordering a replacement.
