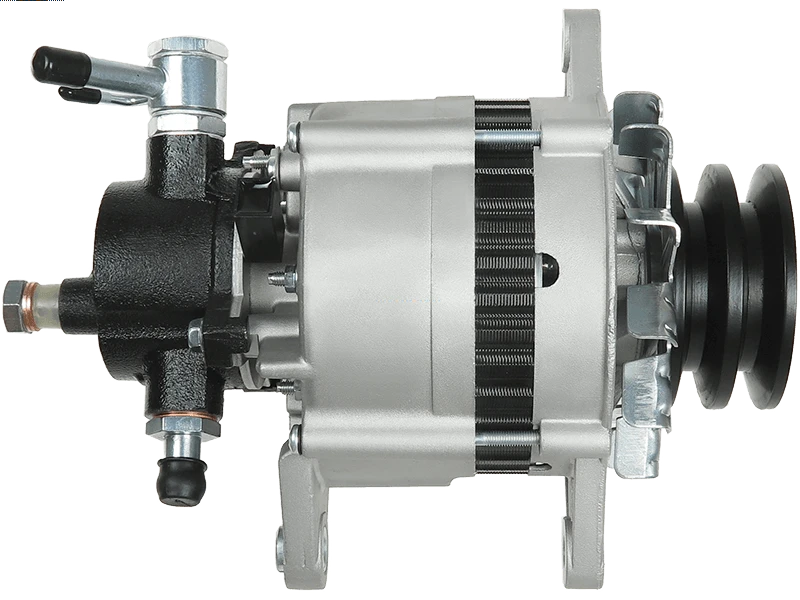

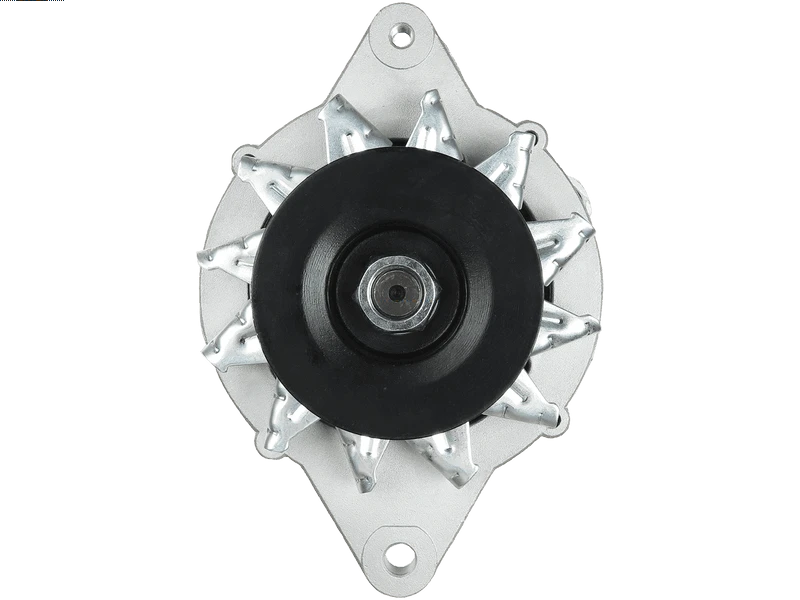

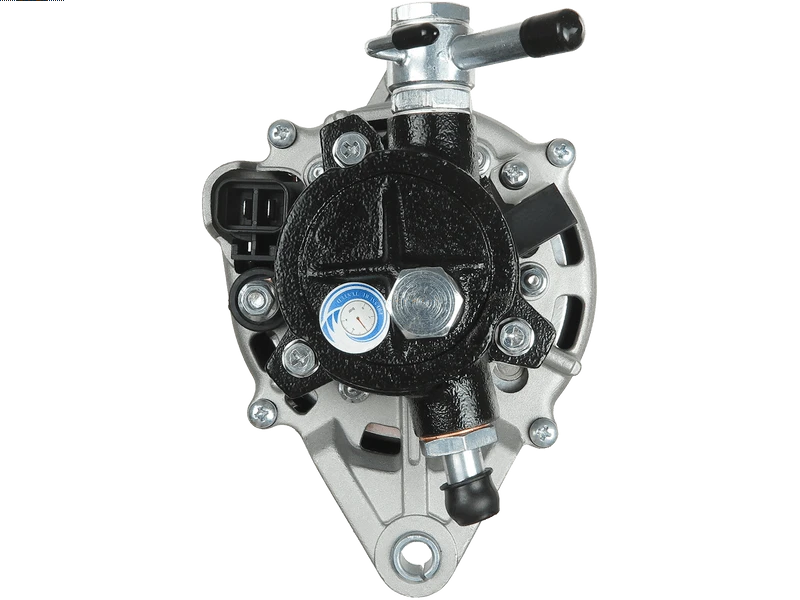

A1295 12V 50A Alternator Fits Nissan Camiones, Nissan Terrano
Price range: £111.09 through £143.26
Sahibs A1295 is a replacement alternator with a listed 12V 50A rating. Listed applications include selected Nissan Camiones, Nissan Pick Up (King Cab), Nissan Terrano, Lti TX-I models. Identification references include Lucas LRA01295, Bosch 986038930, Valeo 437685. Its listed 12V 50A rating provides an electrical matching point for your existing unit. Check the 2-groove pulley, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your A1295 replacement alternator online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| AMP | 50 A |
| Volt | 12 V |
| No. of Grooves | 2 qty |
| Pulley Diameter | 58 mm |
| Mounting holes | 3 qty |
| Position | 0° |
| B+ | M6 |
| Insulated Return | No |
| Water cooled | No |
| Vacuum pump | Yes |
| Start/Stop | No |
| Weight | 6.5 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYA1295 | Dyno Electrics |
| 401700781 | Euro Car Part |
| A2012 | AS-PL |
| 986038930 | BOSCH |
| 110700 | CARGO |
| F032110700 | CARGO |
| DRA3208 | DELCO |
| DRA3208N | DELCO |
| 8EL726375-001 | HELLA |
| LR140422 | HITACHI |
| LR150-428 | HITACHI |
| LR150-428C | HITACHI |
| LR150-428E | HITACHI |
| LR150-428S | HITACHI |
| LR150-428T | HITACHI |
| LR150-443S | HITACHI |
| LR150-443T | HITACHI |
| LR150428F | HITACHI |
| LR150443 | HITACHI |
| LR170407B | HITACHI |
| 23100-43G04 | NISSAN |
| 23100-43G06 | NISSAN |
| 23100-43G08 | NISSAN |
| 23100-54G01 | NISSAN |
| 23100-92G01 | NISSAN |
| 231000F000 | NISSAN |
| 2310043G0A | NISSAN |
| 2310044G00 | NISSAN |
| 2310044G02 | NISSAN |
| B310M-43G06EX | NISSAN |
| 20110256 | PRESTOLITE |
| 20110341 | PRESTOLITE |
| 20130132 | PRESTOLITE |
| 437685 | VALEO |
| 437777 | VALEO |
| ALTL044 | 3EFFE |
| ALTL044NE | 3EFFE |
| ALTS903 | 3EFFE |
| PRAL044 | 3EFFE |
| CGB-18930 | AINDE |
| CGB-81570 | AINDE |
| ANM35428X | ANDEL |
| 002-D392 | ASHIKA |
| AEA3242 | AUTOELECTRO |
| CAL20103AS | CASCO |
| 9092 | CEVAM |
| 56230 | EAI |
| ALT3088 | ELECTROLOG |
| 28-1570 | ELSTOCK |
| 210104 | ERA |
| 210115 | ERA |
| 210135 | ERA |
| 210342 | ERA |
| GA90511B-A | GPARTS |
| JA660IR | HC PARTS |
| ALD392 | JAPANPARTS |
| 2D392 | JAPKO |
| ALH0660 | KRAUF |
| 401117RI | KUHNER |
| 40185RI | KUHNER |
| 40660RI | KUHNER |
| 40780RI | KUHNER |
| 11.066 | LAUBER |
| 445709 | LOGISTIK |
| LRA01295 | LUCAS |
| LRA1295 | LUCAS |
| 89212853 | POWERMAX |
| 9212853 | POWERMAX |
| 20145301BN | REAL |
| 311924 | RHIAG |
| 2020103 | SANDO |
| ALT122310 | SIOM |
| ALT221120 | SIOM |
| ALT221140 | SIOM |
| ALT5090 | SIOM |
| SA336 | SOVEREIGN |
| SA443 | SOVEREIGN |
| SA565 | SOVEREIGN |
| SA995 | SOVEREIGN |
| STX101144 | STARDAX |
| STX101160 | STARDAX |
| STX101224 | STARDAX |
| 22295N | WAI / TRANSPO |
| ALT32061 | WOODAUTO |
Alternative Parts
| Alternative Part | Current Description | Alternative Description | Direct Alternative |
|---|---|---|---|
| A1350 | 50A | 70A | Yes |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| LTI | TX-I | 2.7 (2664ccm) Diesel | TD27TL | TX1R | 1996 - 2002 | ||
| NISSAN | Camiones | 2.5 (2494ccm) Diesel | TD25 | D21 | 1996 - 2008 | ||
| NISSAN | Pick Up (King Cab) | 2.5 (2494ccm) Diesel | SD25/TD25 | D21 | 1985 - 1998 | ||
| NISSAN | Pick Up (King Cab) | 2.5 (2494ccm) Diesel | SD25 | D21 | 1987 - 1988 | ||
| NISSAN | Pick Up (King Cab) | 2.5 (2494ccm) Diesel | SD25/TD25 | D21 | 1987 - 1991 | ||
| NISSAN | Pick Up (King Cab) | 2.5 (2494ccm) Diesel | TD25 | D21 | 1987 - 1996 | ||
| NISSAN | Terrano | 2.7 (2664ccm) Diesel | TD27T | MK I | WD21 | 1989 - 1993 |
Description
A1295 Replacement Alternator
The A1295 alternator is a replacement unit identified by Lucas reference LRA01295. The listed electrical rating is 12V 50A. An alternator maintains battery charge and supplies electrical power while the engine runs. Applications include selected Nissan Camiones 2.5 Diesel variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 50A output: compare the listed rating with the original alternator.
- 2-groove pulley: check belt profile and alignment against the existing unit.
- 3 mounting holes: compare the fixing pattern and unit position.
- M6 B+ terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Nissan Camiones 2.5 Diesel – selected applications 1996–2008 (engine code TD25).
- Nissan Pick Up (King Cab) 2.5 Diesel – selected applications 1985–1998 (engine code SD25/TD25).
- Nissan Terrano 2.7 Diesel – selected applications 1989–1993 (engine code TD27T).
- Lti TX-I 2.7 Diesel – selected applications 1996–2002 (engine code TD27TL).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with A1295. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
986038930, 437685, 437777, LRA01295, LRA1295, LR140422, LR150-428, LR150-428C, LR150-428E, LR150-428S, LR150-428T, LR150-443S, LR150-443T, LR150428F, LR150443, LR170407B, DRA3208, DRA3208N, 20110256, 20110341, 20130132
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Alternator?
Charging warning lights, repeated loss of battery charge, dim or fluctuating lights and inconsistent electrical operation can indicate a charging-system problem. Battery condition, wiring and the drive belt can produce similar symptoms; arrange a diagnostic check before replacing the alternator.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying A1295 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will A1295 fit my Nissan Camiones?
Nissan Camiones 2.5 Diesel (1996–2008) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does A1295 replace Lucas LRA01295?
Lucas LRA01295 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for A1295?
The listed details include 12V, 50A output, 2 pulley grooves. Compare the complete specifications on this page with the unit being replaced.
Is A1295 new or remanufactured?
Check the current product condition selection for A1295. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering A1295?
Compare 12V compatibility, 50A output, pulley configuration, mounting points and electrical connections with the original alternator.
Does a battery warning light prove the alternator has failed?
No. Battery, belt, wiring and control faults can also affect charging. Use a charging-system test to establish the cause before ordering a replacement.
