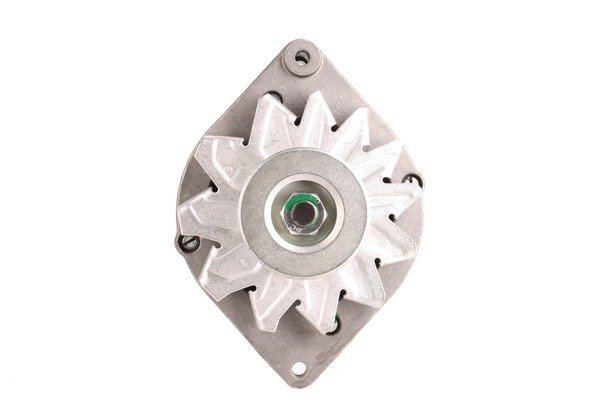

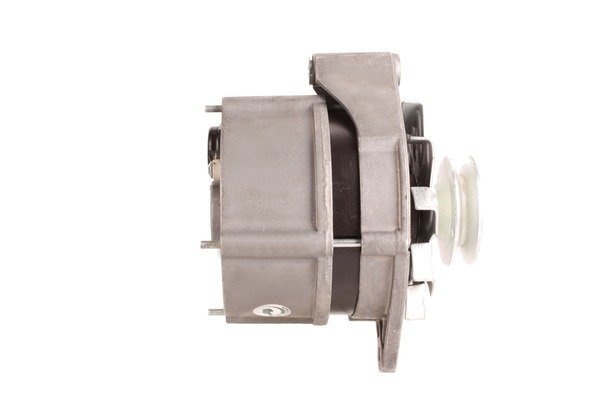

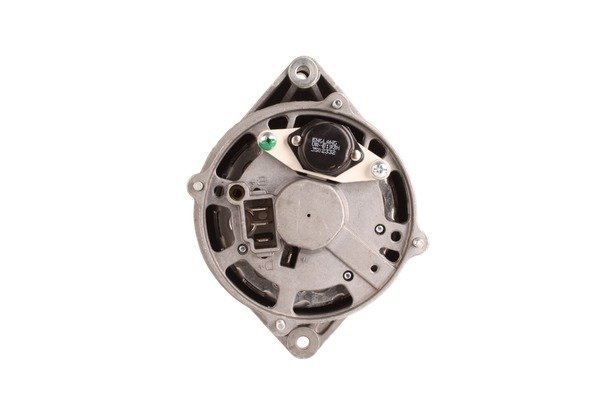

A1300 12V 45A Alternator Fits Fiat Duna, Fiat Fiorino, Fiat Premio
Price range: £115.27 through £146.30
The A1300 12V 45A Alternator is a replacement charging unit from Sahibs Auto Electrics. Listed applications include selected Fiat Duna, Fiat Fiorino, Fiat Fiorino Pick Up, Fiat Premio models. Identification references include Lucas LRA01300, Bosch 9120080056, Delco Remy DRA6930. Its listed 12V 45A rating provides an electrical matching point for your existing unit. Check the single-groove pulley, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your A1300 replacement alternator online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| AMP | 45 A |
| Volt | 12 V |
| No. of Grooves | 1 qty |
| Pulley Diameter | 68 mm |
| Mounting holes | 2 qty |
| Position | 0° |
| B+ | M8 |
| Insulated Return | No |
| Water cooled | No |
| Vacuum pump | No |
| Start/Stop | No |
| Weight | 4.4 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYA1300 | Dyno Electrics |
| 986036930 | Bosch Exchange |
| 11201839 | Mahle |
| 11201942 | Mahle |
| 46207935 | Fiat Group |
| 46231676 | Fiat Group |
| 505045045 | PSH |
| 72735084 | Mahle |
| 74417750 | Fiat Group |
| 7541775 | Fiat Group |
| 75417750 | Fiat Group |
| 7581975 | Fiat Group |
| 7581995 | Fiat Group |
| 7669850 | Fiat Group |
| 76698500 | Fiat Group |
| 9120080056 | Bosch |
| 9120080089 | Bosch |
| 9120080120 | Bosch |
| 9120080139 | Bosch |
| 9120080173 | Bosch |
| AAK3103 | Mahle |
| AAK3135 | Mahle |
| CA909IR | HC-Parts |
| DRA6930 | Delco Remy |
| IA0839 | Mahle |
| LETIA0839 | Wood Auto |
| LRA01300 | Lucas |
| LRA1300 | Lucas |
| MAHMG85 | Wood Auto |
| Mar-61 | Magneti Marelli |
| MG85 | Mahle |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| FIAT | Duna | 1.1 (1116ccm) Petrol | 146A6000 | 146A7 | 1988 - 1990 | ||
| FIAT | Duna | 1.1 (1116ccm) Petrol | 146A6000 | 146A7 | 1988 - 1991 | ||
| FIAT | Duna | 1.1 (1116ccm) Petrol | 146A4048 | 146SEVEL | 1991 - 1996 | ||
| FIAT | Duna | 1.3 (1301ccm) Petrol | 146A5000 | 146AW | 1987 - 1990 | ||
| FIAT | Duna | 1.3 (1301ccm) Petrol | 146A5000 | Weekend | 146AW | 1987 - 1991 | |
| FIAT | Fiorino | 1.1 (1116ccm) Petrol | 146A9000 | 147 | 1986 - 1988 | ||
| FIAT | Fiorino | 1.1 (1116ccm) Petrol | 146A9000 | 146C4 | 1988 - 1993 | ||
| FIAT | Fiorino | 1.3 (1301ccm) Petrol | 146A5000 | 146AW | 1988 - 1993 | ||
| FIAT | Fiorino Pick Up | 1.0 (1049ccm) Petrol | 127A0000 | 146AF | 1987 - 1988 | ||
| FIAT | Fiorino Pick Up | 1.3 (1301ccm) Petrol | 146A5000 | 146AW | 1988 - 1994 | ||
| FIAT | Premio | 1.3 (1297ccm) Petrol | 127A2011 | 146AM01 | 1985 - 1992 | ||
| INNOCENTI | Elba | 1.3 (1301ccm) Petrol | 146A5000 | Panorama | 146CW | 1991 - 1992 |
Description
A1300 Replacement Alternator
The A1300 alternator is a replacement unit identified by Lucas reference LRA01300. The listed electrical rating is 12V 45A. An alternator maintains battery charge and supplies electrical power while the engine runs. Applications include selected Fiat Duna 1.1 Petrol variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 45A output: compare the listed rating with the original alternator.
- Single-groove pulley: check belt profile and alignment against the existing unit.
- 2 mounting holes: compare the fixing pattern and unit position.
- M8 B+ terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Fiat Duna 1.1 Petrol – selected applications 1988–1990 (engine code 146A6000).
- Fiat Fiorino 1.1 Petrol – selected applications 1986–1988 (engine code 146A9000).
- Fiat Fiorino Pick Up 1.0 Petrol – selected applications 1987–1988 (engine code 127A0000).
- Fiat Premio 1.3 Petrol – selected applications 1985–1992 (engine code 127A2011).
- Innocenti Elba 1.3 Petrol – selected applications 1991–1992 (engine code 146A5000).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with A1300. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
986036930, 9120080056, 9120080089, 9120080120, 9120080139, 9120080173, LRA01300, LRA1300, DRA6930, 11201839, 11201942, 72735084, AAK3103, AAK3135, IA0839, MG85
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Alternator?
Charging warning lights, repeated loss of battery charge, dim or fluctuating lights and inconsistent electrical operation can indicate a charging-system problem. Battery condition, wiring and the drive belt can produce similar symptoms; arrange a diagnostic check before replacing the alternator.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying A1300 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will A1300 fit my Fiat Duna?
Fiat Duna 1.1 Petrol (1988–1990) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does A1300 replace Lucas LRA01300?
Lucas LRA01300 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for A1300?
The listed details include 12V, 45A output, 1 pulley groove. Compare the complete specifications on this page with the unit being replaced.
Is A1300 new or remanufactured?
Check the current product condition selection for A1300. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering A1300?
Compare 12V compatibility, 45A output, pulley configuration, mounting points and electrical connections with the original alternator.
Does a battery warning light prove the alternator has failed?
No. Battery, belt, wiring and control faults can also affect charging. Use a charging-system test to establish the cause before ordering a replacement.
