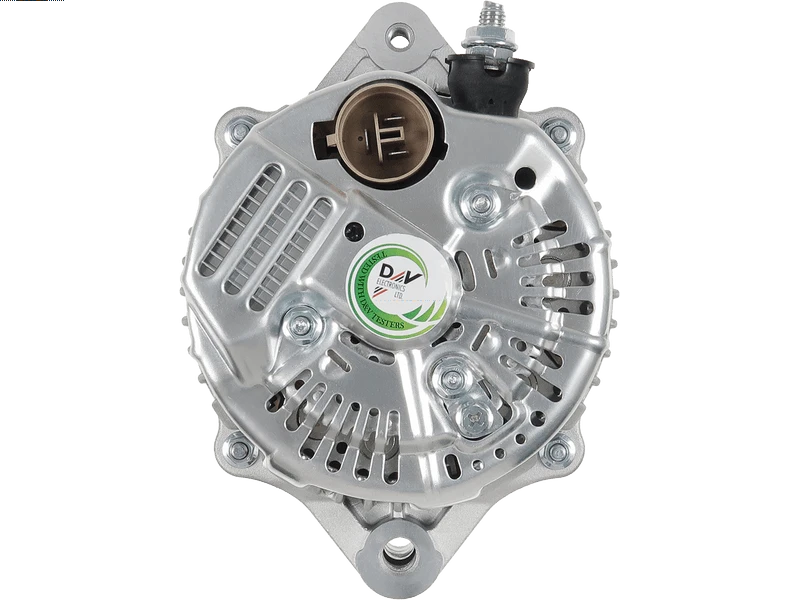

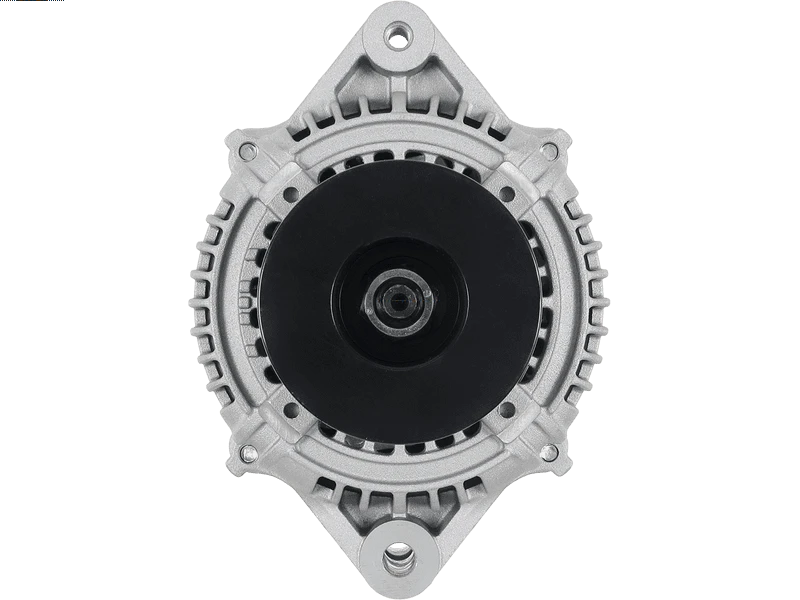

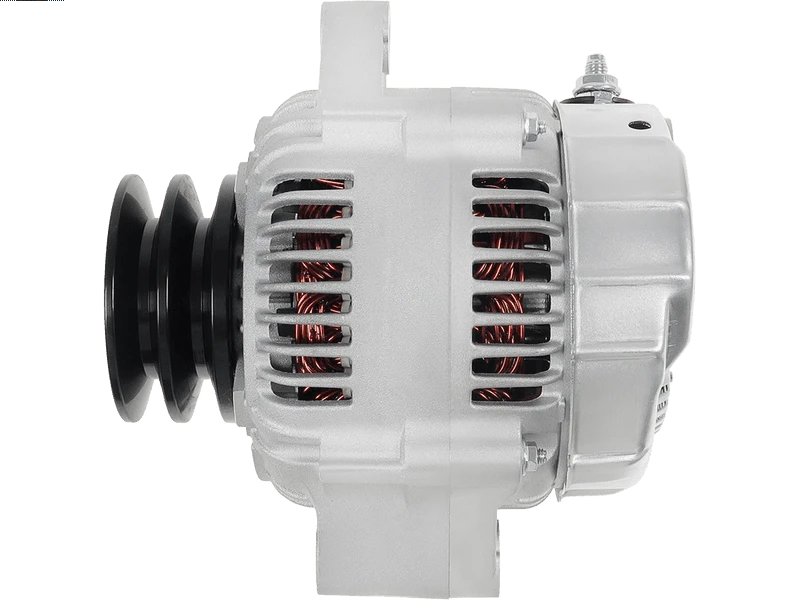

A1308 12V 120A Alternator Fits John Deere 4455, John Deere 7700
Price range: £168.00 through £177.79
Sahibs A1308 is a replacement alternator with a listed 12V 120A rating. Listed applications include selected John Deere 4455, John Deere 7700, John Deere 7800 models. Identification references include Lucas LRA01308, Denso 100211-6030. Its listed 12V 120A rating provides an electrical matching point for your existing unit. Check the 2-groove pulley, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your A1308 replacement alternator online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| AMP | 120 A |
| Volt | 12 V |
| No. of Grooves | 2 qty |
| Pulley Diameter | 53 mm |
| Mounting holes | 2 qty |
| Position | 180° |
| B+ | M8 |
| Insulated Return | No |
| Water cooled | No |
| Vacuum pump | No |
| Start/Stop | No |
| Weight | 5.97 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYA1308 | Dyno Electrics |
| UD90181A | AS-PL |
| 111215 | CARGO |
| F032111215 | CARGO |
| 100211-6030 | DENSO |
| 100211-6031 | DENSO |
| 100211-6040 | DENSO |
| 100211-6050 | DENSO |
| 100211-6051 | DENSO |
| 100211-6491 | DENSO |
| 100211-6492 | DENSO |
| RE36246 | JOHN DEERE |
| RE37201 | JOHN DEERE |
| RE42123 | JOHN DEERE |
| RE44140 | JOHN DEERE |
| SE501371 | JOHN DEERE |
| TY6684 | JOHN DEERE |
| ALT0236 | 3EFFE |
| ALTL428 | 3EFFE |
| 28-1626CT | AINDE |
| 10441731 | ALANKO |
| ANM97956 | ANDEL |
| L85110 | ATL AUTOTECHNIK |
| ADN208A | AUTOTEAM |
| G101382 | BTS TURBO |
| BREF032111215 | CARWOOD GROUP |
| CAL40208AS | CASCO |
| CAL40208GS | CASCO |
| 2324 | CEVAM |
| CAR-811514 | COMLINE |
| 5861041202 | DRI |
| 75912 | EAI |
| ALT6776 | ELECTROLOG |
| 28-1626 | ELSTOCK |
| 111466 | FARCOM |
| 20040208AV | ITAB AUTOMOTIVE |
| ALN6032 | KRAUF |
| 40864RI | KUHNER |
| 445913 | LOGISTIK |
| LRA01308 | LUCAS |
| LRA1308 | LUCAS |
| 89212483 | POWERMAX |
| 9212483 | POWERMAX |
| 635.502.120.050 | PSH |
| 635.502.120.460 | PSH |
| 20132802BN | REAL |
| 20132802OE | REAL |
| 290-10214 | ROBERT'S |
| 2040208 | SANDO |
| 2040208.1 | SANDO |
| A12DE1057A2 | SIDAT |
| ALT422080 | SIOM |
| WRA40208CO | SIOM |
| PL8339 | SNRA |
| 912ST57 | STARTCAR |
| AL00826 | TMI |
| 12066N | WAI / TRANSPO |
| 90-29-5095 | WILSON |
| 90-29-5095N | WILSON |
| ALT30012 | WOODAUTO |
| WOOALT30012 | WOODAUTO |
Alternative Parts
| Alternative Part | Current Description | Alternative Description | Direct Alternative |
|---|---|---|---|
| A1943 | 120A | 140A | Yes |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| JOHN DEERE | 4455 | 0ccm Diesel | 1987 - 1993 | ||||
| JOHN DEERE | 7700 | 0ccm Diesel | JD6076 | 1993 - 1996 | |||
| JOHN DEERE | 7800 | 0ccm Diesel | JD6076 | 1993 - 1996 |
Description
A1308 Replacement Alternator
For a A1308 alternator enquiry, use Lucas reference LRA01308 alongside the vehicle and original unit details. The listed electrical rating is 12V 120A. An alternator maintains battery charge and supplies electrical power while the engine runs. Applications include selected John Deere 4455 variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 120A output: compare the listed rating with the original alternator.
- 2-groove pulley: check belt profile and alignment against the existing unit.
- 2 mounting holes: compare the fixing pattern and unit position.
- M8 B+ terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- John Deere 4455 – selected applications 1987–1993.
- John Deere 7700 – selected applications 1993–1996 (engine code JD6076).
- John Deere 7800 – selected applications 1993–1996 (engine code JD6076).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with A1308. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
100211-6030, 100211-6031, 100211-6040, 100211-6050, 100211-6051, 100211-6491, 100211-6492, LRA01308, LRA1308
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Alternator?
Charging warning lights, repeated loss of battery charge, dim or fluctuating lights and inconsistent electrical operation can indicate a charging-system problem. Battery condition, wiring and the drive belt can produce similar symptoms; arrange a diagnostic check before replacing the alternator.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying A1308 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will A1308 fit my John Deere 4455?
John Deere 4455 (1987–1993) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does A1308 replace Lucas LRA01308?
Lucas LRA01308 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for A1308?
The listed details include 12V, 120A output, 2 pulley grooves. Compare the complete specifications on this page with the unit being replaced.
Is A1308 new or remanufactured?
Check the current product condition selection for A1308. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering A1308?
Compare 12V compatibility, 120A output, pulley configuration, mounting points and electrical connections with the original alternator.
Does a battery warning light prove the alternator has failed?
No. Battery, belt, wiring and control faults can also affect charging. Use a charging-system test to establish the cause before ordering a replacement.
