A1522 12V 110A Alternator Fits Mazda Millenia, Mazda Xedos 9
Price range: £107.29 through £142.84
Identify a replacement alternator using Sahibs A1522, listed at 12V 110A. Listed applications include selected Mazda Millenia, Mazda Xedos 9 models. Identification references include Lucas LRA01522, Denso 1012117070, Delco Remy 13273. Its listed 12V 110A rating provides an electrical matching point for your existing unit. Check the 5-groove pulley, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your A1522 replacement alternator online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| AMP | 110 A |
| Volt | 12 V |
| No. of Grooves | 5 qty |
| Pulley Diameter | 53 mm |
| Mounting holes | 3 qty |
| Position | 180° |
| B+ | M8 |
| Insulated Return | No |
| Water cooled | No |
| Vacuum pump | No |
| Start/Stop | No |
| Weight | 6 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYA1522 | Dyno Electrics |
| 401680471 | Euro Car Part |
| 0986CR0163 | Bosch Exchange |
| 0986UR0163 | Bosch Exchange |
| 1012117070 | Denso |
| 1012117071 | Denso |
| 1208501ND | WAI |
| 13273 | Delco Remy |
| 13688N | WAI |
| 13688R | WAI |
| 145543110 | PSH |
| 90295216 | Wilson |
| A8479 | Dixie |
| AL4219X | Bosch (USA) |
| ALT30403 | Wood Auto |
| DRA0627 | Delco Remy |
| KL47 | Mazda |
| KL4718300 | Mazda |
| KL4718300RE | Mazda |
| LRA01522 | Lucas |
| LRA1522 | Lucas |
| RNL7070ND | RNL |
| TRA171 | TWA |
Alternative Parts
| Alternative Part | Current Description | Alternative Description | Direct Alternative |
|---|---|---|---|
| A1904 | 110A | 90A Pulley | No |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| MAZDA | Millenia | 2.5 (2497ccm) Petrol | KLZ5 | TA12 | 1999 - 2002 | ||
| MAZDA | Xedos 9 | 2.0 (1995ccm) Petrol | KF42 | TA12/TA2 | 1993 - 1996 | ||
| MAZDA | Xedos 9 | 2.5 (2497ccm) Petrol | KL68/KLL2/KLR4 | TA12 | 1993 - 1996 | ||
| MAZDA | Xedos 9 | 2.5 (2497ccm) Petrol | KLR4 | TA12 | 2000 - 2002 |
Description

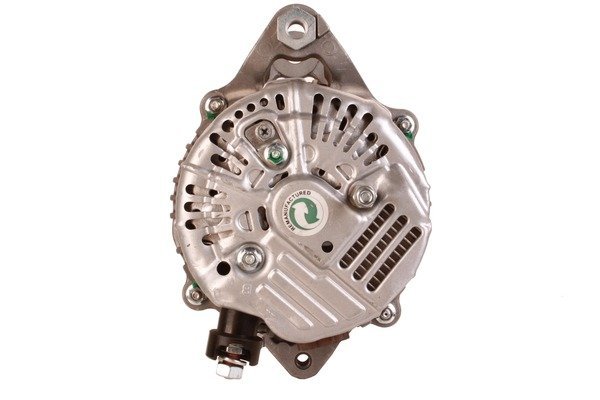

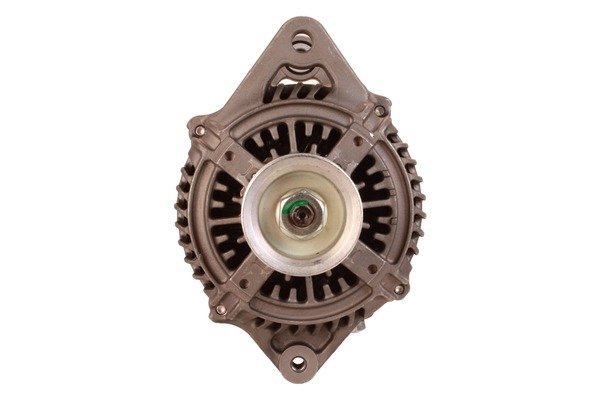

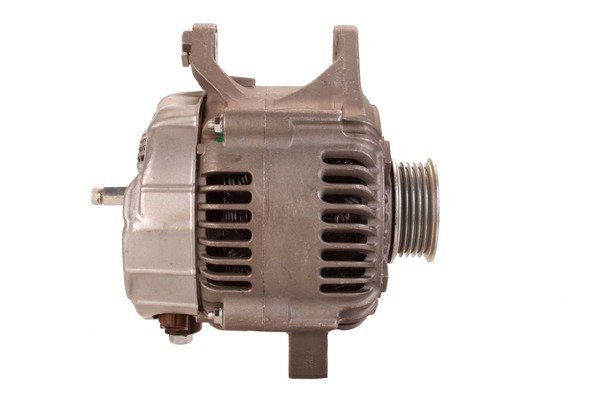

A1522 Replacement Alternator
Start your A1522 alternator comparison with the linked Lucas reference LRA01522 and the specifications shown on this page. The listed electrical rating is 12V 110A. An alternator maintains battery charge and supplies electrical power while the engine runs. Applications include selected Mazda Millenia 2.5 Petrol variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 110A output: compare the listed rating with the original alternator.
- 5-groove pulley: check belt profile and alignment against the existing unit.
- 3 mounting holes: compare the fixing pattern and unit position.
- M8 B+ terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Mazda Millenia 2.5 Petrol – selected applications 1999–2002 (engine code KLZ5).
- Mazda Xedos 9 2.0 Petrol – selected applications 1993–1996 (engine code KF42).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with A1522. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
0986CR0163, 0986UR0163, 1012117070, 1012117071, LRA01522, LRA1522, 13273, DRA0627
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Alternator?
Charging warning lights, repeated loss of battery charge, dim or fluctuating lights and inconsistent electrical operation can indicate a charging-system problem. Battery condition, wiring and the drive belt can produce similar symptoms; arrange a diagnostic check before replacing the alternator.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying A1522 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will A1522 fit my Mazda Millenia?
Mazda Millenia 2.5 Petrol (1999–2002) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does A1522 replace Lucas LRA01522?
Lucas LRA01522 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for A1522?
The listed details include 12V, 110A output, 5 pulley grooves. Compare the complete specifications on this page with the unit being replaced.
Is A1522 new or remanufactured?
Check the current product condition selection for A1522. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering A1522?
Compare 12V compatibility, 110A output, pulley configuration, mounting points and electrical connections with the original alternator.
Does a battery warning light prove the alternator has failed?
No. Battery, belt, wiring and control faults can also affect charging. Use a charging-system test to establish the cause before ordering a replacement.
