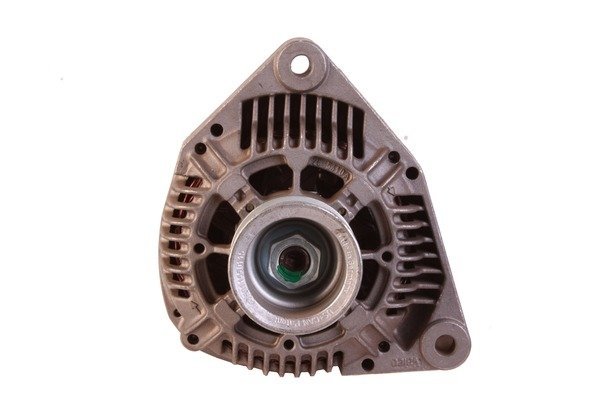

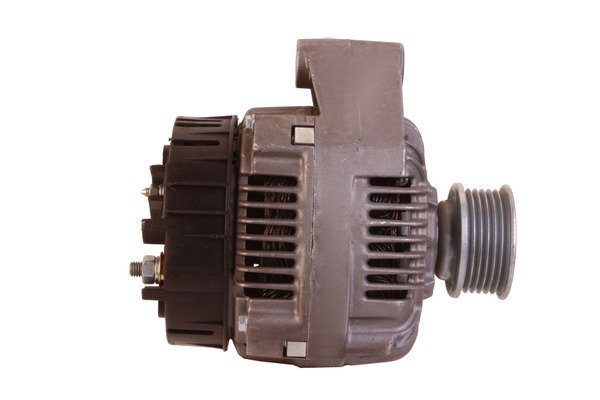

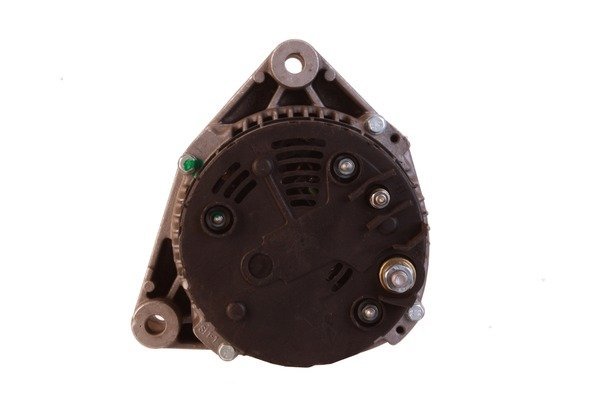

A1600 12V 70A Alternator Fits Mercedes-Benz C220, Mercedes-Benz C250
Price range: £113.96 through £149.02
The A1600 12V 70A Alternator is a replacement charging unit from Sahibs Auto Electrics. Listed applications include selected Mercedes-Benz C220, Mercedes-Benz C250 models. Identification references include Lucas LRA01600, Bosch 120485022, Valeo 2541680. Its listed 12V 70A rating provides an electrical matching point for your existing unit. Check the 6-groove pulley, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your A1600 replacement alternator online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| AMP | 70 A |
| Volt | 12 V |
| No. of Grooves | 6 qty |
| Pulley Diameter | 56 mm |
| Mounting holes | 2 qty |
| Position | -60° |
| B+ | M8 |
| Insulated Return | No |
| Water cooled | No |
| Vacuum pump | No |
| Start/Stop | No |
| Weight | 5.7 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYA1600 | Dyno Electrics |
| 81549602 | Mercedes-Benz |
| 8154960280 | Mercedes-Benz |
| 91514102 | Mercedes-Benz |
| 91544102 | Mercedes-Benz |
| 9154410280 | Mercedes-Benz |
| 120485022 | Bosch |
| 986036820 | Bosch Exchange |
| 986036827 | Bosch Exchange |
| 111354 | HC-Cargo |
| 11201744 | Mahle |
| 13355R | WAI |
| 13376N | WAI |
| 13376R | WAI |
| 2541680 | Valeo |
| 2541680A | Valeo |
| 2541699 | Valeo |
| 436450 | Valeo |
| 555502070 | PSH |
| 72735247 | Mahle |
| A0081549602 | Mercedes-Benz |
| A008154960280 | Mercedes-Benz |
| A0091514102 | Mercedes-Benz |
| A0091544102 | Mercedes-Benz |
| A009154410280 | Mercedes-Benz |
| A13VI74 | Valeo |
| A13VI79 | Valeo |
| AAK5127 | Mahle |
| AL0160X | Bosch (USA) |
| ALT10140 | Wood Auto |
| ALT25001 | Wood Auto |
| CA833IR | HC-Parts |
| DRA6820 | Delco Remy |
| F032111354 | HC-Cargo |
| HCA833IR | HC-Parts |
| IA0744 | Mahle |
| LRA01600 | Lucas |
| LRA1600 | Lucas |
| LRB00192 | Lucas |
| LRB192 | Lucas |
| MG248 | Mahle |
| WOOALT10140 | Wood Auto |
Alternative Parts
| Alternative Part | Current Description | Alternative Description | Direct Alternative |
|---|---|---|---|
| A1899 | 70A Pulley PV6/54 | 90A Pulley PV6/56 | No |
| B0218 | 70A Pulley PV6/54 Without W terminal | 120A Pulley PV6/48 With W terminal | No |
| B0193 | 70A Pulley PV6/54 Without W terminal | 90A Pulley PV6/48 With W terminal | No |
| A1490 | 70A | 90A | Yes |
| B0217 | 70A Without W terminal | 90A With W terminal | Yes |
| B0192 | Without W terminal | With W terminal | Yes |
| B0301 | 70A Pulley without clutch PV6/54 Without W terminal | 90A Clutch pulley PV6/54 With W terminal | No |
| A0723 | 70A Pulley PV6/54 | 80A Pulley PV6/50 | No |
| A1606 | 70A Pulley PV6/54 Pulley off set 36MM Without W terminal | 115A Pulley PV6/48 Pulley off set 26MM With W Terminal | Yes |
| A1623 | 70A Pulley PV6/54 Pulley off set 36MM Without W terminal | 90A Pulley PV6/48 Pulley off set 26.5MM With W Terminal | No |
| A2689 | 70A Pulley PV6/54 | 90A Pulley PV6/48 | No |
| B0195 | 70A Pulley PV6/54 | 90A Pulley PV6/48 | No |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| MERCEDES-BENZ | C220 | 2.2 (2154ccm) Diesel | 604910 | S202 | 202182 | 1996 - 1998 | |
| MERCEDES-BENZ | C220 | 2.2 (2154ccm) Diesel | 604910 | W202 | 202121 | 1996 - 1999 | |
| MERCEDES-BENZ | C220 | 2.2 (2154ccm) Diesel | 604910 | S202 | 202182 | 1996 - 1999 | |
| MERCEDES-BENZ | C250 | 2.5 (2497ccm) Diesel | 605910 | W202 | 202125 | 1993 - 1995 |
Description
A1600 Replacement Alternator
The A1600 alternator is a replacement unit identified by Lucas reference LRA01600. The listed electrical rating is 12V 70A. An alternator maintains battery charge and supplies electrical power while the engine runs. Applications include selected Mercedes-Benz C220 2.2 Diesel variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 70A output: compare the listed rating with the original alternator.
- 6-groove pulley: check belt profile and alignment against the existing unit.
- 2 mounting holes: compare the fixing pattern and unit position.
- M8 B+ terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Mercedes-Benz C220 2.2 Diesel – selected applications 1996–1998 (engine code 604910).
- Mercedes-Benz C250 2.5 Diesel – selected applications 1993–1995 (engine code 605910).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with A1600. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
120485022, 986036820, 986036827, 2541680, 2541680A, 2541699, 436450, A13VI74, A13VI79, LRA01600, LRA1600, LRB00192, LRB192, DRA6820, 11201744, 72735247, AAK5127, IA0744, MG248
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Alternator?
Charging warning lights, repeated loss of battery charge, dim or fluctuating lights and inconsistent electrical operation can indicate a charging-system problem. Battery condition, wiring and the drive belt can produce similar symptoms; arrange a diagnostic check before replacing the alternator.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying A1600 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will A1600 fit my Mercedes-Benz C220?
Mercedes-Benz C220 2.2 Diesel (1996–1998) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does A1600 replace Lucas LRA01600?
Lucas LRA01600 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for A1600?
The listed details include 12V, 70A output, 6 pulley grooves. Compare the complete specifications on this page with the unit being replaced.
Is A1600 new or remanufactured?
Check the current product condition selection for A1600. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering A1600?
Compare 12V compatibility, 70A output, pulley configuration, mounting points and electrical connections with the original alternator.
Does a battery warning light prove the alternator has failed?
No. Battery, belt, wiring and control faults can also affect charging. Use a charging-system test to establish the cause before ordering a replacement.
