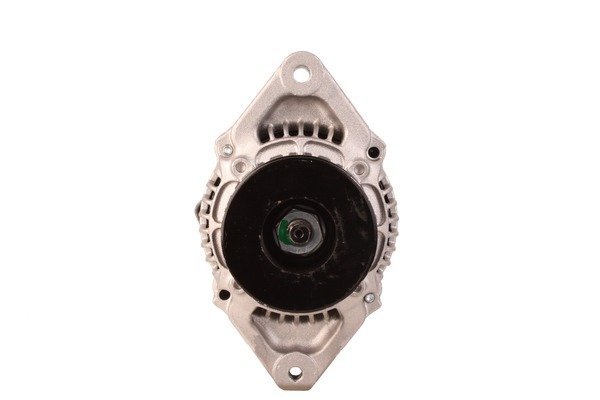

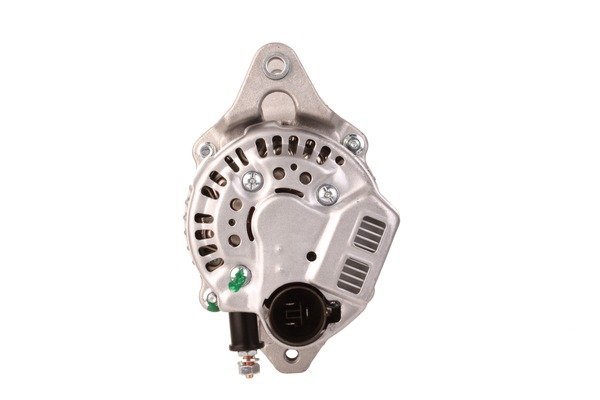

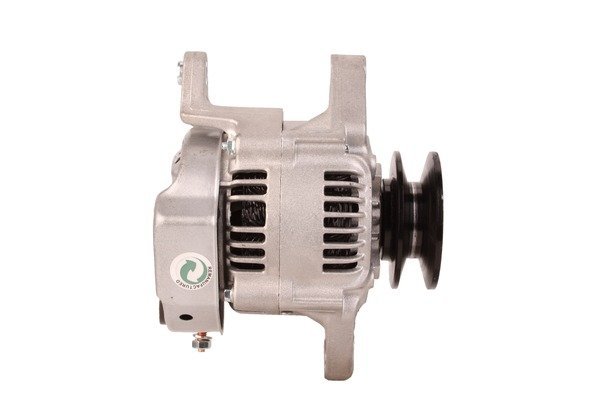

A1697 12V 50A Alternator Fits Toyota Fork Lift 5FD40
Price range: £122.07 through £154.93
Sahibs A1697 is a replacement alternator with a listed 12V 50A rating. Listed applications include selected Toyota Fork Lift 5FD40, Toyota Fork Lift 5FD45, Toyota Fork Lift 5FG20, Toyota Fork Lift 5FG23 models. Identification references include Lucas LRA01697, Bosch F042302068, Denso 1002116930. Its listed 12V 50A rating provides an electrical matching point for your existing unit. Check the single-groove pulley, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your A1697 replacement alternator online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| AMP | 50 A |
| Volt | 12 V |
| No. of Grooves | 1 qty |
| Pulley Diameter | 76 mm |
| Mounting holes | 3 qty |
| Position | 0° |
| B+ | M6 |
| Insulated Return | No |
| Water cooled | No |
| Vacuum pump | No |
| Start/Stop | No |
| Weight | 3.4 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYA1697 | Dyno Electrics |
| 0986AN0573 | Bosch Exchange |
| 1002116930 | Denso |
| 1002116960 | Denso |
| 1002116961 | Denso |
| 1002116970 | Denso |
| 1002116971 | Denso |
| 111018 | HC-Cargo |
| 12184N | WAI |
| 12185N | WAI |
| 195578050 | PSH |
| 2107019 | Denso |
| 2706023041 | Toyota |
| 2.71E+11 | Toyota |
| 2706076305 | Toyota |
| 2706078305 | Toyota |
| 2707023001 | Toyota |
| 2707023041 | Toyota |
| 90295182 | Wilson |
| 90295184 | Wilson |
| A8449 | Dixie |
| ALT30319 | Wood Auto |
| ALT5094 | Wood Auto |
| BXD1334N | Bosch (USA) |
| DRA1181 | Delco Remy |
| F032111018 | HC-Cargo |
| F042302068 | Bosch |
| JA1170 | HC-Cargo |
| JA1170IR | HC-Parts |
| LRA01697 | Lucas |
| LRA01934 | Lucas |
| LRA1697 | Lucas |
| LRA1934 | Lucas |
| RNL6930ND | RNL |
| WOOALT30319 | Wood Auto |
| WOOALT5094 | Wood Auto |
Alternative Parts
| Alternative Part | Current Description | Alternative Description | Direct Alternative |
|---|---|---|---|
| A1934 | 50A | 40A | No |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| TOYOTA FORK LIFT | 5FD40 | 0ccm Diesel | 11Z | 1988 - 1993 | |||
| TOYOTA FORK LIFT | 5FD45 | 0ccm Diesel | 11Z | 1988 - 1993 | |||
| TOYOTA FORK LIFT | 5FG20 | 0ccm Diesel | 4Y | 1989 - | |||
| TOYOTA FORK LIFT | 5FG23 | 0ccm Diesel | 4Y | 1989 - 1993 | |||
| TOYOTA FORK LIFT | 5FG25 | 0ccm Diesel | 4Y | 1989 - 1993 | |||
| TOYOTA FORK LIFT | 5FG33 | 0ccm Diesel | 3F | 1989 - 1993 | |||
| TOYOTA FORK LIFT | 5FG35 | 0ccm Diesel | 3F | 1989 - 1993 | |||
| TOYOTA FORK LIFT | 5FG38 | 0ccm Diesel | 3F | 1989 - 1993 | |||
| TOYOTA FORK LIFT | 5FG40 | 0ccm Diesel | 3F | 1989 - 1993 | |||
| TOYOTA FORK LIFT | 5FG45 | 0ccm Diesel | 3F | 1989 - 1993 | |||
| TOYOTA FORK LIFT | 5FG50 | 0ccm Diesel | 3F | 1990 - 1993 | |||
| TOYOTA FORK LIFT | 5FG60 | 0ccm Diesel | 3F | 1990 - 1993 | |||
| TOYOTA FORK LIFT | 5FGL20 | 0ccm Diesel | 4P | 1989 - | |||
| TOYOTA FORK LIFT | 5FGL23 | 0ccm Diesel | 4P | 1989 - |
Description
A1697 Replacement Alternator
Choose a replacement by comparing the A1697 alternator and its Lucas reference, LRA01697, with your existing unit. The listed electrical rating is 12V 50A. An alternator maintains battery charge and supplies electrical power while the engine runs. Applications include selected Toyota Fork Lift 5FD40 variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 50A output: compare the listed rating with the original alternator.
- Single-groove pulley: check belt profile and alignment against the existing unit.
- 3 mounting holes: compare the fixing pattern and unit position.
- M6 B+ terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Toyota Fork Lift 5FD40 – selected applications 1988–1993 (engine code 11Z).
- Toyota Fork Lift 5FD45 – selected applications 1988–1993 (engine code 11Z).
- Toyota Fork Lift 5FG20 – selected applications 1989 – (engine code 4Y).
- Toyota Fork Lift 5FG23 – selected applications 1989–1993 (engine code 4Y).
- Toyota Fork Lift 5FG25 – selected applications 1989–1993 (engine code 4Y).
- Toyota Fork Lift 5FG33 – selected applications 1989–1993 (engine code 3F).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with A1697. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
0986AN0573, F042302068, 1002116930, 1002116960, 1002116961, 1002116970, 1002116971, 2107019, LRA01697, LRA01934, LRA1697, LRA1934, DRA1181
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Alternator?
Charging warning lights, repeated loss of battery charge, dim or fluctuating lights and inconsistent electrical operation can indicate a charging-system problem. Battery condition, wiring and the drive belt can produce similar symptoms; arrange a diagnostic check before replacing the alternator.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying A1697 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will A1697 fit my Toyota Fork Lift 5FD40?
Toyota Fork Lift 5FD40 (1988–1993) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does A1697 replace Lucas LRA01697?
Lucas LRA01697 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for A1697?
The listed details include 12V, 50A output, 1 pulley groove. Compare the complete specifications on this page with the unit being replaced.
Is A1697 new or remanufactured?
Check the current product condition selection for A1697. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering A1697?
Compare 12V compatibility, 50A output, pulley configuration, mounting points and electrical connections with the original alternator.
Does a battery warning light prove the alternator has failed?
No. Battery, belt, wiring and control faults can also affect charging. Use a charging-system test to establish the cause before ordering a replacement.
