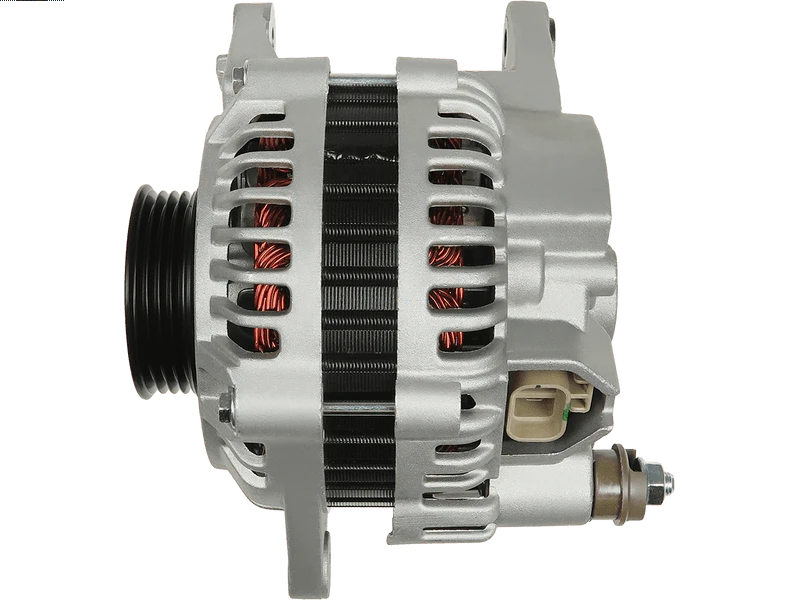

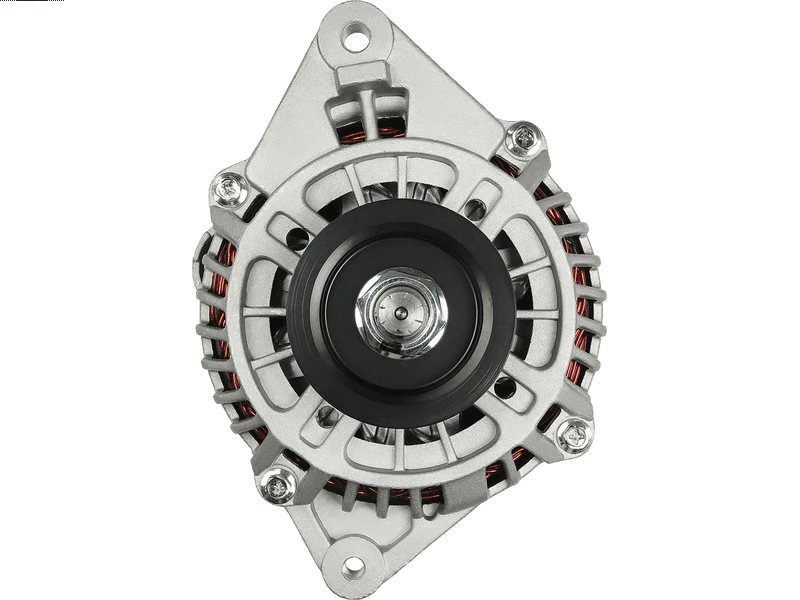

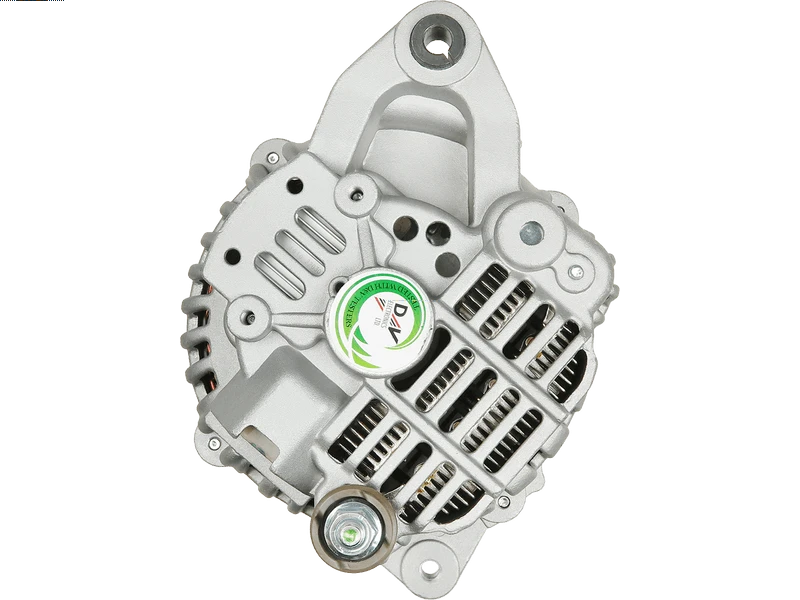

A1701 12V 90A Alternator Fits Mitsubishi L200, Mitsubishi L400
Price range: £106.00 through £135.90
Sahibs A1701 is a replacement alternator with a listed 12V 90A rating. Listed applications include selected Mitsubishi L200, Mitsubishi L400, Mitsubishi Space Gear models. Identification references include Lucas LRA01701, Mitsubishi Electric A003TA0491, Prestolite 20130148. Its listed 12V 90A rating provides an electrical matching point for your existing unit. Check the 4-groove pulley, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your A1701 replacement alternator online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| AMP | 90 A |
| Volt | 12 V |
| No. of Grooves | 4 qty |
| Pulley Diameter | 65 mm |
| Mounting holes | 3 qty |
| Position | 38° |
| B+ | M8 |
| Insulated Return | No |
| Water cooled | No |
| Vacuum pump | No |
| Start/Stop | No |
| Weight | 5.78 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYA1701 | Dyno Electrics |
| UD11215A | AS-PL |
| 114432 | CARGO |
| F032114432 | CARGO |
| A003TA0491 | MITSUBISHI |
| A003TA0491A | MITSUBISHI |
| A003TA2391 | MITSUBISHI |
| A003TA2391A | MITSUBISHI |
| A003TA2391AM | MITSUBISHI |
| A3TA0491 | MITSUBISHI |
| A3TA0491A | MITSUBISHI |
| A3TA2391 | MITSUBISHI |
| A3TA2391A | MITSUBISHI |
| A3TA2391AM | MITSUBISHI |
| A3TB5391 | MITSUBISHI |
| MD313384 | MITSUBISHI |
| MD318460 | MITSUBISHI |
| MD354804 | MITSUBISHI |
| MD354804R | MITSUBISHI |
| MD361617 | MITSUBISHI |
| SMD354802 | MITSUBISHI |
| SMD354804 | MITSUBISHI |
| 20130148 | PRESTOLITE |
| ALTL755 | 3EFFE |
| AEK1701 | AUTOELECTRO |
| CAL35266 | CASCO |
| CAL35266AS | CASCO |
| CAL35266ES | CASCO |
| CAL35266GS | CASCO |
| CAL35266OS | CASCO |
| CAL35266RS | CASCO |
| ALT5496 | ELECTROLOG |
| 28-2947 | ELSTOCK |
| 209335 | ERA |
| 553389RI | KUHNER |
| 446822 | LOGISTIK |
| LRA01701 | LUCAS |
| LRA1701 | LUCAS |
| 20137662OE | REAL |
| 2035266 | SANDO |
| A12MH1204A2 | SIDAT |
| STX102004 | STARDAX |
| 12647N | WAI / TRANSPO |
Alternative Parts
| Alternative Part | Current Description | Alternative Description | Direct Alternative |
|---|---|---|---|
| A2066 | 90A | 75A | No |
| A3186 | 90A Pulley PV4/65 Placing of plug | 50A Pulley 1GR/68 Placing of plug | No |
| A1876 | 90A | 55A | No |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| MITSUBISHI | L200 | 2.0 (1997ccm) Petrol | 4G63(SOHC16VMINA) | K62T | 1996 - 2001 | ||
| MITSUBISHI | L200 | 2.4 (2351ccm) Petrol | 4G64S | K75T | 1996 - 2004 | ||
| MITSUBISHI | L400 | 2.0 (1997ccm) Petrol | 4G63(SOHC16VMINA) | PA3V/PB3V | 1994 - 2001 | ||
| MITSUBISHI | L400 | 2.0 (1997ccm) Petrol | 4G63(SOHC16VMINA) | PA3W | 1995 - 2002 | ||
| MITSUBISHI | L400 | 2.4 (2351ccm) Petrol | 4G64S | PD4W | 1994 - 2001 | ||
| MITSUBISHI | L400 | 2.4 (2351ccm) Petrol | 4G64S | PA4W | 1994 - 2001 | ||
| MITSUBISHI | L400 | 2.4 (2351ccm) Petrol | 4G64S | PA4W | 1996 - 2005 | ||
| MITSUBISHI | L400 | 2.4 (2351ccm) Petrol | 4G64S | PD4W | 1996 - 2005 | ||
| MITSUBISHI | Space Gear | 2.0 (1997ccm) Petrol | 4G63(SOHC16VMINA) | PA3W | 1996 - 1998 | ||
| MITSUBISHI | Space Gear | 2.4 (2351ccm) Petrol | 4G64S | PA4W | 1994 - 2001 |
Description
A1701 Replacement Alternator
The A1701 alternator is a replacement unit identified by Lucas reference LRA01701. The listed electrical rating is 12V 90A. An alternator maintains battery charge and supplies electrical power while the engine runs. Applications include selected Mitsubishi L200 2.0 Petrol variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 90A output: compare the listed rating with the original alternator.
- 4-groove pulley: check belt profile and alignment against the existing unit.
- 3 mounting holes: compare the fixing pattern and unit position.
- M8 B+ terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Mitsubishi L200 2.0 Petrol – selected applications 1996–2001 (engine code 4G63(SOHC16VMINA)).
- Mitsubishi L400 2.0 Petrol – selected applications 1994–2001 (engine code 4G63(SOHC16VMINA)).
- Mitsubishi Space Gear 2.0 Petrol – selected applications 1996–1998 (engine code 4G63(SOHC16VMINA)).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with A1701. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
LRA01701, LRA1701, A003TA0491, A003TA0491A, A003TA2391, A003TA2391A, A003TA2391AM, A3TA0491, A3TA0491A, A3TA2391, A3TA2391A, A3TA2391AM, A3TB5391, MD313384, MD318460, MD354804, MD354804R, MD361617, SMD354802, SMD354804, 20130148
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Alternator?
Charging warning lights, repeated loss of battery charge, dim or fluctuating lights and inconsistent electrical operation can indicate a charging-system problem. Battery condition, wiring and the drive belt can produce similar symptoms; arrange a diagnostic check before replacing the alternator.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying A1701 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will A1701 fit my Mitsubishi L200?
Mitsubishi L200 2.0 Petrol (1996–2001) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does A1701 replace Lucas LRA01701?
Lucas LRA01701 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for A1701?
The listed details include 12V, 90A output, 4 pulley grooves. Compare the complete specifications on this page with the unit being replaced.
Is A1701 new or remanufactured?
Check the current product condition selection for A1701. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering A1701?
Compare 12V compatibility, 90A output, pulley configuration, mounting points and electrical connections with the original alternator.
Does a battery warning light prove the alternator has failed?
No. Battery, belt, wiring and control faults can also affect charging. Use a charging-system test to establish the cause before ordering a replacement.
