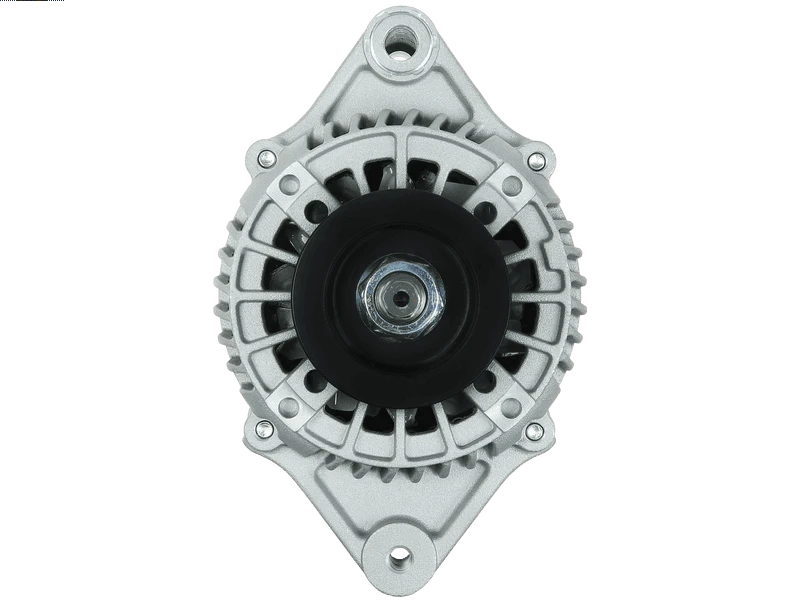

A1739 12V 70A Alternator Fits Suzuki Baleno, Suzuki Grand Vitara

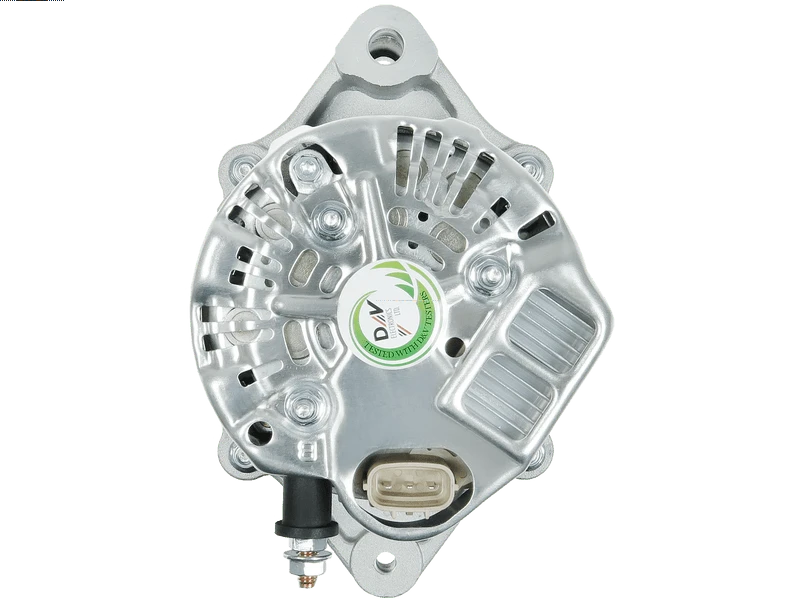

A1739 12V 70A Alternator Fits Suzuki Baleno, Suzuki Grand Vitara - Image 2

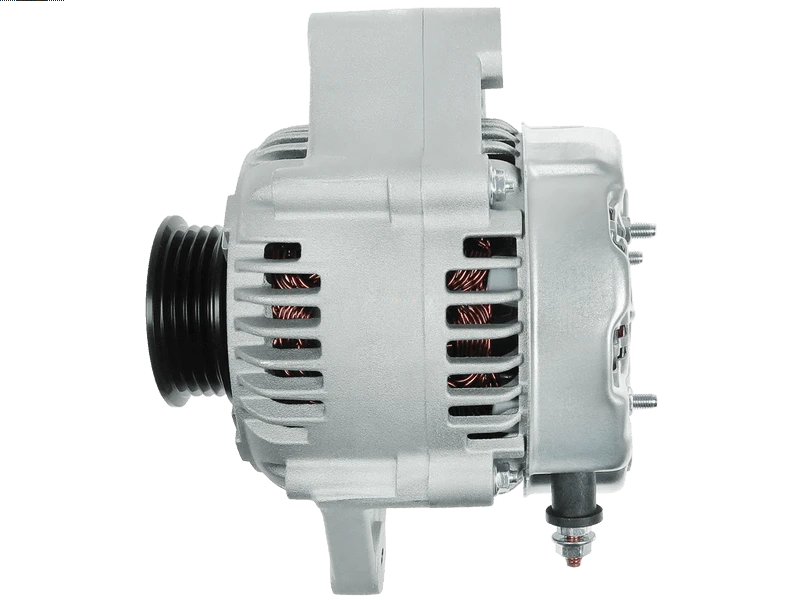

A1739 12V 70A Alternator Fits Suzuki Baleno, Suzuki Grand Vitara - Image 3

A1739 12V 70A Alternator Fits Suzuki Baleno, Suzuki Grand Vitara

Price range: £118.06 through £152.25

Identify a replacement alternator using Sahibs A1739, listed at 12V 70A. Listed applications include selected Suzuki Baleno, Suzuki Baleno Estate/Wagon, Suzuki Grand Vitara, Suzuki Ignis models. Identification references include Lucas LRA01739, Bosch 986045751, Valeo 437633. Its listed 12V 70A rating provides an electrical matching point for your existing unit. Check the 4-groove pulley, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your A1739 replacement alternator online from Sahibs Auto Electrics for UK delivery or Click & Collect.

SKU: A1739 Category:

Product Specification

DescriptionValue
AMP70 A
Volt12 V
No. of Grooves4 qty
Pulley Diameter55 mm
Mounting holes2 qty
Position180°
B+M6
Insulated ReturnNo
Water cooledNo
Vacuum pumpNo
Start/StopNo
Weight4.46 Kg

Cross Reference

Reference NumberBrand
DYA1739Dyno Electrics
401810051Euro Car Part
UD101660AAS-PL
986045751BOSCH
111779CARGO
F032111779CARGO
101211-0720DENSO
101211-0721DENSO
101211-0722DENSO
101211-0723DENSO
102211-2190DENSO
A005TA6191MITSUBISHI
A005TA6191ZCMITSUBISHI
A005TA6191ZEMITSUBISHI
A005TA6891MITSUBISHI
A005TA6891AMITSUBISHI
A005TB0891MITSUBISHI
A1TA2591MITSUBISHI
A5TA6191MITSUBISHI
A5TA6191ZCMITSUBISHI
A5TA6191ZEMITSUBISHI
A5TA6891MITSUBISHI
A5TA6891AMITSUBISHI
A5TB0891MITSUBISHI
31400-60G10SUZUKI
31400-60G10-000SUZUKI
31400-60G11SUZUKI
31400-60G11-000SUZUKI
31400-60G12SUZUKI
31400-60G12-000SUZUKI
31400-60G13SUZUKI
31400-60G13-000SUZUKI
31400-66D10SUZUKI
31400-66D10-000SUZUKI
31400-66D11SUZUKI
31400-75F00SUZUKI
31400-75F01SUZUKI
31400-75F50SUZUKI
31400-75F50-000SUZUKI
31400-75FD5SUZUKI
31400-77E20SUZUKI
31400-77E21SUZUKI
31400-77E22SUZUKI
31400-77E23SUZUKI
31400-77E23-000SUZUKI
31400-77E24SUZUKI
31400-77E24-000SUZUKI
31400-78F10-000SUZUKI
31400-79G00SUZUKI
31400-79G00-000SUZUKI
31400-80G00SUZUKI
31400-80G10-000SUZUKI
31400-80G11-000SUZUKI
31400-81A01-000SUZUKI
31400-83E00SUZUKI
31400-M79G0-0000SUZUKI
31400-M79G00SUZUKI
37400-76A00SUZUKI
437633VALEO
437698VALEO
ALTS3123EFFE
CGB-13926AINDE
CGB-83525AINDE
ANM36146ANDEL
AEB1293AUTOELECTRO
CAL47105ASCASCO
JFZ171CHANGAN
28-3525ELSTOCK
ALN1293KRAUF
401293RIKUHNER
446341LOGISTIK
LRA01739LUCAS
LRA1739LUCAS
89213224POWERMAX
185.508.070.050PSH
185.508.070.058PSH
185.508.070.395PSH
185.508.070.415PSH
20147501BNREAL
ALT249ROLLCO
2047105SANDO
ALT491050SIOM
STX100076STARDAX
STX100076RSTARDAX
STX100520STARDAX
STX100520RSTARDAX
STX101557STARDAX
F042A0H059UNIPOINT
13679NWAI / TRANSPO
90-29-5660WILSON
ALT30123WOODAUTO

Alternative Parts

Alternative PartCurrent DescriptionAlternative DescriptionDirect Alternative
A218175A60ANo
A2954Placing of terminalsPlacing of terminalsNo
A203775A Pulley PV4/5585A Pulley PV4/59No
A227070A D-IG-L Plug 002975A C-IG-L Plug 0160Yes
A1836Placing of terminalsPlacing of terminalsNo

Vehicle Applications

BrandModelEngineEngine CodeSeriesModel TypeTypeYear
SUZUKIBaleno1.3 (1298ccm) PetrolG13BBSY413GC11S1995 - 2002
SUZUKIBaleno1.3 (1298ccm) PetrolG13BASY413GA11H1995 - 1998
SUZUKIBaleno1.3 (1298ccm) PetrolG13BBSY413GA11H1995 - 2002
SUZUKIBaleno1.3 (1298ccm) PetrolG13BASY413GC11S1995 - 1998
SUZUKIBaleno1.6 (1590ccm) PetrolG16BSY416GA31H1995 - 2002
SUZUKIBaleno1.6 (1590ccm) PetrolG16BAWDSY416GB31H1995 - 2002
SUZUKIBaleno1.6 (1590ccm) PetrolG16BSY416GC31S1995 - 2002
SUZUKIBaleno1.6 (1590ccm) PetrolG16BAWDSY416GD31S1995 - 2002
SUZUKIBaleno Estate/Wagon1.3 (1298ccm) PetrolG13BBSY413GC11W1997 - 2002
SUZUKIBaleno Estate/Wagon1.6 (1590ccm) PetrolG16BSY416GC31W1996 - 2002
SUZUKIBaleno Estate/Wagon1.6 (1590ccm) PetrolG16BAWDSY416GD31W1996 - 2002
SUZUKIGrand Vitara2.5 (2493ccm) PetrolH25AMK IAWDSQ625W1998 - 2001
SUZUKIIgnis1.3 (1328ccm) PetrolM13AMK IRG413FVS1/RG413HV51/RG413HX512000 - 2005
SUZUKIIgnis1.3 (1328ccm) PetrolM13AMK IAWDRG413HY512000 - 2003
SUZUKIJimny1.3 (1298ccm) PetrolG13BBAWDSN4131998 - 2008
SUZUKIJimny1.3 (1298ccm) PetrolG13BBSN4131998 - 2001
SUZUKIJimny1.3 (1298ccm) PetrolG13BBAWD CabrioSN4131998 - 2001
SUZUKIJimny1.3 (1328ccm) PetrolM13ASN4132001 - 2004
SUZUKIJimny1.3 (1328ccm) PetrolM13AAWDSN4132001 - 2004
SUZUKIWagon R1.2 (1171ccm) PetrolK12ASR4121998 - 2000

Description

A1739 Replacement Alternator

The Sahibs A1739 alternator is associated with Lucas reference LRA01739 for replacement identification. The listed electrical rating is 12V 70A. An alternator maintains battery charge and supplies electrical power while the engine runs. Applications include selected Suzuki Baleno 1.3 Petrol variants.

Key Features and Benefits

  • 12V electrical system: match the vehicle voltage before selecting a unit.
  • 70A output: compare the listed rating with the original alternator.
  • 4-groove pulley: check belt profile and alignment against the existing unit.
  • 2 mounting holes: compare the fixing pattern and unit position.
  • M6 B+ terminal: check the connection against the original unit.

Compatible Vehicles and Applications

  • Suzuki Baleno 1.3 Petrol – selected applications 1995–2002 (engine code G13BB).
  • Suzuki Baleno Estate/Wagon 1.3 Petrol – selected applications 1997–2002 (engine code G13BB).
  • Suzuki Grand Vitara 2.5 Petrol – selected applications 1998–2001 (engine code H25A).
  • Suzuki Ignis 1.3 Petrol – selected applications 2000–2005 (engine code M13A).
  • Suzuki Jimny 1.3 Petrol – selected applications 1998–2008 (engine code G13BB).
  • Suzuki Wagon R 1.2 Petrol – selected applications 1998–2000 (engine code K12A).

These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.

OE Numbers and Cross-Reference Information

The following cross-reference numbers are associated with A1739. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.

986045751, 437633, 437698, 101211-0720, 101211-0721, 101211-0722, 101211-0723, 102211-2190, LRA01739, LRA1739, A005TA6191, A005TA6191ZC, A005TA6191ZE, A005TA6891, A005TA6891A, A005TB0891, A1TA2591, A5TA6191, A5TA6191ZC, A5TA6191ZE, A5TA6891, A5TA6891A, A5TB0891

The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.

When Should You Replace Your Alternator?

Charging warning lights, repeated loss of battery charge, dim or fluctuating lights and inconsistent electrical operation can indicate a charging-system problem. Battery condition, wiring and the drive belt can produce similar symptoms; arrange a diagnostic check before replacing the alternator.

Why Buy from Sahibs Auto Electrics?

Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying A1739 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.

Frequently Asked Questions

Will A1739 fit my Suzuki Baleno?

Suzuki Baleno 1.3 Petrol (1995–2002) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.

Does A1739 replace Lucas LRA01739?

Lucas LRA01739 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.

What specifications are listed for A1739?

The listed details include 12V, 70A output, 4 pulley grooves. Compare the complete specifications on this page with the unit being replaced.

Is A1739 new or remanufactured?

Check the current product condition selection for A1739. Confirm the supplier and availability of the option you want before completing the order.

What should I compare before ordering A1739?

Compare 12V compatibility, 70A output, pulley configuration, mounting points and electrical connections with the original alternator.

Does a battery warning light prove the alternator has failed?

No. Battery, belt, wiring and control faults can also affect charging. Use a charging-system test to establish the cause before ordering a replacement.
