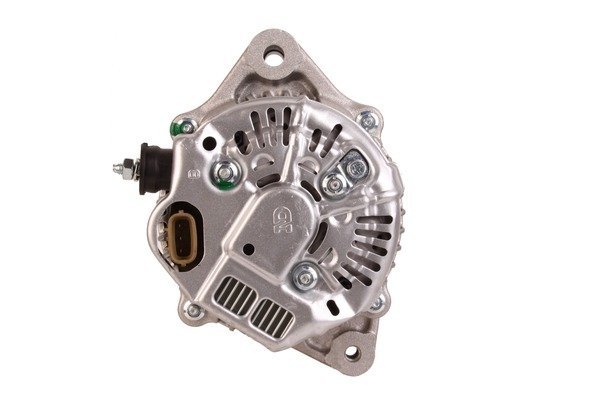

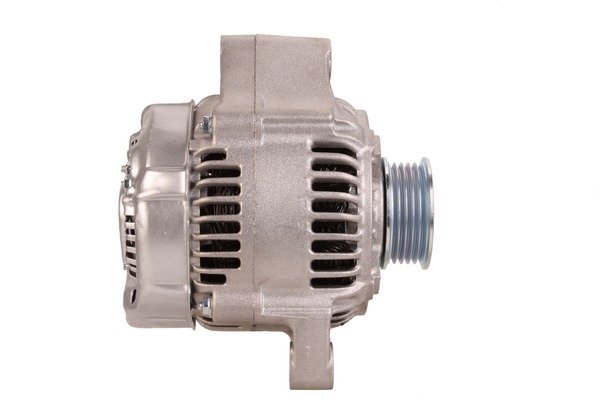

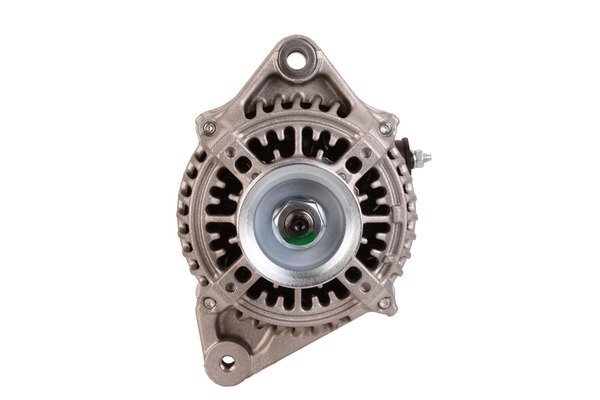

A1750 12V 80A Alternator Fits Toyota Camry, Toyota Camry Solara
Price range: £101.05 through £130.32
The A1750 12V 80A Alternator is a replacement charging unit from Sahibs Auto Electrics. Listed applications include selected Toyota Camry, Toyota Camry Solara, Toyota Carina E, Toyota Picnic models. Identification references include Lucas LRA01750, Bosch 123325000, Denso 210800440. Its listed 12V 80A rating provides an electrical matching point for your existing unit. Check the 5-groove pulley, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your A1750 replacement alternator online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| AMP | 80 A |
| Volt | 12 V |
| No. of Grooves | 5 qty |
| Pulley Diameter | 54 mm |
| Mounting holes | 2 qty |
| Position | 40° |
| B+ | M6 |
| Insulated Return | No |
| Water cooled | No |
| Vacuum pump | No |
| Start/Stop | No |
| Weight | 5.06 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYA1750 | Dyno Electrics |
| 401820811 | Euro Car Part |
| 123325000 | Bosch |
| 123325003 | Bosch |
| 210800440 | Denso |
| 63377436010 | RNL |
| 986040960 | Bosch Exchange |
| 986043031 | Bosch Exchange |
| 986043051 | Bosch Exchange |
| 0986CN0993 | Bosch Exchange |
| 0986CR0993 | Bosch Exchange |
| 0986UN0993 | Bosch Exchange |
| 0986UR0993 | Bosch Exchange |
| 1012115010 | Denso |
| 1012115230 | Denso |
| 1012115390 | Denso |
| 1012115540 | Denso |
| 1012119050 | Denso |
| 1012119510 | Denso |
| 1012119670 | Denso |
| 1022111240 | Denso |
| 1022111340 | Denso |
| 1022119380 | Denso |
| 111468 | HC-Cargo |
| 13557N | WAI |
| 13557R | WAI |
| 13754N | WAI |
| 13754R | WAI |
| 195535080 | PSH |
| 22591R | WAI |
| 2706003040 | Toyota |
| 2706003050 | Toyota |
| 2706074360 | Toyota |
| 2706074410 | Toyota |
| 2706074450 | Toyota |
| 2706074560 | Toyota |
| 2706074590 | Toyota |
| 2706074640 | Toyota |
| 2706074740 | Toyota |
| 2706074750 | Toyota |
| 2706074830 | Toyota |
| 6.00E+11 | Magneti Marelli |
| 63377436 | Magneti Marelli |
| 63377436010 | Magneti Marelli |
| 90295235 | Wilson |
| 90295279 | Wilson |
| 90295280 | Wilson |
| 9.44E+11 | Magneti Marelli |
| 9661219953 | Denso |
| 9662219124 | PSA |
| A8408 | Dixie |
| AL3261N | Bosch (USA) |
| AL3261X | Bosch (USA) |
| ALT10522 | Wood Auto |
| ALT30318 | Wood Auto |
| ALT5092 | Wood Auto |
| ATA534 | ATK |
| ATA588 | ATK |
| DAN954 | Denso |
| DRB0960 | Delco Remy |
| F032111468 | HC-Cargo |
| F042302067 | Bosch |
| F042A02067 | Bosch |
| HJA1134IR | HC-Parts |
| JA1134IR | HC-Parts |
| JA1599 | HC-Parts |
| JA1599IR | HC-Parts |
| LRA01591 | Lucas |
| LRA01750 | Lucas |
| LRA1591 | Lucas |
| LRA1750 | Lucas |
| MAN7437 | Magneti Marelli |
| MRA40960 | Magneti Marelli |
| RNL5010ND | RNL |
| RNL9510ND | RNL |
| TRA205 | TWA |
| WOOALT10522 | Wood Auto |
| WOOALT30318 | Wood Auto |
| WOOALT5092 | Wood Auto |
Alternative Parts
| Alternative Part | Current Description | Alternative Description | Direct Alternative |
|---|---|---|---|
| B0211 | 80A | 70A | No |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| TOYOTA | Camry | 2.2 (2164ccm) Petrol | 5SFE | SXV10 | 1991 - 1996 | ||
| TOYOTA | Camry | 2.2 (2164ccm) Petrol | 5SFE | Customwagon | SXV10 | 1991 - 1996 | |
| TOYOTA | Camry | 2.2 (2164ccm) Petrol | 5SFE | SXV20 | 1997 - 2002 | ||
| TOYOTA | Camry Solara | 2.2 (2164ccm) Petrol | 5SFE | SXV20 | 1998 - 2002 | ||
| TOYOTA | Carina E | 2.0 (1998ccm) Petrol | 3SGE | MK VI | Liftback | ST191 | 1992 - 1994 |
| TOYOTA | Carina E | 2.0 (1998ccm) Petrol | 3SFE | MK VI | ST191 | 1992 - 1997 | |
| TOYOTA | Carina E | 2.0 (1998ccm) Petrol | 3SFE | MK VI | ST191 | 1993 - 1997 | |
| TOYOTA | Carina E | 2.0 (1998ccm) Petrol | 3SFE | MK VI | ST191 | 1994 - 1997 | |
| TOYOTA | Picnic | 2.0 (1998ccm) Petrol | 3SFE | SXM10 | 2000 - 2001 | ||
| TOYOTA | RAV 4 | 2.0 (1998ccm) Petrol | 3SFE | MK I | SXA10/SXA11 | 1994 - 1997 | |
| TOYOTA | RAV 4 | 2.0 (1998ccm) Petrol | 3SFE | MK I | SXA11 | 1995 - 2000 |
Description
A1750 Replacement Alternator
Start your A1750 alternator comparison with the linked Lucas reference LRA01750 and the specifications shown on this page. The listed electrical rating is 12V 80A. An alternator maintains battery charge and supplies electrical power while the engine runs. Applications include selected Toyota Camry 2.2 Petrol variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 80A output: compare the listed rating with the original alternator.
- 5-groove pulley: check belt profile and alignment against the existing unit.
- 2 mounting holes: compare the fixing pattern and unit position.
- M6 B+ terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Toyota Camry 2.2 Petrol – selected applications 1991–1996 (engine code 5SFE).
- Toyota Camry Solara 2.2 Petrol – selected applications 1998–2002 (engine code 5SFE).
- Toyota Carina E 2.0 Petrol – selected applications 1992–1994 (engine code 3SGE).
- Toyota Picnic 2.0 Petrol – selected applications 2000–2001 (engine code 3SFE).
- Toyota RAV 4 2.0 Petrol – selected applications 1994–1997 (engine code 3SFE).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with A1750. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
123325000, 123325003, 986040960, 986043031, 986043051, 0986CN0993, 0986CR0993, 0986UN0993, 0986UR0993, F042302067, F042A02067, 210800440, 1012115010, 1012115230, 1012115390, 1012115540, 1012119050, 1012119510, 1012119670, 1022111240, 1022111340, 1022119380, 9661219953, DAN954, LRA01750, LRA01591, LRA1591, LRA1750, DRB0960
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Alternator?
Charging warning lights, repeated loss of battery charge, dim or fluctuating lights and inconsistent electrical operation can indicate a charging-system problem. Battery condition, wiring and the drive belt can produce similar symptoms; arrange a diagnostic check before replacing the alternator.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying A1750 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will A1750 fit my Toyota Camry?
Toyota Camry 2.2 Petrol (1991–1996) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does A1750 replace Lucas LRA01750?
Lucas LRA01750 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for A1750?
The listed details include 12V, 80A output, 5 pulley grooves. Compare the complete specifications on this page with the unit being replaced.
Is A1750 new or remanufactured?
Check the current product condition selection for A1750. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering A1750?
Compare 12V compatibility, 80A output, pulley configuration, mounting points and electrical connections with the original alternator.
Does a battery warning light prove the alternator has failed?
No. Battery, belt, wiring and control faults can also affect charging. Use a charging-system test to establish the cause before ordering a replacement.
