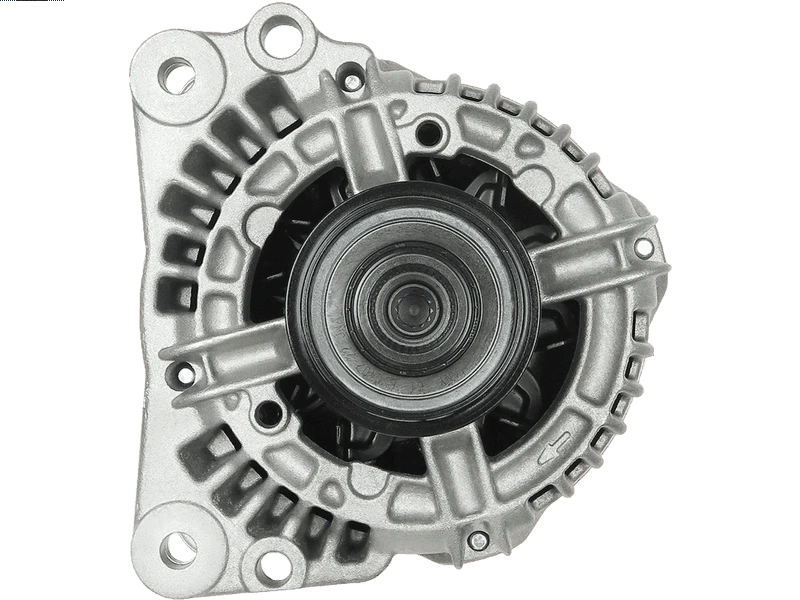

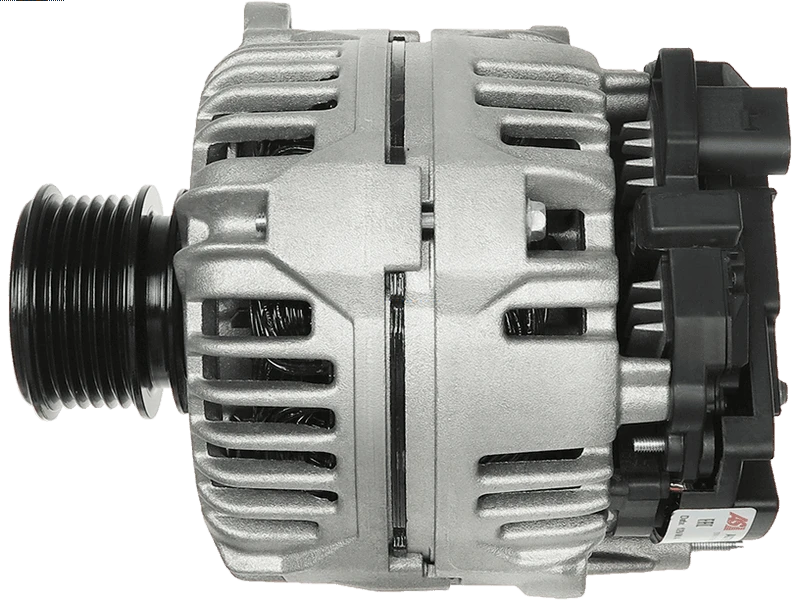

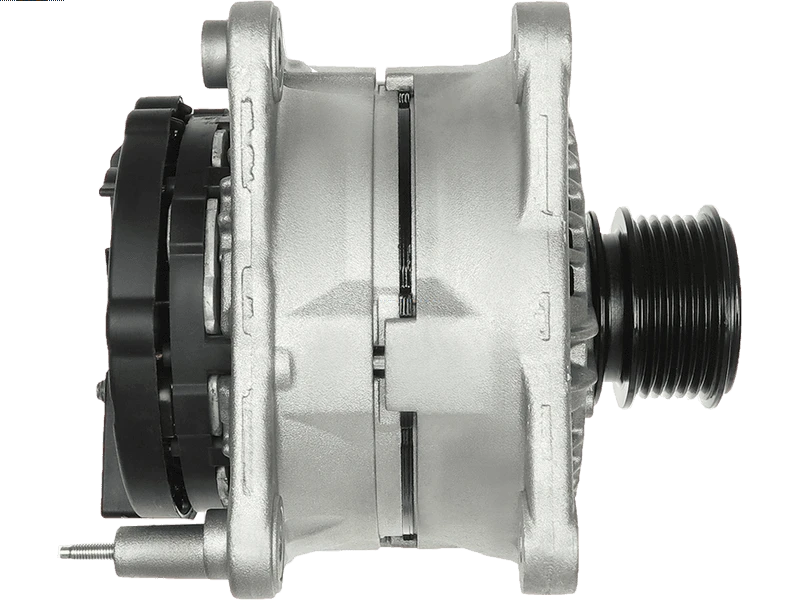

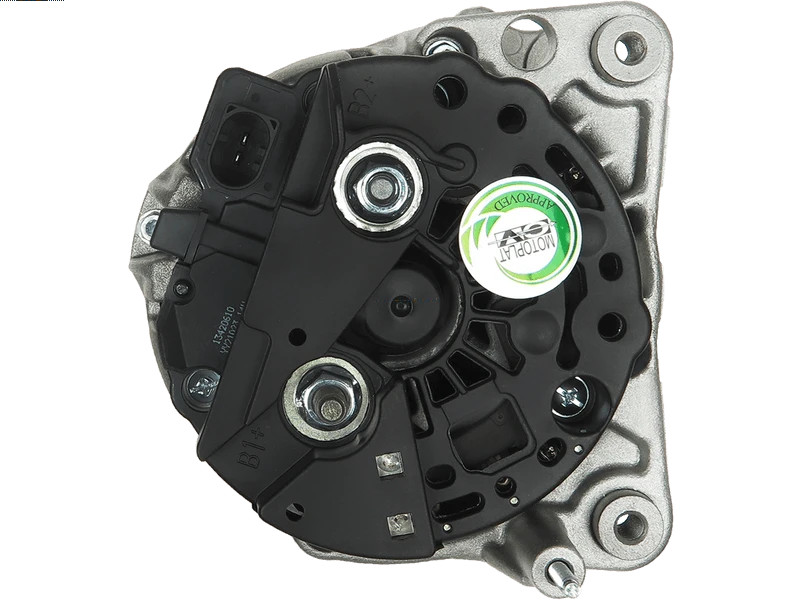

A1856 12V 90A Alternator Fits VW Lupo, VW Polo, Audi A2
Price range: £98.28 through £134.01
The A1856 12V 90A Alternator is a replacement charging unit from Sahibs Auto Electrics. Listed applications include selected VW Lupo, VW Polo, Audi A2, Seat Arosa models. Identification references include Lucas LRA01856, Bosch 124325012, Valeo 437689. Its listed 12V 90A rating provides an electrical matching point for your existing unit. Check the 6-groove pulley, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your A1856 replacement alternator online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| AMP | 90 A |
| Volt | 12 V |
| No. of Grooves | 6 qty |
| Pulley Diameter | 55 mm |
| Mounting holes | 4 qty |
| Position | 90° |
| B+ | M8 |
| Insulated Return | No |
| Water cooled | No |
| Vacuum pump | No |
| Start/Stop | No |
| Weight | 5.9 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYA1856 | Dyno Electrics |
| 401441851 | Euro Car Part |
| 124325012 | BOSCH |
| 124325073 | BOSCH |
| 986042700 | BOSCH |
| DB3810 | DELCO |
| DRB2700 | DELCO |
| 8EL012428-111 | HELLA |
| 8EL737638-001 | HELLA |
| 9.44E+11 | MAGNETI MARELLI |
| MRA42700 | MAGNETI MARELLI |
| 437689 | VALEO |
| 747023 | VALEO |
| 45903023 | VW |
| 045903023B | VW |
| 045903023E | VW |
| 045903023EX | VW |
| 045903025B | VW |
| 45903023E | VW |
| 45903023EX | VW |
| CGB-83712 | AINDE |
| CAL10324AS | CASCO |
| CAL10324GS | CASCO |
| 4031 | CEVAM |
| 28-3712 | ELSTOCK |
| 210167 | ERA |
| 210597 | ERA |
| AG0125 | GHIBAUDI |
| CA1441IR | HC PARTS |
| 32042700 | HERTH+BUSS |
| ALB1441 | KRAUF |
| 301441RI | KUHNER |
| 301441RIB | KUHNER |
| 301441RIV | KUHNER |
| 441588 | LOGISTIK |
| LRA01856 | LUCAS |
| LRA1856 | LUCAS |
| 89212736 | POWERMAX |
| 305.518.090.004 | PSH |
| 305.518.090.010 | PSH |
| 305.518.090.210 | PSH |
| 305.518.090.215 | PSH |
| 305.518.090.500 | PSH |
| 305.518.090.505 | PSH |
| 20101423BN | REAL |
| 20101423OE | REAL |
| 310821 | RHIAG |
| 2010324 | SANDO |
| 2010324.1 | SANDO |
| 13851RW | WAI / TRANSPO |
| 90-15-6565 | WILSON |
Alternative Parts
| Alternative Part | Current Description | Alternative Description | Direct Alternative |
|---|---|---|---|
| B0474 | Placing of terminals | Placing of terminals | No |
| A2758 | 90A | 120A | Yes |
| A3087 | 90A | 140A | Yes |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| AUDI | A2 | 1.2 (1191ccm) Diesel | ANY | 8Z0 | 2001 - 2005 | ||
| SEAT | Arosa | 1.4 (1422ccm) Diesel | AMF | 6H1 | 1999 - 2004 | ||
| SEAT | Cordoba | 1.4 (1422ccm) Diesel | AMF | 6L2 | 2002 - 2005 | ||
| SEAT | Cordoba | 1.4 (1422ccm) Diesel | BMS/BNV | 6L2 | 2005 - 2009 | ||
| SEAT | Cordoba | 1.4 (1422ccm) Diesel | BNM | 6L2 | 2005 - 2009 | ||
| SEAT | Ibiza | 1.4 (1422ccm) Diesel | AMF | III | 6L1 | 2002 - 2005 | |
| SEAT | Ibiza | 1.4 (1422ccm) Diesel | BNM | III | 6L1 | 2005 - 2009 | |
| SEAT | Ibiza | 1.4 (1422ccm) Diesel | BMS/BNV | III | 6L1 | 2005 - 2009 | |
| SEAT | Ibiza | 1.4 (1422ccm) Diesel | BMS | IV | 6J5 | 2008 - 2010 | |
| SEAT | Ibiza SC | 1.4 (1422ccm) Diesel | BMS | IV | Sportcoupe | 6J1 | 2008 - 2010 |
| SKODA | Fabia | 1.4 (1422ccm) Diesel | AMF | I | 6Y5 | 2003 - 2005 | |
| SKODA | Fabia | 1.4 (1422ccm) Diesel | AMF | I | 6Y2 | 2003 - 2005 | |
| SKODA | Fabia | 1.4 (1422ccm) Diesel | AMF | I | 6Y3 | 2003 - 2005 | |
| SKODA | Fabia | 1.4 (1422ccm) Diesel | AMF | I | Praktik | 6Y5 | 2004 - 2005 |
| SKODA | Fabia | 1.4 (1422ccm) Diesel | BNV | I | 6Y2 | 2005 - 2007 | |
| SKODA | Fabia | 1.4 (1422ccm) Diesel | BNV | I | 6Y3 | 2005 - 2007 | |
| SKODA | Fabia | 1.4 (1422ccm) Diesel | BNM | I | 6Y2 | 2005 - 2007 | |
| SKODA | Fabia | 1.4 (1422ccm) Diesel | BNM | I | 6Y5 | 2005 - 2007 | |
| SKODA | Fabia | 1.4 (1422ccm) Diesel | BNM | I | 6Y3 | 2005 - 2007 | |
| SKODA | Fabia | 1.4 (1422ccm) Diesel | BNV | I | 6Y5 | 2005 - 2007 | |
| SKODA | Fabia | 1.4 (1422ccm) Diesel | BNM | I | Praktik | 6Y5 | 2005 - 2007 |
| SKODA | Fabia | 1.4 (1422ccm) Diesel | BNM | II | 542 | 2007 - 2010 | |
| SKODA | Fabia | 1.4 (1422ccm) Diesel | BMS/BNV | II | 542 | 2007 - 2010 | |
| SKODA | Fabia | 1.4 (1422ccm) Diesel | BMS/BNV | II | 545 | 2007 - 2010 | |
| SKODA | Fabia | 1.4 (1422ccm) Diesel | BNM | II | 545 | 2007 - 2010 | |
| SKODA | Roomster | 1.4 (1422ccm) Diesel | BNM | 5J7 | 2006 - 2010 | ||
| SKODA | Roomster | 1.4 (1422ccm) Diesel | BMS/BNV | 5J7 | 2006 - 2010 | ||
| SKODA | Roomster Praktik | 1.4 (1422ccm) Diesel | BMS/BNV | Praktik | 5J7 | 2007 - 2010 | |
| SKODA | Roomster Praktik | 1.4 (1422ccm) Diesel | BNM | Praktik | 5J7 | 2007 - 2010 | |
| SKODA | Roomster Scout | 1.4 (1422ccm) Diesel | BMS/BNV | 5J7 | 2006 - 2010 | ||
| VW | Lupo | 1.2 (1191ccm) Diesel | ANY/AYZ | I | 6.00E+01 | 1999 - 2005 | |
| VW | Lupo | 1.4 (1422ccm) Diesel | AMF | I | 6X1 | 1999 - 2005 | |
| VW | Polo | 1.4 (1422ccm) Diesel | AMF | III | 6N2 | 1999 - 2001 | |
| VW | Polo | 1.4 (1422ccm) Diesel | AMF/BAY | IV | 9N1 | 2001 - 2005 | |
| VW | Polo | 1.4 (1422ccm) Diesel | BAY | IV | 9N2 | 2003 - 2005 | |
| VW | Polo | 1.4 (1422ccm) Diesel | BMS/BNV | IV | 9N3 | 2005 - 2009 |
Description
A1856 Replacement Alternator
The Sahibs A1856 alternator is associated with Lucas reference LRA01856 for replacement identification. The listed electrical rating is 12V 90A. An alternator maintains battery charge and supplies electrical power while the engine runs. Applications include selected VW Lupo 1.2 Diesel variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 90A output: compare the listed rating with the original alternator.
- 6-groove pulley: check belt profile and alignment against the existing unit.
- 4 mounting holes: compare the fixing pattern and unit position.
- M8 B+ terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- VW Lupo 1.2 Diesel – selected applications 1999–2005 (engine code ANY/AYZ).
- VW Polo 1.4 Diesel – selected applications 1999–2001 (engine code AMF).
- Audi A2 1.2 Diesel – selected applications 2001–2005 (engine code ANY).
- Seat Arosa 1.4 Diesel – selected applications 1999–2004 (engine code AMF).
- Seat Cordoba 1.4 Diesel – selected applications 2002–2005 (engine code AMF).
- Seat Ibiza 1.4 Diesel – selected applications 2002–2005 (engine code AMF).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with A1856. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
124325012, 124325073, 986042700, 437689, 747023, LRA01856, LRA1856, DB3810, DRB2700
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Alternator?
Charging warning lights, repeated loss of battery charge, dim or fluctuating lights and inconsistent electrical operation can indicate a charging-system problem. Battery condition, wiring and the drive belt can produce similar symptoms; arrange a diagnostic check before replacing the alternator.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying A1856 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will A1856 fit my VW Lupo?
VW Lupo 1.2 Diesel (1999–2005) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does A1856 replace Lucas LRA01856?
Lucas LRA01856 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for A1856?
The listed details include 12V, 90A output, 6 pulley grooves. Compare the complete specifications on this page with the unit being replaced.
Is A1856 new or remanufactured?
Check the current product condition selection for A1856. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering A1856?
Compare 12V compatibility, 90A output, pulley configuration, mounting points and electrical connections with the original alternator.
Does a battery warning light prove the alternator has failed?
No. Battery, belt, wiring and control faults can also affect charging. Use a charging-system test to establish the cause before ordering a replacement.
