A4288 12V 105A Alternator Fits Chevrolet Astro, Chevrolet Blazer
Price range: £98.90 through £131.67

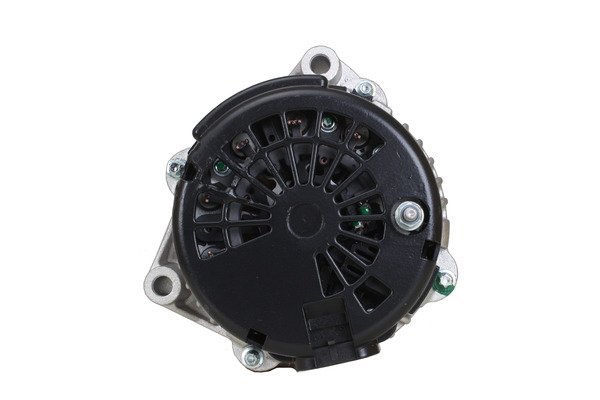

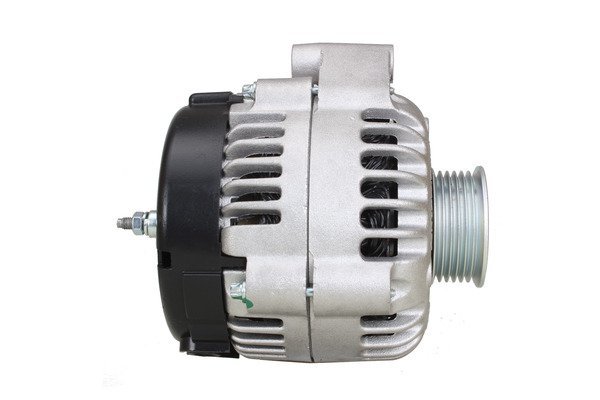

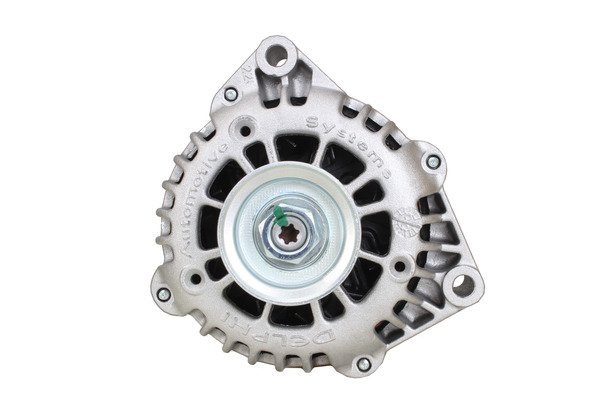

The A4288 12V 105A Alternator is a replacement charging unit from Sahibs Auto Electrics. Listed applications include selected Chevrolet Astro, Chevrolet Blazer, Chevrolet Tahoe models. Identification references include Lucas LRA04288, Bosch F042300140, Delco Remy 10462651. Its listed 12V 105A rating provides an electrical matching point for your existing unit. Check the 6-groove pulley, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your A4288 replacement alternator online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| AMP | 105 A |
| Volt | 12 V |
| No. of Grooves | 6 qty |
| Pulley Diameter | 56 mm |
| Mounting holes | 2 qty |
| Position | -60° |
| B+ | M8 |
| Insulated Return | No |
| Water cooled | No |
| Vacuum pump | No |
| Start/Stop | No |
| Weight | 5.4 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYA4288 | Dyno Electrics |
| 0986CN0627 | Bosch Exchange |
| 0986CR0627 | Bosch Exchange |
| 0986UN0627 | Bosch Exchange |
| 0986UR0627 | Bosch Exchange |
| 10462651 | Delco Remy |
| 10463651 | Delco Remy |
| 10463652 | Delco Remy |
| 10463690 | Delco Remy |
| 10463940 | Delco Remy |
| 10464070 | Delco Remy |
| 10464402 | Delco Remy |
| 10464407 | Delco Remy |
| 10480167 | Delco Remy |
| 10480168 | Delco Remy |
| 10480168Y | Delco Remy |
| 10480198 | Delco Remy |
| 10480251A | Delco Remy |
| 10480308 | Delco Remy |
| 10480342 | Delco Remy |
| 10480343 | Delco Remy |
| 10480388 | Delco Remy |
| 111712 | HC-Cargo |
| 112870 | HC-Cargo |
| 1199521DR1 | WAI |
| 22006 | Delco Remy |
| 3211107 | Delco Remy |
| 3211108 | Delco Remy |
| 3211438 | AC Delco |
| 3211751 | General Motors |
| 3342471 | AC Delco |
| 8104636510 | Isuzu |
| 8206N | WAI |
| 8206R | WAI |
| 82275R | WAI |
| 8227N | WAI |
| 8227R | WAI |
| 8242N | WAI |
| 835511105 | PSH |
| 90014245 | Wilson |
| 90014246 | Wilson |
| 90014246N | Wilson |
| 91516 | Delco Remy |
| A1448 | Dixie |
| A1484 | Dixie |
| AL8706N | Bosch (USA) |
| AL8706X | Bosch (USA) |
| AL8710X | Bosch (USA) |
| ALT1402 | Wood Auto |
| ALT1423 | Unipoint |
| ALT40079 | Wood Auto |
| ALT40173 | Wood Auto |
| DRZ0196 | Delco Remy |
| F032111712 | HC-Cargo |
| F042300140 | Bosch |
| HUA1538IR | HC-Parts |
| LRA01781 | Lucas |
| LRA02835 | Lucas |
| LRA04288 | Lucas |
| LRA1781 | Lucas |
| LRA2835 | Lucas |
| LRA4288 | Lucas |
| RM1024 | Delphi |
| RNL10480167 | RNL |
| RNL10480168 | RNL |
| UA1538IR | HC-Parts |
| WOOALT1402 | Wood Auto |
| WOOALT40079 | Wood Auto |
| WOOALT40173 | Wood Auto |
| WURT5B801681 | Würtemberg |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| CHEVROLET | Astro | 4.3 (4300ccm) Petrol | LB4/LU3 | AWD Standard Cargo Van | 5 | 2001 - 2005 | |
| CHEVROLET | Blazer | 4.3 (4300ccm) Petrol | L35(262CUL6)/LB4 | AWD | CT | 2001 - 2004 | |
| CHEVROLET | Tahoe | 5.3 (5328ccm) Petrol | LM7 | AWD | CK | 2000 - 2003 |
Description
A4288 Replacement Alternator
Choose a replacement by comparing the A4288 alternator and its Lucas reference, LRA04288, with your existing unit. The listed electrical rating is 12V 105A. An alternator maintains battery charge and supplies electrical power while the engine runs. Applications include selected Chevrolet Astro 4.3 Petrol variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 105A output: compare the listed rating with the original alternator.
- 6-groove pulley: check belt profile and alignment against the existing unit.
- 2 mounting holes: compare the fixing pattern and unit position.
- M8 B+ terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Chevrolet Astro 4.3 Petrol – selected applications 2001–2005 (engine code LB4/LU3).
- Chevrolet Blazer 4.3 Petrol – selected applications 2001–2004 (engine code L35(262CUL6)/LB4).
- Chevrolet Tahoe 5.3 Petrol – selected applications 2000–2003 (engine code LM7).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with A4288. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
0986CN0627, 0986CR0627, 0986UN0627, 0986UR0627, F042300140, LRA04288, LRA01781, LRA02835, LRA1781, LRA2835, LRA4288, 10462651, 10463651, 10463652, 10463690, 10463940, 10464070, 10464402, 10464407, 10480167, 10480168, 10480168Y, 10480198, 10480251A, 10480308, 10480342, 10480343, 10480388, 22006, 3211107, 3211108, 91516, DRZ0196
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Alternator?
Charging warning lights, repeated loss of battery charge, dim or fluctuating lights and inconsistent electrical operation can indicate a charging-system problem. Battery condition, wiring and the drive belt can produce similar symptoms; arrange a diagnostic check before replacing the alternator.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying A4288 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will A4288 fit my Chevrolet Astro?
Chevrolet Astro 4.3 Petrol (2001–2005) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does A4288 replace Lucas LRA04288?
Lucas LRA04288 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for A4288?
The listed details include 12V, 105A output, 6 pulley grooves. Compare the complete specifications on this page with the unit being replaced.
Is A4288 new or remanufactured?
Check the current product condition selection for A4288. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering A4288?
Compare 12V compatibility, 105A output, pulley configuration, mounting points and electrical connections with the original alternator.
Does a battery warning light prove the alternator has failed?
No. Battery, belt, wiring and control faults can also affect charging. Use a charging-system test to establish the cause before ordering a replacement.
