A4340 12V 100A Alternator Fits Toyota Ractis, Toyota Verso S
Price range: £144.08 through £192.85
Identify a replacement alternator using Sahibs A4340, listed at 12V 100A. Listed applications include selected Toyota Ractis, Toyota Verso S, Toyota Yaris models. Identification references include Lucas LRA04340, Bosch 1986A00637, Denso 1042101340. Its listed 12V 100A rating provides an electrical matching point for your existing unit. Check the 4-groove pulley, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your A4340 replacement alternator online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| AMP | 100 A |
| Volt | 12 V |
| No. of Grooves | 4 qty |
| Pulley Diameter | 63 mm |
| Mounting holes | 3 qty |
| B+ | M6 |
| Insulated Return | No |
| Water cooled | No |
| Vacuum pump | No |
| Start/Stop | No |
| Weight | 6.1 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYA4340 | Dyno Electrics |
| 63377572010 | Magneti Marelli |
| 986085080 | Bosch Exchange |
| 1042101340 | Denso |
| 1042101350 | Denso |
| 1042101351 | Denso |
| 1042103020 | Denso |
| 1042113020 | Denso |
| 1042113021 | Denso |
| 1042113022 | Denso |
| 1042113090 | Denso |
| 1042113340 | Denso |
| 1042113341 | Denso |
| 116219 | HC-Cargo |
| 195975100 | PSH |
| 1986A00637 | Bosch |
| 20201116 | AES |
| 20947N | WAI |
| 20947OS | WAI |
| 270600Y130 | Toyota |
| 270600Y160 | Toyota |
| 2706047130 | Toyota |
| 2706047150 | Toyota |
| 2706047260 | Toyota |
| 63377572 | Magneti Marelli |
| ALT30695 | Wood Auto |
| DAN1093 | Denso |
| DENDAN1093 | Wood Auto |
| DRA1094 | Delco Remy |
| DRA1118 | Delco Remy |
| F032116219 | HC-Cargo |
| LRA03819 | Lucas |
| LRA04340 | Lucas |
| LRA3819 | Lucas |
| LRA4340 | Lucas |
| MAN7572 | Magneti Marelli |
| RNL1042113021 | RNL |
| WOOALT30695 | Wood Auto |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| TOYOTA | Ractis | 1.3 (1329ccm) Petrol | 1NRFE | NSP120 | 2010 - 2012 | ||
| TOYOTA | Verso S | 1.3 (1329ccm) Petrol | 1NRFE | NSP120 | 2010 - 2012 | ||
| TOYOTA | Yaris | 1.3 (1329ccm) Petrol | 1NRFE | NSP130 | 2011 - 2017 | ||
| TOYOTA | Yaris | 1.3 (1329ccm) Petrol | 1NRFE | NSP130 | 2012 - 2017 |
Description

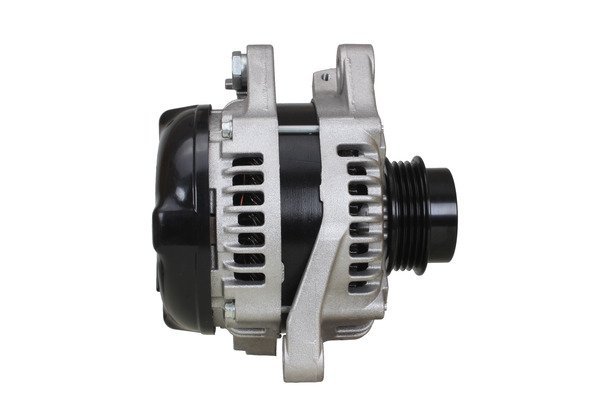

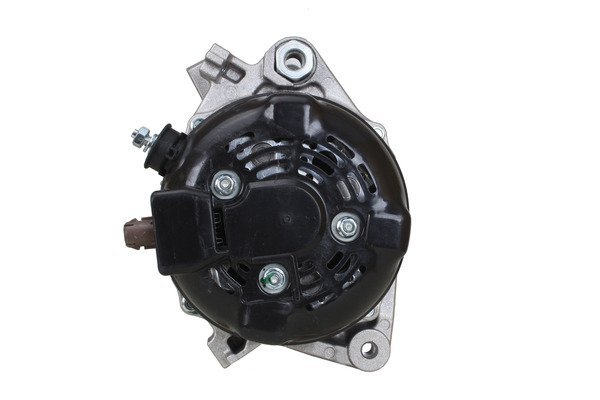

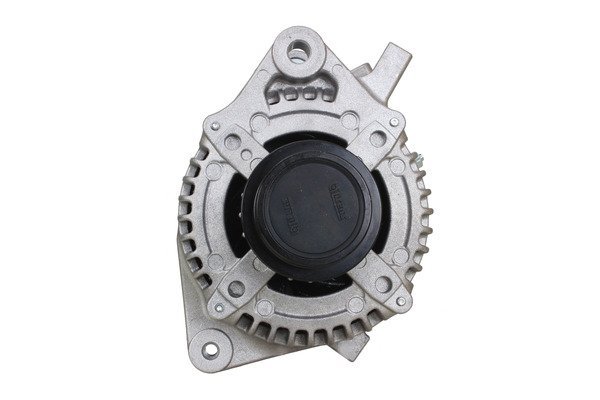

A4340 Replacement Alternator
The A4340 alternator is a replacement unit identified by Lucas reference LRA04340. The listed electrical rating is 12V 100A. An alternator maintains battery charge and supplies electrical power while the engine runs. Applications include selected Toyota Ractis 1.3 Petrol variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 100A output: compare the listed rating with the original alternator.
- 4-groove pulley: check belt profile and alignment against the existing unit.
- 3 mounting holes: compare the fixing pattern and unit position.
- M6 B+ terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Toyota Ractis 1.3 Petrol – selected applications 2010–2012 (engine code 1NRFE).
- Toyota Verso S 1.3 Petrol – selected applications 2010–2012 (engine code 1NRFE).
- Toyota Yaris 1.3 Petrol – selected applications 2011–2017 (engine code 1NRFE).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with A4340. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
986085080, 1986A00637, 1042101340, 1042101350, 1042101351, 1042103020, 1042113020, 1042113021, 1042113022, 1042113090, 1042113340, 1042113341, DAN1093, LRA04340, LRA03819, LRA3819, LRA4340, DRA1094, DRA1118
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Alternator?
Charging warning lights, repeated loss of battery charge, dim or fluctuating lights and inconsistent electrical operation can indicate a charging-system problem. Battery condition, wiring and the drive belt can produce similar symptoms; arrange a diagnostic check before replacing the alternator.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying A4340 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will A4340 fit my Toyota Ractis?
Toyota Ractis 1.3 Petrol (2010–2012) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does A4340 replace Lucas LRA04340?
Lucas LRA04340 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for A4340?
The listed details include 12V, 100A output, 4 pulley grooves. Compare the complete specifications on this page with the unit being replaced.
Is A4340 new or remanufactured?
Check the current product condition selection for A4340. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering A4340?
Compare 12V compatibility, 100A output, pulley configuration, mounting points and electrical connections with the original alternator.
Does a battery warning light prove the alternator has failed?
No. Battery, belt, wiring and control faults can also affect charging. Use a charging-system test to establish the cause before ordering a replacement.
