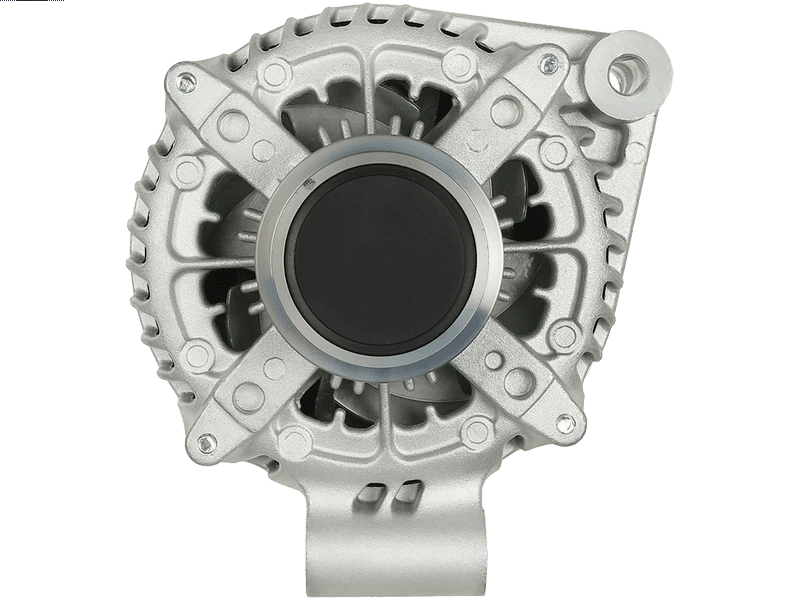

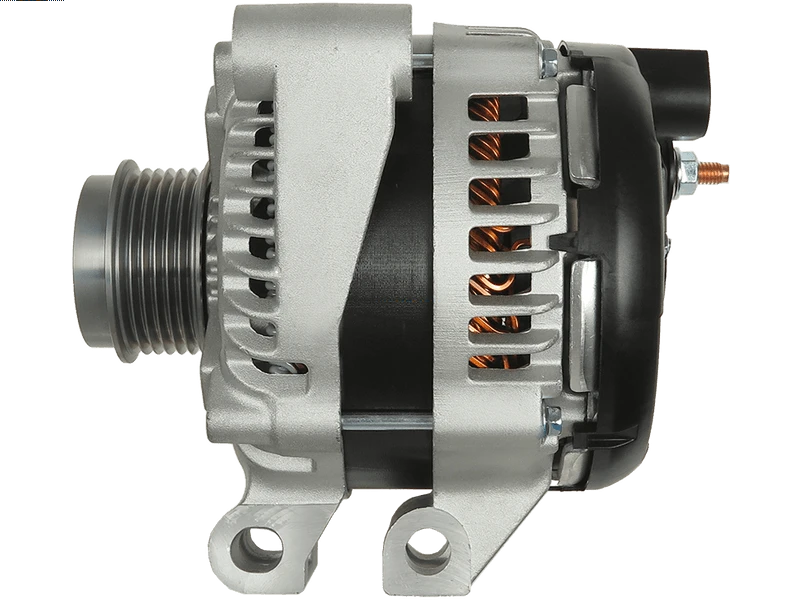

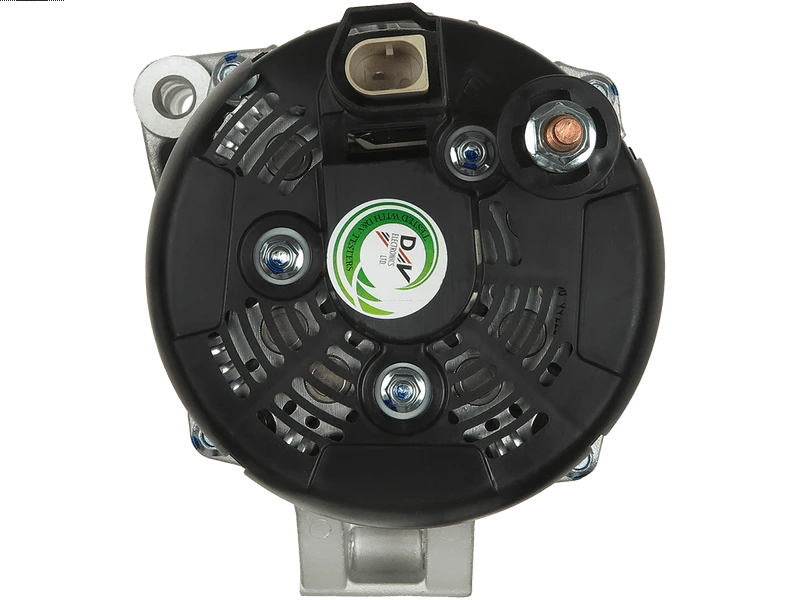

A4369 12V 180A Alternator Fits Land Rover Discovery
Price range: £150.12 through £199.86
Compare the A4369 12V 180A alternator from Sahibs Auto Electrics with the unit currently fitted. Listed applications include selected Land Rover Discovery models. Identification references include Lucas LRA04369, Denso 104211-0340, Ford GH22-10300-AB. Its listed 12V 180A rating provides an electrical matching point for your existing unit. Check the 6-groove pulley, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your A4369 replacement alternator online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| AMP | 180 A |
| Volt | 12 V |
| No. of Grooves | 6 qty |
| Pulley Diameter | 57.5 mm |
| Mounting holes | 3 qty |
| B+ | M8 |
| Insulated Return | No |
| Water cooled | No |
| Vacuum pump | No |
| Start/Stop | No |
| Weight | 7.3 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYA4369 | Dyno Electrics |
| UD100754A | AS-PL |
| 104211-0340 | DENSO |
| 104211-0341 | DENSO |
| GH22-10300-AB | FORD |
| GH22-10300-AC | FORD |
| LR070088 | LAND ROVER |
| LR077395 | LAND ROVER |
| 40682 | CEVAM |
| 28-7978 | ELSTOCK |
| 556169RIR | KUHNER |
| LRA04369 | LUCAS |
| LRA4369 | LUCAS |
| 89216791 | POWERMAX |
| 595.329.180.050 | PSH |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| LAND ROVER | Discovery | 3.0 (2993ccm) Diesel | 306DT(TDV6) | MK IV | L319 | 2009 - 2018 | |
| LAND ROVER | Discovery | 3.0 (2993ccm) Diesel | 306DT(TDV6) | MK IV | L319 | 2011 - 2017 | |
| LAND ROVER | Discovery | 3.0 (2993ccm) Diesel | 306DT(TDV6) | MK IV | L319 | 2011 - 2011 | |
| LAND ROVER | Discovery | 3.0 (2993ccm) Diesel | 306DT(TDV6) | MK IV | L319 | 2013 - 2018 |
Description
A4369 Replacement Alternator
Start your A4369 alternator comparison with the linked Lucas reference LRA04369 and the specifications shown on this page. The listed electrical rating is 12V 180A. An alternator maintains battery charge and supplies electrical power while the engine runs. Applications include selected Land Rover Discovery 3.0 Diesel variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 180A output: compare the listed rating with the original alternator.
- 6-groove pulley: check belt profile and alignment against the existing unit.
- 3 mounting holes: compare the fixing pattern and unit position.
- M8 B+ terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Land Rover Discovery 3.0 Diesel – selected applications 2009–2018 (engine code 306DT(TDV6)).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with A4369. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
104211-0340, 104211-0341, LRA04369, LRA4369, GH22-10300-AB, GH22-10300-AC
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Alternator?
Charging warning lights, repeated loss of battery charge, dim or fluctuating lights and inconsistent electrical operation can indicate a charging-system problem. Battery condition, wiring and the drive belt can produce similar symptoms; arrange a diagnostic check before replacing the alternator.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying A4369 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will A4369 fit my Land Rover Discovery?
Land Rover Discovery 3.0 Diesel (2009–2018) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does A4369 replace Lucas LRA04369?
Lucas LRA04369 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for A4369?
The listed details include 12V, 180A output, 6 pulley grooves. Compare the complete specifications on this page with the unit being replaced.
Is A4369 new or remanufactured?
Check the current product condition selection for A4369. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering A4369?
Compare 12V compatibility, 180A output, pulley configuration, mounting points and electrical connections with the original alternator.
Does a battery warning light prove the alternator has failed?
No. Battery, belt, wiring and control faults can also affect charging. Use a charging-system test to establish the cause before ordering a replacement.
