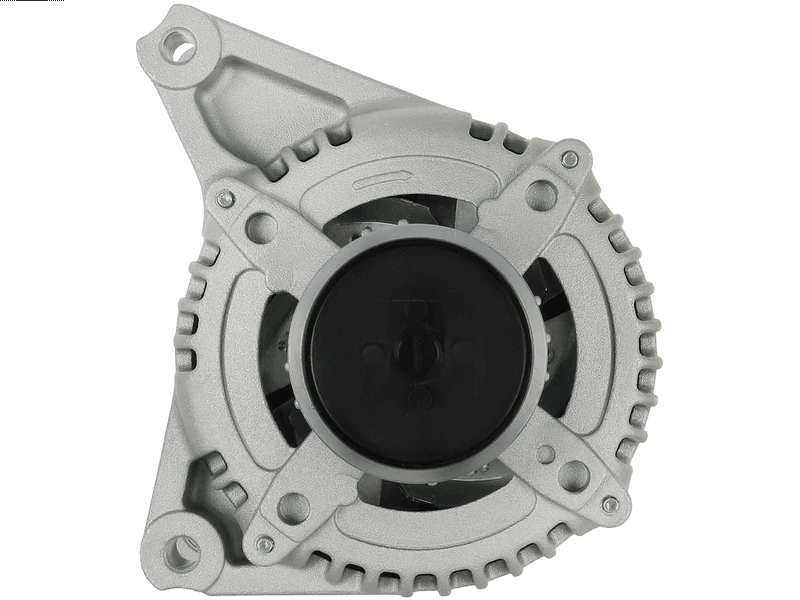

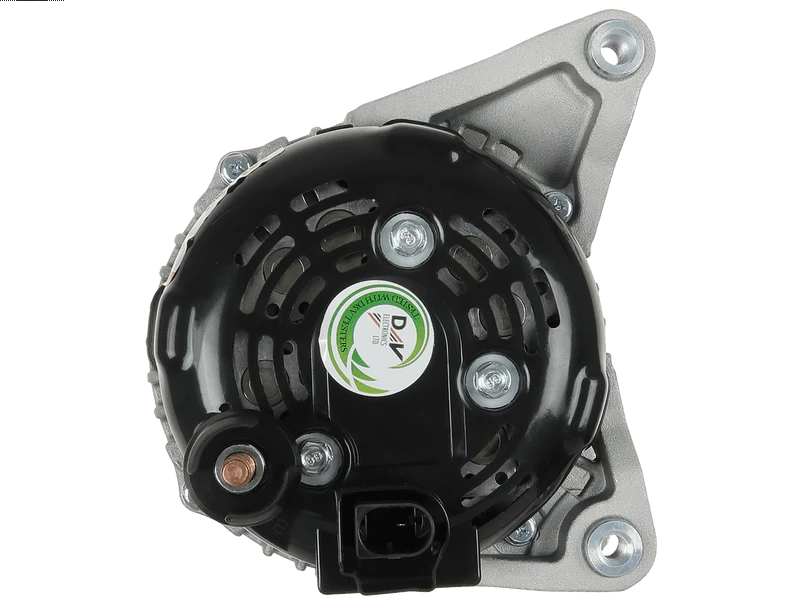

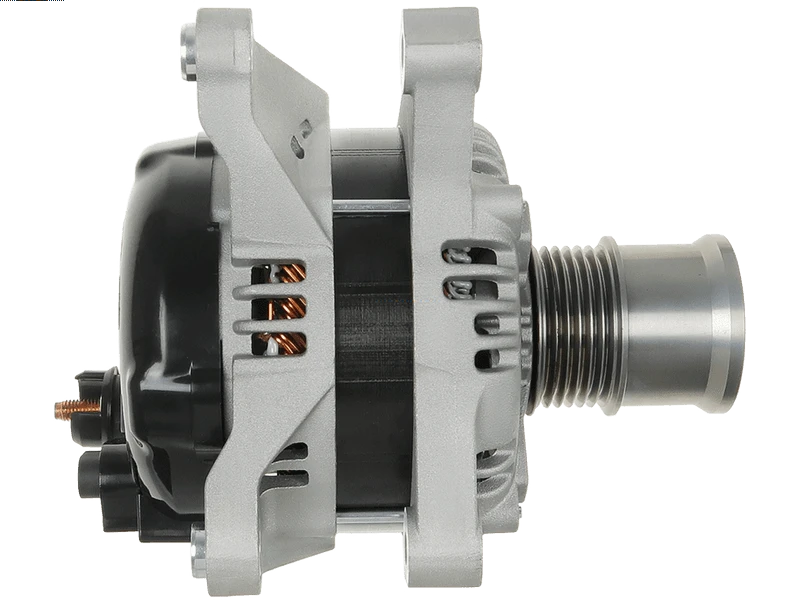

A4396 12V 150A Alternator Fits Ford C-Max, Ford Fiesta, Ford Focus
Price range: £163.79 through £215.06
Identify a replacement alternator using Sahibs A4396, listed at 12V 150A. Listed applications include selected Ford C-Max, Ford Fiesta, Ford Fiesta Van, Ford Focus models. Identification references include Lucas LRA04396, Denso 104211-0210, Ford 2198947. Its listed 12V 150A rating provides an electrical matching point for your existing unit. Check the 6-groove pulley, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your A4396 replacement alternator online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| AMP | 150 A |
| Volt | 12 V |
| No. of Grooves | 6 qty |
| Pulley Diameter | 52 mm |
| Insulated Return | No |
| Water cooled | No |
| Vacuum pump | No |
| Start/Stop | No |
| Weight | 6 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYA4396 | Dyno Electrics |
| UD101894A | AS-PL |
| 104211-0210 | DENSO |
| 104211-0212 | DENSO |
| 104211-9540 | DENSO |
| 5A1042110210 | DENSO |
| 5A1042110212 | DENSO |
| MS1042119540 | DENSO |
| 2198947 | FORD |
| 2320081 | FORD |
| JX6T-10300-FA | FORD |
| LX6T-10300-EAA | FORD |
| AC-CBA6111 | ACAUTO |
| CAL40A52GS | CASCO |
| 40698 | CEVAM |
| 2193461502 | DRI |
| 28-8505 | ELSTOCK |
| 556321RID | KUHNER |
| LRA04396 | LUCAS |
| LRA4396 | LUCAS |
| IR5425 | PROTECH |
| 595.973.150.050 | PSH |
| 2013225ABN | REAL |
| 2040A52.1 | SANDO |
| AL04269 | TMI |
| 21723N | WAI / TRANSPO |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| FORD | C-Max | 1.0 (998ccm) Petrol | M2DA/M2DC | BJ/BV | 2018 - 2019 | ||
| FORD | C-Max | 1.0 (998ccm) Petrol | M1DA/M1DD | BJ/BV | 2018 - 2019 | ||
| FORD | Fiesta | 1.0 (999ccm) Petrol | M0JA | MK VII | Active | HF/HJ | 2019 - |
| FORD | Fiesta | 1.5 (1496ccm) Petrol | YZJA | MK VII | HF/HJ | 2018 - 2019 | |
| FORD | Fiesta Van | 1.0 (999ccm) Petrol | M0JA | MK VII | H | 2019 - | |
| FORD | Focus | 1.0 (998ccm) Petrol | SFDC | MK IV | HN | 2018 - 2025 | |
| FORD | Focus | 1.0 (999ccm) Petrol | B7DA | MK IV | Active | HN | 2018 - 2025 |
| FORD | Focus | 1.0 (999ccm) Petrol | B3DA | MK IV | HN | 2018 - 2025 | |
| FORD | Focus | 1.0 (999ccm) Petrol | B7DA | MK IV | HM | 2018 - 2025 | |
| FORD | Focus | 1.0 (999ccm) Petrol | B3DA | MK IV | HM | 2018 - 2025 | |
| FORD | Focus | 1.5 (1496ccm) Petrol | Y1DA | MK IV | Active | HN | 2018 - 2025 |
| FORD | Focus | 1.5 (1496ccm) Petrol | YZDA | MK IV | HM | 2018 - 2025 | |
| FORD | Focus | 1.5 (1496ccm) Petrol | YZDA | MK IV | Active | HN | 2018 - 2025 |
| FORD | Focus Estate/Wagon | 1.0 (998ccm) Petrol | SFDC | MK IV | HP | 2018 - 2025 | |
| FORD | Focus Estate/Wagon | 1.0 (999ccm) Petrol | B7DA | MK IV | Active | HP | 2018 - 2025 |
| FORD | Focus Estate/Wagon | 1.0 (999ccm) Petrol | B3DA | MK IV | HP | 2018 - 2025 | |
| FORD | Focus Estate/Wagon | 1.5 (1496ccm) Petrol | YZDA | MK IV | Active | HP | 2018 - 2025 |
| FORD | Focus Estate/Wagon | 1.5 (1496ccm) Petrol | Y1DA | MK IV | Active | HP | 2018 - 2025 |
| FORD | Kuga | 1.5 (1496ccm) Petrol | YZDA/YZDB | III | DFK | 2019 - | |
| FORD | Kuga | 1.5 (1496ccm) Petrol | UNDA | III | DFK | 2019 - | |
| FORD | Kuga | 1.5 (1496ccm) Petrol | Y1DA | III | DFK | 2021 - | |
| FORD | Puma | 1.0 (999ccm) Bio (ethanol) petrol or Methanol | B7JG | CF7/J2K | 2021 - | ||
| FORD | Puma | 1.0 (999ccm) Petrol | B7JA/B7JB | CF7/J2K | 2019 - | ||
| FORD | Puma | 1.0 (999ccm) Petrol | M0JA | CF7/J2K | 2019 - | ||
| FORD | Puma | 1.5 (1496ccm) Petrol | YZJA | CF7/J2K | 2020 - | ||
| FORD | Tourneo Connect | 1.0 (998ccm) Petrol | B3GA/M2GA/M2GB | V408 | GAD | 2018 - 2022 | |
| FORD | Transit Connect | 1.0 (998ccm) Bio (ethanol) petrol or Methanol | B3GB | V408 | GCD | 2021 - | |
| FORD | Transit Connect | 1.0 (998ccm) Petrol | B3GA/M2GA/M2GB | V408 | GCD | 2018 - |
Description
A4396 Replacement Alternator
Choose a replacement by comparing the A4396 alternator and its Lucas reference, LRA04396, with your existing unit. The listed electrical rating is 12V 150A. An alternator maintains battery charge and supplies electrical power while the engine runs. Applications include selected Ford C-Max 1.0 Petrol variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 150A output: compare the listed rating with the original alternator.
- 6-groove pulley: check belt profile and alignment against the existing unit.
- Lucas LRA04396 reference: a starting point for identifying the replacement.
Compatible Vehicles and Applications
- Ford C-Max 1.0 Petrol – selected applications 2018–2019 (engine code M2DA/M2DC).
- Ford Fiesta 1.0 Petrol – selected applications 2019 – (engine code M0JA).
- Ford Fiesta Van 1.0 Petrol – selected applications 2019 – (engine code M0JA).
- Ford Focus 1.0 Petrol – selected applications 2018–2025 (engine code SFDC).
- Ford Focus Estate/Wagon 1.0 Petrol – selected applications 2018–2025 (engine code SFDC).
- Ford Kuga 1.5 Petrol – selected applications 2019 – (engine code YZDA/YZDB).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with A4396. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
104211-0210, 104211-0212, 104211-9540, 5A1042110210, 5A1042110212, MS1042119540, LRA04396, LRA4396, 2198947, 2320081, JX6T-10300-FA, LX6T-10300-EAA
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Alternator?
Charging warning lights, repeated loss of battery charge, dim or fluctuating lights and inconsistent electrical operation can indicate a charging-system problem. Battery condition, wiring and the drive belt can produce similar symptoms; arrange a diagnostic check before replacing the alternator.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying A4396 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will A4396 fit my Ford C-Max?
Ford C-Max 1.0 Petrol (2018–2019) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does A4396 replace Lucas LRA04396?
Lucas LRA04396 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for A4396?
The listed details include 12V, 150A output, 6 pulley grooves. Compare the complete specifications on this page with the unit being replaced.
Is A4396 new or remanufactured?
Check the current product condition selection for A4396. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering A4396?
Compare 12V compatibility, 150A output, pulley configuration, mounting points and electrical connections with the original alternator.
Does a battery warning light prove the alternator has failed?
No. Battery, belt, wiring and control faults can also affect charging. Use a charging-system test to establish the cause before ordering a replacement.
