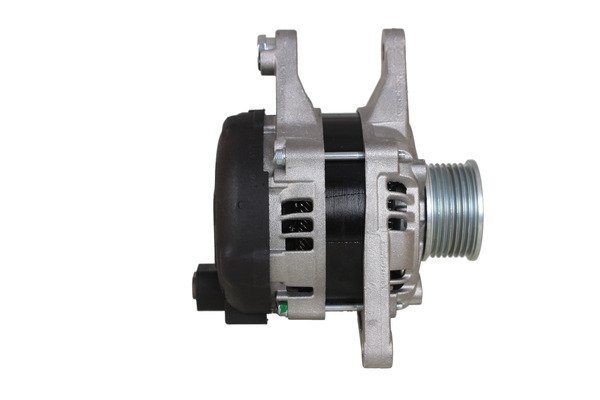

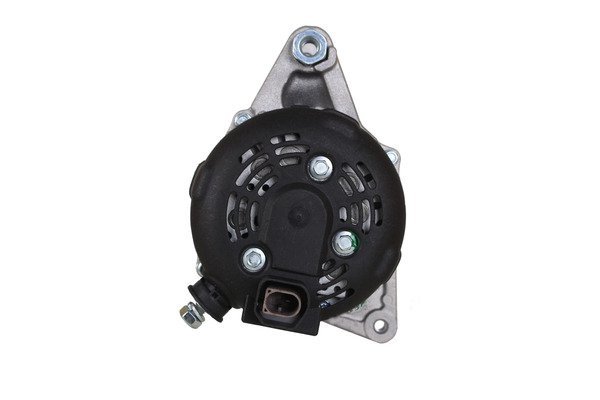

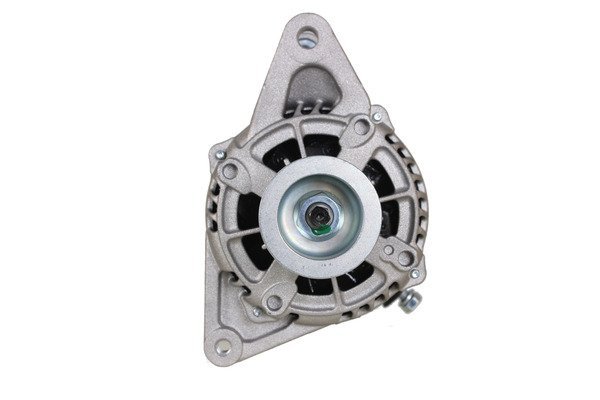

A4469 12V 130A Alternator Fits Suzuki SX4 S-Cross, Suzuki Vitara
Price range: £118.38 through £157.61
The A4469 12V 130A Alternator is a replacement charging unit from Sahibs Auto Electrics. Listed applications include selected Suzuki SX4 S-Cross, Suzuki Vitara models. Identification references include Lucas LRA04469, Denso 1042113980, Delco Remy DRA1928. Its listed 12V 130A rating provides an electrical matching point for your existing unit. Check the 5-groove pulley, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your A4469 replacement alternator online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| AMP | 130 A |
| Volt | 12 V |
| No. of Grooves | 5 qty |
| Pulley Diameter | 58 mm |
| Mounting holes | 3 qty |
| B+ | M8 |
| Insulated Return | No |
| Water cooled | No |
| Vacuum pump | No |
| Start/Stop | No |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYA4469 | Dyno Electrics |
| 1042113980 | Denso |
| 1042113981 | Denso |
| 1042114050 | Denso |
| 185540130 | PSH |
| 21735N | WAI |
| 3140060R00 | Suzuki |
| 3140060R01 | Suzuki |
| 3140060R10 | Suzuki |
| 314006R0 | Suzuki |
| DRA1928 | Delco Remy |
| LRA04469 | Lucas |
| LRA04483 | Lucas |
| LRA4469 | Lucas |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| SUZUKI | SX4 S-Cross | 1.0 (998ccm) Petrol | K10CT | AKK310 | 2016 - 2022 | ||
| SUZUKI | SX4 S-Cross | 1.0 (998ccm) Petrol | K10CT | AWD | AKK310 | 2016 - 2022 | |
| SUZUKI | Vitara | 1.0 (998ccm) Petrol | K10CT | APK310 | 2018 - | ||
| SUZUKI | Vitara | 1.0 (998ccm) Petrol | K10CT | Allgrip | APK310 | 2018 - |
Description
A4469 Replacement Alternator
For a A4469 alternator enquiry, use Lucas reference LRA04469 alongside the vehicle and original unit details. The listed electrical rating is 12V 130A. An alternator maintains battery charge and supplies electrical power while the engine runs. Applications include selected Suzuki SX4 S-Cross 1.0 Petrol variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 130A output: compare the listed rating with the original alternator.
- 5-groove pulley: check belt profile and alignment against the existing unit.
- 3 mounting holes: compare the fixing pattern and unit position.
- M8 B+ terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Suzuki SX4 S-Cross 1.0 Petrol – selected applications 2016–2022 (engine code K10CT).
- Suzuki Vitara 1.0 Petrol – selected applications 2018 – (engine code K10CT).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with A4469. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
1042113980, 1042113981, 1042114050, LRA04469, LRA04483, LRA4469, DRA1928
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Alternator?
Charging warning lights, repeated loss of battery charge, dim or fluctuating lights and inconsistent electrical operation can indicate a charging-system problem. Battery condition, wiring and the drive belt can produce similar symptoms; arrange a diagnostic check before replacing the alternator.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying A4469 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will A4469 fit my Suzuki SX4 S-Cross?
Suzuki SX4 S-Cross 1.0 Petrol (2016–2022) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does A4469 replace Lucas LRA04469?
Lucas LRA04469 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for A4469?
The listed details include 12V, 130A output, 5 pulley grooves. Compare the complete specifications on this page with the unit being replaced.
Is A4469 new or remanufactured?
Check the current product condition selection for A4469. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering A4469?
Compare 12V compatibility, 130A output, pulley configuration, mounting points and electrical connections with the original alternator.
Does a battery warning light prove the alternator has failed?
No. Battery, belt, wiring and control faults can also affect charging. Use a charging-system test to establish the cause before ordering a replacement.
