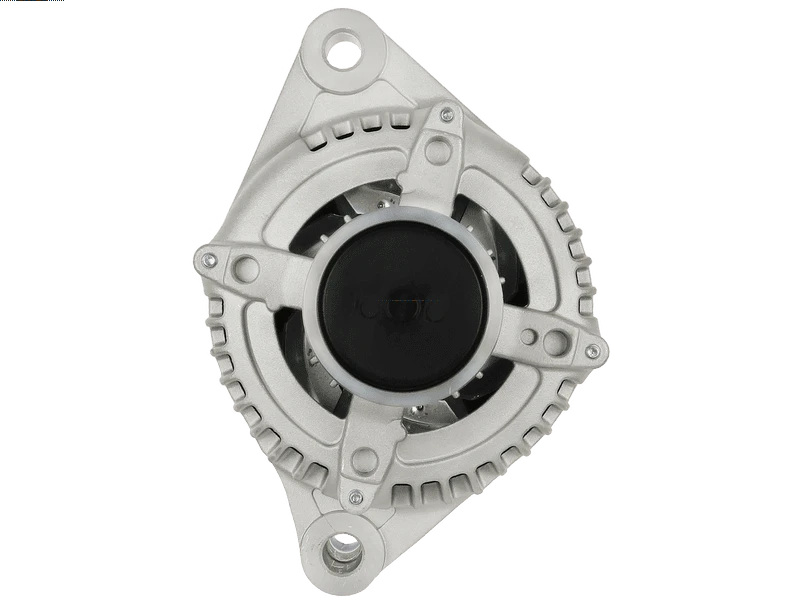

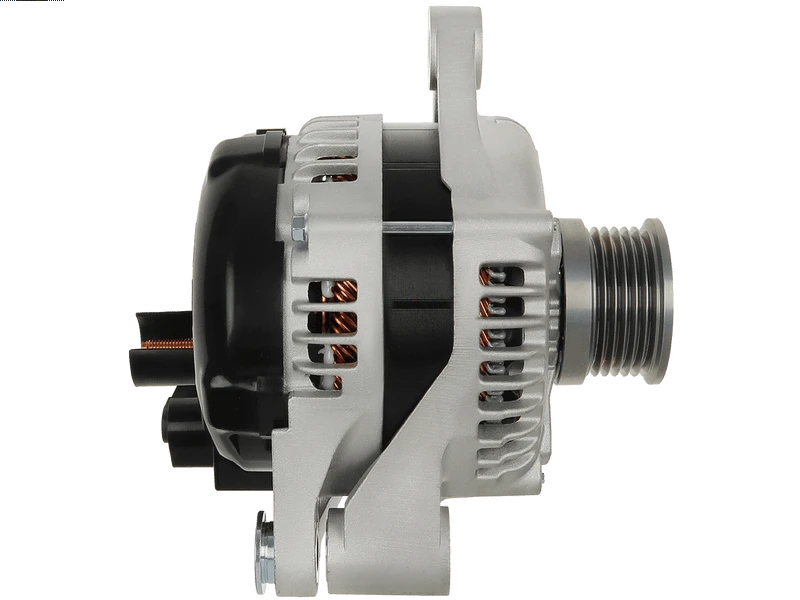

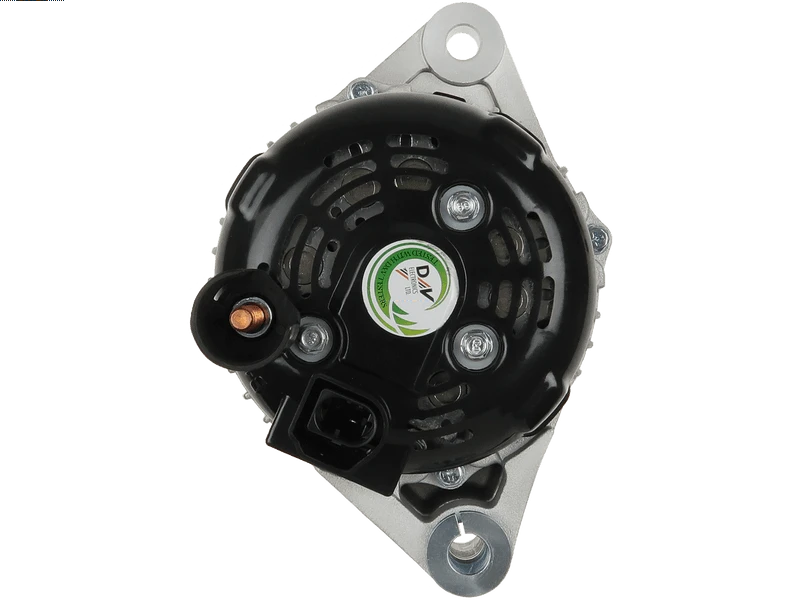

A4602 12V 150A Alternator Fits Fiat 500X, Fiat Doblo, Fiat Pratico
Price range: £133.78 through £179.06
Compare the A4602 12V 150A alternator from Sahibs Auto Electrics with the unit currently fitted. Listed applications include selected Fiat 500X, Fiat Doblo, Fiat Doblo Cargo, Fiat Pratico models. Identification references include Lucas LRA04602, Denso 104211-7050. Its listed 12V 150A rating provides an electrical matching point for your existing unit. Check the 6-groove pulley, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your A4602 replacement alternator online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| AMP | 150 A |
| Volt | 12 V |
| No. of Grooves | 6 qty |
| Pulley Diameter | 54 mm |
| Insulated Return | No |
| Water cooled | No |
| Vacuum pump | No |
| Start/Stop | No |
| Weight | 5.9 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYA4602 | Dyno Electrics |
| UD91075A | AS-PL |
| 104211-7050 | DENSO |
| 104211-7060 | DENSO |
| 52083168 | FIAT |
| 52083170 | FIAT |
| 71798256 | FIAT |
| 28-8711CT | AINDE |
| CAL40021AS | CASCO |
| CAL40021GS | CASCO |
| 40822 | CEVAM |
| 5341821502 | DRI |
| 28-8711 | ELSTOCK |
| 115715 | FARCOM |
| 20040021OV | ITAB AUTOMOTIVE |
| 555282RI | KUHNER |
| 555282RID | KUHNER |
| LRA04602 | LUCAS |
| LRA4602 | LUCAS |
| 505.942.150.050 | PSH |
| 505.942.150.260 | PSH |
| 20132120OE | REAL |
| 2040021.1 | SANDO |
| A12DE1336 | SIDAT |
| ALT420210 | SIOM |
| AL04591 | TMI |
| 21772N | WAI / TRANSPO |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| FIAT | 500X | 1.6 (1598ccm) Diesel | 55260384/55280444 | Cross | 334AXA11/334AXA1B | 2018 - | |
| FIAT | 500X | 1.6 (1598ccm) Diesel | 55260384/55280444 | Cross | 334AXA1B | 2018 - | |
| FIAT | 500X | 1.6 (1598ccm) Diesel | 46346020 | 334AXV1B | 2021 - | ||
| FIAT | 500X | 2.0 (1956ccm) Diesel | 55263088 | Cross | 334AX | 2019 - 2020 | |
| FIAT | Doblo | 1.6 (1598ccm) Diesel | 198A3000/263A8000/55280444 | 263AXD1B/263AXX1B | 2018 - 2023 | ||
| FIAT | Doblo Cargo | 1.6 (1598ccm) Diesel | 198A3000/263A8000/46346020/55280444 | 263WXD1B/263WXR1B/263WXX1B/263WYD1B/263ZXD1B/263ZXR1B/263ZXX1B/263ZYD1B | 2018 - | ||
| FIAT | Doblo Cargo | 1.6 (1598ccm) Diesel | 198A3000/263A8000/55280444 | Pick-Up/Platform | 263HXD1B/263HXR1B/263HXX1B/263YXD1B/263YXR1B/263YXX1B | 2018 - 2023 | |
| FIAT | Pratico | 1.6 (1598ccm) Diesel | 55280444/940C1000 | Pick-Up | 263HXN1B/263HXV1B | 2018 - 2023 | |
| JEEP | Renegade | 1.6 (1598ccm) Diesel | 55280444/EJK(55263113) | BU | 2019 - | ||
| JEEP | Renegade | 1.6 (1598ccm) Diesel | EJJ(55260384) | BU | 2019 - | ||
| JEEP | Renegade | 1.6 (1598ccm) Diesel | 46346020 | BV | 2020 - | ||
| JEEP | Renegade | 1.6 (1598ccm) Diesel | 46346020 | BV | 2022 - | ||
| JEEP | Renegade | 2.0 (1956ccm) Diesel | 55283099/55284064/EBT(55263087)/EBT(55263088) | B1/BU | 2019 - | ||
| JEEP | Renegade | 2.0 (1956ccm) Diesel | 55283099/EBT(55263088) | B1/BU | 2019 - | ||
| JEEP | Renegade | 2.0 (1956ccm) Diesel | EBT(55263087) | B1/BU | 2019 - |
Description
A4602 Replacement Alternator
For a A4602 alternator enquiry, use Lucas reference LRA04602 alongside the vehicle and original unit details. The listed electrical rating is 12V 150A. An alternator maintains battery charge and supplies electrical power while the engine runs. Applications include selected Fiat 500X 1.6 Diesel variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 150A output: compare the listed rating with the original alternator.
- 6-groove pulley: check belt profile and alignment against the existing unit.
- Lucas LRA04602 reference: a starting point for identifying the replacement.
Compatible Vehicles and Applications
- Fiat 500X 1.6 Diesel – selected applications 2018 – (engine code 55260384/55280444).
- Fiat Doblo 1.6 Diesel – selected applications 2018–2023 (engine code 198A3000/263A8000/55280444).
- Fiat Doblo Cargo 1.6 Diesel – selected applications 2018 – (engine code 198A3000/263A8000/46346020/55280444).
- Fiat Pratico 1.6 Diesel – selected applications 2018–2023 (engine code 55280444/940C1000).
- Jeep Renegade 1.6 Diesel – selected applications 2019 – (engine code 55280444/EJK(55263113)).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with A4602. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
104211-7050, 104211-7060, LRA04602, LRA4602
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Alternator?
Charging warning lights, repeated loss of battery charge, dim or fluctuating lights and inconsistent electrical operation can indicate a charging-system problem. Battery condition, wiring and the drive belt can produce similar symptoms; arrange a diagnostic check before replacing the alternator.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying A4602 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will A4602 fit my Fiat 500X?
Fiat 500X 1.6 Diesel (2018 -) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does A4602 replace Lucas LRA04602?
Lucas LRA04602 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for A4602?
The listed details include 12V, 150A output, 6 pulley grooves. Compare the complete specifications on this page with the unit being replaced.
Is A4602 new or remanufactured?
Check the current product condition selection for A4602. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering A4602?
Compare 12V compatibility, 150A output, pulley configuration, mounting points and electrical connections with the original alternator.
Does a battery warning light prove the alternator has failed?
No. Battery, belt, wiring and control faults can also affect charging. Use a charging-system test to establish the cause before ordering a replacement.
